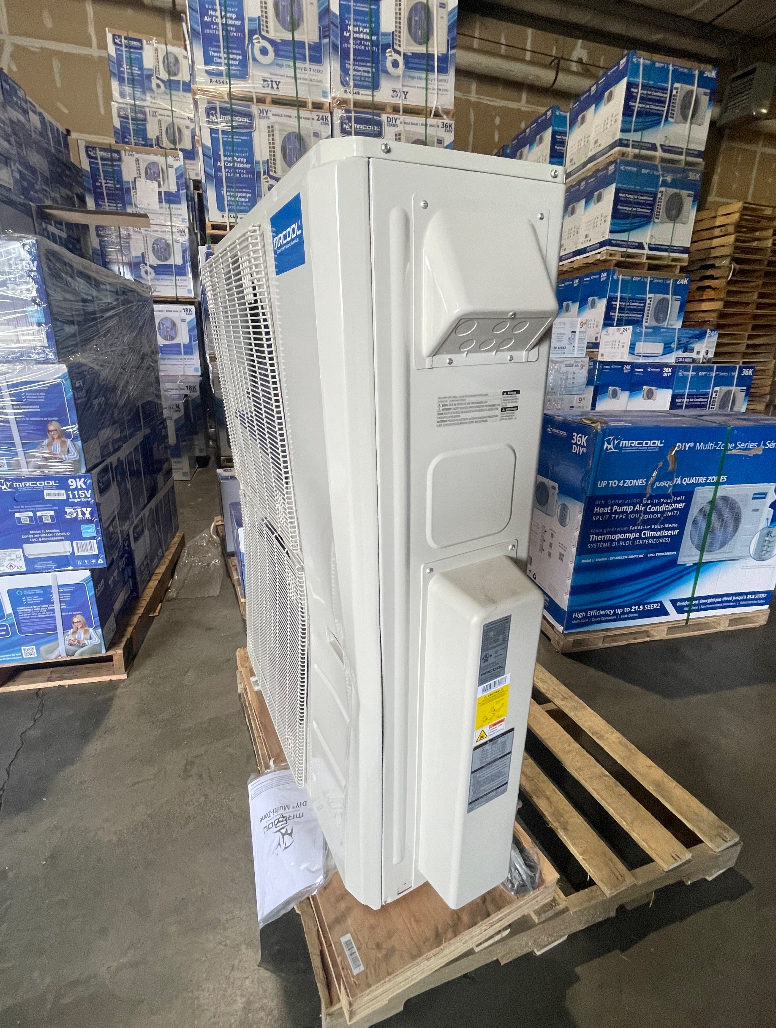

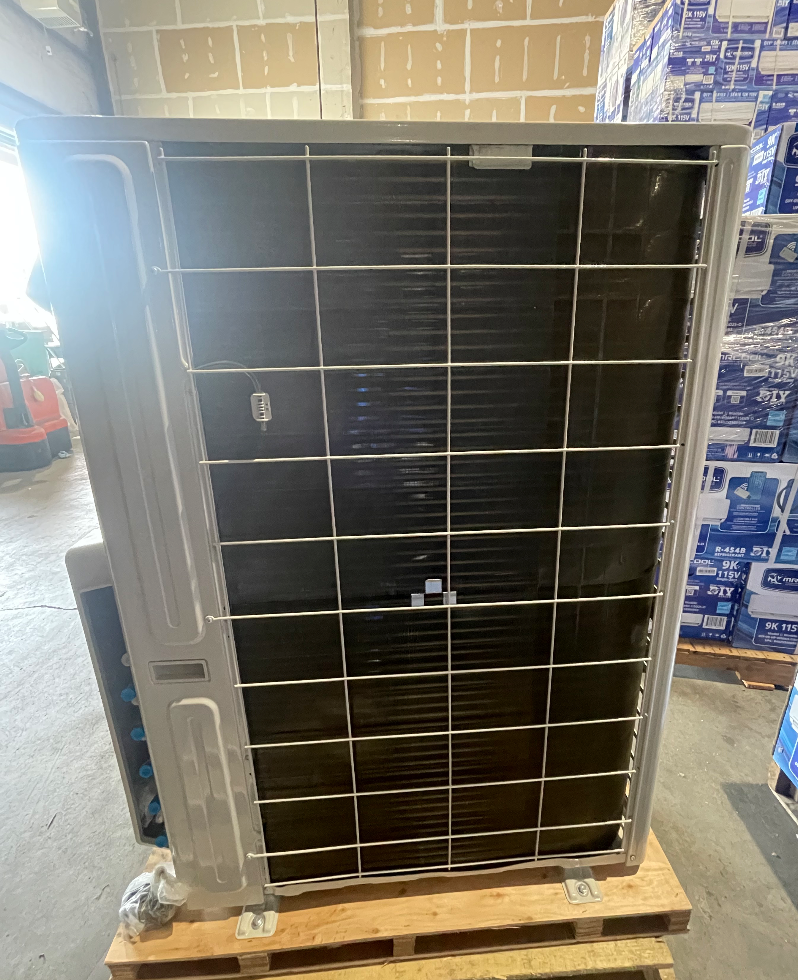

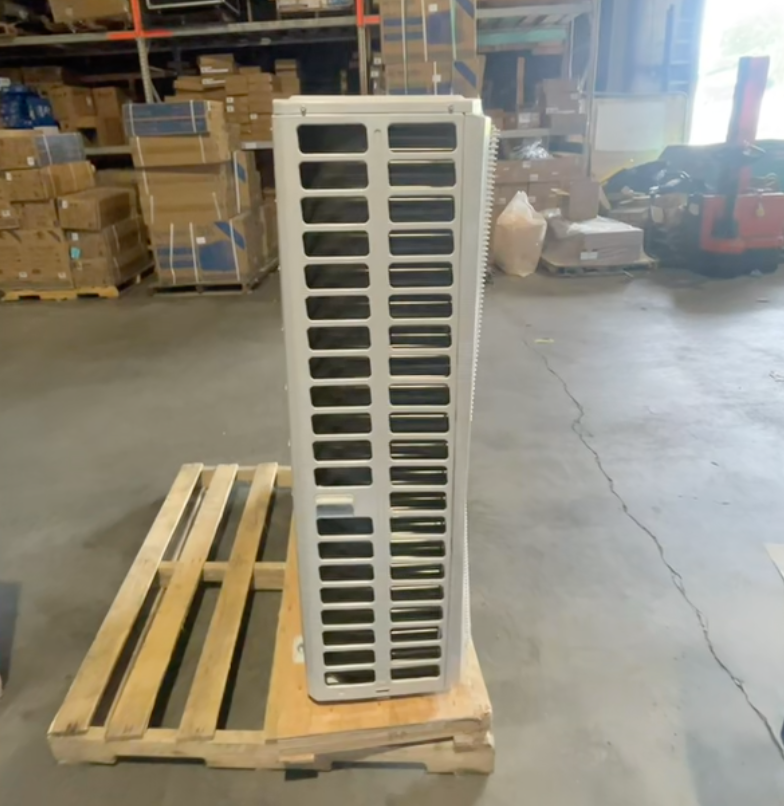

Grade A - MRCOOL 48K Multi-Zone Condenser 4th Gen  Scratch and Dent

Grade A - MRCOOL 48K Multi-Zone Condenser 4th Gen - 230V (S&D)

MRCOOLOut of Stock

$1,700.00$2,278.0025% off

Payment plans

From $141.66/mo with shop Pay View sample plans

$47.22/mo with Paytomorrow Learn More

SAVE NOW:

Amounts shown are maximums; actual savings depend on income, household size, utility, and program rules. Some programs require installation by a licensed or participating contractor and/or specific equipment efficiency ratings. Rebate data by Rewiring America. Not tax or legal advice — verify with the program before purchase. Questions? Call us at (888) 231-8920.

Currently unavailable

Optional accessories

Add common accessories before checkout.

Add coverage
Add coverage

Choose optional coverage for your order.

Protection plan

Use your system worry-free for years to come

  • Comprehensive coverage for mechanical and electrical breakdowns, including power surges
  • Repairs covered 100% for the extended term — labor included, not just parts
  • Coverage for normal wear and tear that affects how the product works
  • Replacement or reimbursement if we can’t repair it
  • $0 deductibles, ever
  • Cancel anytime on a pro-rata basis
  • US-based support and quick claims filing
2-year protection · $149Add two years of optional service contract coverage. 5-year protection · $299Add five years of optional service contract coverage.

Coverage begins after the manufacturer warranty applies, and runs alongside it for items the factory doesn’t cover. Select a plan above the Add to Cart button to include it with your order.

Backed by Chill Mini Splits · (888) 231-8920Detailed terms and conditions

Want it when it’s back?

Leave your email and we’ll let you know the moment it’s restocked.

Product overview

Grade A - MRCOOL 48K Multi-Zone Condenser 4th Gen (S&D)

Get premium quality at an unbeatable price! This scratch and dent unit offers the same great performance with minor cosmetic imperfections. Sold as-is-final sale.

Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL® DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.

Specifications:

BRAND NAME MRCOOL
SERIES DIY 4th Gen Multi-Zone
MODEL DIY-MULTI5-48HP230C
GTIN 810063869526
UPC 810063869526
UNIT TYPE Mini-Split
SHORT DESCRIPTION
MRCOOL® DIY 4th Gen Multi-Zone 5-Zone Condenser
SEER 20.5
SEER2 20.5
EER 11
EER2 11
HSPF-4 11
HSPF-5 8.5
CFM 4500
COOLING CAPACITY (BTU) 48000
HEATING CAPACITY (BTU) 48000
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 60
MIN CIRCUIT AMPACITY (A) 40
COLOR White
COLOR FAMILY White
ZONE CAPACITY Up to 5
REFRIGERANT TYPE R-410A
REFRIGERANT VOLUME (OZ) 162
DECIBEL RATING (DBA) 61.5
INVERTER Yes
MIN AMBIENT COOL (F) 5 ~ 122
MIN AMBIENT HEAT (F) 5 ~ 75.2
MAX LINESET LENGTH (FT) 221 TOTAL
LIQUID LINE SIZE 1/4 (3/8 w/ adapter)
SUCTION LINE SIZE 1/2 (5/8 w/ adapter)
COMPRESSOR MOTOR TYPE Rotary
CONDENSER FAN MOTOR RPM 900/850/800/750
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REGISTERED WARRANTY Limited Lifetime Compressor
BASE WARRANTY
5-year Parts/7-year Compressor
BASE PARTS WARRANTY 5-year Parts
REGISTERED COMPRESSOR WARRANTY Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY 7-year Compressor
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 16.34
NET HEIGHT (IN) 52.48
NET WIDTH (IN) 37.48
NET WEIGHT (LBS) 222.89
GROSS DEPTH (IN) 19.49
GROSS HEIGHT (IN) 54.33
GROSS WIDTH (IN) 43.11
GROSS WEIGHT (LBS) 254



In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.

Ask AI

Ask AI about this product

Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.

At a glance

Tech specs

Zones / rooms5 Zones
Efficiency20.5 SEER2
Power230 Volt
Mount typeDucted
InstallationDIY
BrandMRCOOL

Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
