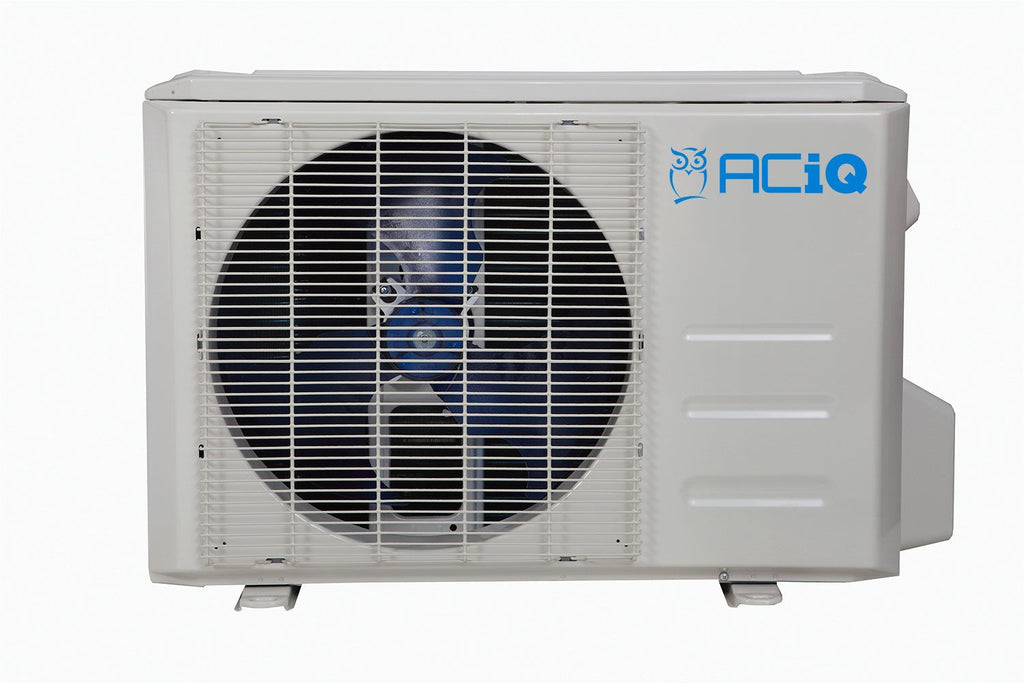

9,000 BTU ACiQ Single Zone Condenser - R454B
OVERVIEW
The ACiQ Single Zone series ACIQ-09ZS-HP230C heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACIQ-09ZS-HP230C uses as little power as possible without sacrificing comfort. That's why we say that ACiQ brings intelligence to your heating and cooling needs. NEW REFRIGERANT: R454B Model.
QUICK FACTS
- Intelligent comfort at an affordable cost
- Ideal for up to a small room (depending on climate)
- 9,000 BTU, 24.6 SEER2 wall mounted mini split
- Efficient cooling from -4 F to 122 F outdoor temperatures
- Efficient heating from -4 F to 57 F outdoor temperatures
- Golden Fin full-protection coating
- Quiet operation at even the highest workloads for a truly ACiQ experience
9,000 BTU, 24.6 SEER2
At a rated capacity of 9,000 BTU, the output of the ACIQ-09ZS-HP230C when paired with a matching air handler can easily cover a small to medium room in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACIQ-09ZS-HP230C has an efficiency of 24.6 SEER2. With such a high system SEER2 rating, the system can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.
Warranty
The warranty on the ACIQ-09ZS-HP230C is a 5 year parts and 7 year limited compressor warranty. With online registration and an installation following your state and local installation codes, the limited compressor warranty will increase to 12 years.
Durability and Reliability
ACiQ condenser coils are covered in a durable Gold Fin protective coating, providing enhanced resistance to corrosion even in harsh climates. Extended performance is a given with the ACIQ-09ZS-HP230C with continued operation at outdoor temperatures down to -4°F.
Installation and Maintenance
ACiQ single zone condensers are pre-charged for up to 25' of line set. To provide low-maintenance operation, the ACiQ-12Z-HP230 is equipped with a self-cleaning function, allowing it to use airflow to clean the air handler's heat exchanger and other components when enabled. Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually in addition.
9,000 BTU ACiQ Single Zone Air Handler - R454B
Enhanced Comfort
ACiQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACIQ-09WS-HP230C single zone air handler can handle smaller spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night. NEW REFRIGERANT: R454B Model.
- Able to cover up to a small room in ideal conditions
- 9,000 BTU wall-mounted air handler with remote
- Intelligent comfort at an affordable cost
Intelligent Heating and Cooling
The ACIQ-09WS-HP230C air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.
WiFi Options
This unit does not have integrated WiFi compatibility, but the Cielo Breeze WiFi thermostat, found under Accessories is a universal 3rd party product that makes your system compatible with the free Cielo Home app, as well as popular smart home control systems such as Google Home and Alexa. Upgrading to the Breez gives you internet-based control over the unit from anywhere in the world. Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. You will need a separate Cielo Breeze thermostat for each air handler that you wish to control wirelessly.
