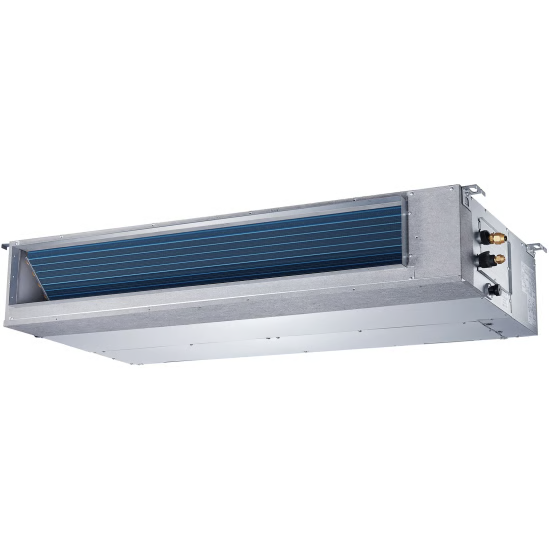

ACiQ 36,000 BTU Concealed Duct Mini Split Air Handler (R454B) - ACIQ-36CD-HH-MC
Summary
The ACiQ 36,000 BTU Concealed Duct air handler provides all the benefits of ductless mini-split technology without visible indoor units. This innovative system hides completely above ceilings, below floors, or in closets, delivering conditioned air through discreet registers. Perfect for new construction or renovations where a clean aesthetic is desired.
This 3-ton system delivers powerful, quiet performance (max 49.5 dB) with 36,000 BTU cooling and 42,000 BTU heating capacity. The included wall-mounted thermostat provides convenient control, while the factory-installed condensate pump simplifies installation. Environmentally friendly R454B refrigerant ensures efficient operation.
Key Features:
- Completely Concealed Installation: No visible indoor units
- Flexible Ducting Options: Up to 4 duct runs possible
- High Capacity: 36,000 BTU cooling / 42,000 BTU heating
- Ultra-Quiet Operation: Maximum 49.5 dB(A) noise level
- Factory-Installed Condensate Pump: Simplified drainage
- Included Wall Thermostat: Easy temperature control
- R454B Refrigerant: Next-generation, environmentally friendly
- Dry & Fan Modes: Dehumidification and air circulation options
Important
Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. Installation materials (ducting, registers, line sets, control wire, etc.) not included but available separately. This system uses R454B refrigerant.
Technical Specifications
| Category | Specification | Unit | Value |
|---|---|---|---|
| Power Supply | Rated | V, Ph, Hz | 208/230, 1, 60 |
| Capacity | Cooling | Btu/h | 36,000 |
| Heating | Btu/h | 42,000 | |
| Air Flow | Maximum | CFM | 1,081.76 |
| Noise Level | Maximum | dB(A) | 49.5 |
| Refrigerant | Type | R454B | |
| Connections | Liquid Line / Gas Line | inch | 3/8" / 5/8" |
| Dimensions | Unit (H×W×D) | inch | 9.80×53.54×30.47 |
| Net Weight | lbs | 59 | |
| Electrical | Phase | Single | |
| Included Accessories | Wall thermostat, installation kit | ||
Warranty
- 12 year compressor limited warranty (with online registration)
- 7 year parts limited warranty (with online registration and professional installation)
Installation Considerations
- Ideal for new construction or major renovations
- Requires space for concealed mounting (9.8" height minimum)
- Flexible ducting (not included) required to registers
- Factory-installed pump provides condensation lift - PVC drainage required beyond this
- 3/8" liquid line and 5/8" suction line connections
- Supports up to 4 duct runs for zone distribution
- Professional installation required for warranty validation
- Wall-mounted thermostat included for control
Performance Features
- Squirrel cage fan for quiet, efficient airflow
- Auto-restart after power failure
- Sleep mode for quiet nighttime operation
- Self-diagnosis system with error codes
- 24-hour timer function
- Multiple fan speeds
- Intelligent defrost cycle
- Dry mode for dehumidification
- Fan-only mode for air circulation
Manuals & Downloads
- Installation & Owner's Manual (PDF)
- Remote Controller Manual (PDF)
- Submittal Data (PDF)
Safety Information
PROPOSITION 65 WARNING: This product can expose you to chemicals including lead and copper, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
