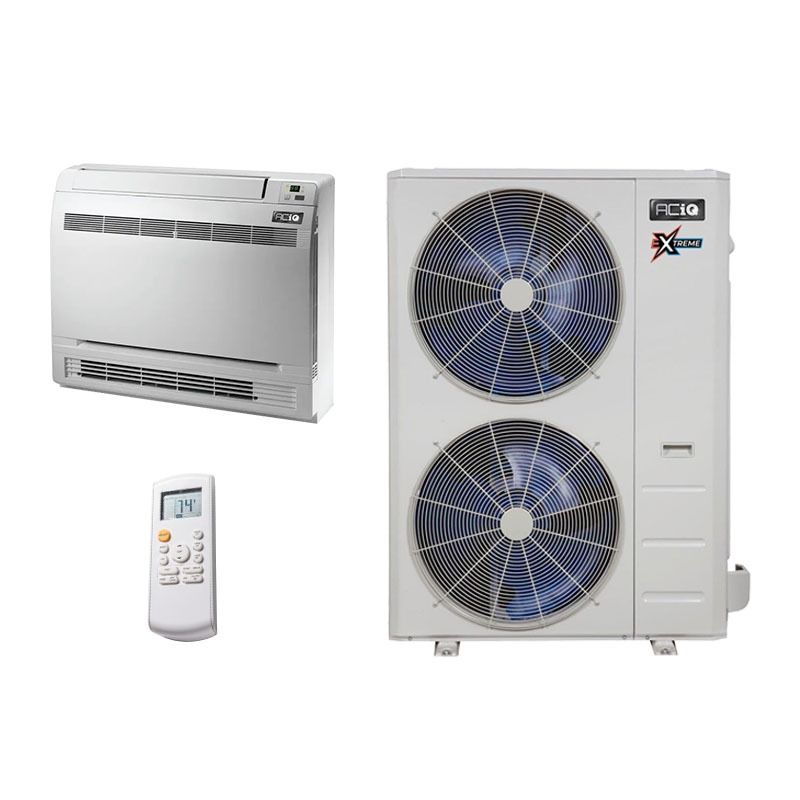

Overview
The ACiQ Extreme series showcases hyper heat technology, providing continuous heating capabilities down to -22 degrees outside. Achieve optimal efficiency for both cooling and heating your space with its high SEER2 and high HSPF ratings.
Quick Facts
- Delivers maximum performance at an affordable cost
- Perfectly suited for spaces of approximately 1,200-1,800 square feet (varies depending on climate)
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Equipped with a gold fin condenser and full-protection coating
- Operates quietly even under heavy workloads
High capacity, high efficiency

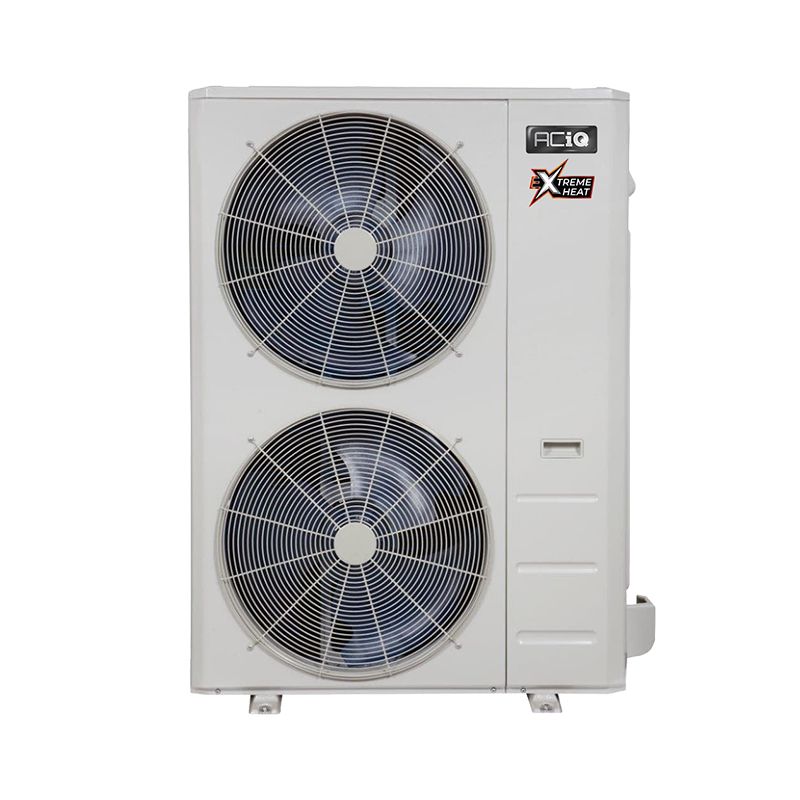

The ACIQ-36ZPL-HP230B Condenser, when matched with the a wall mounted, ceiling cassette, concealed duct, floor mount, or ducted air handler, has enough capacity for large rooms. The dual rotary compressor and variable inverter technology give this system exceptionally high efficiency ratings.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

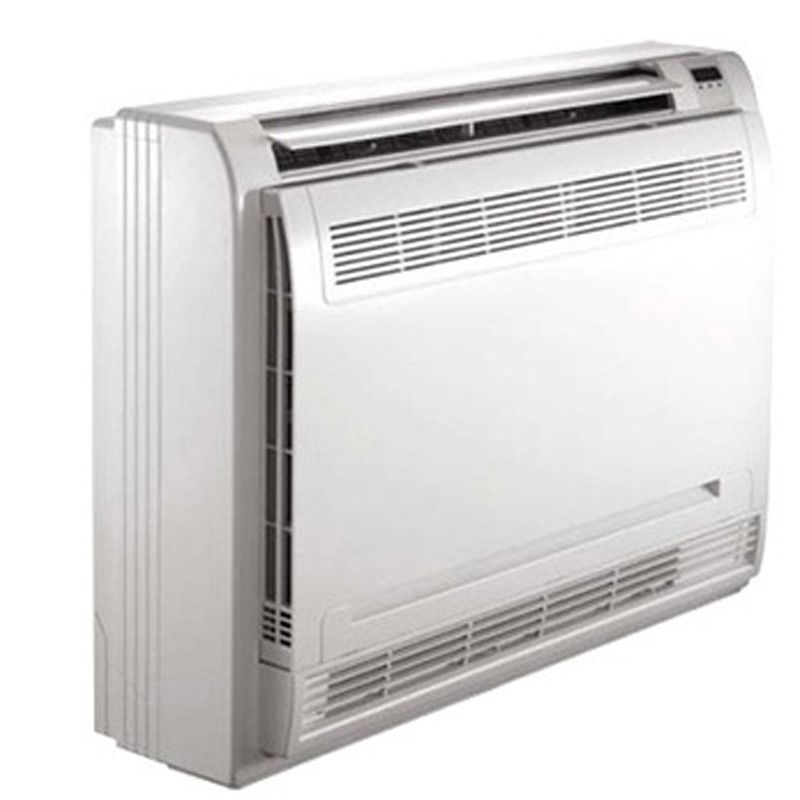

ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
Optimized for Heat
Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.
Features
- Can heat and cool up to an average-sized room in ideal conditions
- 24,000 BTU floor console air handler with remote
- Quiet and efficient operation
- Multiple settings to customize your comfort
Specifically designed to direct airflow up instead of down relative to the unit, the Carrier 40MBFQ24-3 Performance series floor console air handler is designed for applications where you need a wall mounted air handler that is mounted close to the floor instead of high up on the wall. With the 40MBFQ24-3, Carrier continues to provide a superior comfort for any space, no matter the limitations of the application.
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 1/2" x 6' Electrical Whip – SKU: 84136
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
