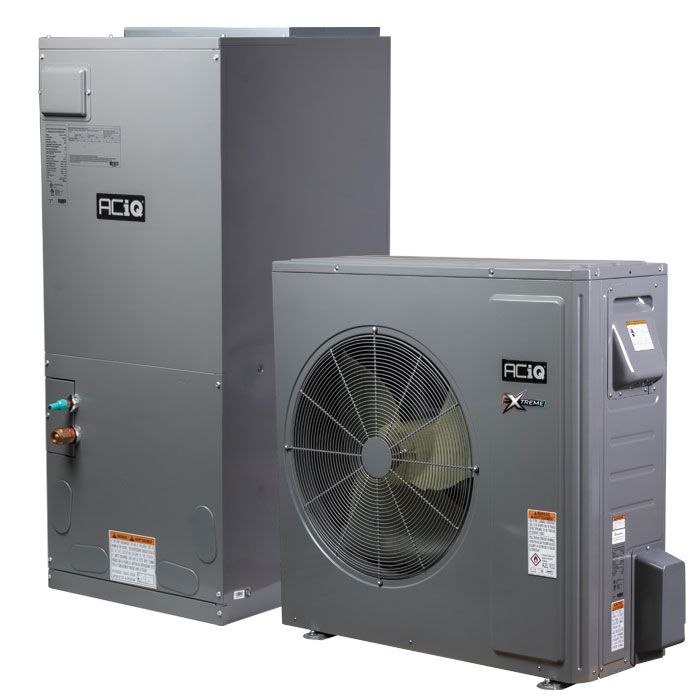

ACiQ 3 Ton 18 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series | R32
System Overview
The ACiQ-36-HP32 / ACiQ-36-AH32 system features advanced inverter technology with R32 refrigerant, delivering exceptional efficiency and performance in both heating and cooling modes. This system combines cutting-edge technology with eco-friendly operation for year-round comfort.
Key Features:
- Variable output from 18,000 BTU to 38,000 BTU based on demand
- Inverter heat pump system designed for ducted applications
- Reliable cooling performance from 5°F to 129°F outdoor temperatures
- Efficient heating operation from -22°F to 75°F outdoor temperatures
- Gold Fin condenser coil coating for enhanced durability
- Quiet operation even during demanding workloads
- Eco-friendly R32 refrigerant
Important
Professional installation by a licensed HVAC technician is required for warranty validation. Registration must be completed within 60 days of installation either online or by phone.
Advanced Technology
Learning System
The system features advanced sensors that monitor indoor and outdoor air temperature, system performance, duct pressure, and refrigerant temperature. During initial startup, it enters a learning mode to optimize future operation.
Inverter Technology
The inverter converts AC power to DC, allowing the compressor to adjust speed dynamically. This enables the system to self-adjust BTU output based on demand for optimal efficiency.
Extreme Heat Technology
Provides efficient heating even in ambient temperatures as low as -22°F, ensuring consistent comfort in harsh winter conditions.
Complete System Specifications

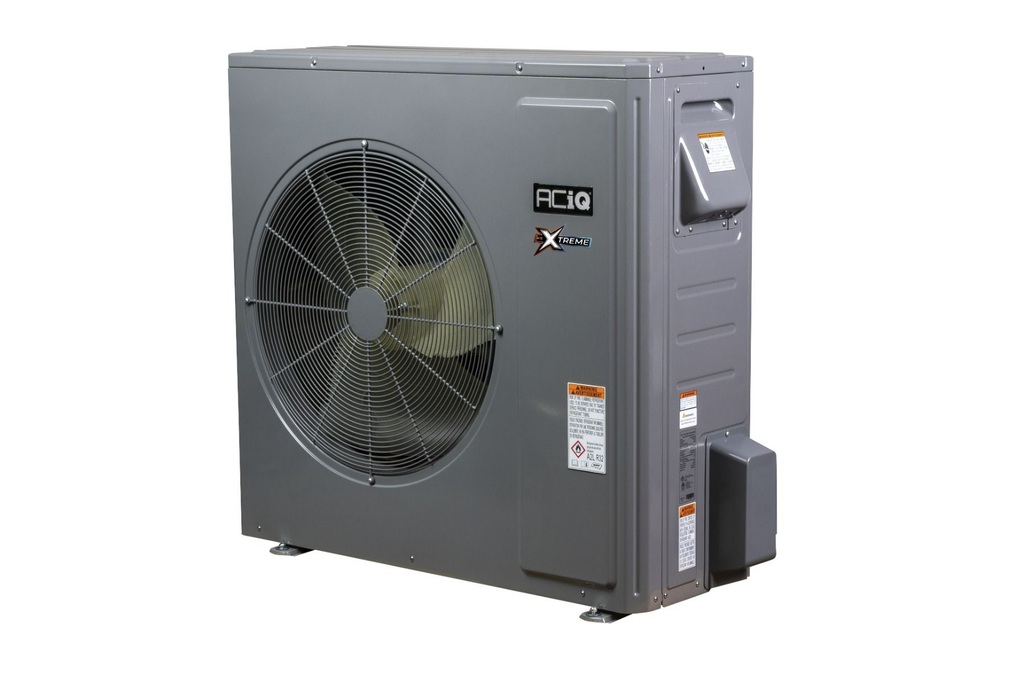

Outdoor Unit: ACiQ 3 Ton 18 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series | R32
| SKU | ACIQ-36-HP32 |
| Weight | 211.600000 lbs |
| Manufacturer | ACiQ |
| Product Features | Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser |
| HSPF2 | 10 |
| Cooling BTU | 34,000 BTU |
| Heating BTU | 34,000 BTU |
| Maximum CFM | 3,176 |
| Decibel Level (dBA) | 71 (Max) |
| Electric Heat | Heat Pump |
| Refrigerant | R32 |
| SEER2 | 18 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Min/Max Outdoor Temp for Heating | -22°F～75°F |
| Min/Max Outdoor Temp for Cooling | 5°F～129°F |
| Zone Compatibility | Single Zone |
| Dimensions (H×W×D) | 37.5" × 39" × 14.57" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources |
You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |

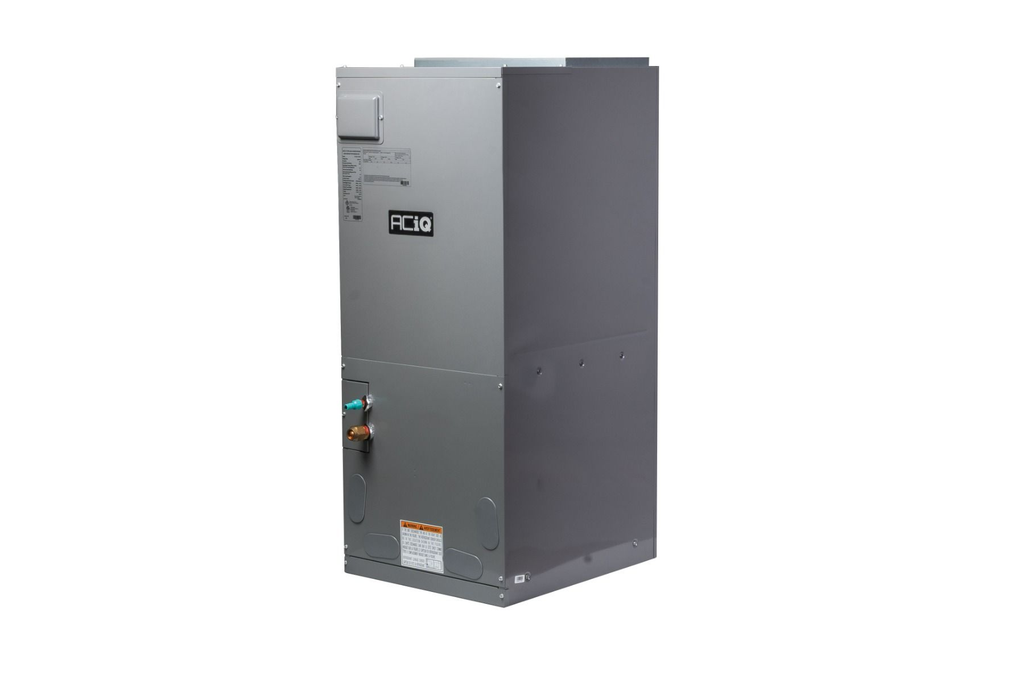

Indoor Unit: 3 Ton ACiQ Central Air Handler | R32
| SKU | ACIQ-36-AH32 |
| Weight | 178.000000 lbs |
| AHRI Certificate Number | 215387239 |
| Manufacturer | ACiQ |
| HSPF2 | 10.0 |
| Cooling BTU | 34,000 BTU |
| Heating BTU | 34,000 BTU |
| Maximum CFM | 1,000 |
| Decibel Level (dBA) | 61 (Max) |
| Electric Heat | Heat Pump |
| Refrigerant | R32 |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Tonnage Bundle | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini Split Type | Multi-Positional |
| Min/Max Outdoor Temp for Heating | 5°F~75°F |
| Min/Max Outdoor Temp for Cooling | 5°F-118°F |
| Zone Compatibility | Single Zone |
| Dimensions (H×W×D) | 48.2" × 21.25" × 21.25" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources |
You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
Installation & Maintenance
Installing the ACiQ-36-AH32 is straightforward and similar to replacing any air handler. Your technician will connect the electrical, refrigerant, and thermostat components, as well as attach the unit to your return and supply ductwork. The multi-positional design (upflow, downflow, or horizontal) makes it versatile for various setups, and it is also approved for mobile homes.
Note: To function as a heat pump, this air handler must be paired with a condenser and other installation equipment. For straight electric heating, an optional electric heater coil is required and sold separately.
Manuals & Downloads
Safety Information: PROPOSITION 65 WARNING
Performance Benefits
- Variable capacity operation eliminates temperature swings
- Precise humidity control in cooling mode
- Consistent airflow for even temperature distribution
- Quiet operation for minimal disturbance
- Energy efficient operation reduces utility costs
Ideal Applications
- Residential homes with existing ductwork
- Manufactured and mobile homes
- Climate zones with extreme temperature variations
- Homeowners seeking energy efficient solutions
- Applications requiring both heating and cooling
