Product overview

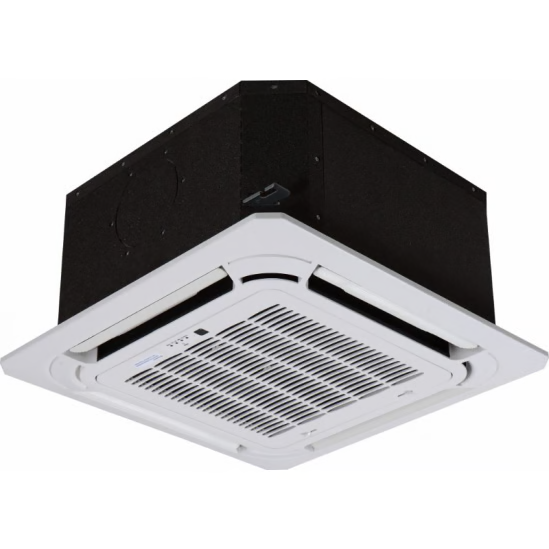

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler (R454B) - ACIQ-24CC-HH-MC
Summary
Mini Split systems are great, but what if you don't want the air handler on your wall? The ACiQ 24,000 BTU Ceiling Cassette provides a completely hidden appearance with only the decorative grille visible, offering centralized four-way air distribution for superior comfort. This high-capacity unit delivers whisper-quiet operation (as low as 33.5 dB) while maintaining 20 SEER2 efficiency.
Perfect for medium to large rooms, this ceiling-mounted solution includes a handheld remote control and optional WiFi capability. The factory-installed condensate pump and large-format design provide professional-grade performance in a discreet package.
Key Features:
- Large-Format Ceiling Cassette: 32.68" × 32.68" footprint for powerful coverage
- Four-Way Air Distribution: 360° comfort delivery
- High-Efficiency Operation: 20 SEER2 rating
- Factory-Installed Condensate Pump: 14" lift capacity
- Included Handheld Remote: Full system control
- WiFi Compatible: Optional smart control capability
- R454B Refrigerant: Next-generation, low-GWP solution
- High Airflow Capacity: 765.2 CFM maximum output
- Dry & Fan Modes: Advanced humidity control options
Important
Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. This large-format unit typically requires ceiling framing modifications. Installation materials (line sets, control wire, drain accessories) sold separately. Uses R454B refrigerant.
Technical Specifications
| Category | Specification | Unit | Value |
|---|---|---|---|
| Power Supply | Rated | V, Ph, Hz | 208/230, 1, 60 |
| Capacity | Cooling | Btu/h | 24,000 |
| Heating | Btu/h | 24,000 | |
| Efficiency | SEER2 | 20 | |
| Air Flow | Maximum | CFM | 765.2 |
| Noise Level | Minimum | dB(A) | 33.5 |
| Refrigerant | Type | R454B | |
| Connections | Liquid Line / Gas Line | inch | 3/8" / 5/8" |
| Drainage | Pump Lift Capacity | inch | 14 |
| Dimensions | Unit (H×W×D) | inch | 8.07×32.68×32.68 |
| Cutout Size | inch | 32.09×32.09 | |
| Net Weight | lbs | 59.08 | |
| Electrical | Breaker Size | A | 20 |
| Included Accessories | Handheld remote, decorative grille, installation kit | ||
Warranty
- 12 year compressor limited warranty (with online registration)
- 7 year parts limited warranty (with online registration and professional installation)
- 1 year remote control warranty
Installation Considerations
- Large-format design (32.68" × 32.68") typically requires ceiling framing modifications
- Requires minimum 8.07" ceiling cavity height
- Factory-installed pump provides 14" lift - additional PVC drainage required
- 3/8" liquid line and 5/8" suction line connections
- Recommended for medium to large rooms (800-1,000 sq/ft depending on climate)
- Central location provides optimal four-way air distribution
- Professional installation mandatory for warranty validation
- Electrical requirements: 208/230V, 20A circuit
Performance Features
- Four-way 360° air discharge pattern
- Auto-restart after power interruption
- Sleep mode with gradual temperature adjustment
- Turbo mode for rapid temperature changes
- Self-diagnostic system with error code display
- 24-hour programmable timer
- 4 adjustable fan speeds + auto mode
- Automatic louver positioning
- Intelligent defrost cycle for cold weather operation
- Dry mode for active dehumidification
- Energy-saving ECO mode
