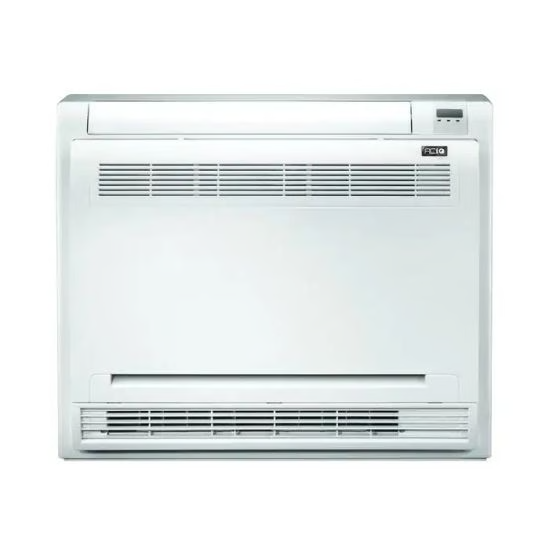

ACiQ 18,000 BTU Floor or Ceiling Mounted Mini Split Air Handler with Heat Pump, R454B Refrigerant, Multi-Zone Compatible
Summary
The ACiQ 18K BTU Floor Console air handler provides an innovative solution for challenging spaces like sun porches, attic rooms, and areas with limited wall space. This versatile unit can be mounted either floor-standing, low on the wall, or even ceiling-mounted, making it perfect for spaces below windows or rooms with angled surfaces.
Unlike traditional units, this system uses threaded rod mounting that allows the air handler to be level even when walls are not, accommodating all geometry angles. With its unique ability to work with gaps as small as one inch between ceiling and roof, it's ideal for metal buildings and three-season rooms.
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above.
What's Included
- Indoor Unit (18,000 BTU Floor Console Air Handler)
- Optional Installation Kit (must be selected separately)
- Wireless Remote Control
- Installation Manual
- Owner's Manual
- Manufacturer Warranty
Key Features
- 18,000 BTU cooling (17,000 BTU) / 19,000 BTU heating capacity
- Multiple fan speeds (Turbo/High/Medium/Low/Silent)
- Ultra-quiet operation (as low as 29 dBA in silent mode)
- Energy Star certified for efficiency
- R454B environmentally friendly refrigerant
- Adjustable mounting for unlevel surfaces
- 24-hour timer function
- Self-cleaning operation
- Auto-restart after power failure
- Optional door-open sensor compatibility
- Pre-wired for 240VAC condensate pump
Technical Specifications
| Cooling/Heating Capacity | 17,000 BTU cooling / 19,000 BTU heating |
| Maximum Air Flow | 576.8 CFM |
| Noise Level | As low as 29 dBA |
| Dimensions (W×D×H) | 42.05" × 26.57" × 9.25" |
| Refrigerant | R454B |
| Line Set Connections | 1/4" liquid, 1/2" gas |
| Electrical Requirements | 208/230V, 1 Phase, 60Hz |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Warranty | 12 year compressor, 7 year parts (with registration) |
Special Installation Features
- Threaded rod mounting system accommodates angled surfaces
- Can be installed with just 1" ceiling-to-roof gap
- Floor mounting option avoids wall modifications
- Can be elevated 2" from floor for under-window installation
- All connections can run through wall or floor
- Ideal for brick/marble surfaces where wall drilling is undesirable
Warranty
- 12 year compressor limited warranty (with registration)
- 7 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control warranty
Manuals & Downloads
Safety Information: PROPOSITION 65 WARNING
Performance Features
- Upward airflow for optimal heating in winter
- Automatic shutoff with optional door-open sensor
- Self-diagnosis system for easy troubleshooting
- Intelligent pre-heating function
- Follow-me temperature sensing
- Sleep mode for quiet nighttime operation
- Turbo mode for rapid cooling/heating
- Multiple filter options for air purification
Ideal Applications
- Sun porches with limited wall space below windows
- Attic remodels with knee-walls
- Rooms with angled or unlevel surfaces
- Metal buildings with minimal ceiling clearance
- Three-season rooms
- Spaces where wall drilling is undesirable (brick/marble surfaces)
