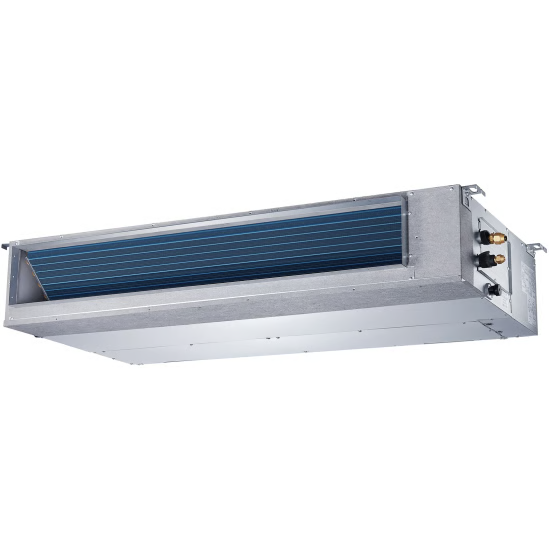

ACiQ 12,000 BTU Concealed Duct Mini Split Air Handler (R410A) - ACIQ-12CD-HH-MB
Summary
The ACiQ Concealed Duct air handler gives you all the advantages of a multi zone mini split without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling, or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location.
Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite. The design is extremely simple - return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan.
Key Features:
- Completely Concealed Installation: No visible indoor units
- Flexible Placement Options: Install above ceilings, below floors, or in closets
- Ducted Air Distribution: Up to 4 flex duct runs supported
- Quiet Operation: As low as 26.5 dB(A)
- 12,000 BTU Cooling Capacity: 1-ton capacity for medium rooms
- 12,000 BTU Heating Capacity: Hyper Heat technology
- Built-In Condensate Pump: Includes factory-installed drainage solution
- Wall-Mounted Thermostat Included: Easy temperature control
- Multiple Operating Modes: Cool, Heat, Dry, and Fan
- R410A Refrigerant: Industry standard refrigerant
Important
Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. Installation requires additional ductwork parts (flex duct, registers, plenums) not included. This system uses R410A refrigerant.
What's Included
- Concealed Duct Air Handler: ACIQ-12CD-HH-MB
- Wall-Mounted Thermostat
- Installation Manual
- User's Manual
- Remote Controller
- Manufacturer Warranty
Technical Specifications
| Category | Specification | Unit | Value |
|---|---|---|---|
| Power Supply | Rated | V, Ph, Hz | 208/230, 1, 60 |
| Capacity | Cooling | Btu/h | 12,000 |
| Heating | Btu/h | 12,000 | |
| Air Flow | Maximum | CFM | 352.94 |
| Noise Level | Min | dB(A) | 26.5 |
| Refrigerant | Type | R410A | |
| Connections | Liquid Line / Gas Line | inch | 1/4" / 1/2" |
| Drainage | Pump Included | Yes | |
| Dimensions | Unit (H×W×D) | inch | 7.87×27.56×19.92 |
| Net Weight | lbs | 48.50 | |
| Breaker Requirements | Size | A | 15 |
| Electrical | Phase | Single | |
| System Type | Configuration | Concealed Duct | |
| Zone Compatibility | Type | Multi Zone |
Warranty
- 12 year compressor limited warranty (with online registration)
- 7 year parts limited warranty (with online registration and professional installation)
- 1 year thermostat/remote warranty
Installation Considerations
- Requires professional installation with ductwork parts
- Ideal for new construction or major renovations
- Flexible placement options (ceilings, floors, closets, soffits)
- Supports up to 4 flex duct runs for air distribution
- PVC drain system required beyond built-in pump
- 1/4" liquid line and 1/2" suction line connections
- 15A circuit breaker required
- Ductboard or plenum fabrication needed for installation
Performance Features
- Multiple operating modes: Cool, Heat, Dry, Fan
- Auto-restart after power failure
- Precise temperature control
- Energy efficient operation
- Self-diagnosis system with error codes
- 24-hour timer function
- Quiet comfort operation
Manuals & Downloads
- Submittal (PDF)
- Installation Manual (PDF)
- Remote Controller Manual (PDF)
- Brochure (PDF)
- Warranty Information
Safety Information
PROPOSITION 65 WARNING: This product can expose you to chemicals including lead and copper, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
