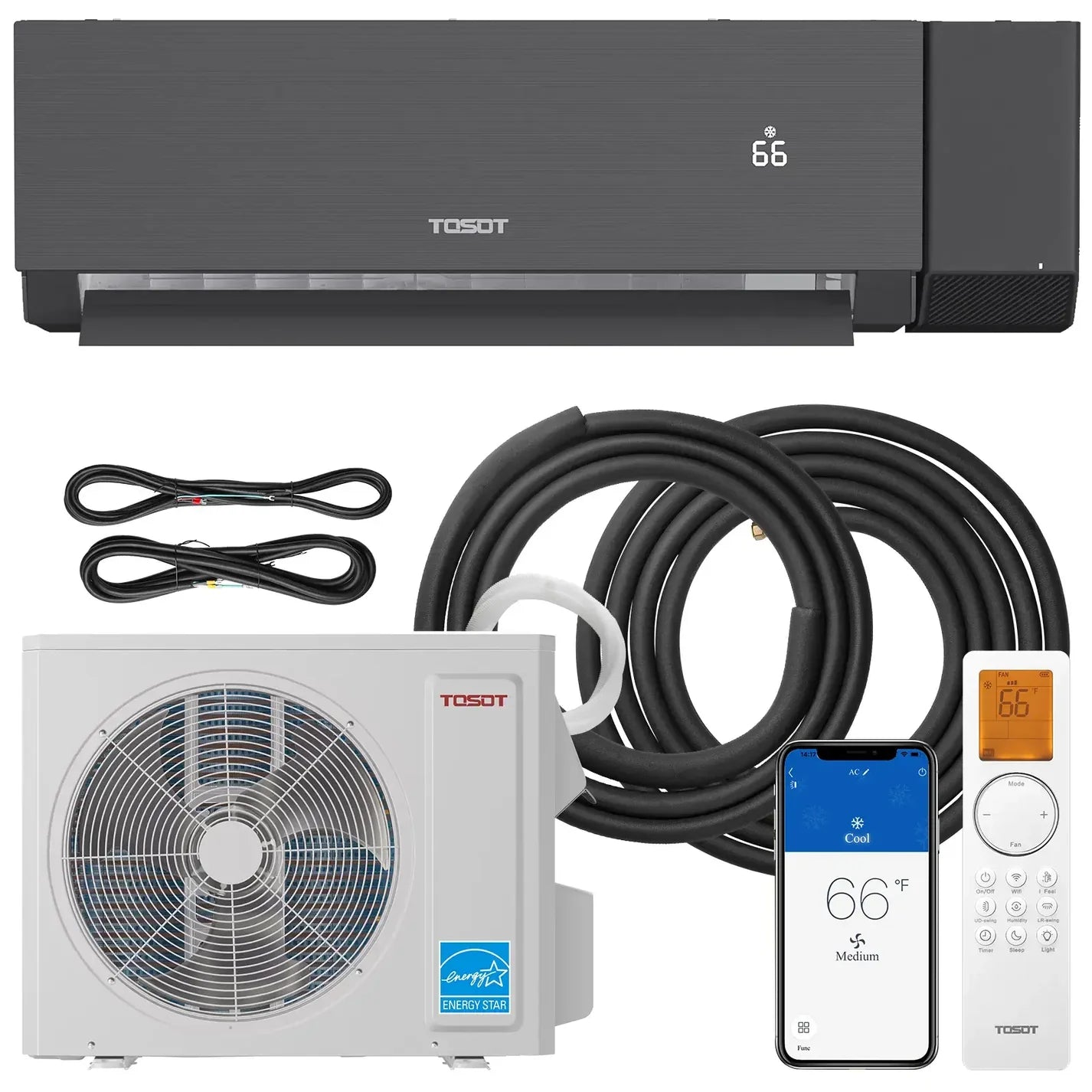

TOSOT Aoraki 24,000 BTU 23.5 SEER2 Heat Pump Mini Split AC w/ERV System - 230V
The TOSOT Aoraki Series mini split air conditioner offers energy-efficient cooling and heating with a SEER2 rating up to 23.5. Certified by Energy Star and AHRI, it qualifies for tax credits. Compared to a 16 SEER system, it can lower your energy bills by up to 36%.

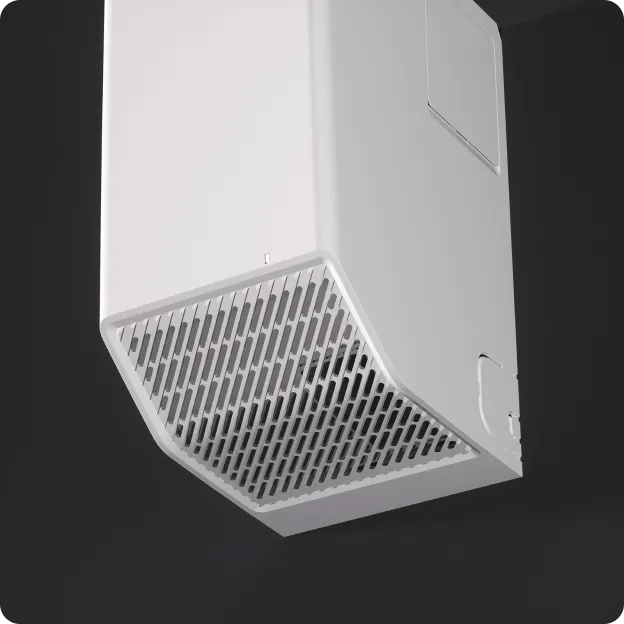

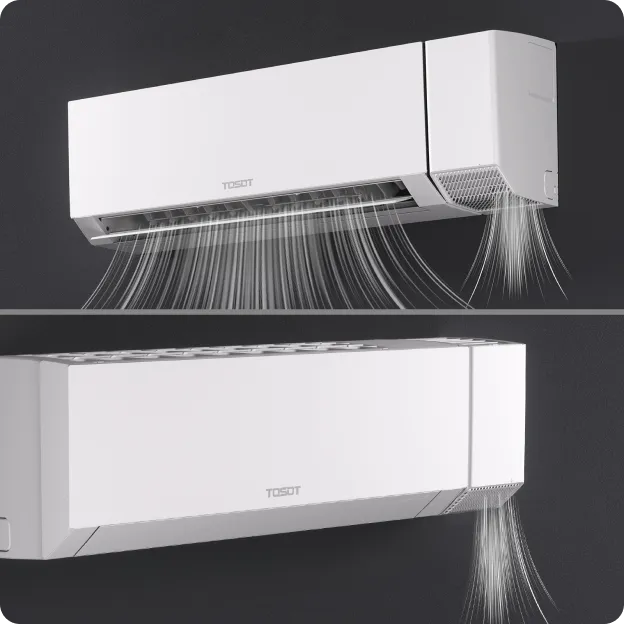

The ERV system exchanges stale indoor air with fresh outdoor air, pre-conditioning the incoming air by transferring heat and moisture from the outgoing air to improve indoor air quality and energy efficiency.
Features:
- Exceptional 23-23.5 SEER Rating.
- Energy Star Certified with tax rebate eligibility.
- Compatible with ERV Systems.
- Operates in Extreme Temperatures from -22°F to 122°F
- 5 Year Warranty
- Copper Line Set: 16 Ft
Installation and Guides:
Specifications:
- Cooling Capacity (Btu/h):21,000
- Heating Capacity (Btu/h): 23,000
- EER(Btu/h)/W: 13
- COP(Btu/h)/W: 11
- SEER2: 23.5
- HSPF2: 9.0
- Airflow (H/M/L): 950/670/430 m3/h
- Dehumidification (Pts/hr): 5.07
- Est. Cooling Area (Sq. Ft.): 1500
- Voltage: 187/253~60Hz, 1Ph
- Rated Input(W):3850
- Rated Current(A): 17.2
- Min. Current (MCA) (A) :22
- Max. Rating of Overcurrent Protective(A): 30
- Temperature Range (°F): 61-86
- Noise Level (H/M/L): 48/39/30 decibels
DIMENSIONS & WEIGHTS:
Indoor Unit
- Approximate Shipping Weight (lbs): 35.3
- Approximate Net Weight (lbs): 29.8
- Shipping Dimensions (W×H×D) (inches): 41.57 x 15.17 x 11.74
- Unit Dimensions (W×H×D) (inches): 39.12 x 12.25 x 8.75

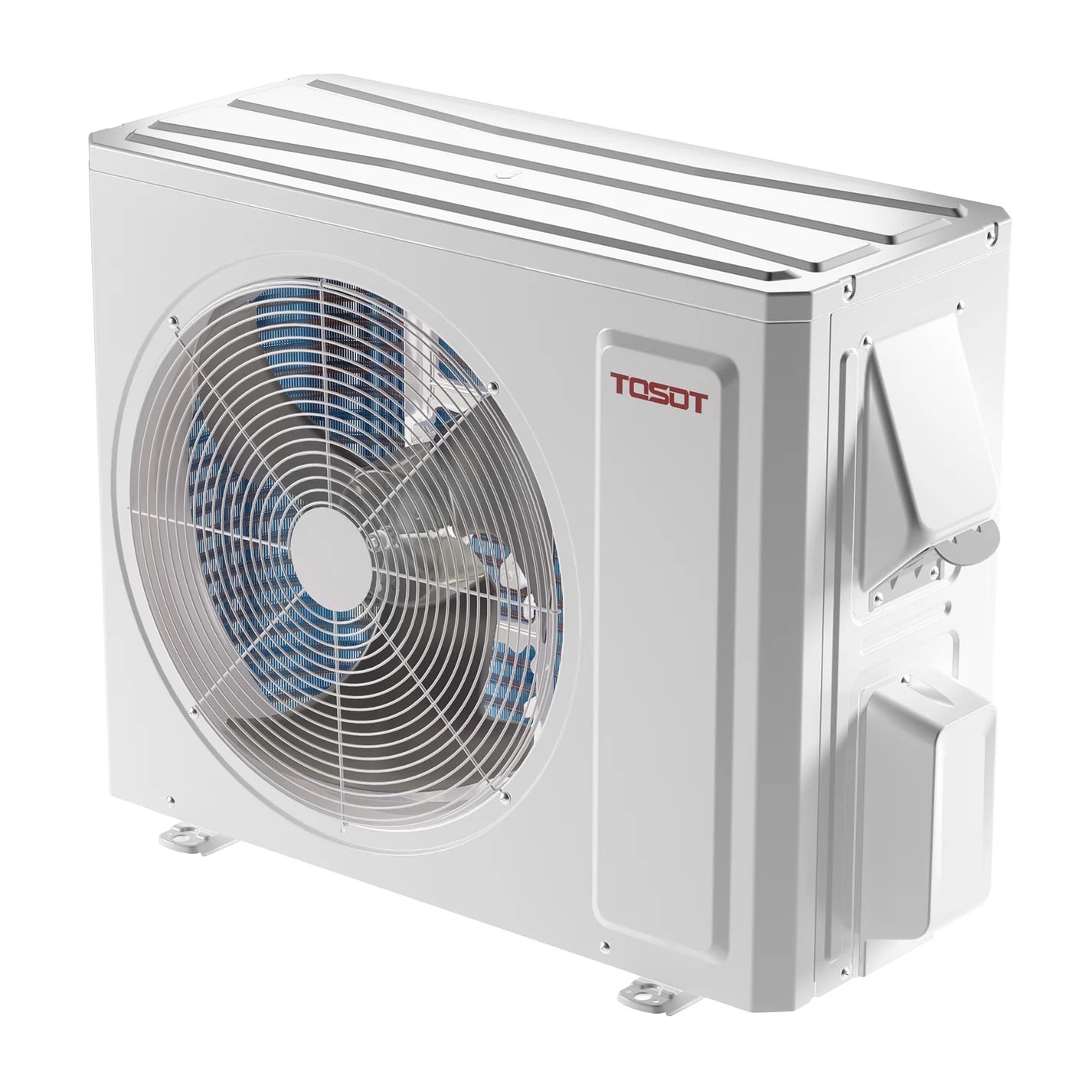

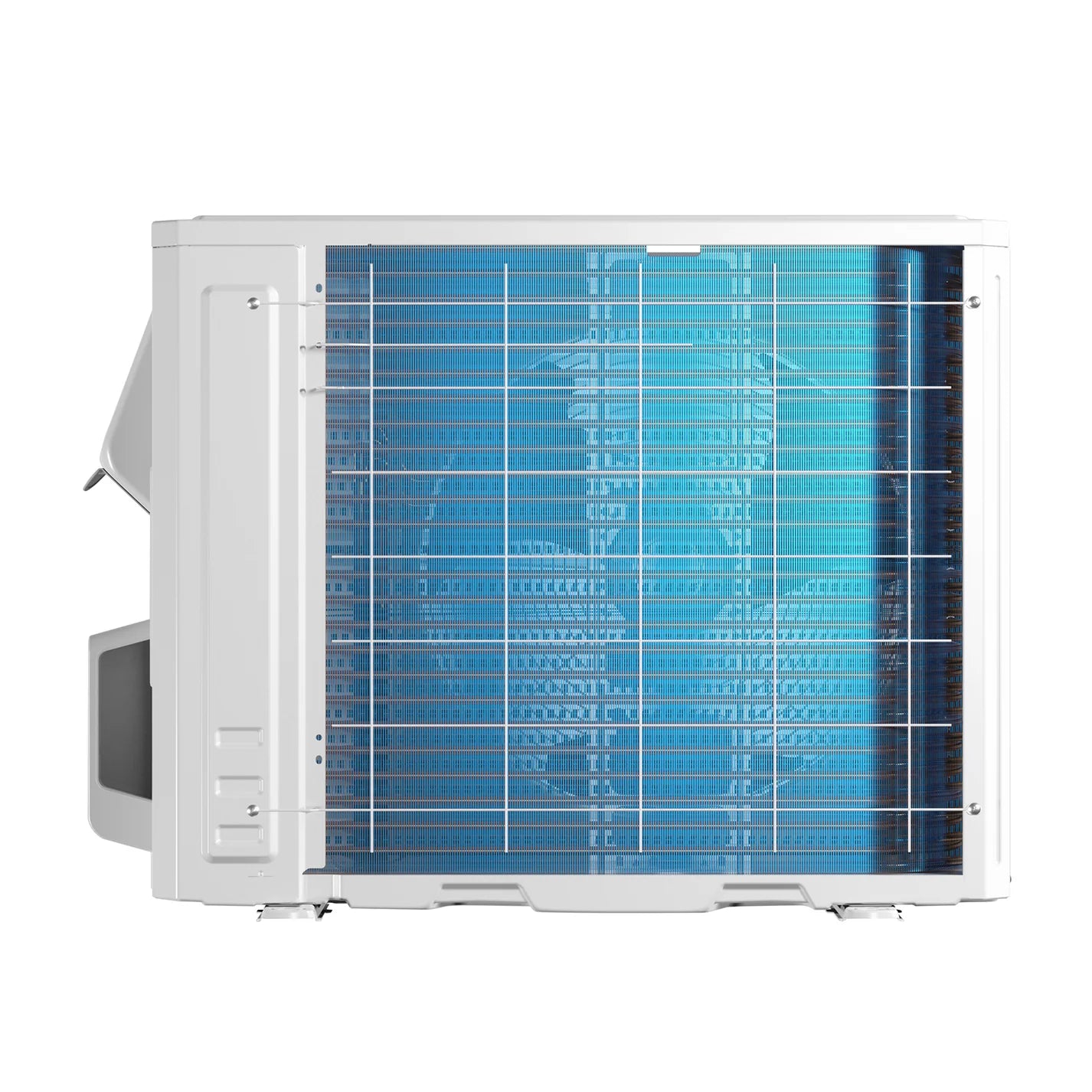

Outdoor Unit
- Approximate Shipping Weight (lbs): 114.7
- Approximate Net Weight (lbs): 103.9
- Shipping Dimensions (W×H×D) (inches): 42.55 x 31.91 x 19.03
- Unit Dimensions (W×H×D) (inches): 39.4 x 29.39 x 16.82
Line Set Length
- Copper Line Set(ft): 16
- Copper Line Size: 1/4" & 5/8"
- Signal Cable(ft): 19
- Power Cord(ft):19
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 24,000 |
|---|---|
| Indoor unit(s) | 24K |
| Coverage area | 1,150 Sq Ft. |
| Zones / rooms | 1 Zone |
| Efficiency | 24 SEER2 |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | TOSOT |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
