Product overview

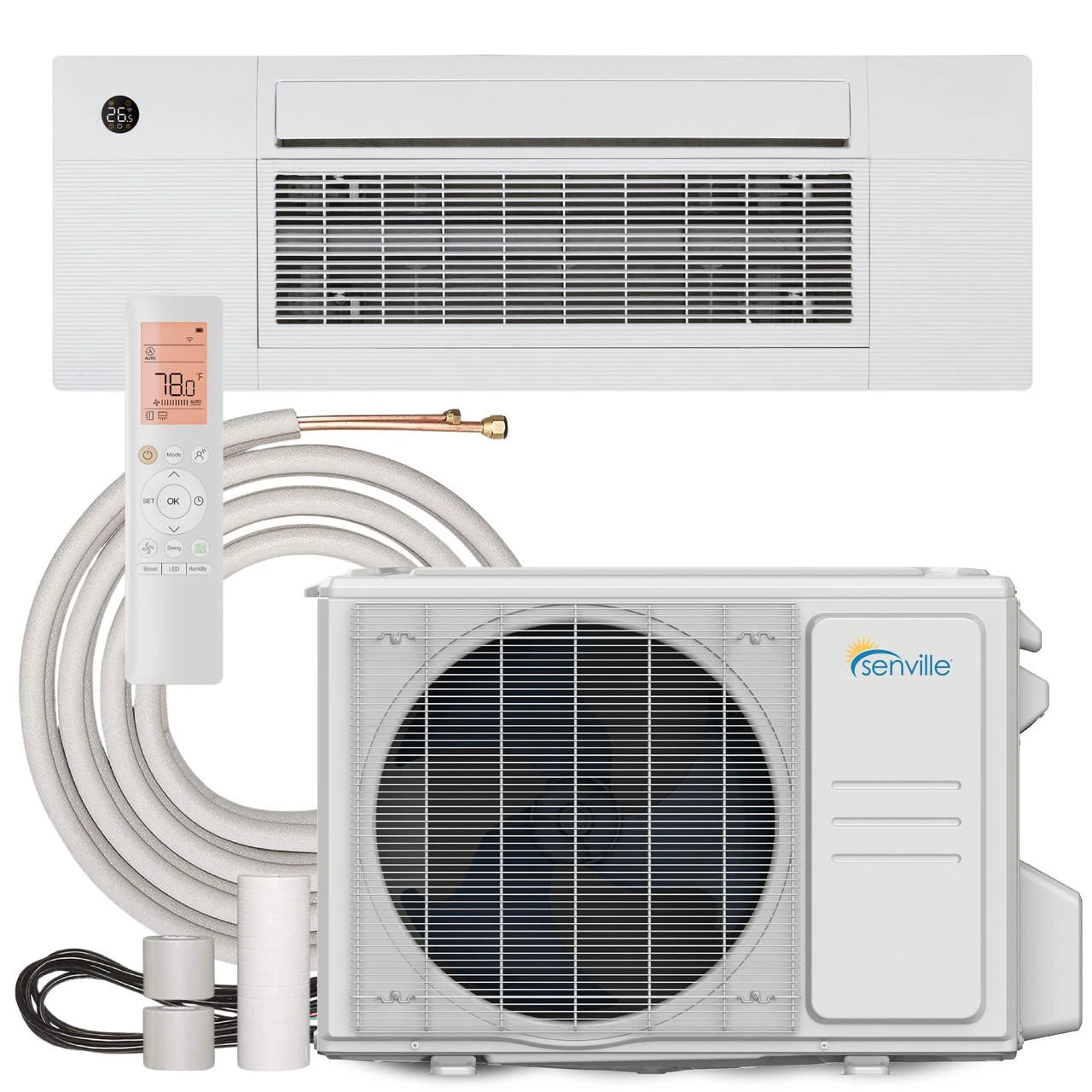

Senville AURA 9,000 BTU One-Way Ceiling Cassette Heat Pump
The Senville AURA SENA-09HF-1WC combines a slim one-way ceiling cassette with high-efficiency inverter performance. It provides discreet heating and cooling for rooms of approximately 250-400 sq. ft. while maintaining reliable cold-climate operation.
System is pre-charged with R454B refrigerant for up to 25 ft. If the selected line set exceeds the pre-charged amount, additional refrigerant must be added by a licensed technician during installation.
Key Features
- 24 SEER2 efficiency
- ENERGY STAR certified
- 9,000 BTU cooling and 10,900 BTU heating capacity

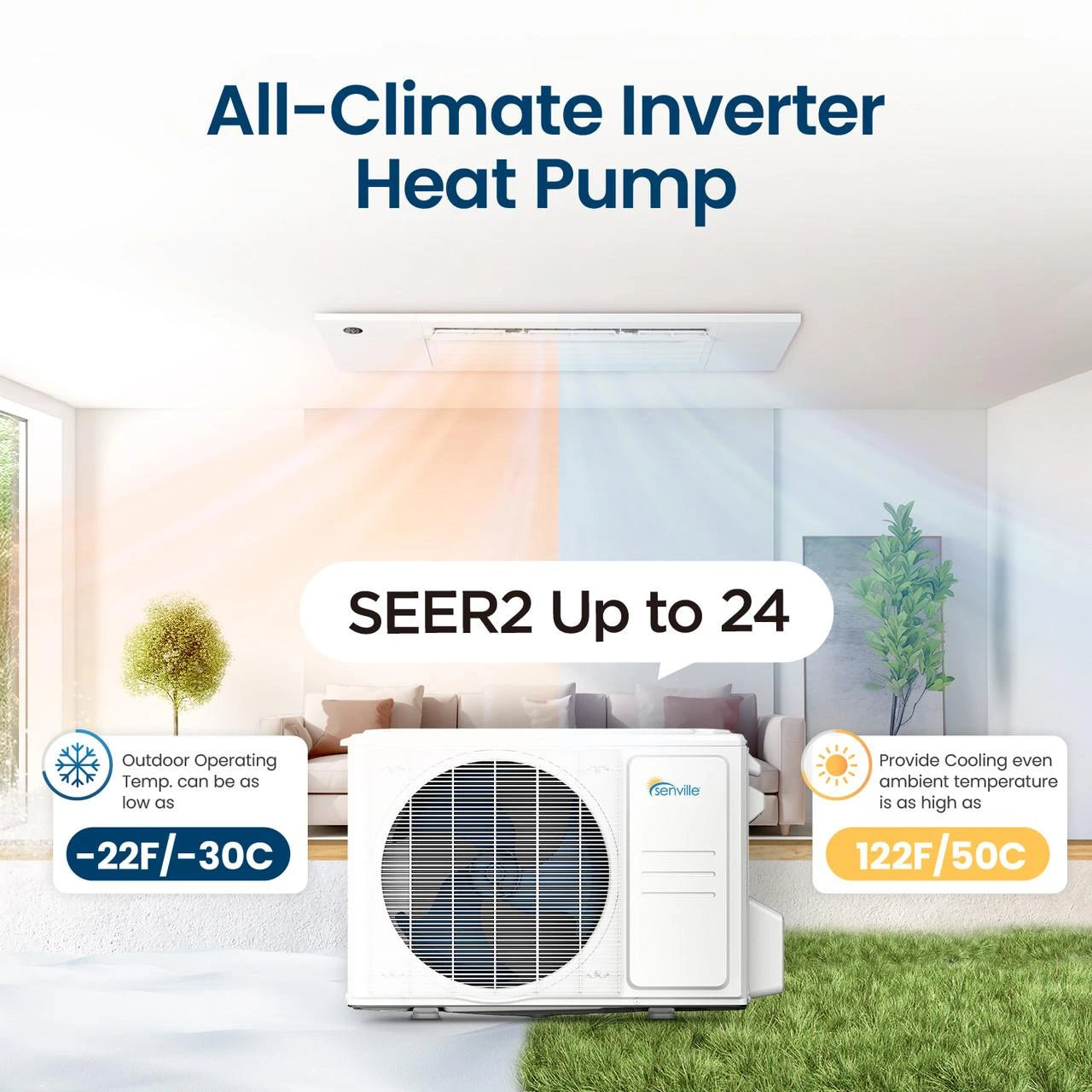

- Heating operation down to -22°F

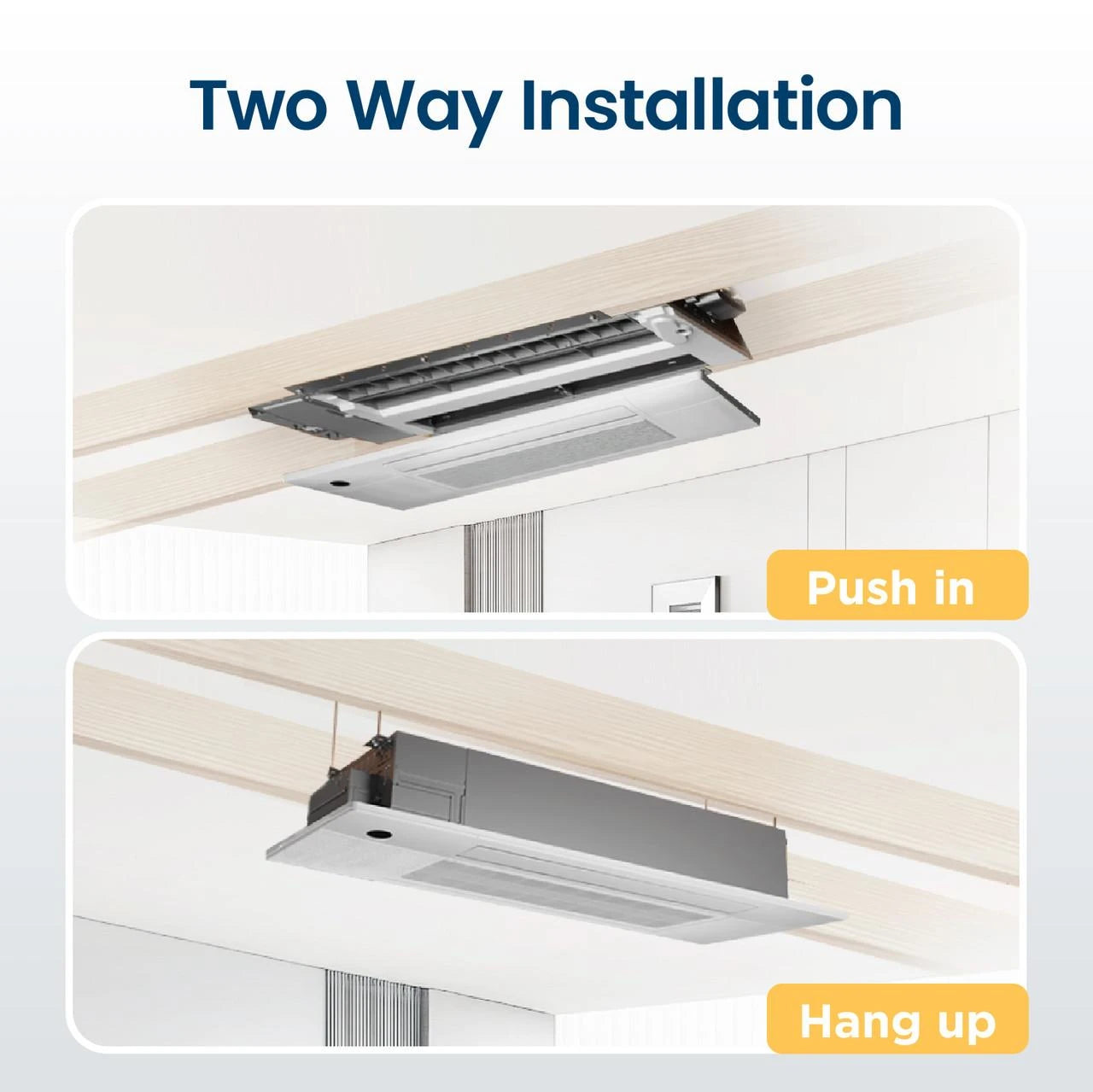

- One-way ceiling cassette design

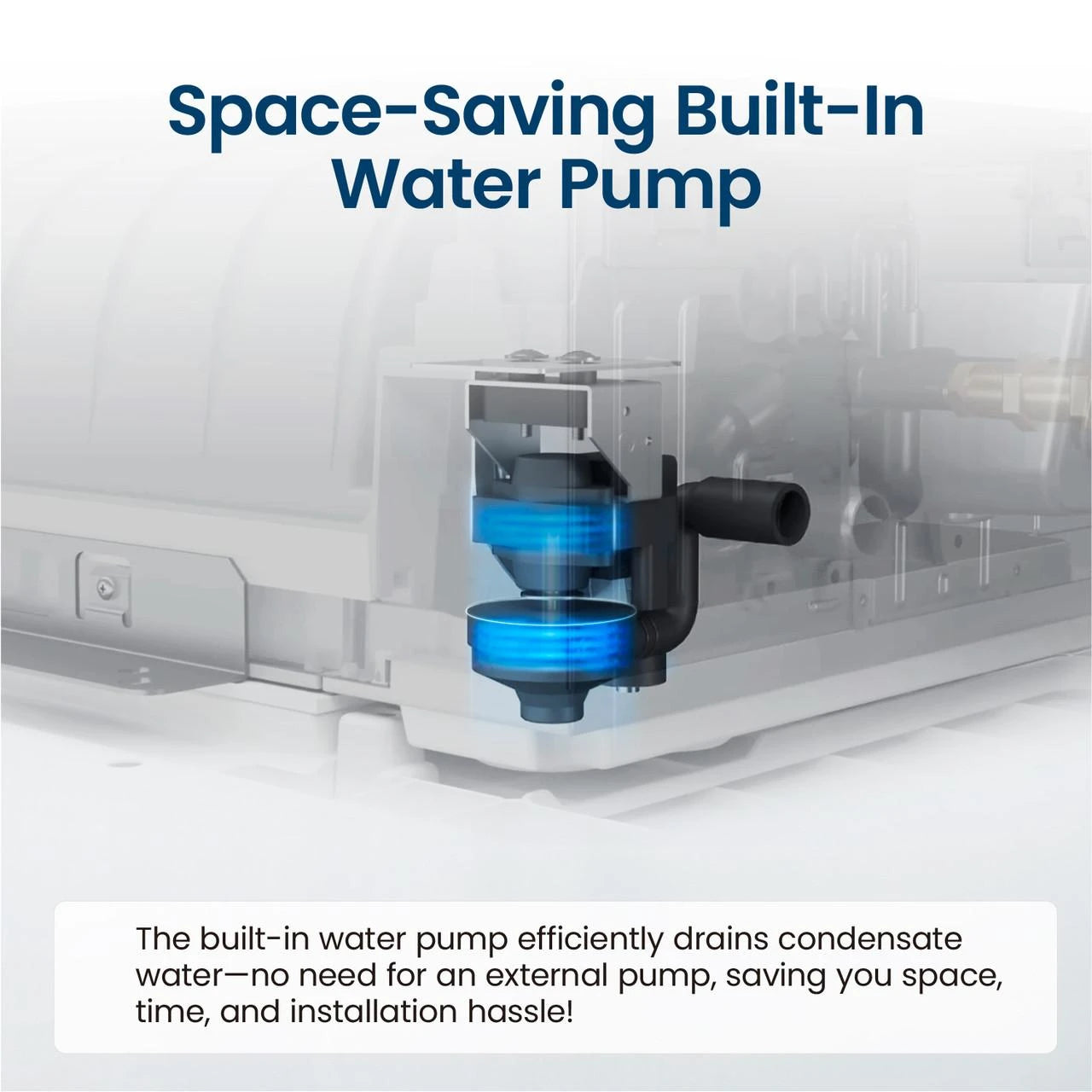

- Built-in condensate management
- Self-diagnostics and refrigerant leak detection
- R454B refrigerant
What's Included
- Indoor unit
- Outdoor unit
- Wireless remote control
- Installation kit in the selected length (no kit when "None" is selected)
- Indoor-to-outdoor wiring harness
- Installation and owner documentation
Manuals & Documents

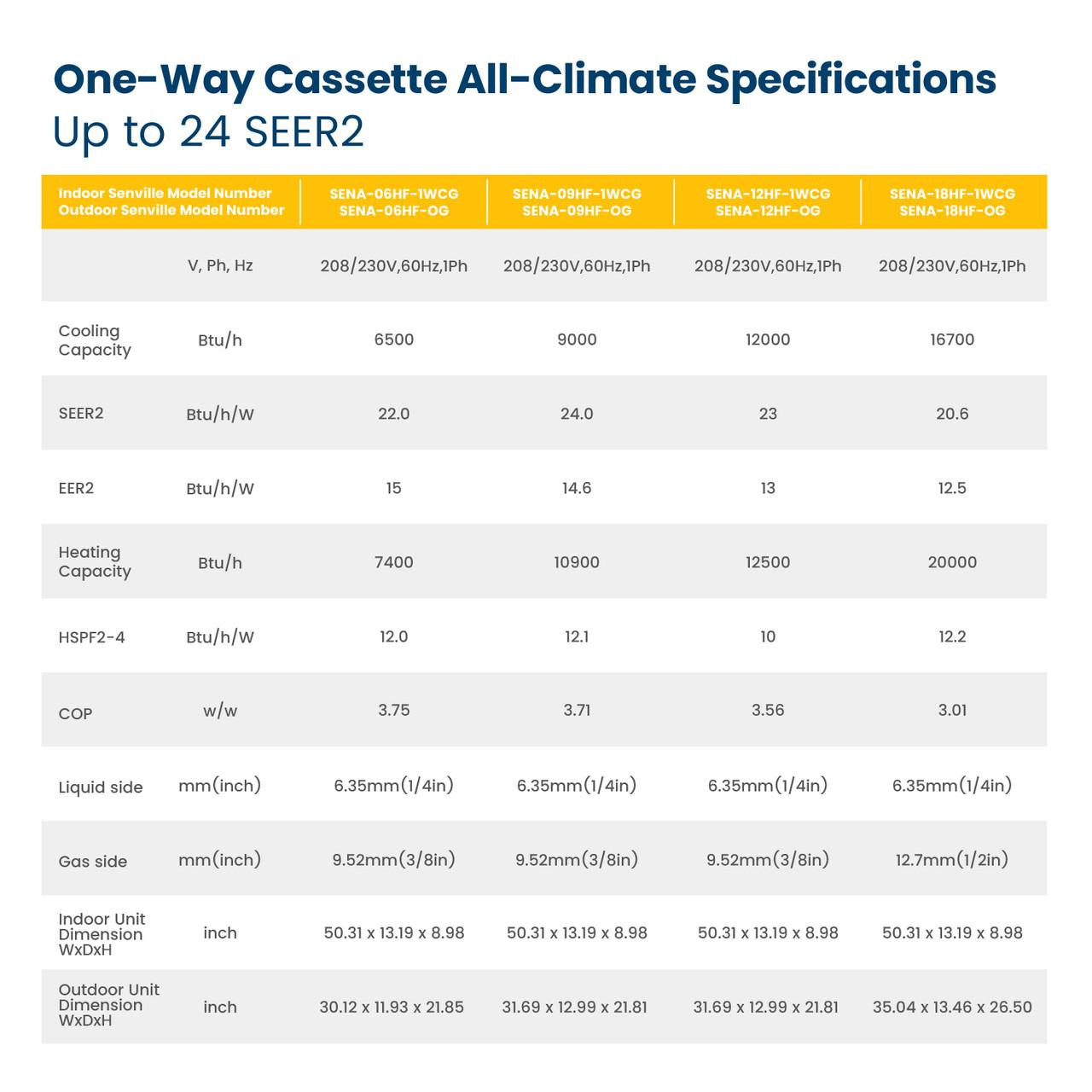

Specifications
| Model Number | SENA-09HF-1WC |
| Power Supply | 208/230V, 1Ph, 60Hz |
| SEER2 / EER2 | 24.0 / 14.6 |
| Cooling / Heating Capacity | 9,000 / 10,900 BTU |
| HSPF2-4 | 12.1 |
| Liquid / Gas Line | 1/4 in. / 3/8 in. |

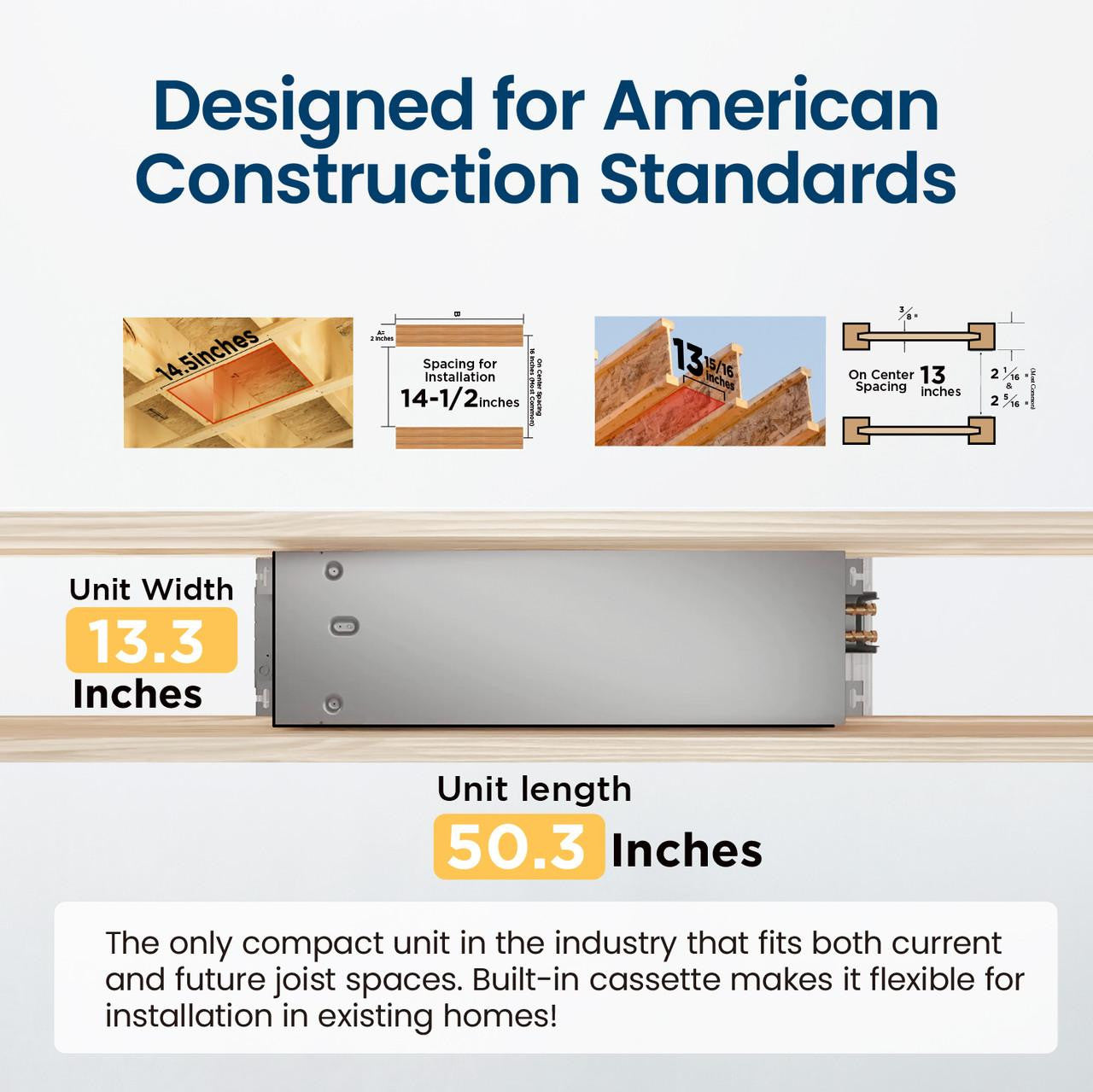

| Indoor Dimensions (W x D x H) | 50.31 x 13.19 x 8.98 in. |
| Outdoor Dimensions (W x D x H) | 31.69 x 12.99 x 21.81 in. |
| Minimum Heating Temperature | -22°F |
| Refrigerant | R454B |
| Warranty | 10 years compressor / 5 years parts |
Professional installation is required. Confirm sizing and electrical requirements with a licensed HVAC professional before ordering.
