Description
Senville AURA 36,000 BTU (12K + 24K) Dual Zone Mini Split Air Conditioner - 230V

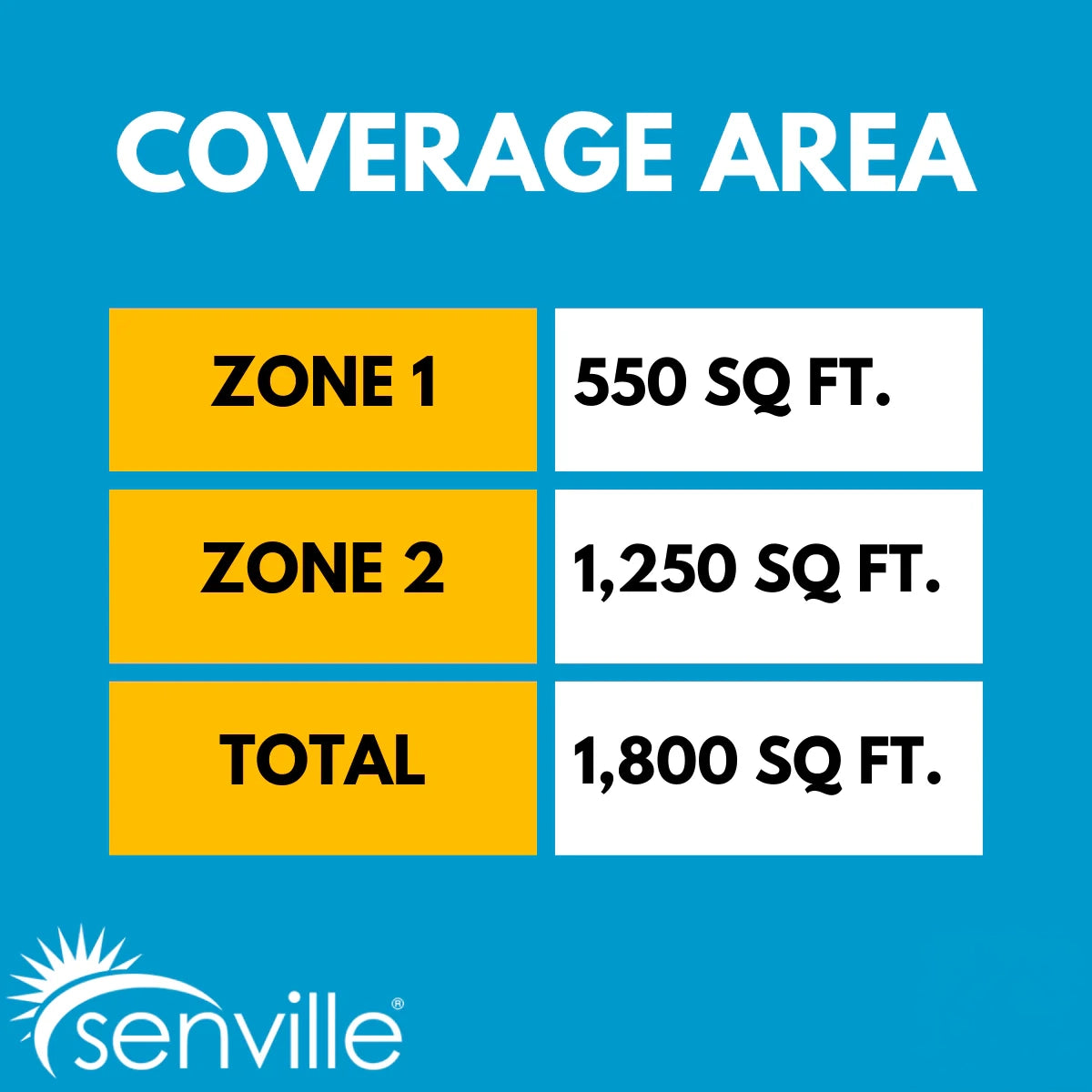

Senville SENA-36HF-D is a high-efficiency 36000 BTU dual-zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. Perfect for heating and cooling 2 rooms, even in extremely cold climates. It is recommended for spaces 1,000 - 1,500 sq ft.
System is pre-charged with R454B refrigerant for up to 100 ft. If your total combined line set length exceeds the pre-charged amount for your unit, additional refrigerant will need to be added by a licensed technician during installation.
Features:

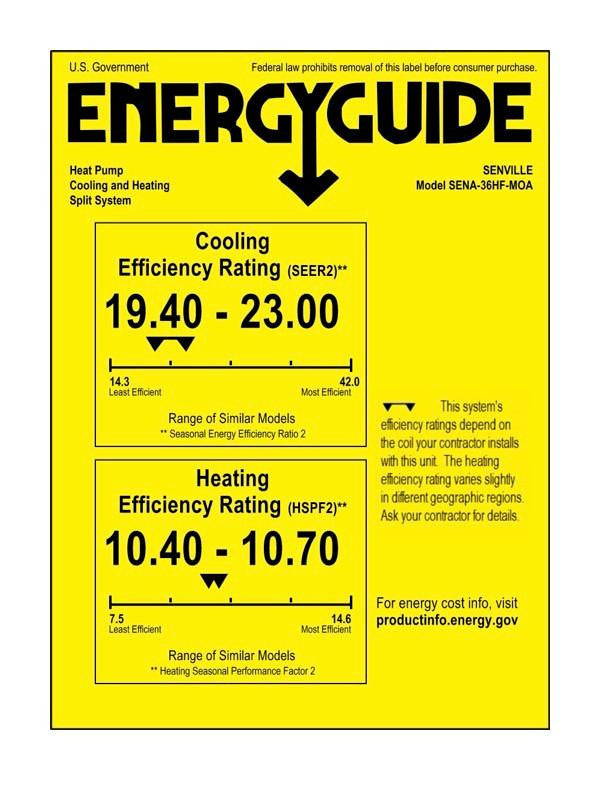

- 23 SEER2 ENERGY STAR
- Heating down to -30°C (-22°F)
- Ultra-Quiet Operation
- WiFi Enabled Smart Control

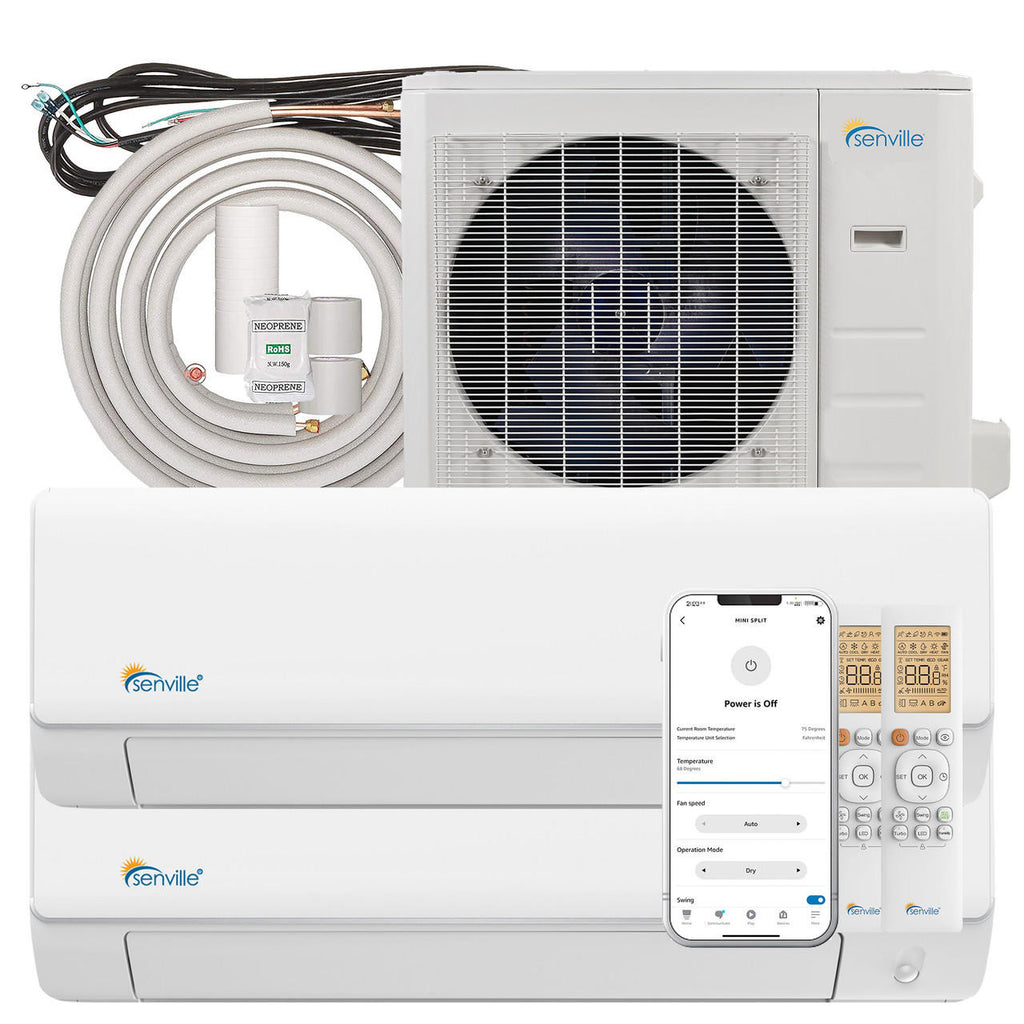

What's Included:

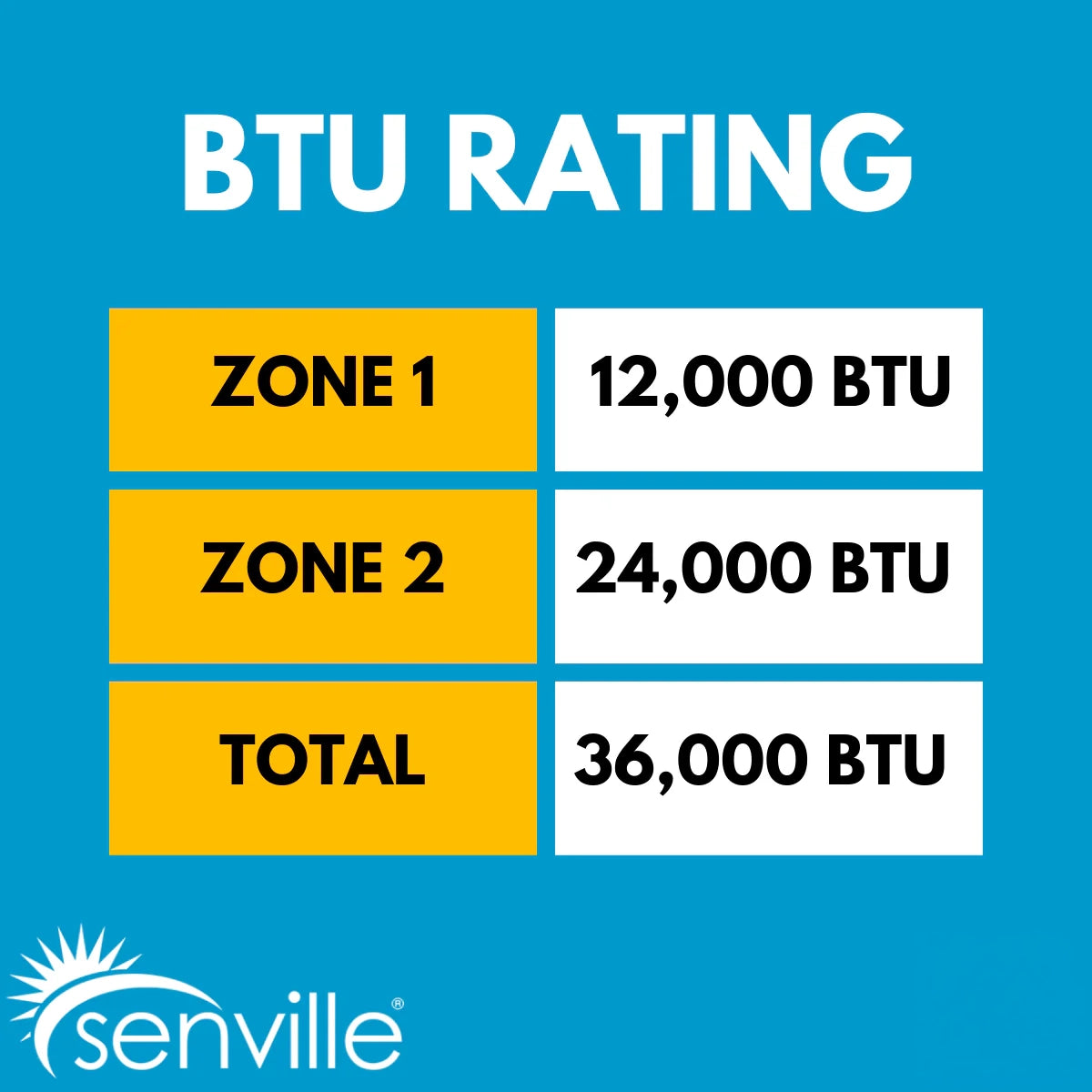

- 2 Indoor Units (1 x 12,000 BTU, 1 x 24,000 BTU)

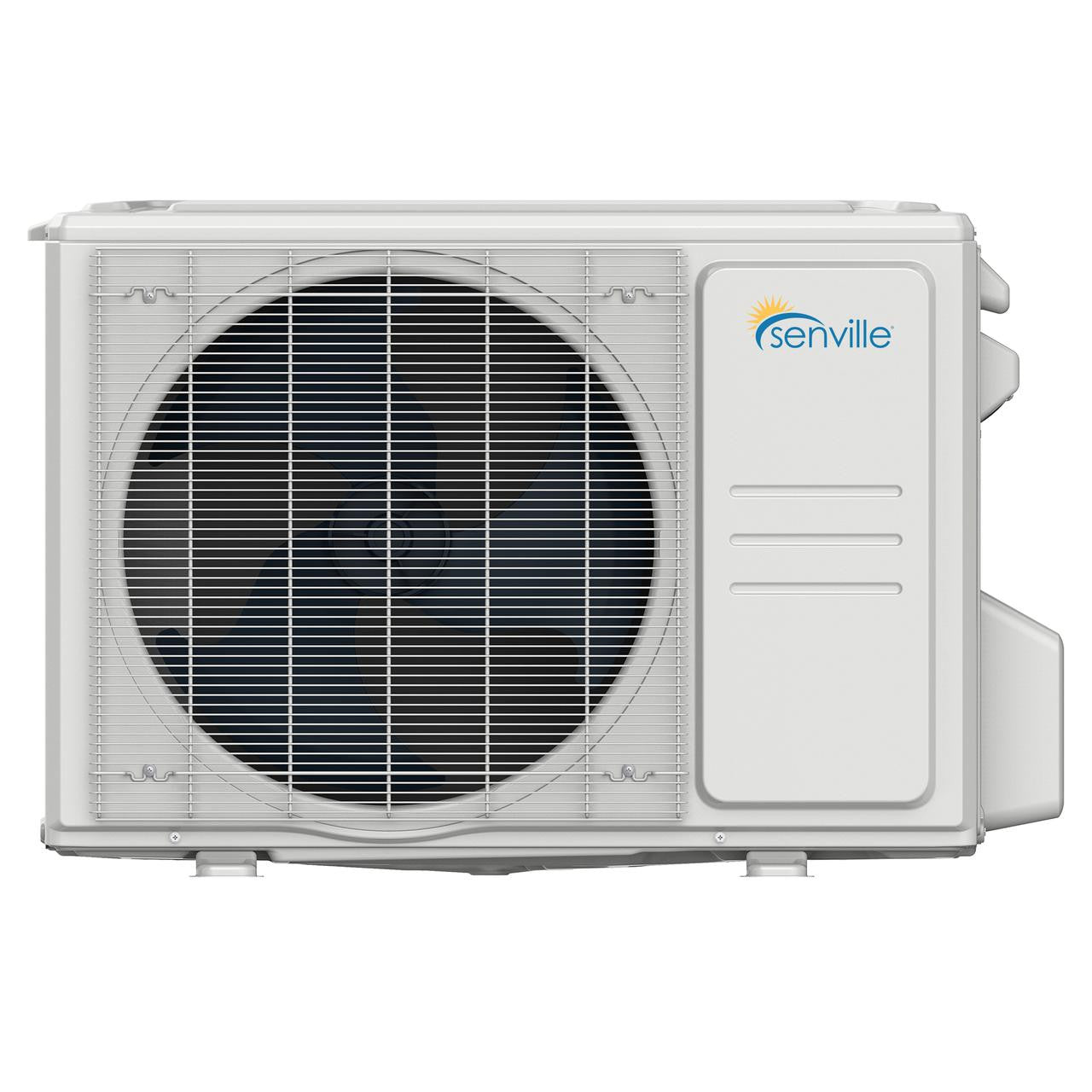

- Outdoor Unit

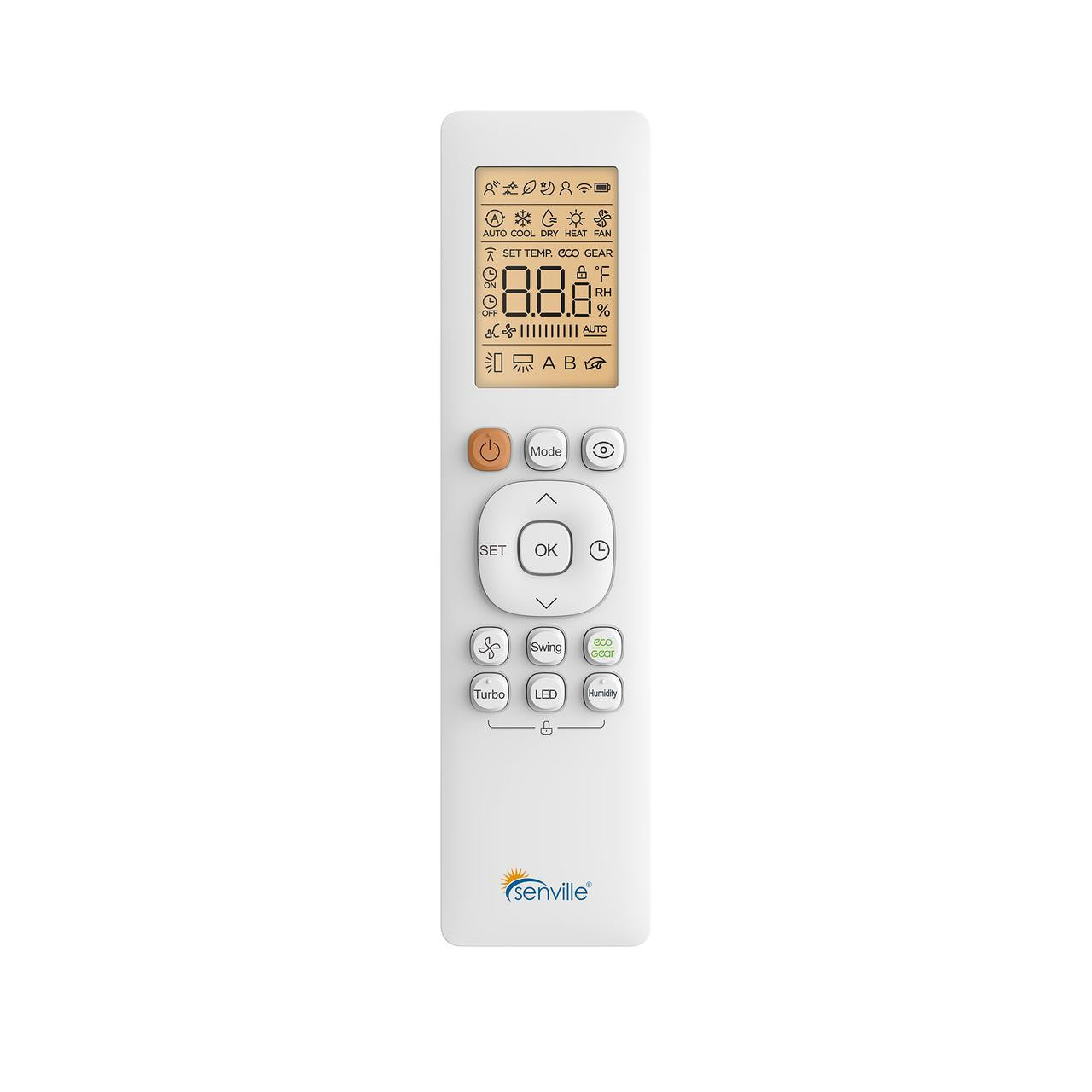

- Wireless Remote Controls
- Alexa USB Kit
- 16 ft. Installation Kits (x2)
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Specifications:
| Model Number | SENA-36HF-T |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 3 |

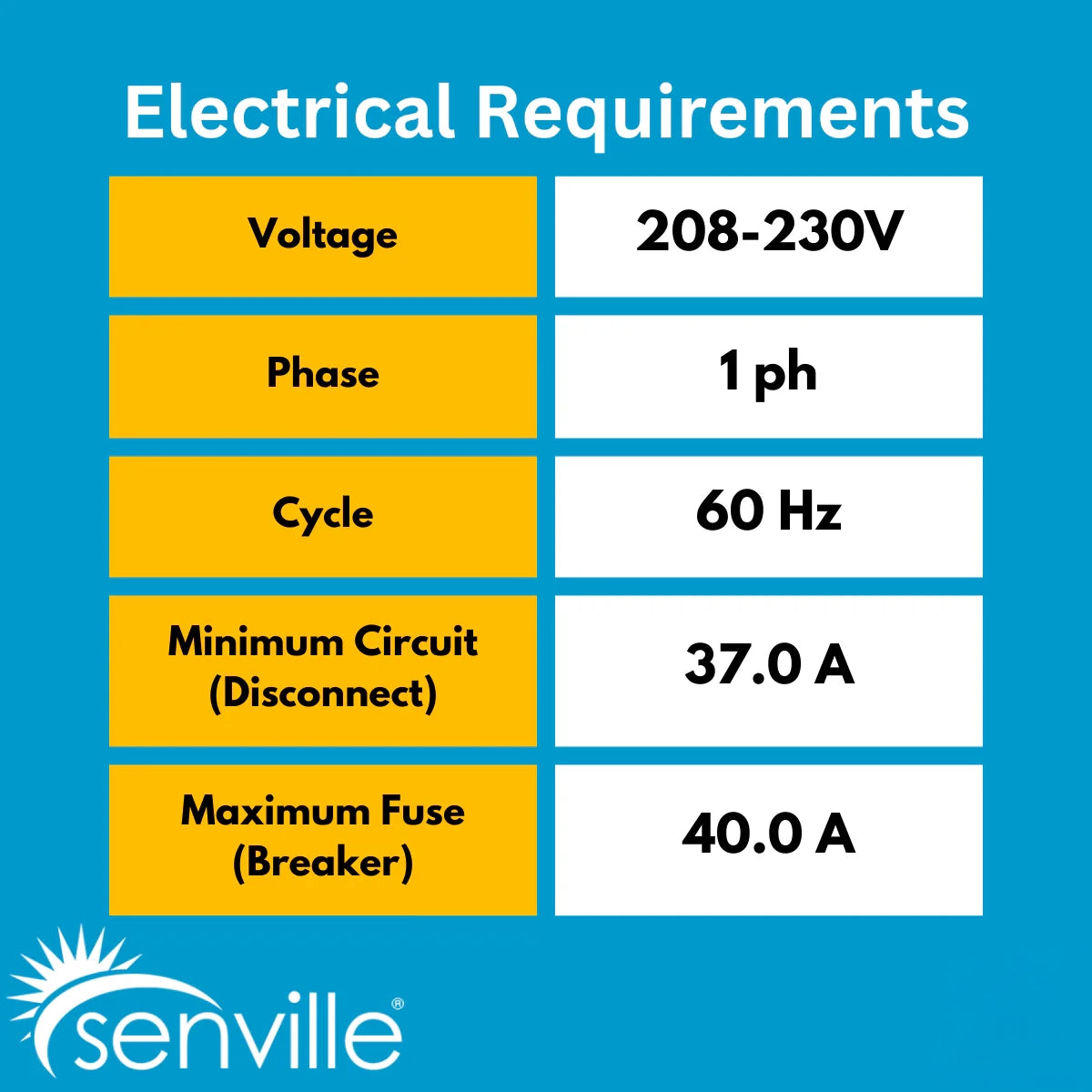

| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253 |
| SEER2 | 23 |
| EER2 | 13 |
| Cooling Capacity (BTU) | 36000 |
| Cooling Range (BTU) | 9000~43000 |
| Cooling Input Range (W) | 600~4000 |
| Cooling Current Range (A) | 5.2~17.8 |
| Heating Capacity (BTU) | 36000 |
| Heating Range (BTU) | 10000~44000 |
| Heating Input Range (W) | 600~3750 |
| Heating Current Range (A) | 5.2~16.6 |
| HSPF2-4 | 10.7 |
| HSPF2-5 | 8.5 |
| COP W/W | 4 |
| Minimum Circuit Ampacity (A) | 37 |
| Max. Fuse (A) | 40 |
| Outdoor Air Flow (Max) CFM | 3037.2 |
| Outdoor Noise Level dB | 65 |
| Outdoor Dimensions (WxDxH) (in.) | 38.58 x 16.34 x 38.39 |

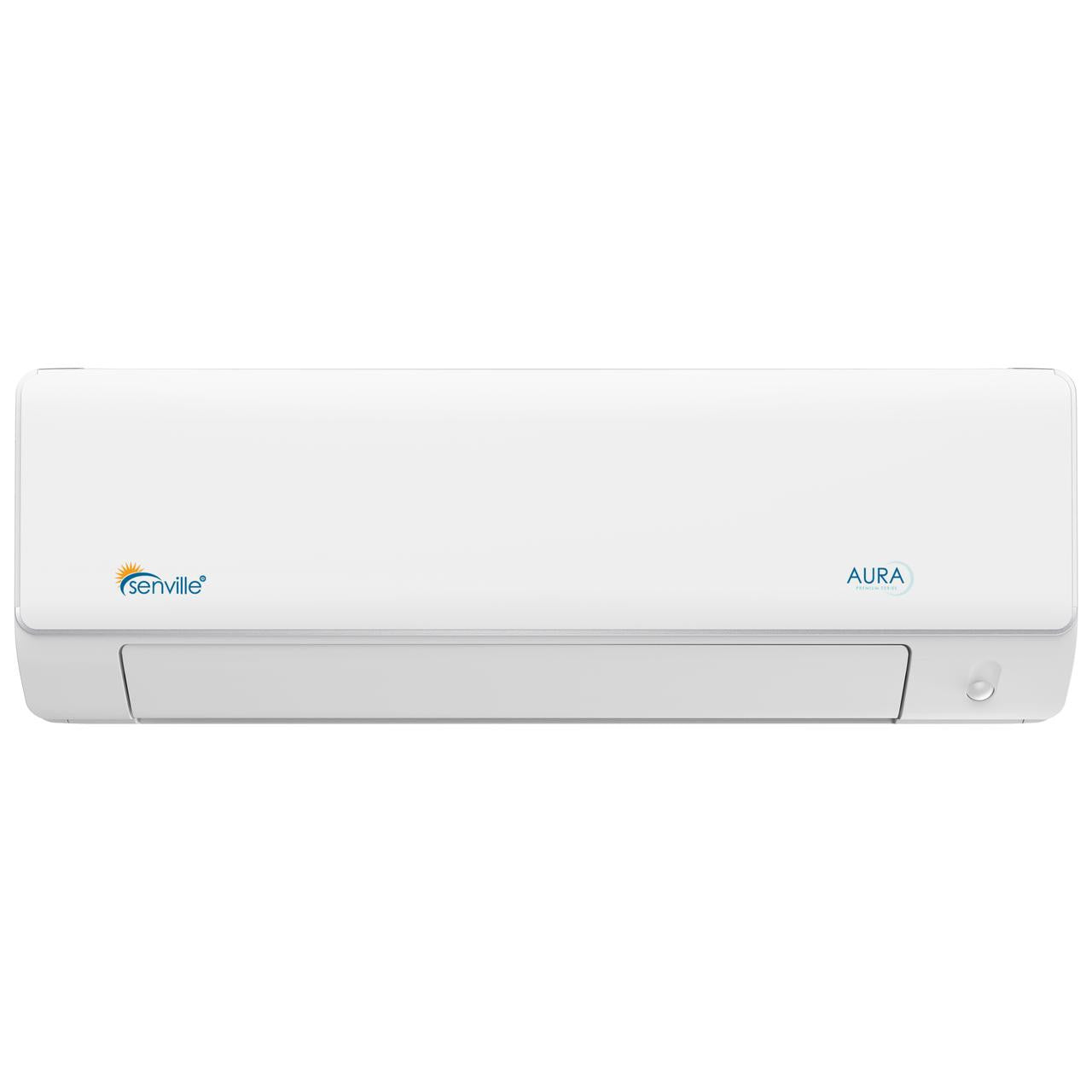

| 12K BTU Wall-Mounted Air Handler Dimensions (W x D x H) | 33.40 x 9.18 x 11.76 in. |
| 24K BTU Wall-Mounted Air Handler Dimensions (W x D x H) | 46.85 x 11.20 x 14.59 in. |
| Outdoor Weight | 211.86 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 134.04 oz |
| Refrigerant Pre-charge | 100 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |
