Product overview
Summary

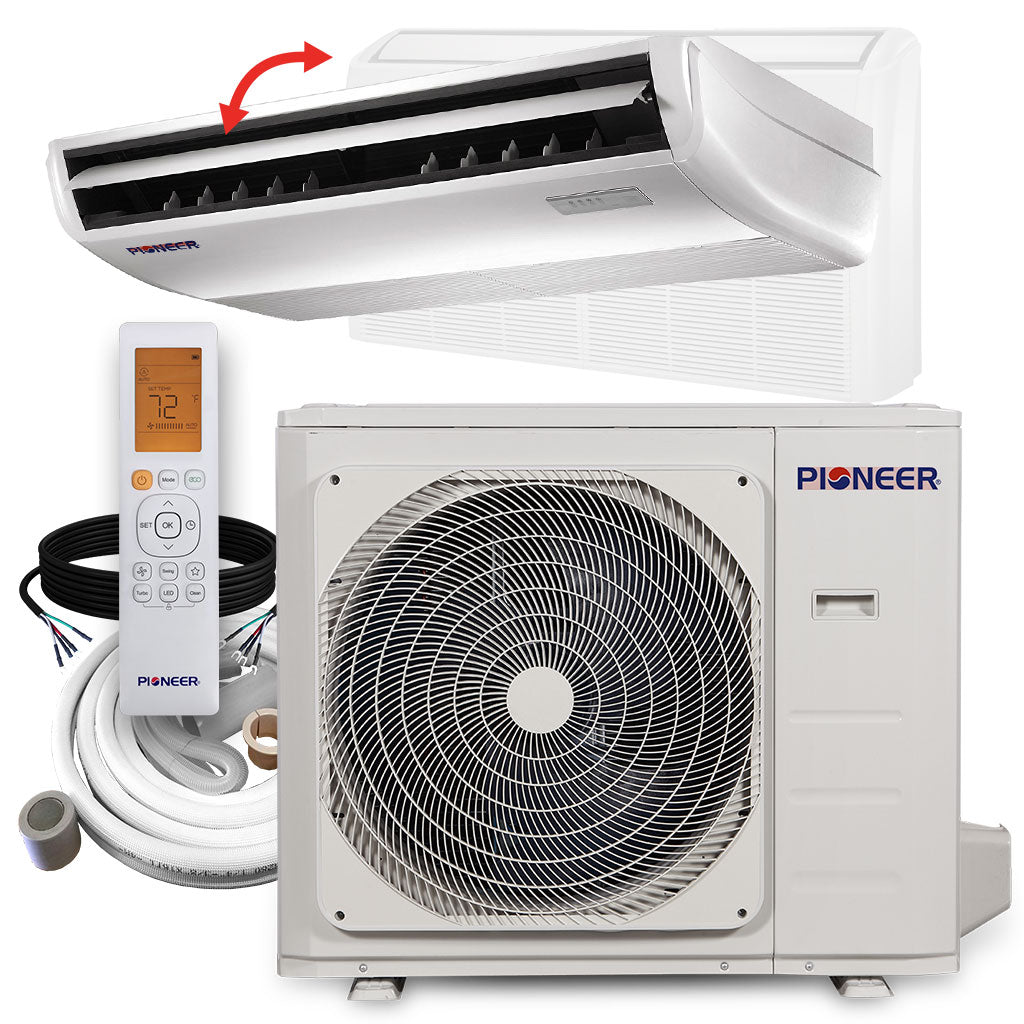

- High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
- Cooling capacity: 36,000 BTU/H with 20.0 SEER2 / 10.1 EER2 efficiency
- Heating capacity: 38,000 BTU/H with 10.0 HSPF2 / 3.34 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph

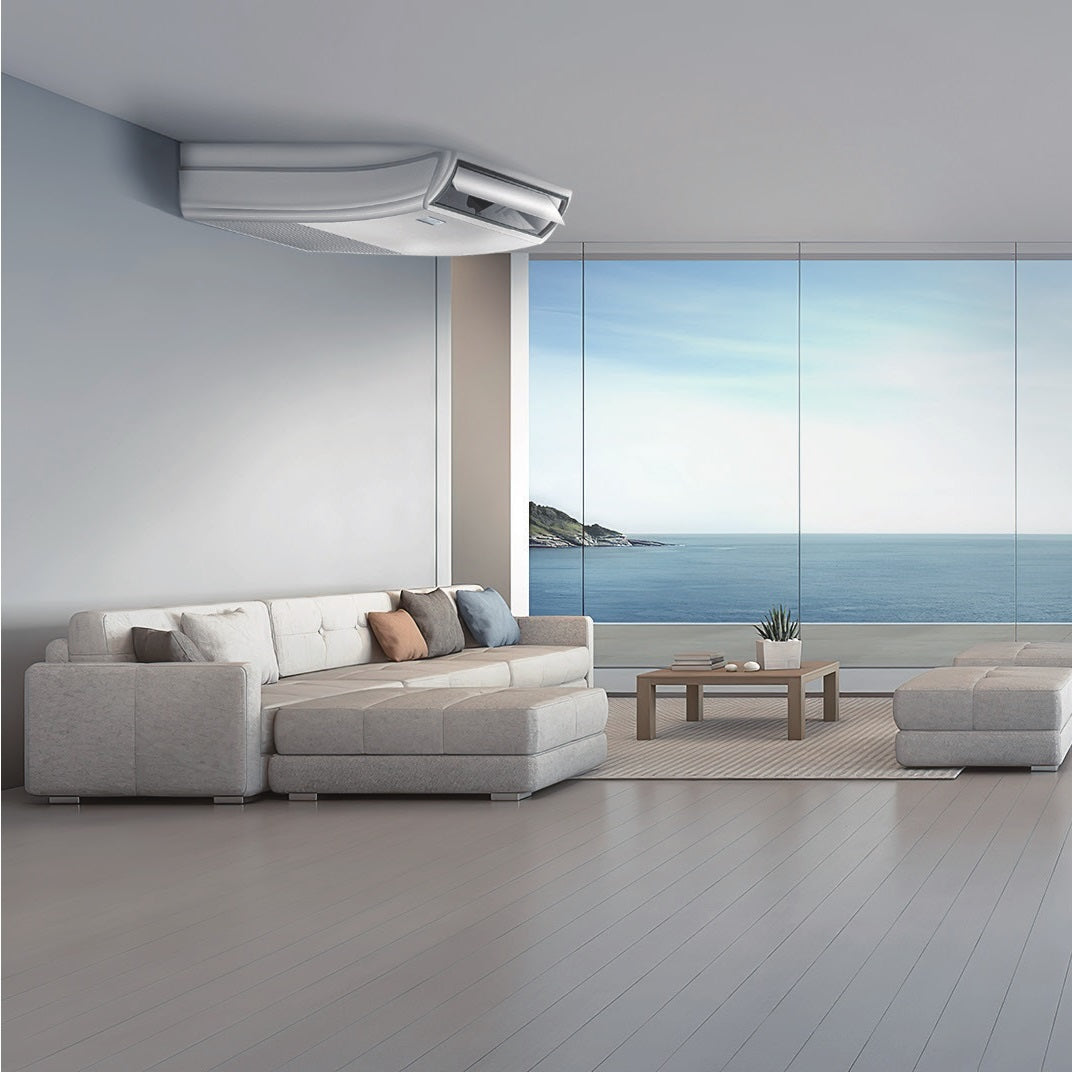

- Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

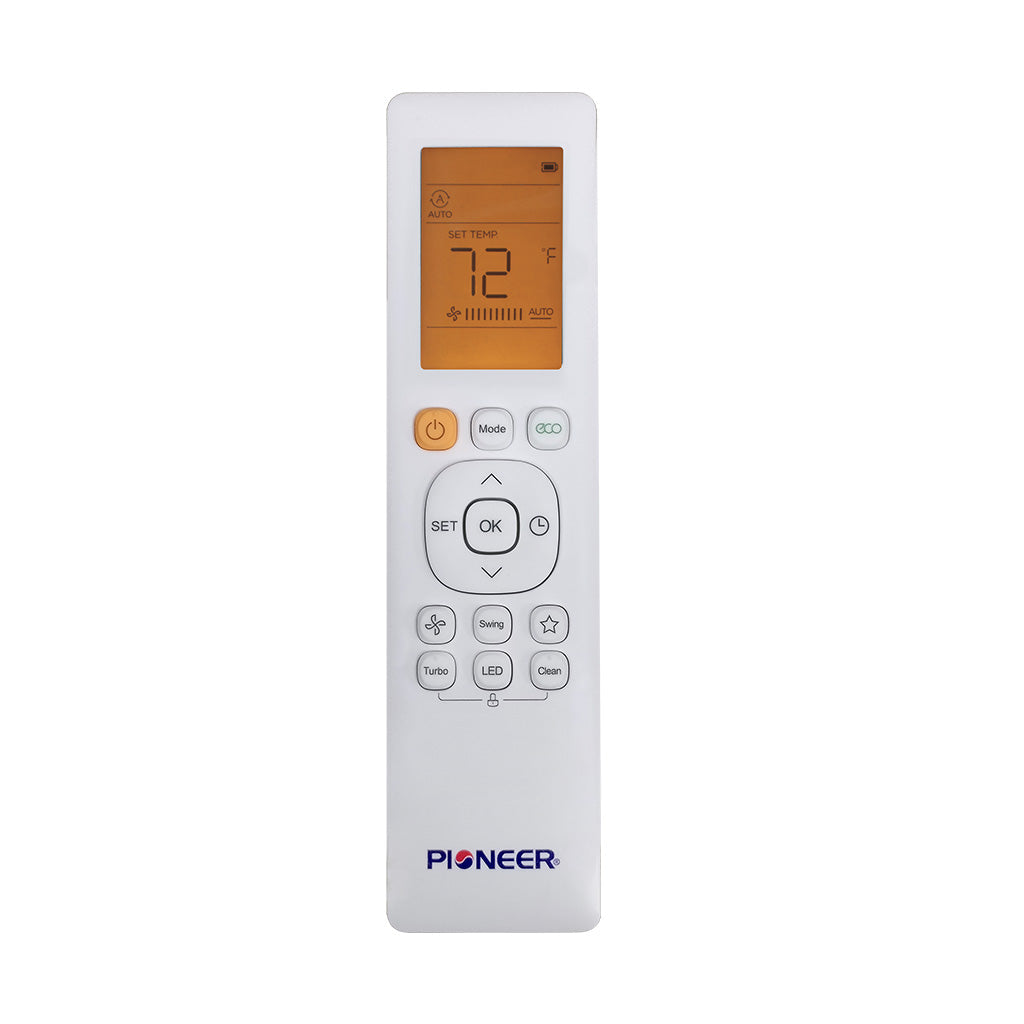

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- FOLLOW ME, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h
- Cooling Capacity Range: 7,300~39,500 BTU/h
- Cooling SEER2: 20.0 BTU/W.h
- Cooling EER2: 10.1 BTU/W.h
- Heating Rated Capacity: 38,000 BTU/h
- Heating Capacity Range: 14,100~40,400 BTU/h
- Heating HSPF2 (Region IV/V): 10.0 / 7.7 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.34 / 2.17 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,000~1,400 sq ft
- Minimum Room Size (Ceiling Suspended): 104 sq ft
- Minimum Room Size (Floor/Low Wall): 500 sq ft
- Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
- AHRI Reference: 218010995
-

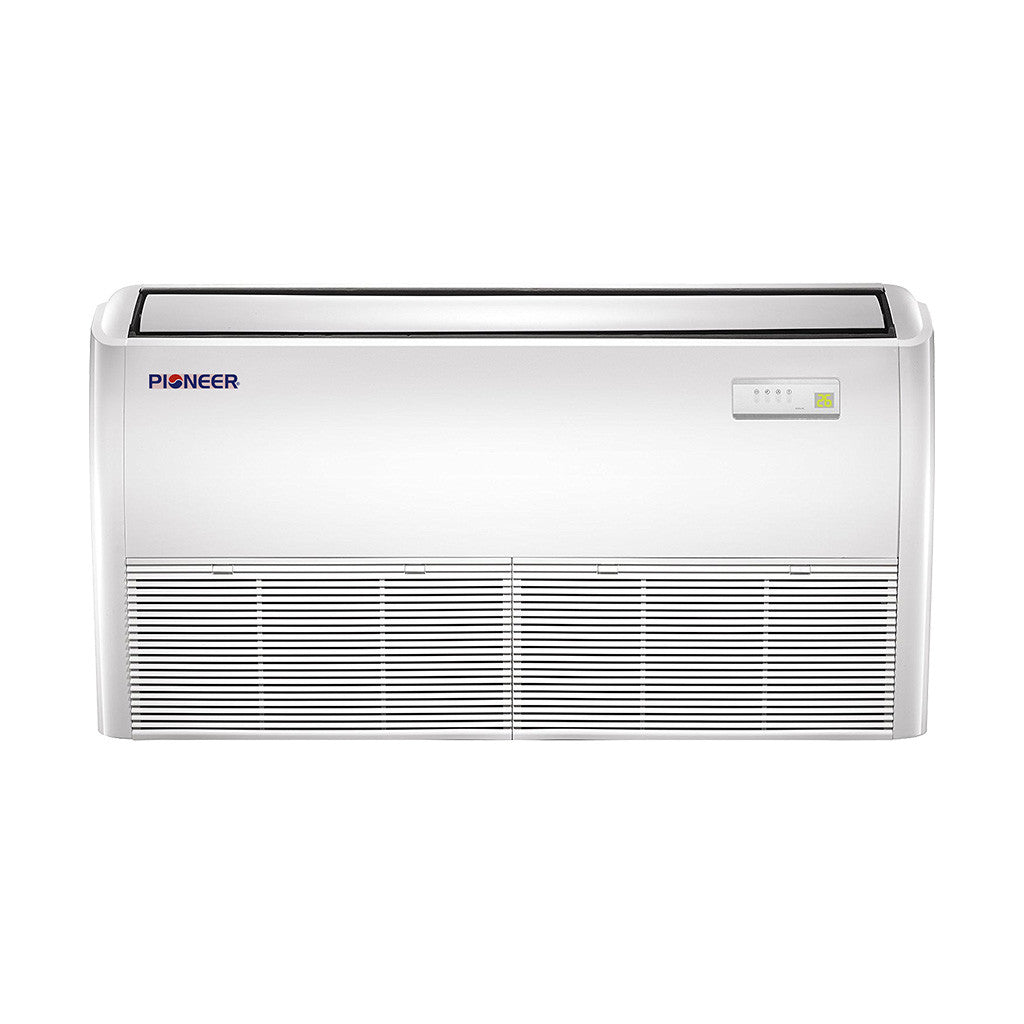

Indoor Unit
- Part Number: UB036GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 1,224 / 1,089 / 989 / 765 / 663 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 49 / 44 / 37 / 33 dB(A)
- Product Dimensions (WDH): 65" x 26"-5/8 x 9"-1/4 Inches
- Carton Dimensions (WDH): 68"-3/8 x 30" x 12"-1/4 Inches
- Net / Gross Weight: 89.0 / 105.0 lbs
-

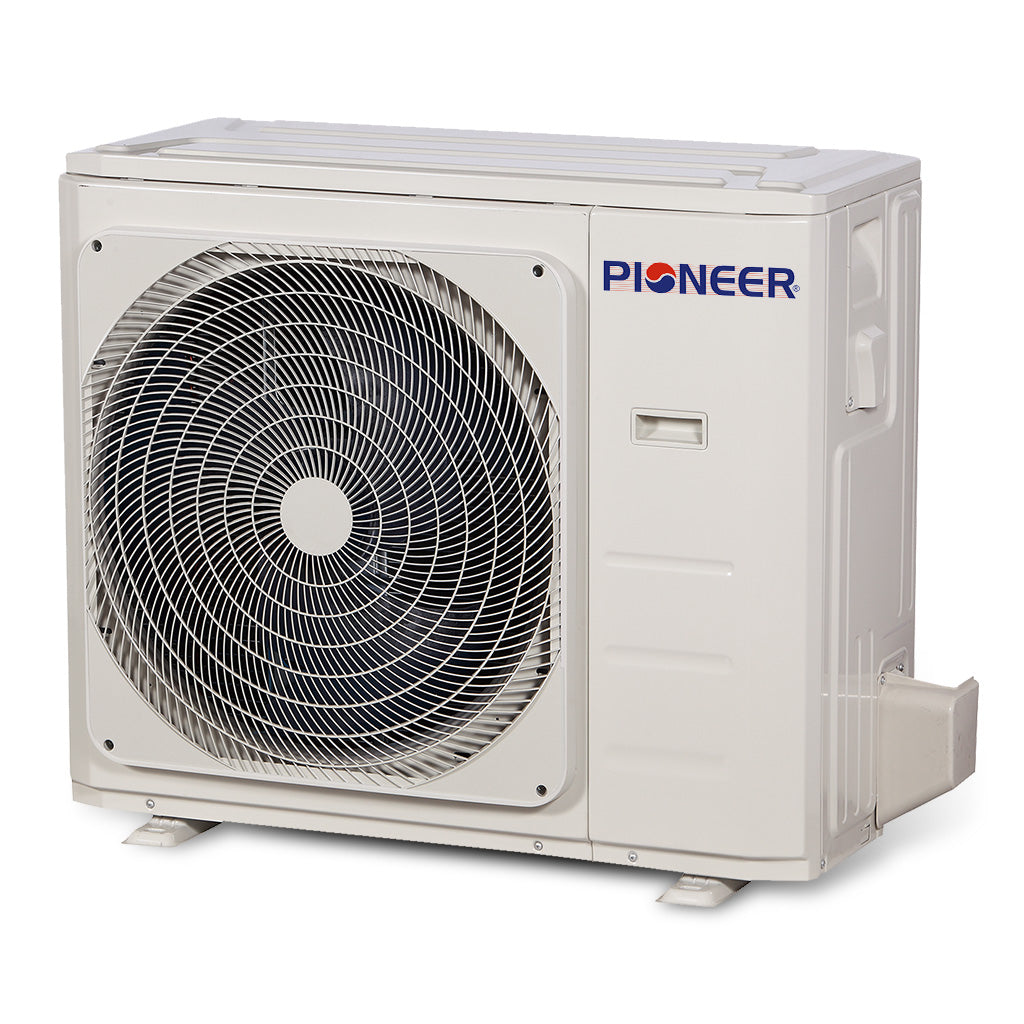

Outdoor Unit
- Part Number: YN036GMSI20RUG
- Breaker Needed: 40A (double-pole)
- Sound Level: 63 dB(A)
- Net Dimensions (WDH): 37"-1/4 x 16"-1/4 x 31"-7/8 Inches
- Carton Dimensions (WDH): 42"-7/8 x 19"-5/8 x 34"-7/8 Inches
- Net / Gross Weight: 152.4 / 162.5 lbs
Dimension Chart
