Pioneer 12,000 BTU Console Inverter Heat Pump, Through-the-Wall Monoblock Unit with No Outdoor Condenser, 230V

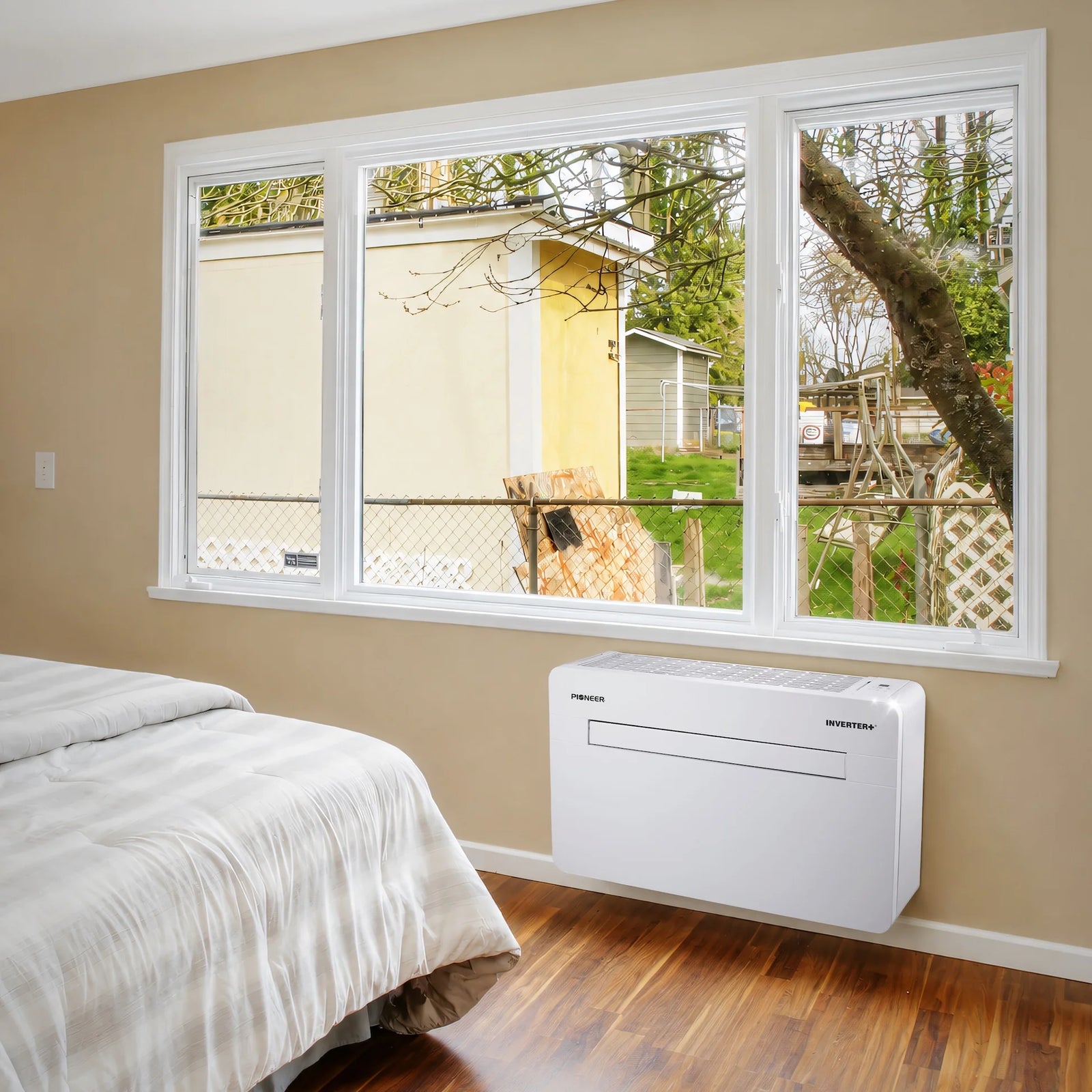

Bring year-round comfort to spaces where a conventional mini split is not practical. The Pioneer PYM012GZUI16RD packages the complete inverter heat-pump system inside a slim through-the-wall console—eliminating the need for a separate outdoor condenser or field-installed refrigerant line set.

This 12,000 BTU-class system delivers 11,800 BTU/h of cooling, 10,900 BTU/h of heat-pump heating, and a separate 10,236 BTU/h electric-heat function. Inverter-driven operation adjusts output as conditions change for steadier temperature control and less frequent on/off cycling.

Choose from Cool, Heat, Dry, Auto, and Fan modes. Motorized vertical and horizontal louvers distribute up to 330 CFM of airflow, while washable filters simplify routine maintenance. The included remote provides Sleep mode and timer controls, and the unit is Pioneer Airlink app-control ready with support for an optional 24V wall thermostat.

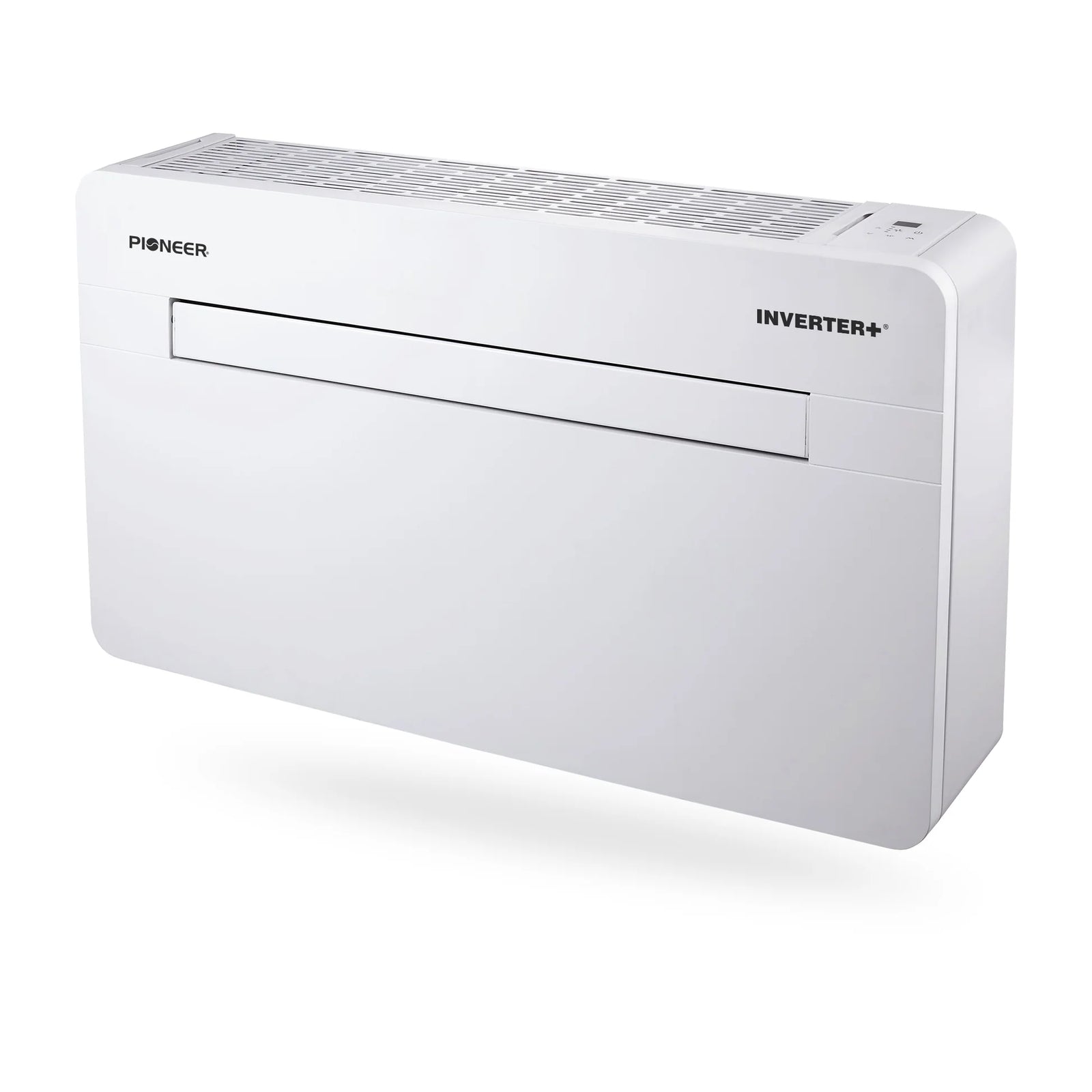

• Inverter-Driven Pioneer® All-In-One Packaged Console Heat Pump System
• Cooling capacity: 11,800 BTU/H
• Heating capacity: 10,900 BTU/H
• Electric Heat capacity: 10,236 BTU/H
• Voltage: 208/230V, 60Hz, 1Ph
• Factory-Precharged with Environmentally Friendly R-32 Refrigerant

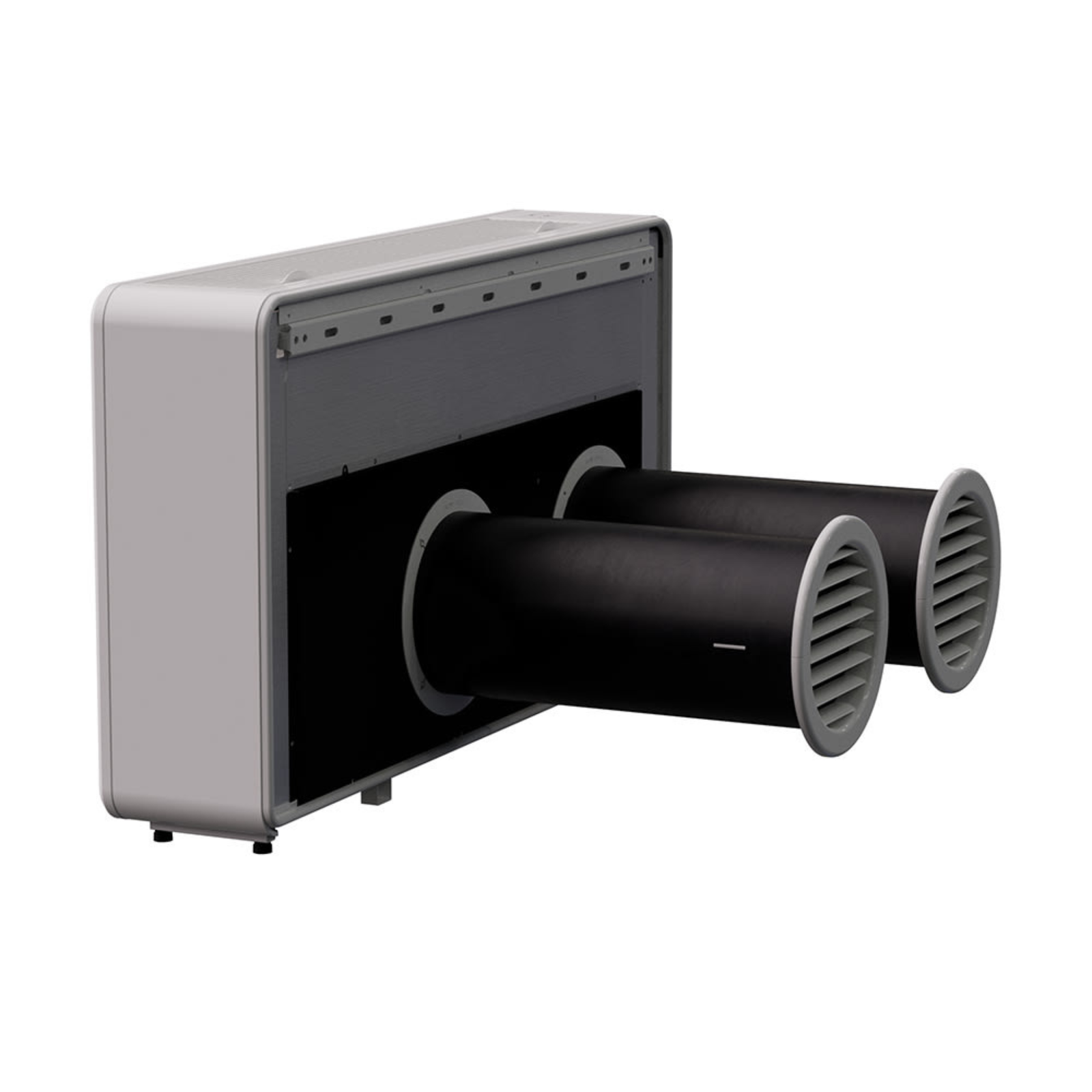

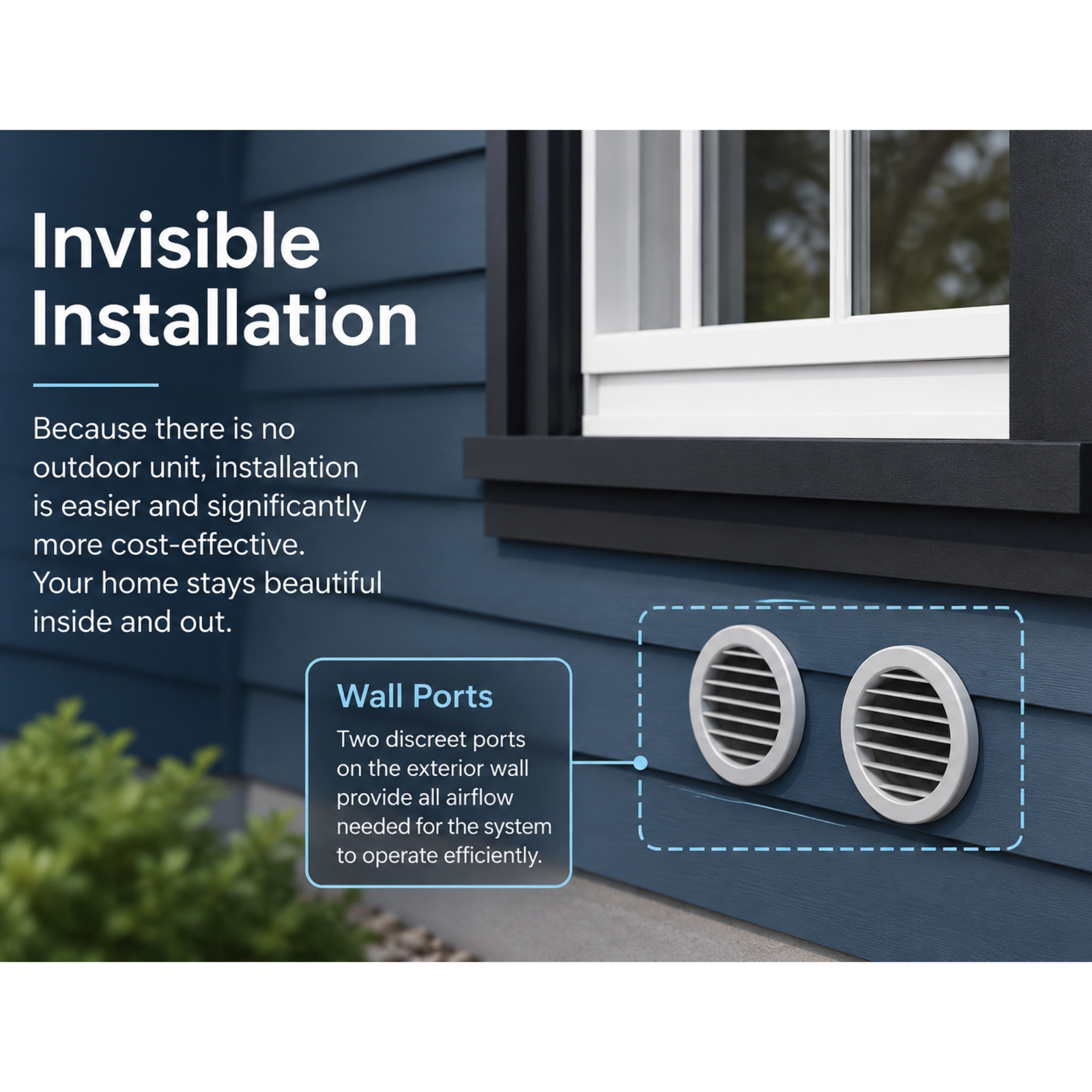

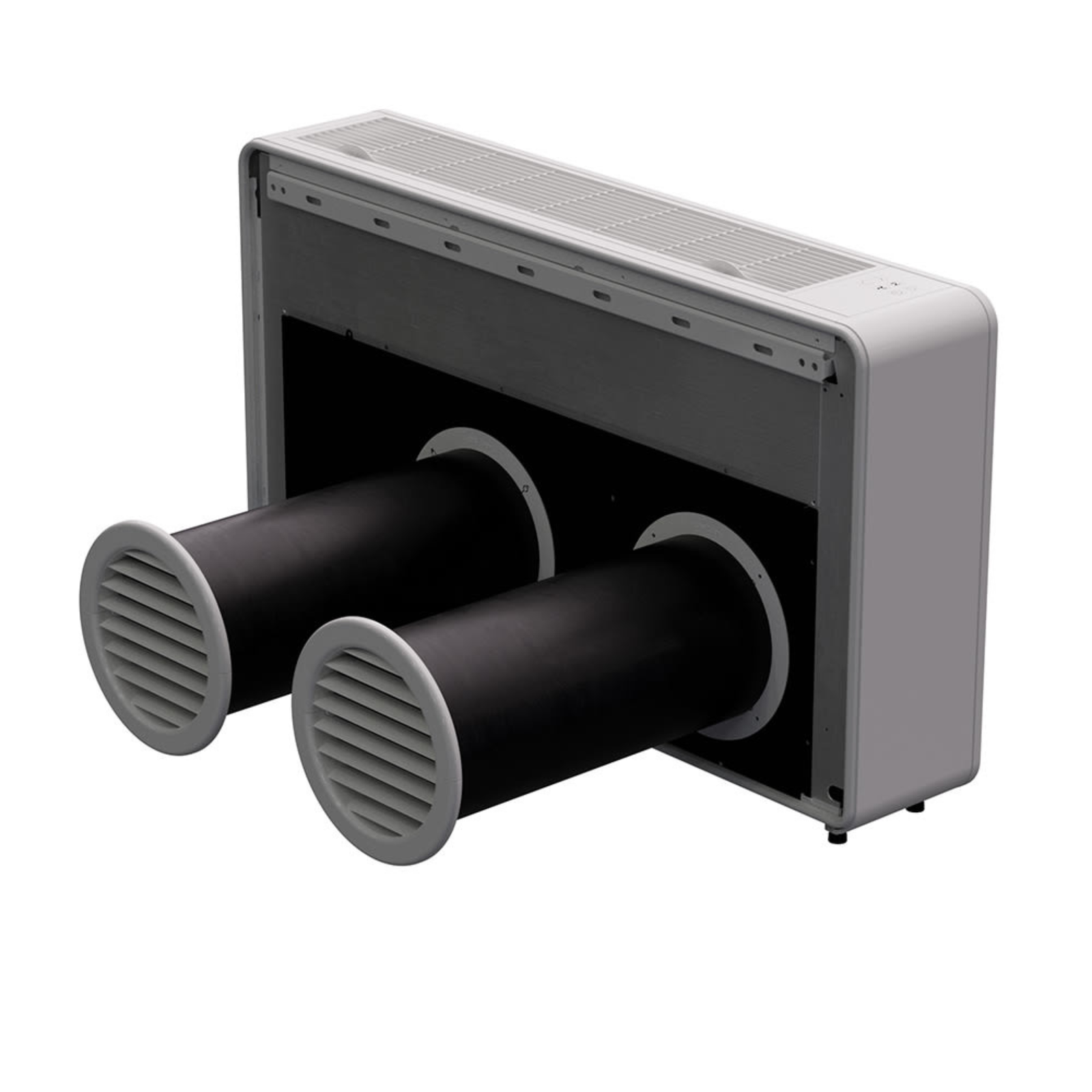

• Monoblock-style design with no outdoor unit required

Features

• Heat Pump with Cooling, Heating, Dry, Auto and Fan Modes

• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
  • SLEEP Mode, for Energy-Conservation
  • Timer On/Off Control

Technical Information & Performance

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 11,800 BTU/h

• Heating Rated Capacity: 10,900 BTU/h
• Electric Heat Rated Capacity: 10,236 BTU/h

• Refrigerant Type: R-32
• Refrigerant Charge: 22.9 oz (650 g)

• Rated Power (Cooling): 1,209 W

• Rated Power (Heating): 947 W
• Rated Power (Electric Heater): 3,000 W

• Rated Current (Cooling): 6.1 A
• Rated Current (Heating): 4.8 A
• Rated Current (Electric Heater): 13.6 A

• Airflow: 330 CFM

• Sound Level: 48 / 45 / 42 dB(A)
• Temperature Setting Range (Remote Control): 64-86°F (18-30°C)

• Cooling Mode Operating Range (Indoor): 63-90°F (17-32°C)

• Cooling Mode Operating Range (Outdoor): 63-109°F (17-43°C)
• Heating Mode Operating Range (Indoor): 28-81°F (-2-27°C)
• Heating Mode Operating Range (Outdoor): 28-75°F (-2-24°C)
• Dimensions (WDH): 39"-1/2 x 7"-5/8 x 22"-3/4 Inches
• Weight: 117.0 lbs (53.1 kg)
