Product overview
Perfect Aire DIY 36,000 BTU 20 SEER2 Quick Connect Ductless Mini-Split Heat Pump w/ WiFi - R32 - 230V

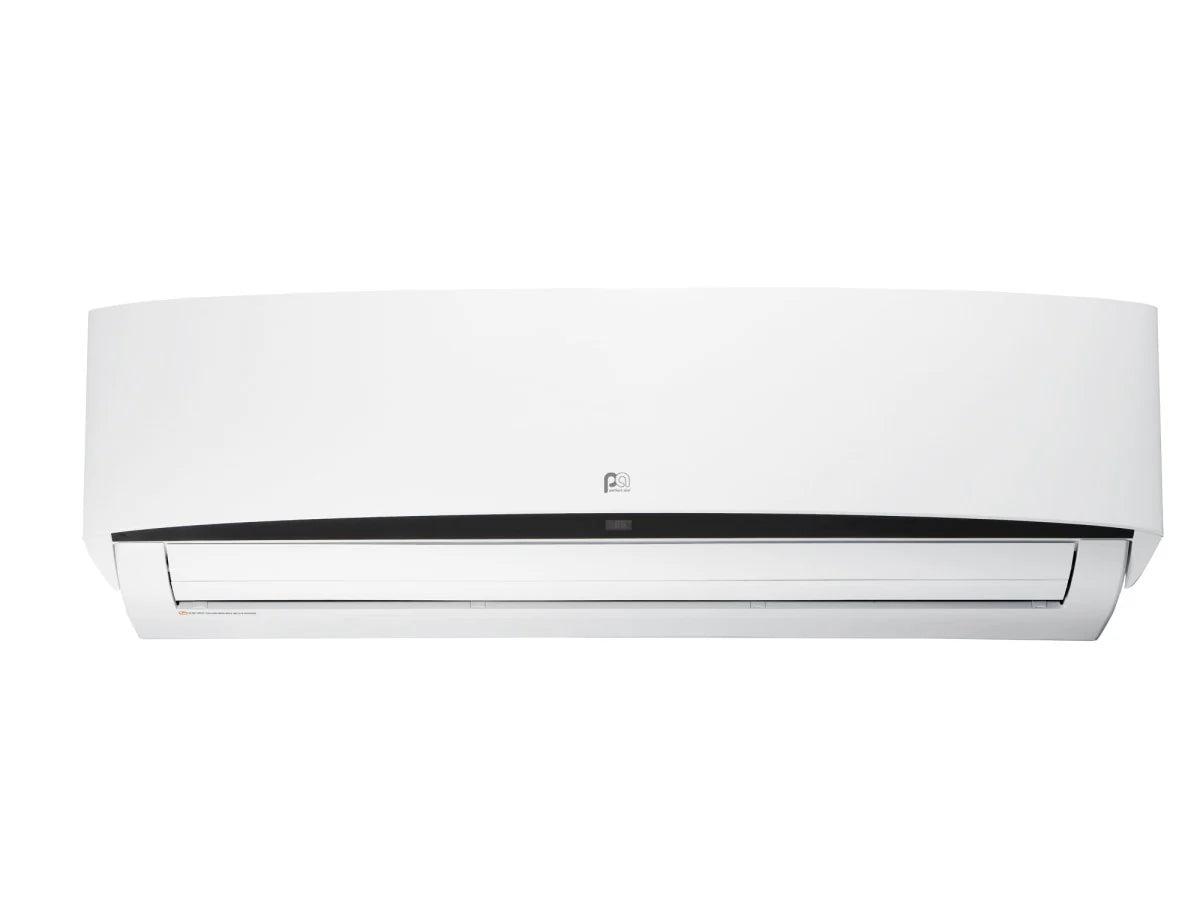

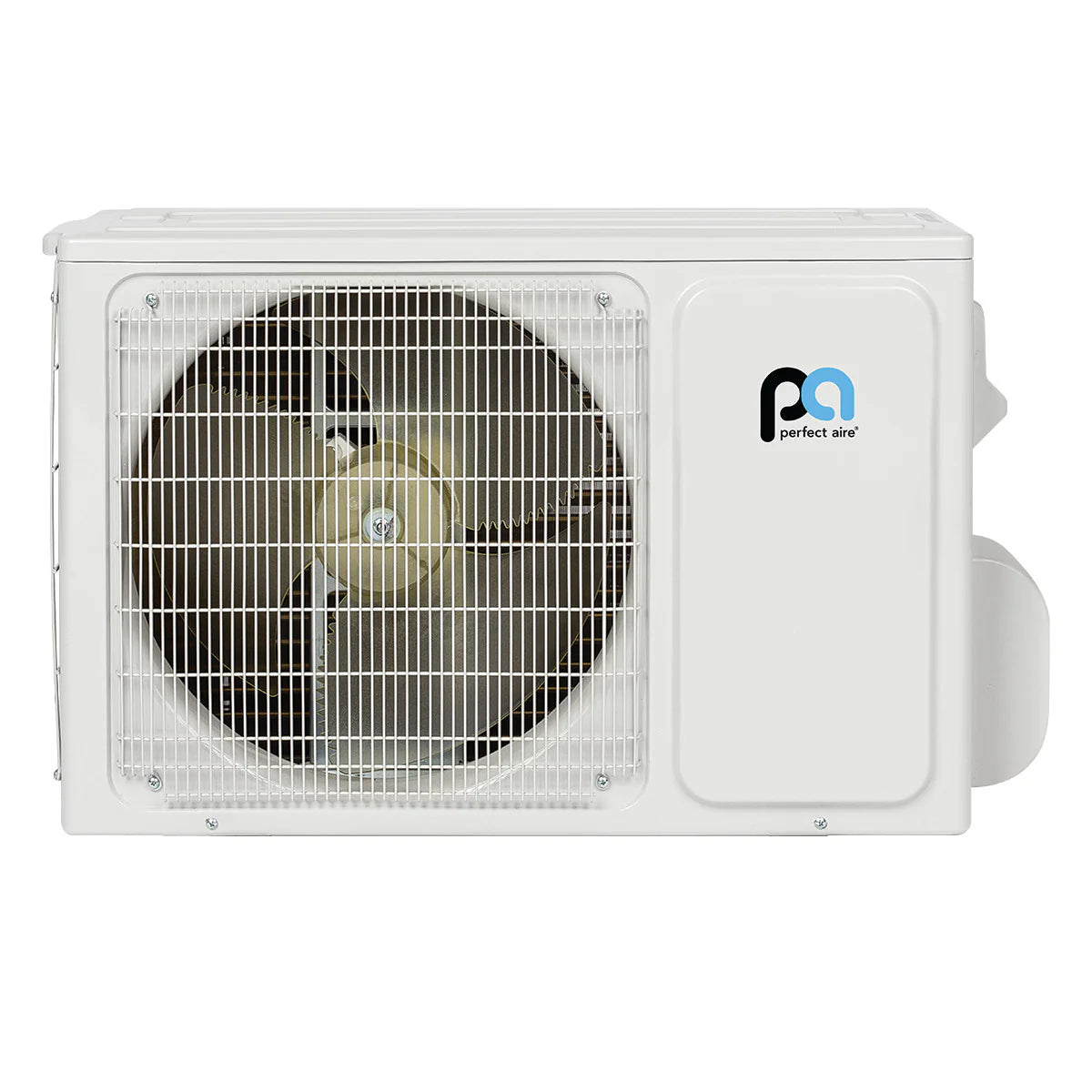

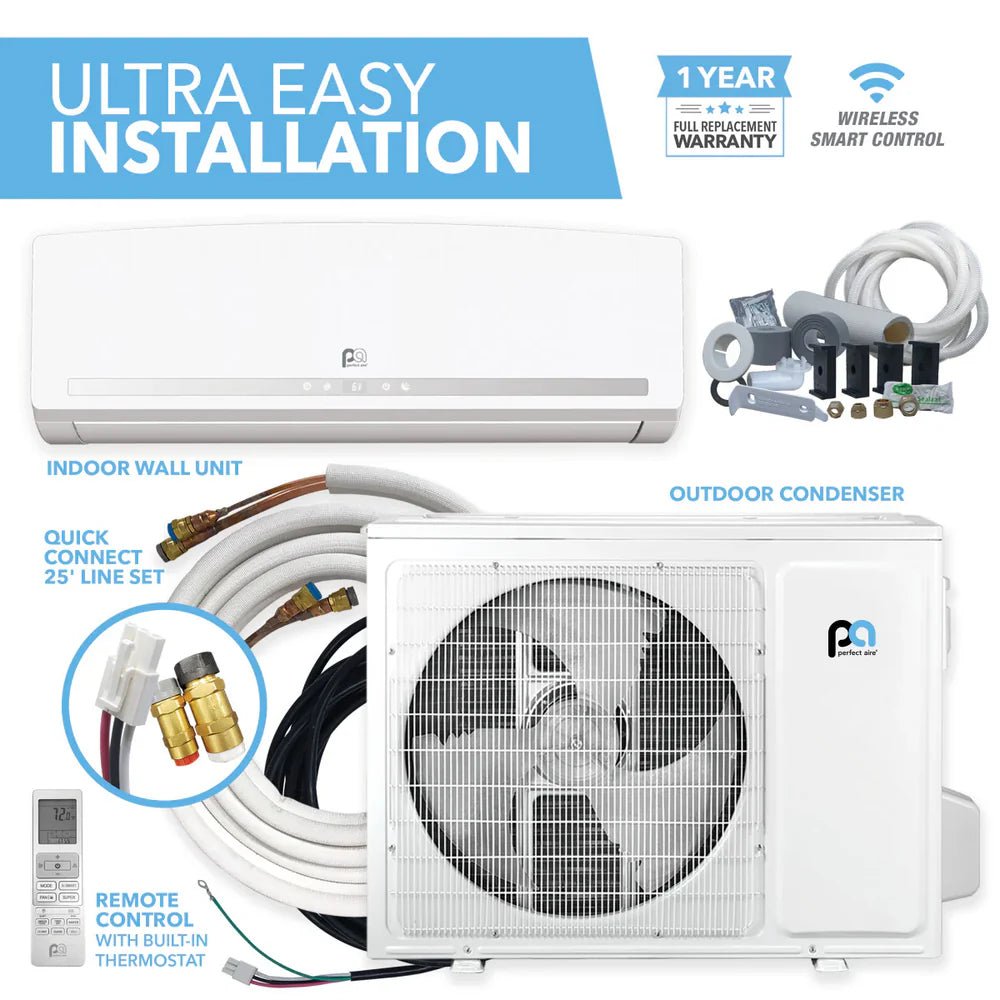

Take control of your comfort without the complexity of traditional HVAC installation. This single-zone system delivers powerful cooling and supplemental heating for spaces up to 1,500 sq. ft. — ideal for additions, garages, workshops, finished basements, sunrooms, and other hard-to-condition areas. It includes an indoor wall-mount unit, outdoor condenser, and a 25 ft. pre-charged Quick Connect line set, so setup skips soldering, gauges, vacuum pumps, and refrigerant handling entirely.
Performance:
- 34,600 BTU cooling / 35,000 BTU heating
- 20 SEER2, 8.4 HSPF2 (Region 4)
- Refrigerant: R-32 — a lower-GWP, ozone-safe refrigerant
- Cooling range: 5°F to 115°F outdoor ambient
- Heating range: down to -4°F outdoor ambient
Features:
- App control from anywhere via Wi-Fi
- Alexa and Google Assistant compatible
- Built-in refrigerant leak detection system
- Single-zone comfort, purpose-built for one room or open area
Specs:
- Indoor unit: 52.25"W x 14.50"H x 11"D, 41 lbs
- Outdoor unit: 35.50"W x 13.50"H x 29.50"D, 121.25 lbs
- Electrical: 230V, 30A max fuse
- Line set: 25 ft. pre-charged, quick-connect fittings
Warranty:
7 years parts/compressor, no-hassle comprehensive coverage — full DIY install eligible.
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 36,000 |
|---|---|
| Indoor unit(s) | 36K |
| Coverage area | 1,550 Sq Ft. |
| Zones / rooms | 1 Zone |
| Efficiency | 17 SEER2 |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | DIY Installation |
| Brand | Perfect Aire |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
Complete Your System
See it done
Watch the full DIY install
Every step, start to finish — most homeowners wrap a single zone in a weekend.
