Product overview

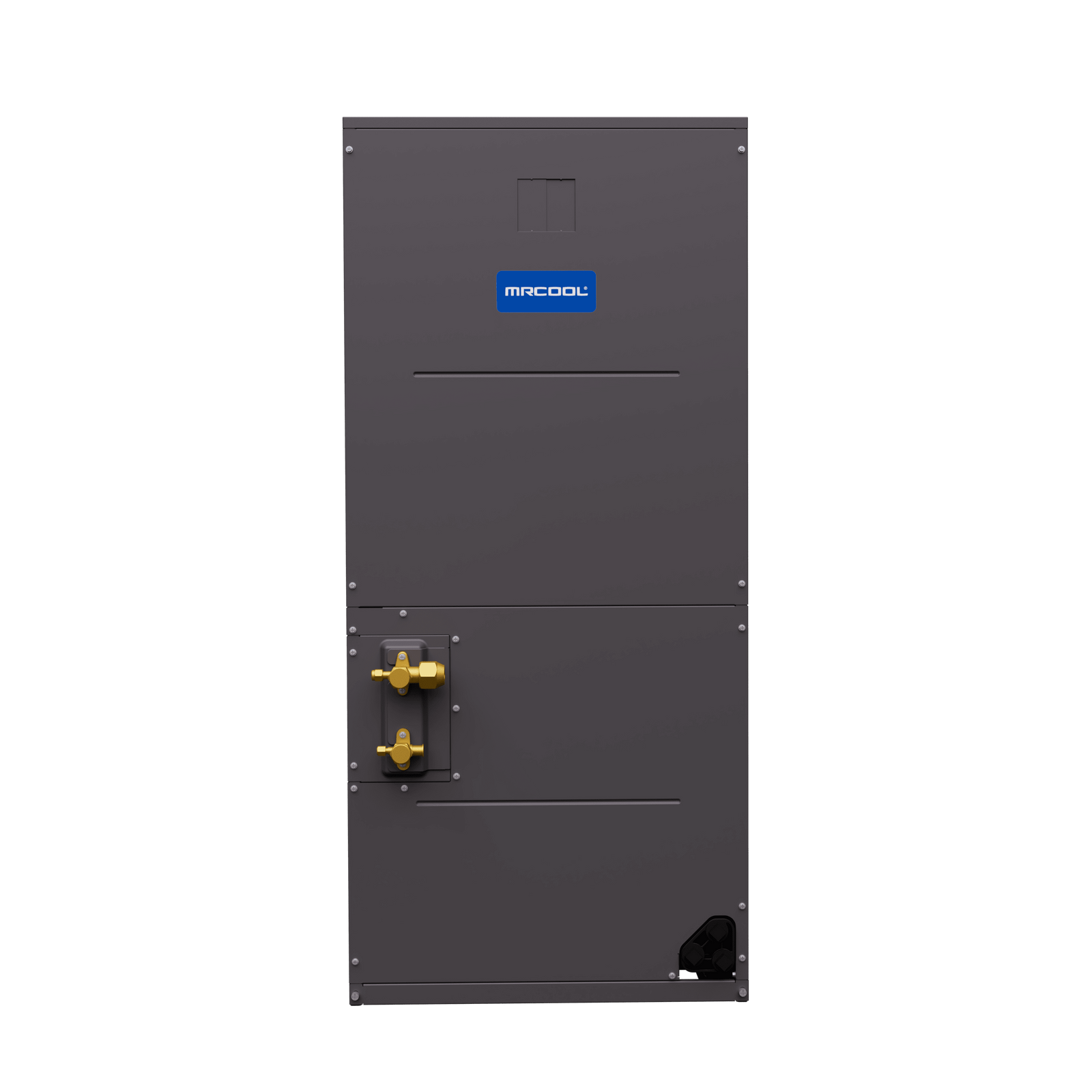

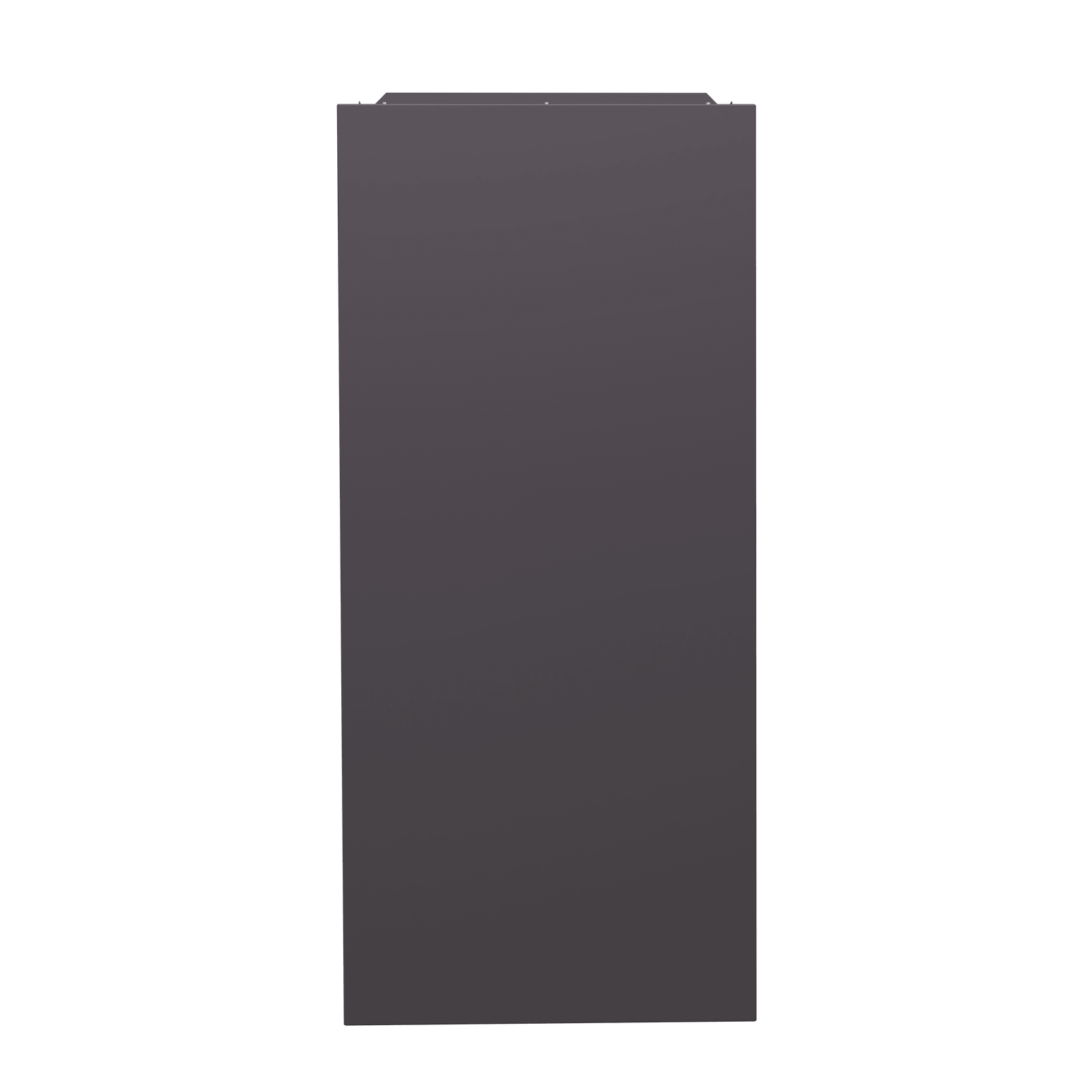

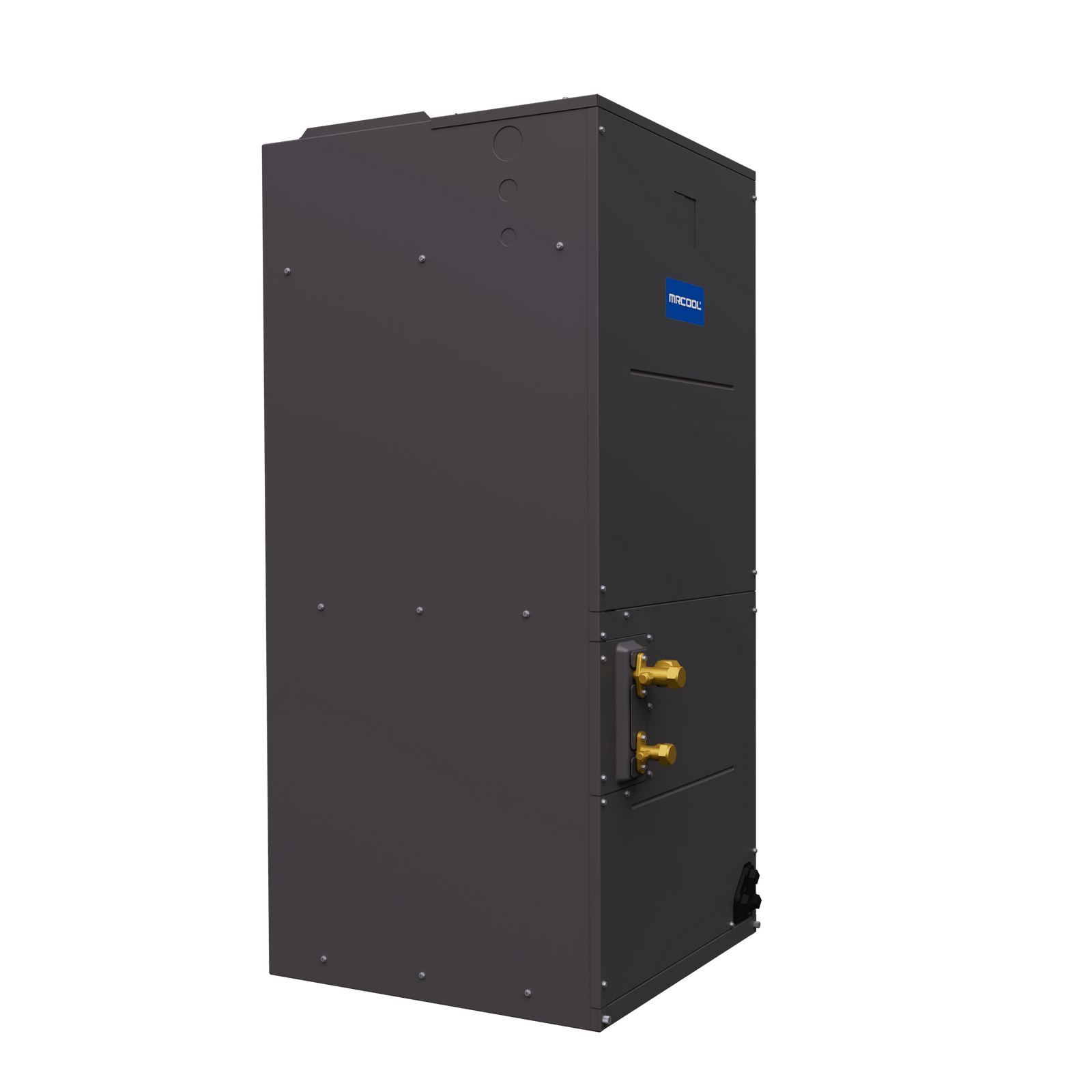

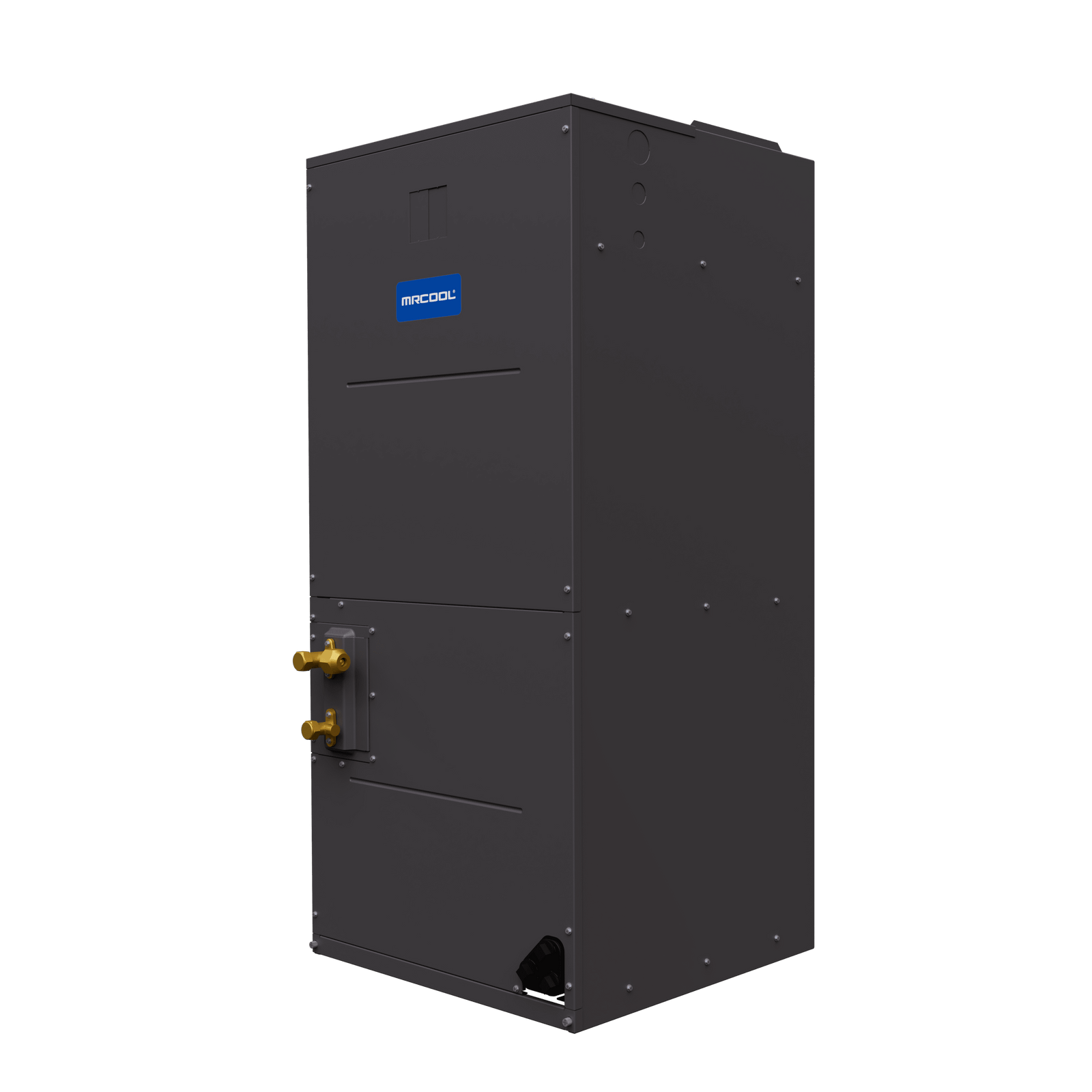

MRCOOL Signature Series TruInverter 2 Ton 24,000 BTU Multi-Position Air Handler - MCAEAMPVT24D21BA
The MRCOOL Signature Series TruInverter 24K multi-position air handler delivers smooth, efficient airflow for a matched TruInverter central heat pump system. Its variable-speed design helps maintain steadier temperatures, better humidity control, and quieter operation than conventional fixed-speed equipment.
The cabinet supports upflow, downflow, and horizontal installation, giving contractors flexibility for closets, attics, basements, crawl spaces, and mechanical rooms. It uses R-454B refrigerant and is compatible with MRCOOL No-Vac Quick Connect line sets.
This listing includes the indoor air handler only. Pair it with the compatible TruInverter condenser MCAESHV8T2421BA. A thermostat, line set, heat kit, and other installation materials are sold separately. Licensed professional installation is required.
Key Specifications
| CFM | 850 |
| TONNAGE | 2 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 5 |
| MOUNT TYPE | Mulit-Position |
| COLOR | Gunmetal |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING (DBA) | 57 |
| MAX LINESET LENGTH (FT) | 100 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| BLOWER MOTOR TYPE | DC |
| BLOWER MOTOR HP | 1/2 |
| BLOWER MOTOR SPEEDS | 5 |
| METERING DEVICE | TXV |
| AUXILIARY HEATER SIZES | 5kW, 10kW |
| NET DEPTH (IN) | 21 |
| NET HEIGHT (IN) | 46.5 |
| NET WIDTH (IN) | 21 |
| NET WEIGHT (LBS) | 126.8 |
