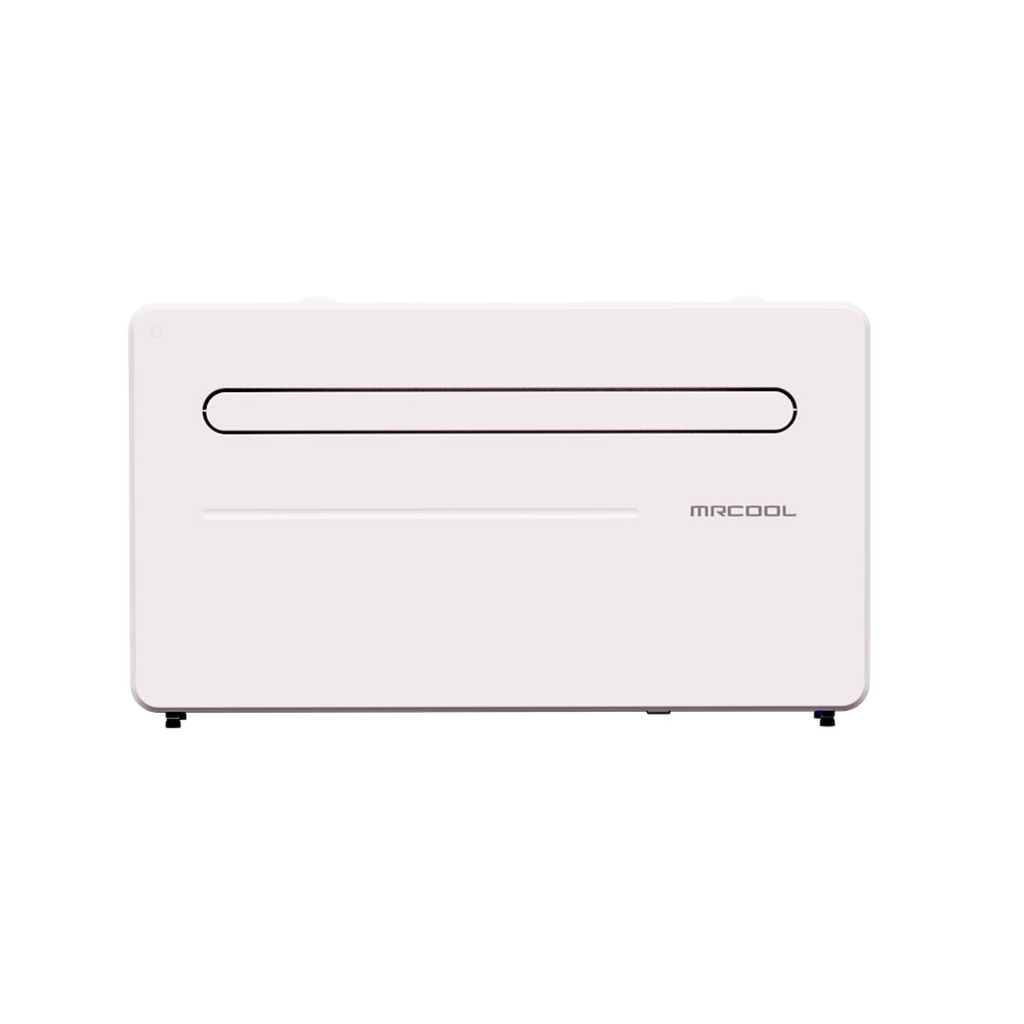

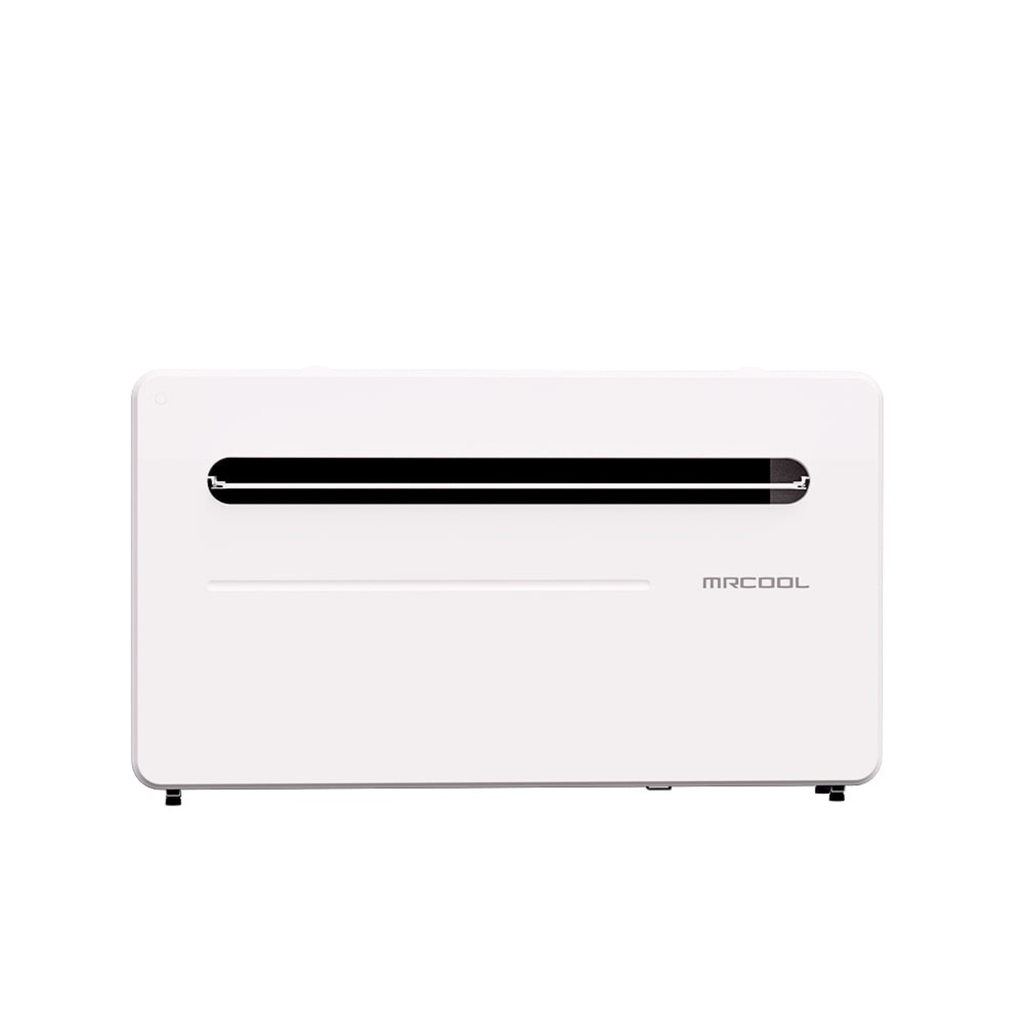

MRCOOL® Monoblock MTHP 10,000 BTU 115V Wall Mounted Heating & Cooling System – No Outdoor Unit Required – MDM10115D
The MRCOOL® Monoblock MTHP Series changes the way homeowners think about heating and cooling small spaces. Designed with a true all-in-one system architecture, the MRCOOL Monoblock eliminates the need for a traditional outdoor condenser while still delivering powerful year-round comfort with efficient heating and cooling performance.

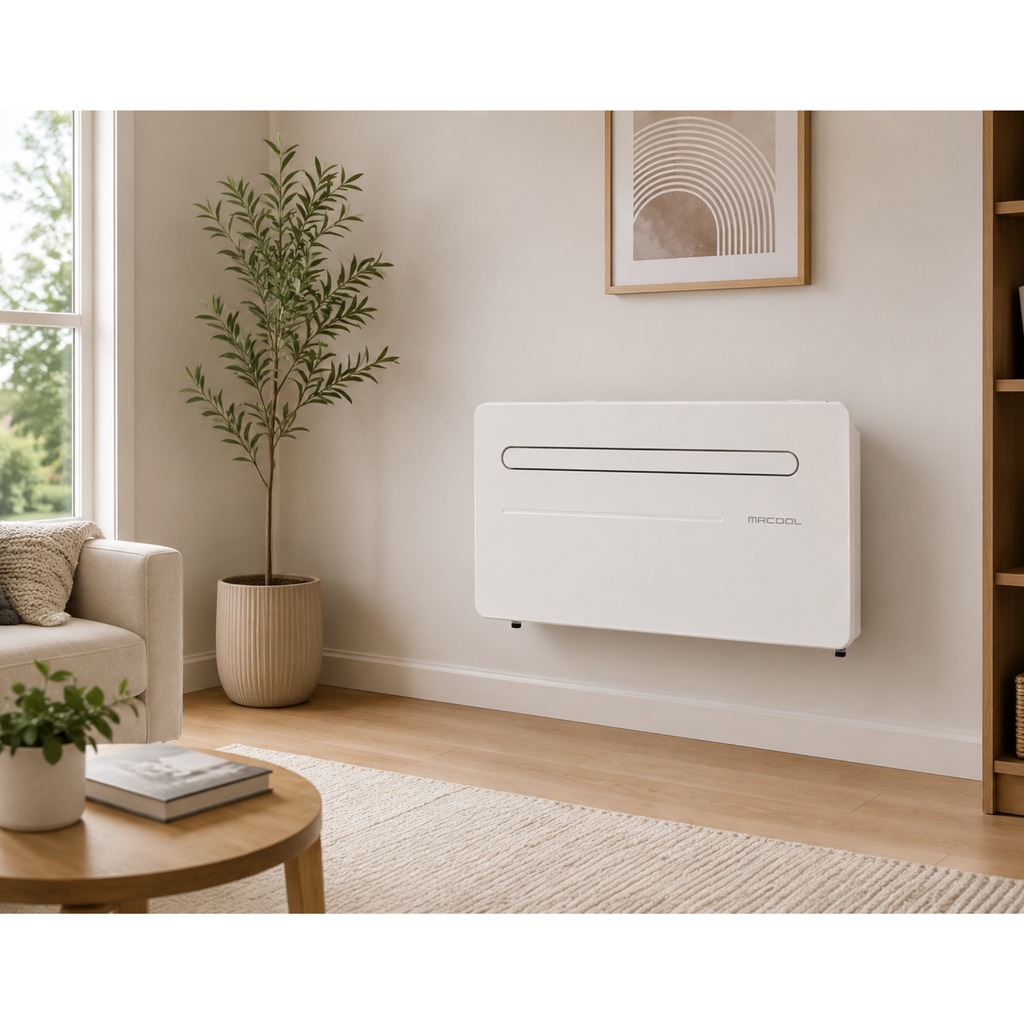

Perfect for apartments, garages, offices, sunrooms, workshops, additions, cabins, tiny homes, studios, server rooms, and spaces where traditional HVAC systems are difficult to install, the MRCOOL Monoblock MTHP combines modern inverter technology, ultra-quiet performance, and DIY-friendly installation into one compact wall-mounted solution. No hassle of running a dedicated electric line to the outside condenser. Just plug into your wall outlet after the install is done.

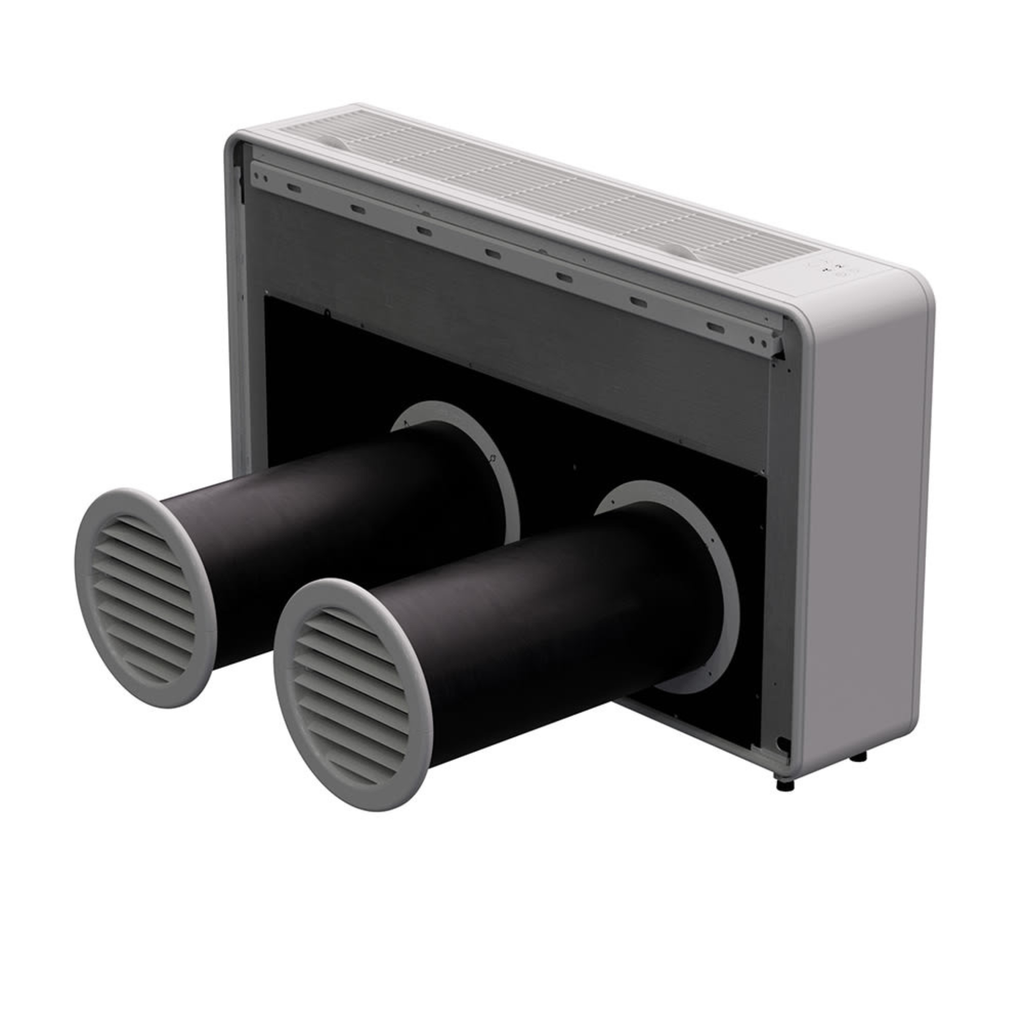

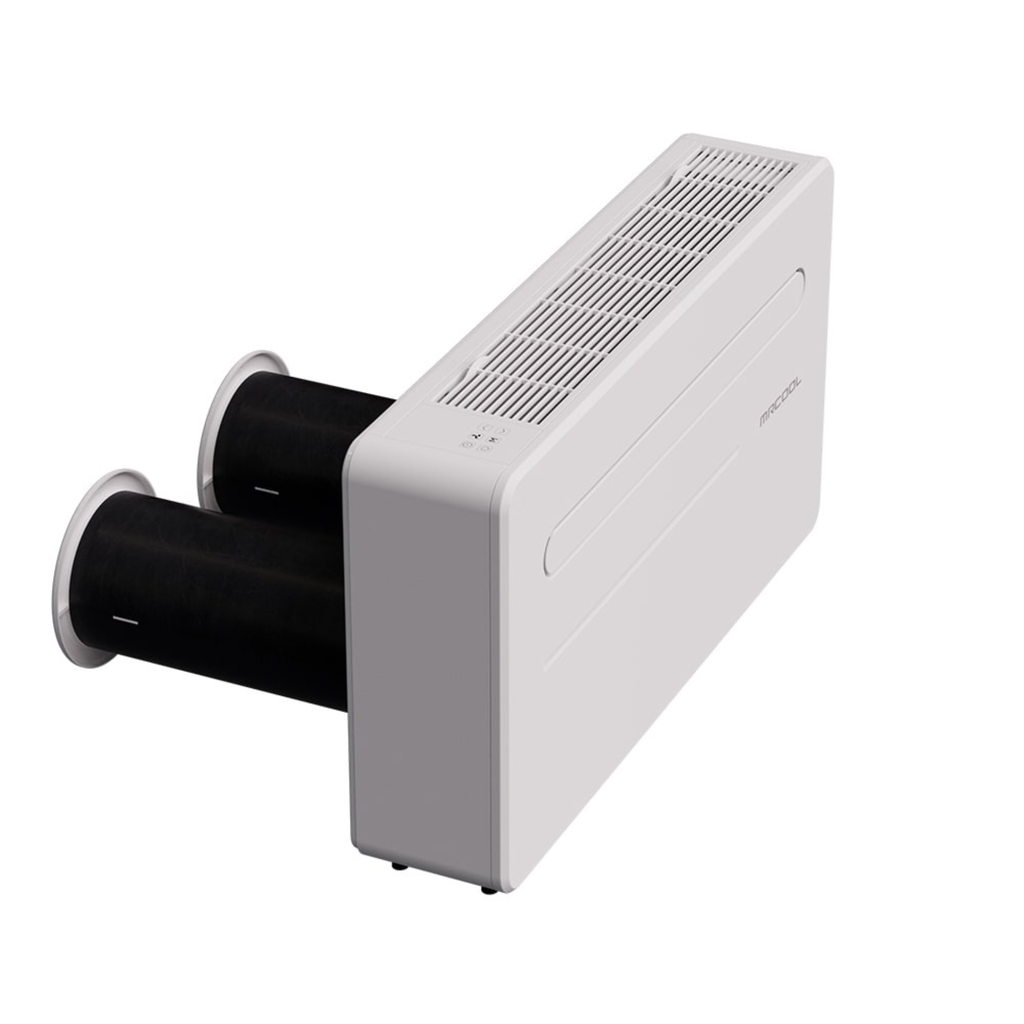

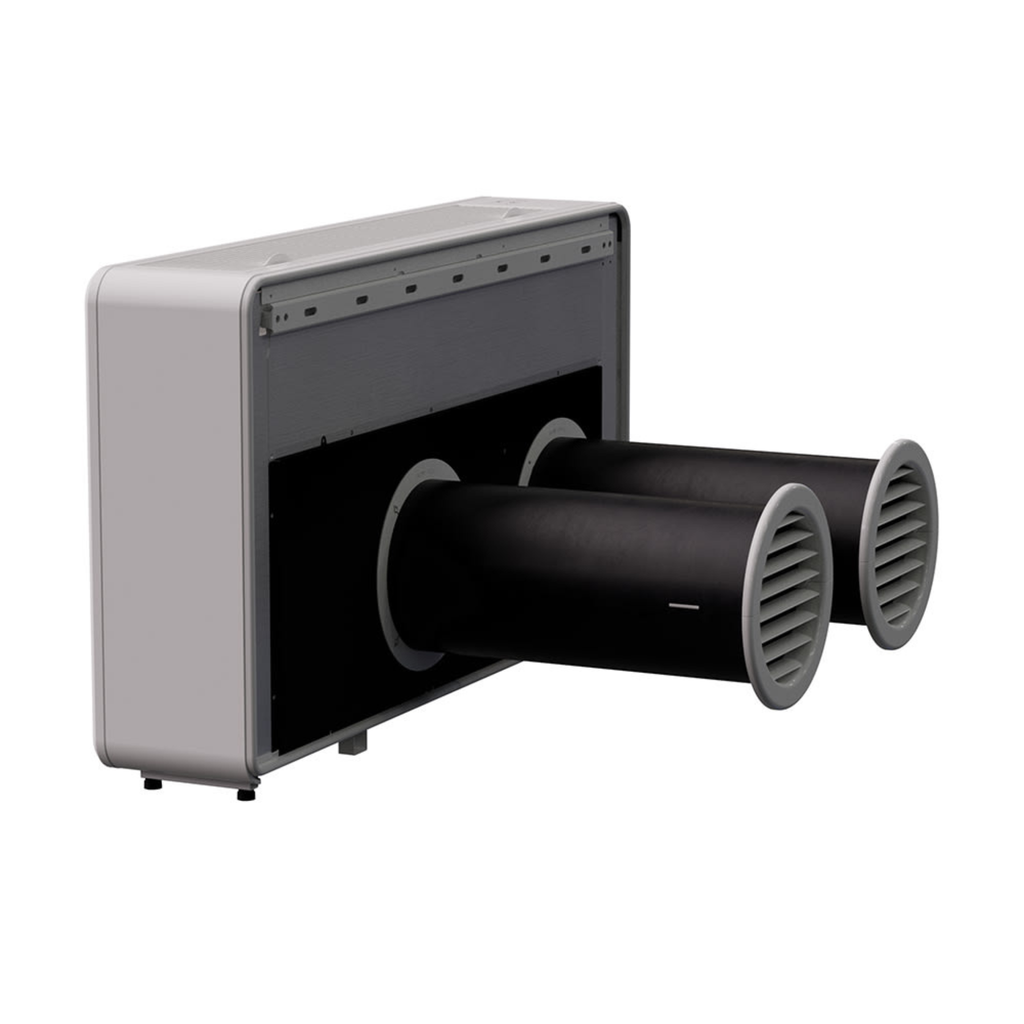

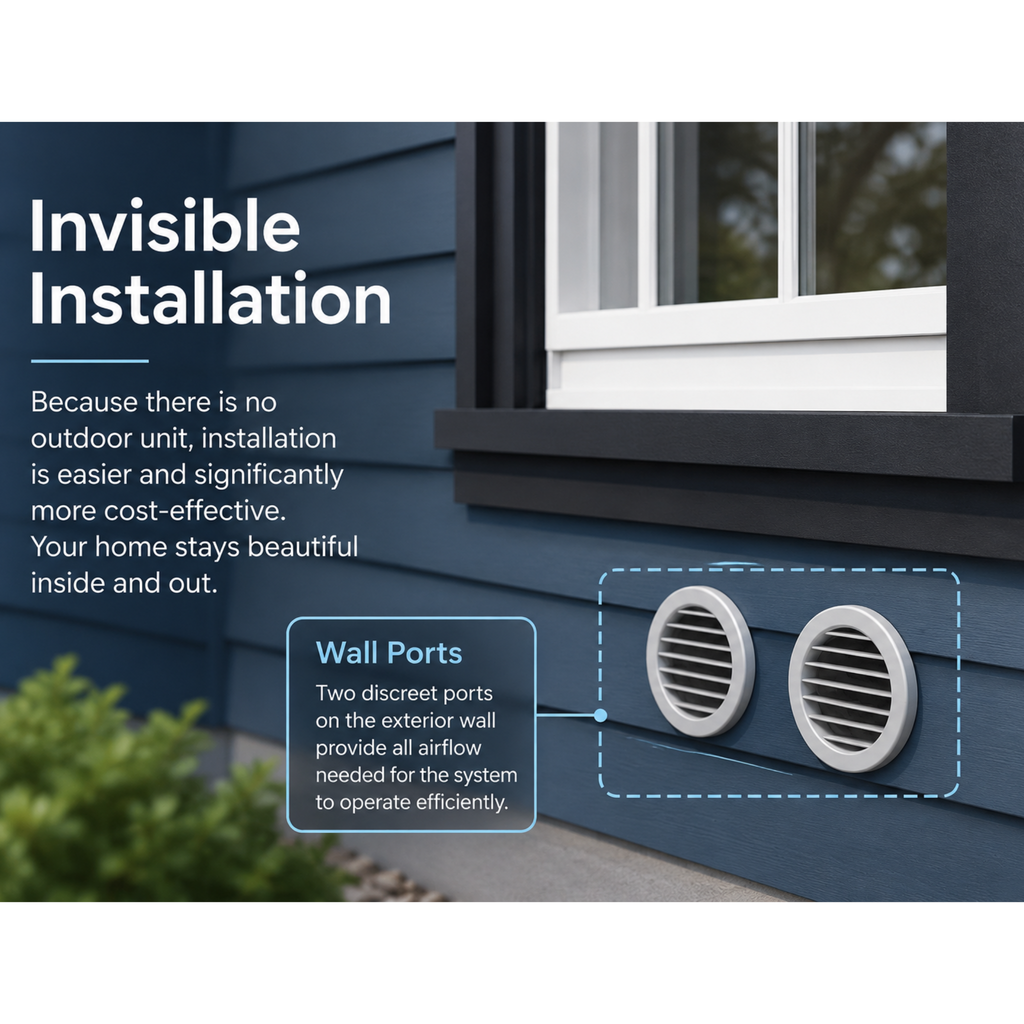

Unlike conventional mini split systems that require refrigerant handling and outdoor equipment, the Monoblock system keeps everything housed inside a single sleek indoor unit. This dramatically simplifies installation while reducing space requirements and installation costs. No dedicated electric line a breaker. Just plug into wall outlet.
Built with DC inverter technology, the system intelligently adjusts compressor speed based on room demand instead of constantly cycling on and off. The result is smoother temperature control, lower energy usage, quieter operation, and longer system lifespan.
With cooling, heating, fan-only, and dry modes, this system adapts to changing comfort needs throughout every season. The integrated WiFi functionality allows control directly from your smartphone using the MRCOOL® Connect App, giving you complete comfort control from virtually anywhere.
The durable metal housing, reusable filter system, self-evaporative operation, and modern LED display all work together to create a dependable, efficient comfort solution designed for long-term reliability.
Whether you need efficient climate control for a small room or a compact HVAC solution where outdoor units are not practical, the MRCOOL Monoblock MTHP delivers modern comfort without compromise.
TECHNICAL SPECIFICATIONS
Performance
- Cooling Capacity: 10,000 BTU
- Heating Capacity: 9,000 BTU
- SEER2: 15
- EER2: 9.9
- HSPF2: 7.5
- Tonnage: 0.83 Ton
Electrical
- Voltage: 115V
- Phase: 1
- Frequency: 60 Hz
- Minimum Circuit Ampacity (MCA): 13A
- Maximum Fuse/Breaker: 20A
- Just plug into your wall outlet.
Refrigerant
- Refrigerant Type: R-32
- Refrigerant Volume: 19.4 oz
Sound Levels
- Low Sound Level: 32 dBA
- High Sound Level: 46 dBA
Features
- True All-In-One Design
- No Outdoor Condenser Required
- DC Inverter Technology
- Wall Mounted Design
- WiFi Compatible
- App Compatible
- Works with iOS & Android
- Quiet Mode
- Fan Only Mode
- Dry Mode
- Swing Function
- Self-Evaporative System
- LED Display
- Timer Function

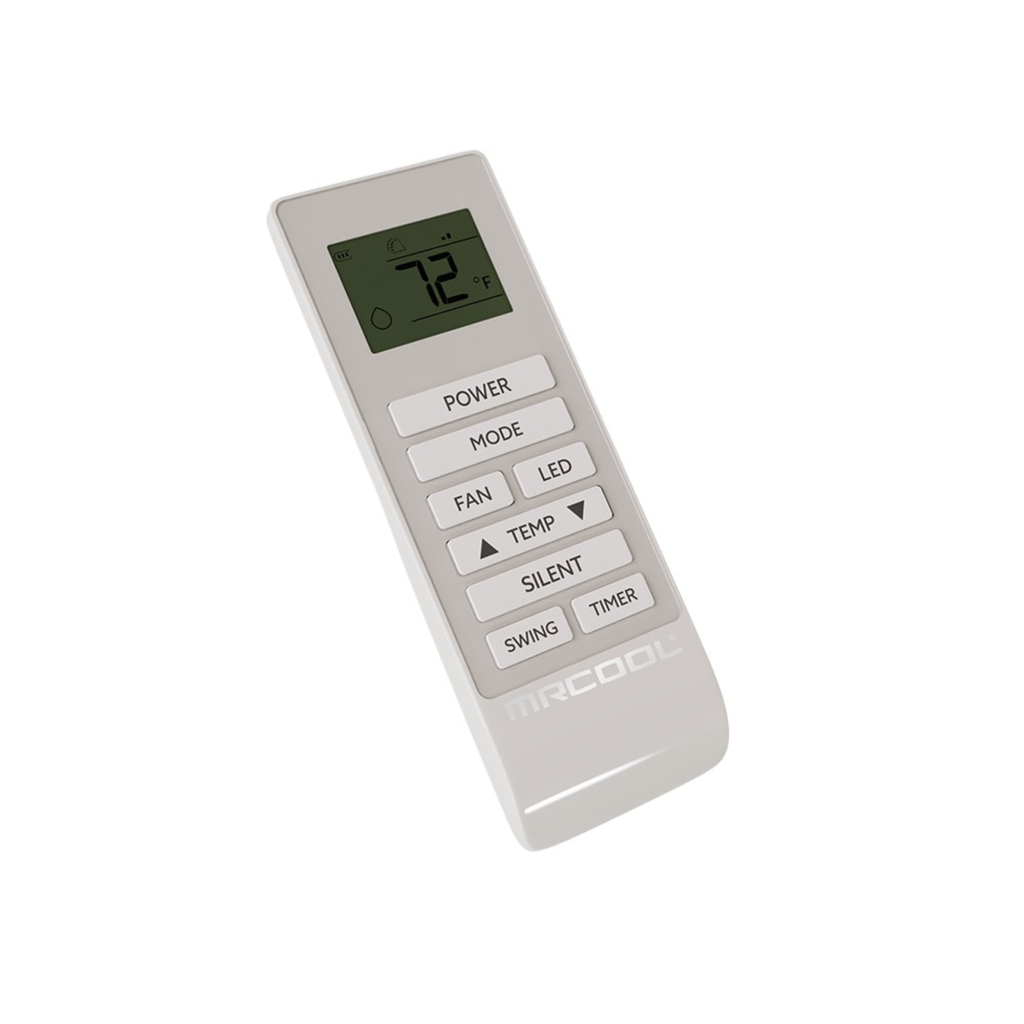

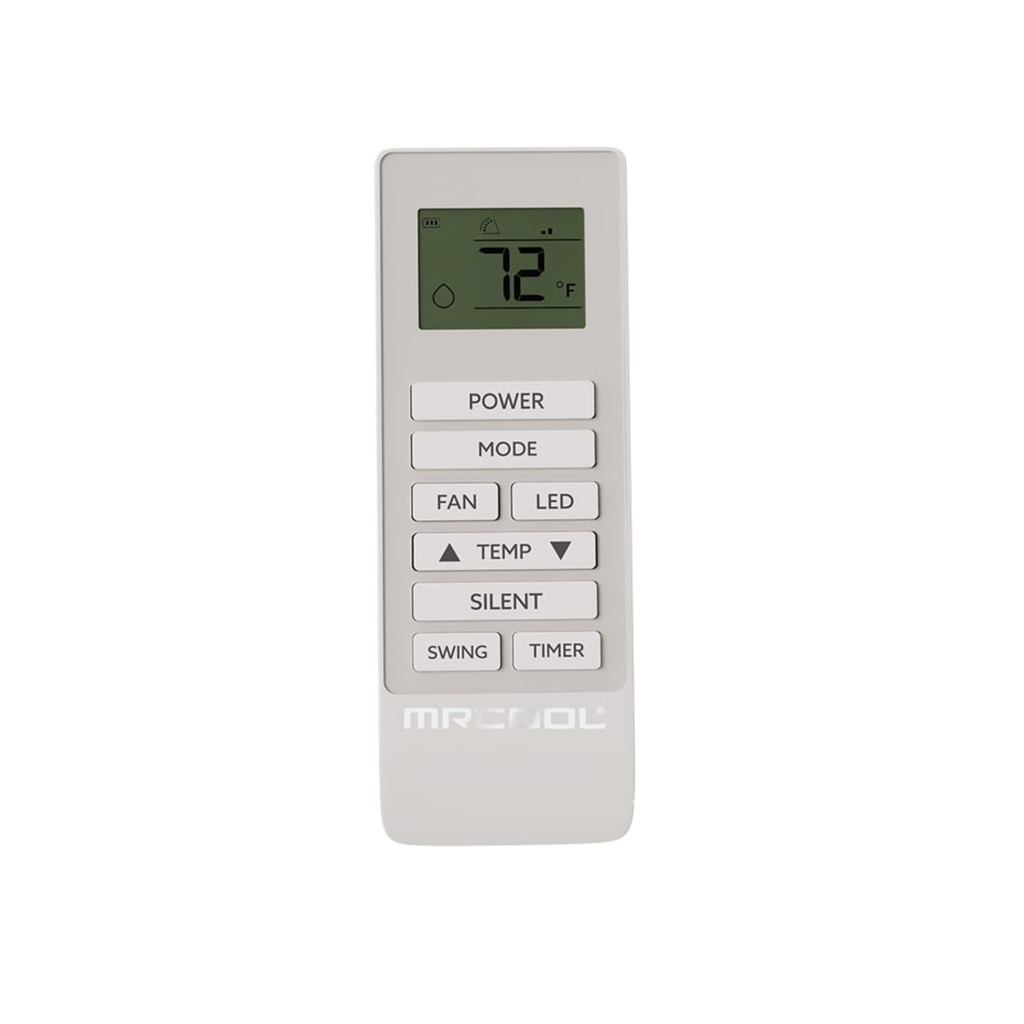

- Remote Control Included
- Reusable Filter
- Rotary Compressor
- DC Condenser Fan Motor
- DC Blower Motor
Physical Specifications
- Color: White
- Net Dimensions: 39.4” W x 23.1” H x 8.07” D
- Net Weight: 93.5 lbs
