Product overview

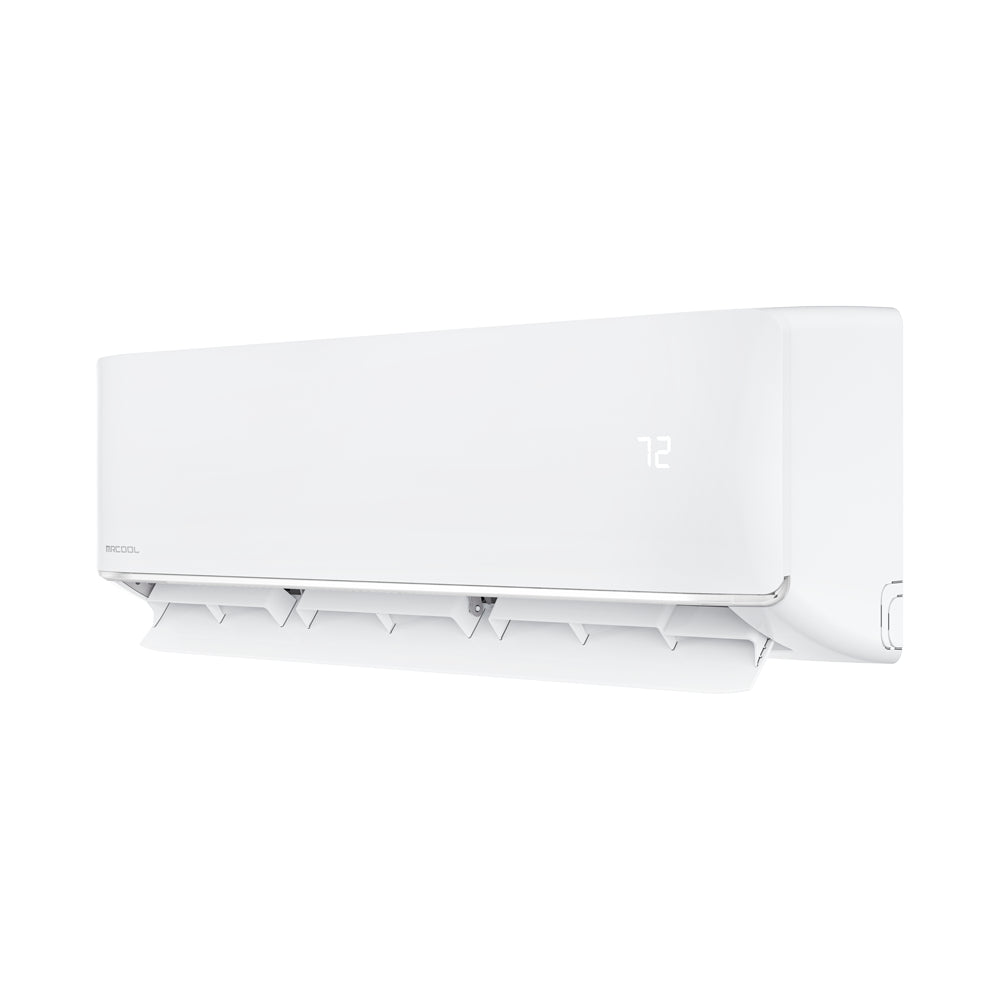

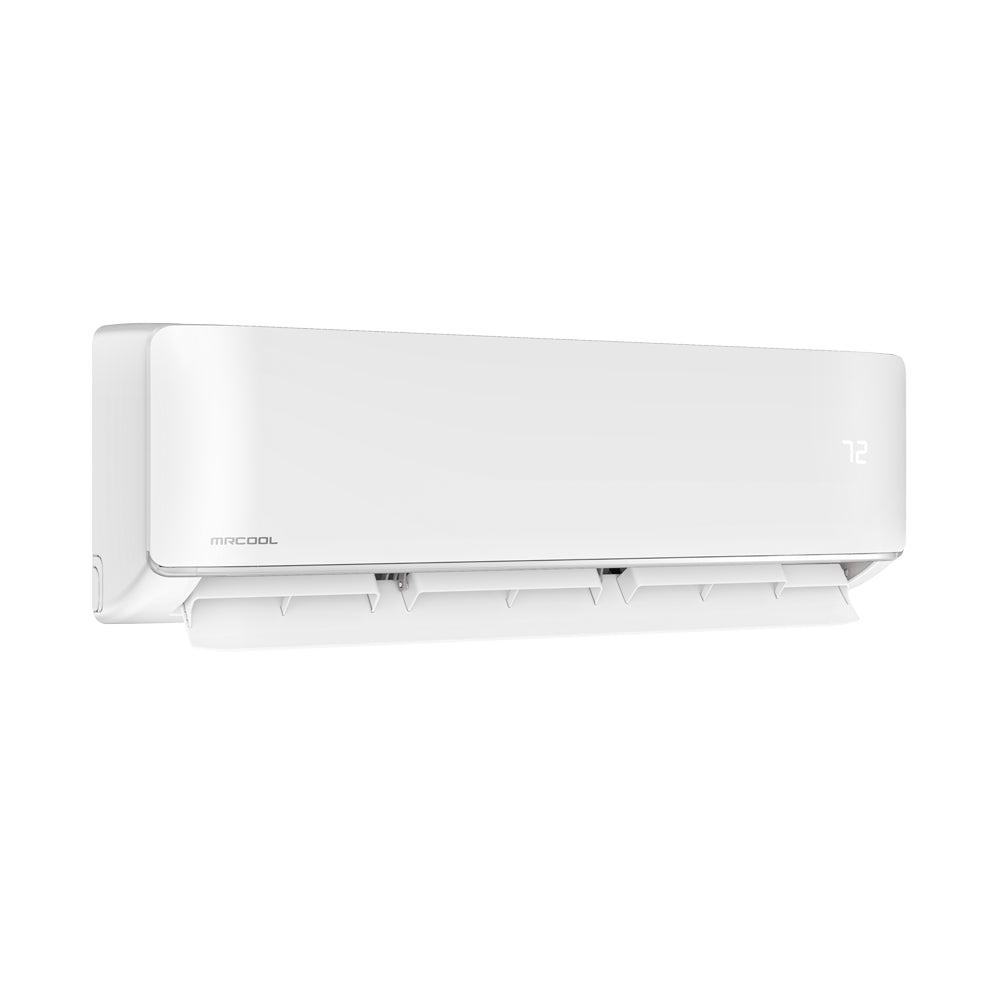

MRCOOL DIY 24K BTU 5th Gen Ductless Mini Split Air Handler - 230V
Product Specifications:
| BRAND NAME | MRCOOL |
| SERIES | DIY 5th gen Single-Zone Mini-splits |
| MODEL | DIY-24-HP-WMAH-230D25-O |
| GTIN | 840255587051 |
| UPC | 840255587051 |
| SHORT DESCRIPTION | MRCOOL® 24k DIY 5th Generation Mini-split Air Handler 230v |
| TONNAGE | 2 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| MAX COVERAGE AREA | 1050 sqft |
| DECIBEL RATING LOW (DBA) | 20 |
| DECIBEL RATING HIGH (DBA) | 54 |
| NUMBER OF SPEEDS | 5 |
| OSCILLATION | Yes |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 5/8 |
| FILTER TYPE | Reusable |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 8.9 |
| NET HEIGHT (IN) | 13.19 |
| NET WIDTH (IN) | 42.52 |
| NET WEIGHT (LBS) | 35.93 |
| GROSS DEPTH (IN) | 17.68 |
| GROSS HEIGHT (IN) | 14.29 |
| GROSS WIDTH (IN) | 46.73 |
| GROSS WEIGHT (LBS) | 49.82 |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 24K BTU |
|---|---|
| Zones / rooms | 1 Zone |
| Mount type | Wall |
| Installation | DIY |
| Brand | MRCOOL |
