Product overview

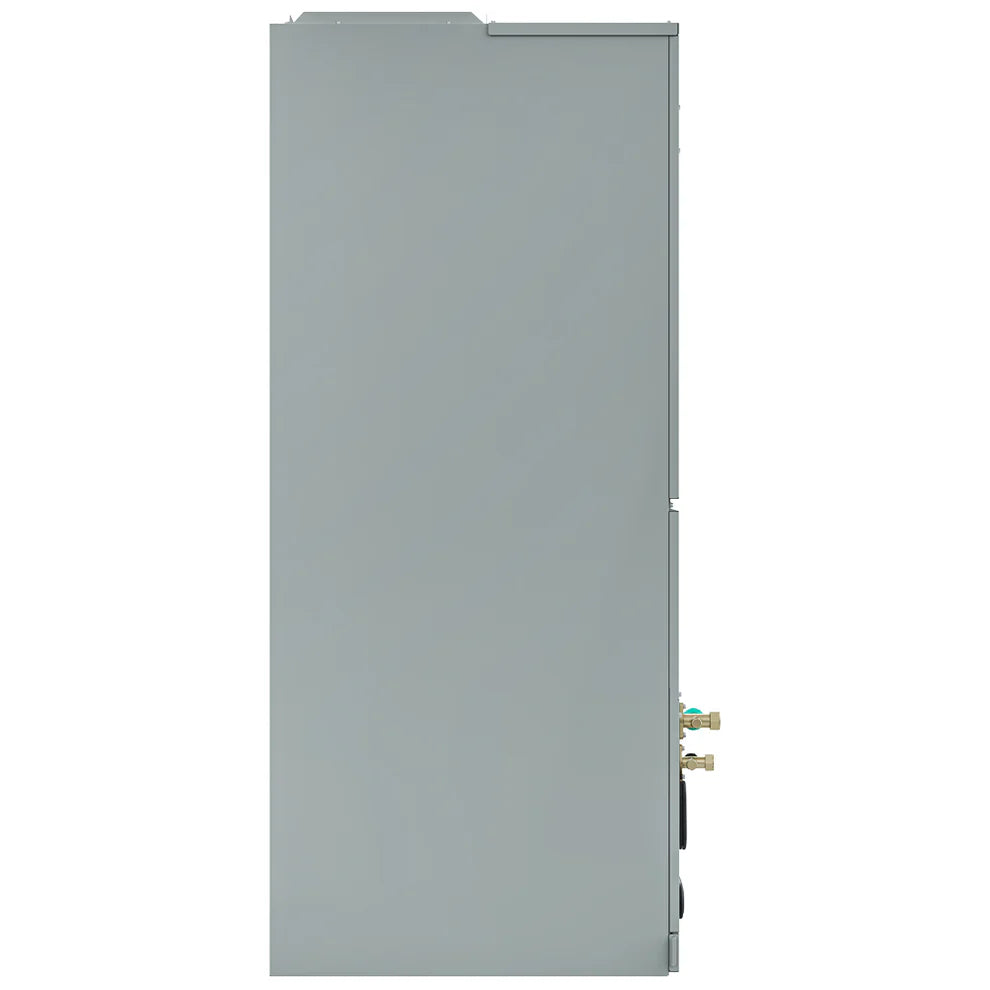

MRCOOL 1.5 Ton 18,000 BTU Central Ducted VersaPro & Hyper Heat Air Handler - 2nd Gen
The 2nd Generation 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable option for heating and cooling your home throughout the year. With a SEER2 rating of up to 18.8, it is ideal for spaces up to 750 square feet, making it a great upgrade for older HVAC systems.
The air handler is built with durability in mind, featuring a painted galvanized steel exterior that ensures long-lasting performance. Maintenance is made easier with a self-diagnostics panel that quickly identifies any issues, reducing the need for troubleshooting. This unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations, allowing it to fit various setups. It uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining efficient performance. An optional heat kit is available for those who need additional heating. Complementing this, the MRCOOL® Smart Thermostat ensures reliable and easy-to-use temperature control, making it simple to maintain your ideal home climate. Its compatibility with the MRCOOL® SmartHVAC app allows you to conveniently adjust your settings remotely for added comfort and control. Backed by a 10-year warranty, the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for improving your home’s comfort and performance.
Product Specs:
| BRAND NAME | MRCOOL |
| SERIES | VersaPro® Central Ducted Air Handler |
| MODEL | MVP-18-HP-MUAH-230A00-O |
| GTIN | 840255586443 |
| UPC | 840255586443 |
| UNIT TYPE | Split System Heat Pump |
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION | 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
| CFM | 618.03/576.83/529.74/488.54 |
| TONNAGE | 1.5 |
| COOLING CAPACITY (BTU) | 18000 |
| HEATING CAPACITY (BTU) | 18000 |
| VOLTAGE (V) | 115/208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 5.5/4.0 |
| COLOR | gray |
| DECIBEL RATING LOW (DBA) | 33 |
| DECIBEL RATING HIGH (DBA) | 44 |
| NUMBER OF SPEEDS | 4 |
| MAX LINESET LENGTH (FT) | 98.4 ft |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| FILTER TYPE | Replaceable |
| FILTER SIZE | 16x20x1 |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | Yes |
| AUXILIARY HEATER SIZES | 5kW/8kW/10kW |

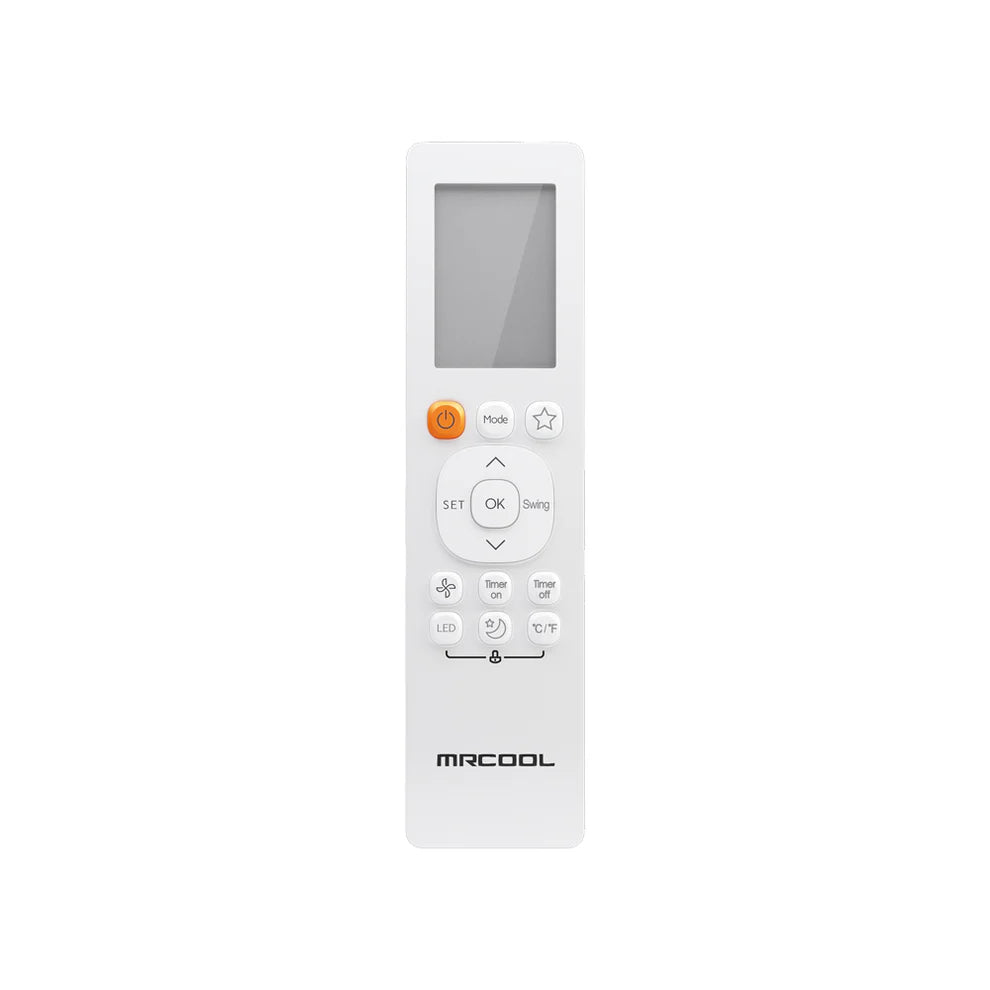

| ADJUSTABLE THERMOSTAT | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | No |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 10 Years |
| BASE COMPRESSOR WARRANTY | 10 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| NET DEPTH (IN) | 17.52 |
| NET HEIGHT (IN) | 45 |
| NET WIDTH (IN) | 21.02 |
| NET WEIGHT (LBS) | 105.82 |
| GROSS DEPTH (IN) | 20.87 |
| GROSS HEIGHT (IN) | 48.62 |
| GROSS WIDTH (IN) | 26.57 |
| GROSS WEIGHT (LBS) | 126.76 |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 18K BTU |
|---|---|
| Coverage area | 750 Sq Ft. |
| Line set | 98.4 Ft |
| Mount type | Ducted |
| Brand | MRCOOL |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
