LG Multi F RED (LGRED) 24,000 BTU (12K + 12K) 21 SEER2 Dual Zone Wall Mount Mini Split Heat Pump System - R32 - 230V
The LG Multi F RED (LGRED) 24,000 BTU Dual Zone Wall Mount Mini Split Heat Pump System pairs a single cold-climate LGRED inverter outdoor unit with two wall-mounted air handlers (12K + 12K), giving you independent heating and cooling in two rooms from one condenser. Rated at 21 SEER2 and 9.8 HSPF2 with ENERGY STAR certification, it uses LG's variable-speed inverter compressor and R-32 refrigerant and keeps heating down to -13°F, making it a strong fit for homes in colder climates.
Key Features:
- 24,000 BTU Total Capacity – Two wall indoor units (12K + 12K) for room-by-room comfort.
- LGRED Cold-Climate Heating – Heating operation down to -13°F outdoor temperature.
- 21 SEER2 / 9.8 HSPF2 Efficiency – ENERGY STAR certified for lower year-round operating costs.
- Dual Zone Operation – Set a different temperature in each room.
- Inverter Technology – Variable-speed compressor matches output to demand for steady temperatures and less wasted energy.
- Wi-Fi Ready – Compatible with LG ThinQ app control (confirm module requirements per indoor unit).
- Eco-Friendly R-32 Refrigerant – Lower global warming potential, with built-in refrigerant leak detection on the indoor units.
- 230V Power Supply – 208/230V, single phase, 30 Amps max breaker.
Ideal Applications:
- Homes in cold climates needing efficient heat in several rooms.
- Bedrooms, home offices, finished basements, and additions without ductwork.
- Replacing electric baseboard, window units, or portable air conditioners.
- Supplementing an existing central system in hard-to-condition rooms.

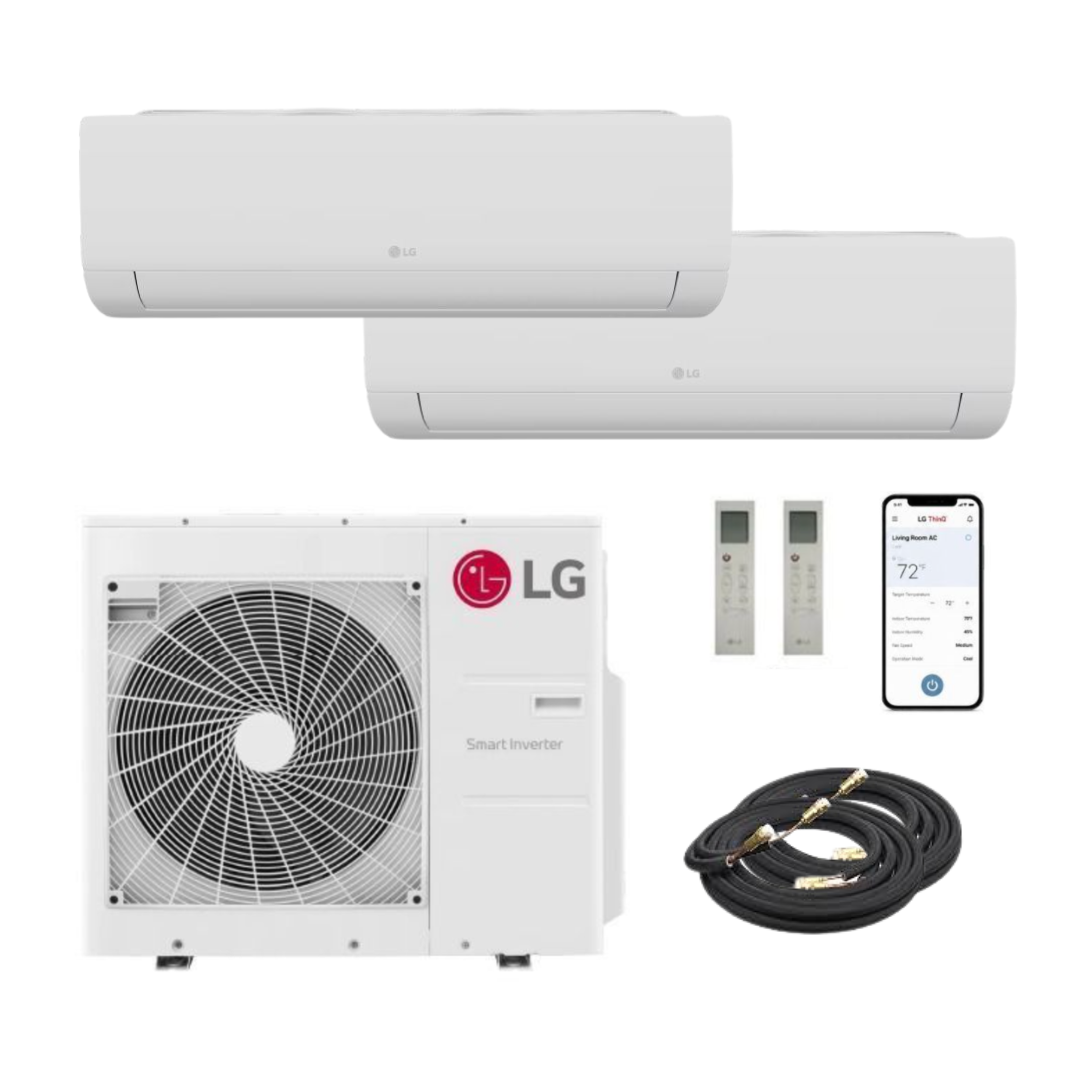

What's Included:

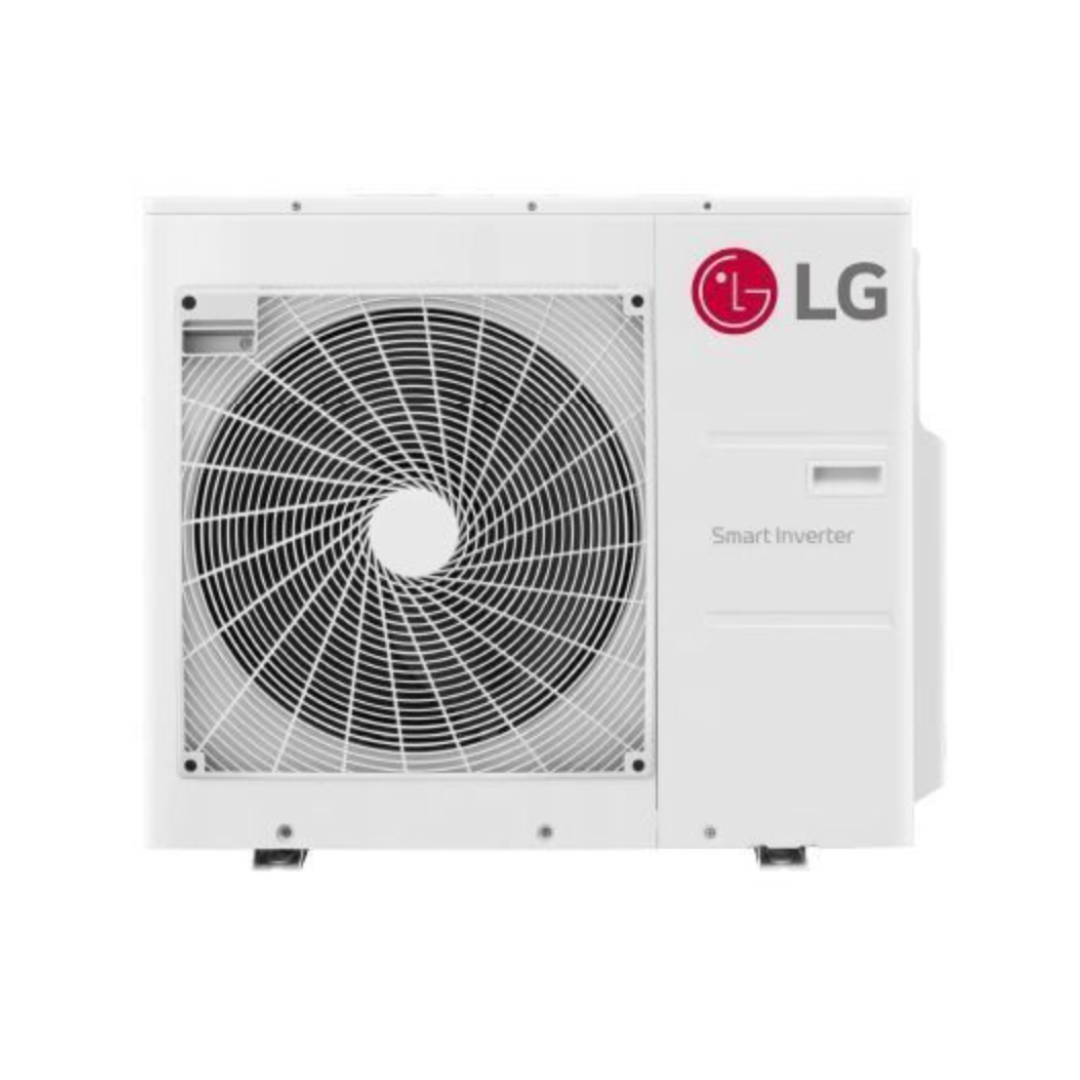

- One (1) LG KUMXA241A 24,000 BTU Multi F RED Outdoor Condenser

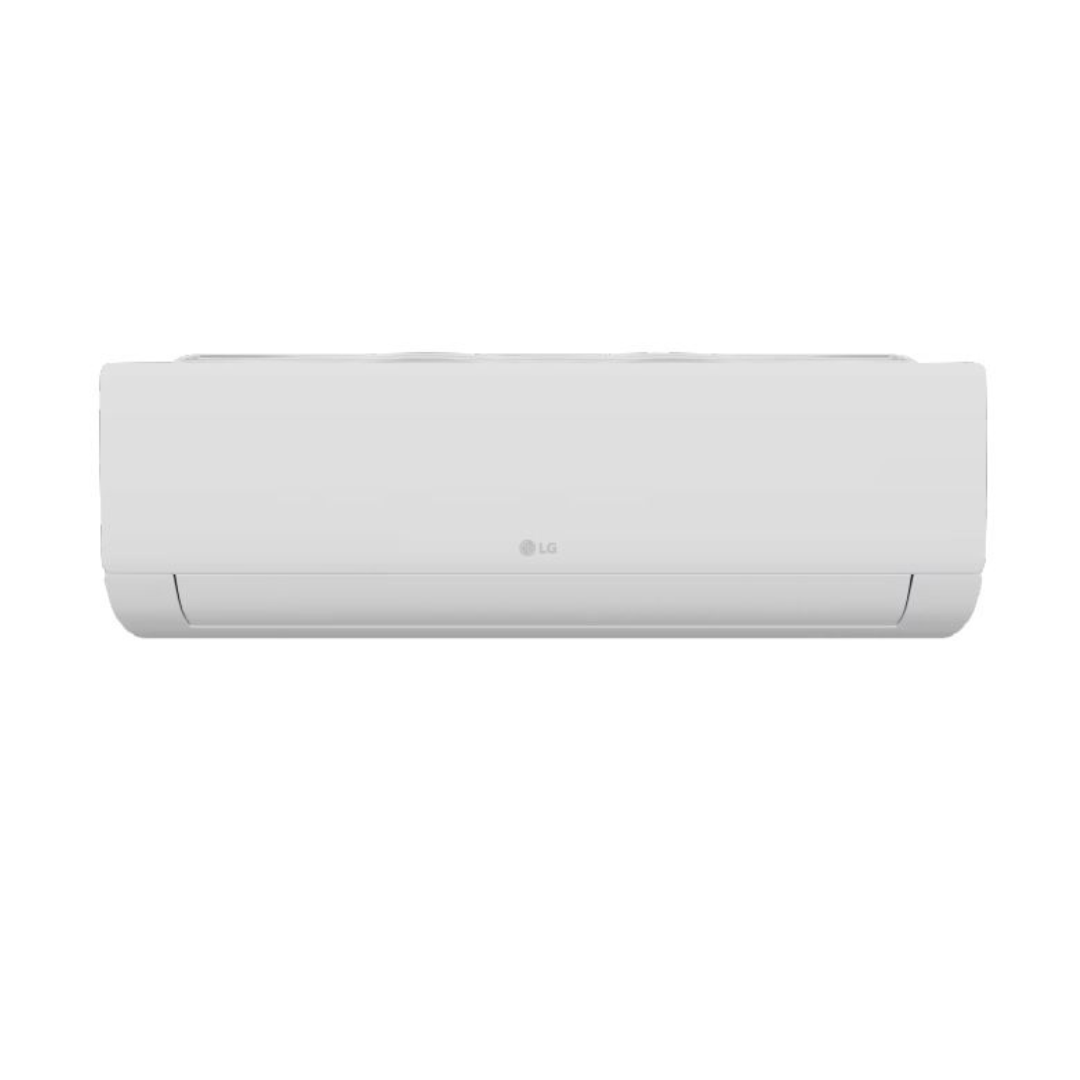

- Two (2) LG KNUAB121A 12,000 BTU Wall-Mounted Indoor Units
- Two (2) Wireless Remote Controllers
- Wall Mounting Plates for indoor units
Optional Accessories:
- Refrigerant Line Set & Control Wire 1/4" x 3/8" (15, 25, 30, 35, 50 Ft) (Select Line Set Options)
- Condenser Installation Kit
- Condenser Wall Bracket or Equipment Pad
- LG Wired Controller (e.g., PREMTC200 / PREMTB101 / PREMTAB31)
Warranty:
LG provides a 10-year limited parts warranty when the system is installed by a licensed HVAC contractor and registered with LG within 60 days of installation.
Condenser Specs:
| Feature | Spec |
|---|---|
| SKU | KUMXA241A |
| Weight | 149.9 |
| AHRI Certificate Number | 214848475 |
| Manufacturer | LG |
| UPC | 195174083666 |
| Cooling BTU | 24,000 |
| Heating BTU | 26,000 |
| Maximum CFM | 2119 |
| Decibel Level (dBA) | 55 |
| ENERGY STAR | Yes |
| Refrigerant | R32 |
| HSPF2 | 9.8 |
| SEER2 | 21 |
| EER2 | 13.5 |
| Compressor Type | Scroll |
| Liquid Line | 1/4 |
| Suction Line | 3/8 |
| Electrical | 230V | 1 Phase | 60Hz |
| Max Breaker Size | 30 Amps |
| Min. Breaker Size (MCA) | 23.1 Amps |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Heating Operating Range | -13°F to 64°F |
| Cooling Operating Range | 14°F to 118°F |
| Dimensions (H x W x D) | 32.844" x 37.406" x 13" |
Air Handler Specs (KNUAB121A):
| Feature | Spec |
|---|---|
| SKU | KNUAB121A |
| Weight | 19.73 |
| Manufacturer | LG |
| UPC | 195174085448 |
| Controller | Wireless Included |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 13,600 BTU |
| Maximum CFM | 459 Turbo / 388 Hi / 318 Med / 194 Lo CFM (Airflow) |
| Decibel Level (dBA) | 21 - 41 dBA |
| Refrigerant | R32 |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208-230V | 1Phase | 60Hz |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Dimensions (H x W x D) | 12-1/8" x 32-15/16" x 7-9/16" |
