Daikin ENTRA 12,000 BTU 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 - 230V
The Daikin Entra 12,000 BTU 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a powerful and energy-efficient solution for both heating and cooling. Designed for individual rooms, this system features advanced inverter technology for precise temperature control, reduced energy consumption, and enhanced comfort.
Key Features:
- 12,000 BTU Capacity – Delivers efficient heating and cooling for small to medium-sized spaces.
- 18 SEER2 Energy Efficiency – Reduces energy consumption and lowers electricity bills.
- Advanced Inverter Technology – Ensures consistent temperature control and optimized performance.
- Cooling & Heating Functionality – Operates in a wide range of outdoor temperatures for year-round comfort.
- Quiet Operation – Designed for minimal noise, making it ideal for bedrooms, offices, and living spaces.
- Environmentally Friendly R-32 Refrigerant – Reduces environmental impact while maintaining efficiency.
- Wall-Mounted Indoor Unit – Space-saving design blends seamlessly into any interior.
- 230V Power Supply – Ensures stable and reliable operation.
Ideal Applications:
- Home additions, renovations, and new construction projects.
- Replacing inefficient window or portable air conditioning units.
- Rooms without ductwork where traditional HVAC systems are impractical.
- Garages, basements, attics, and sunrooms requiring precise climate control.
What's Included:

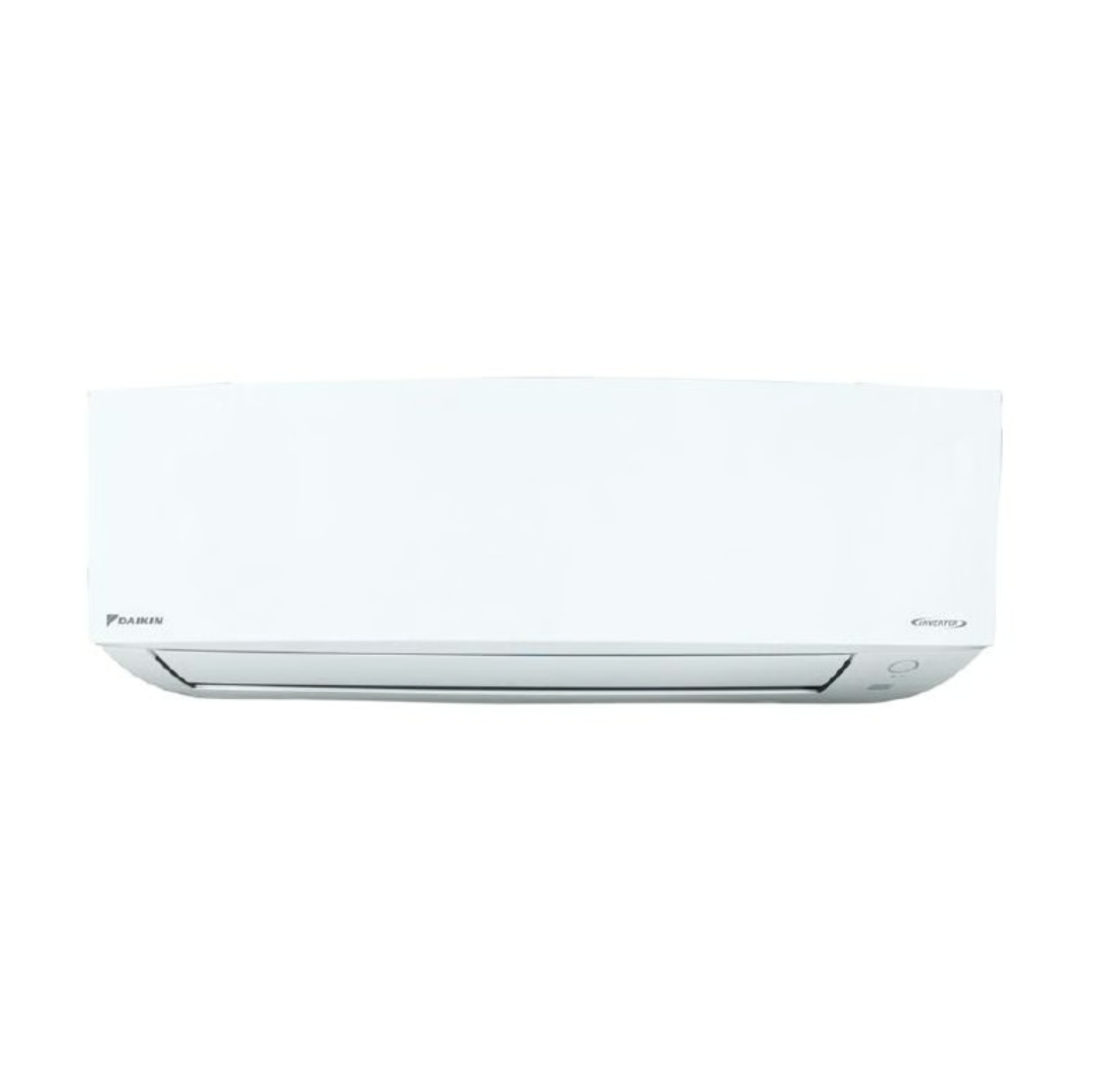

- Indoor Wall-Mounted Unit

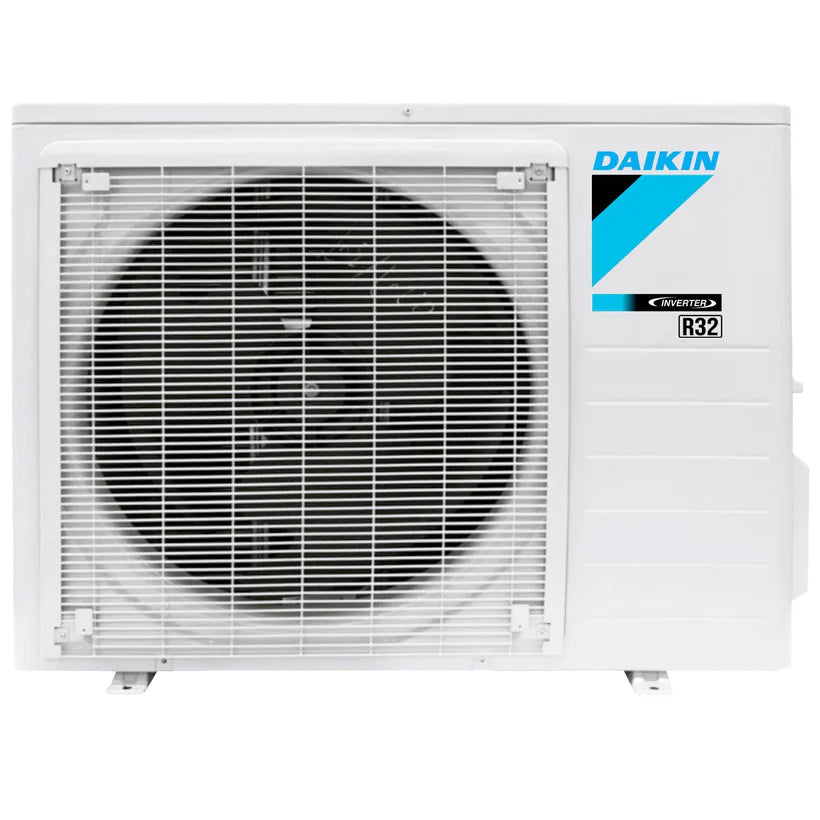

- Outdoor Condenser Unit

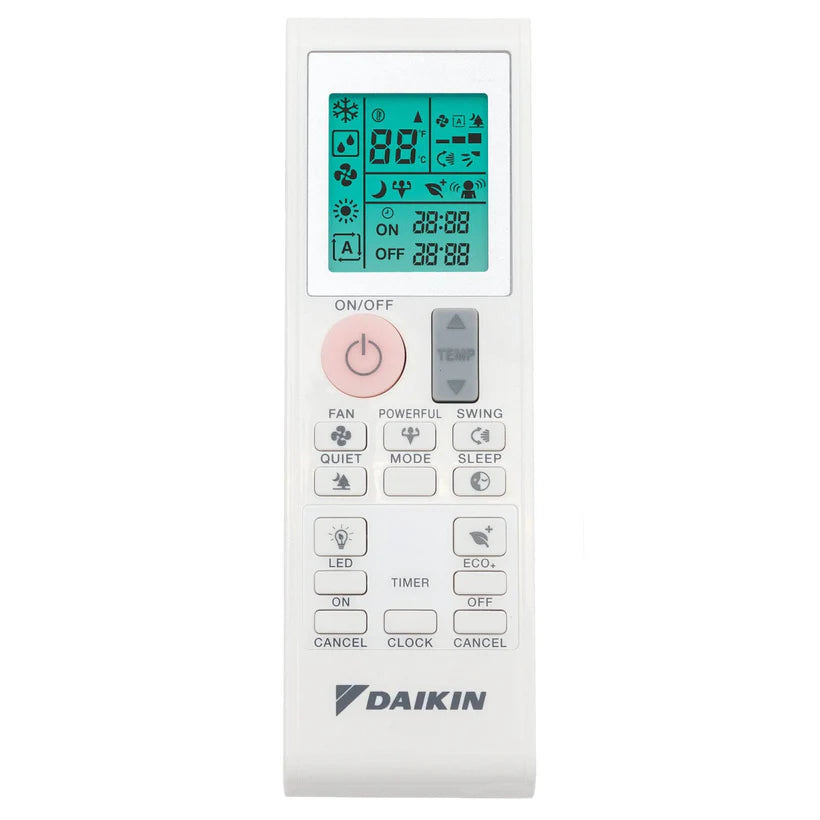

- Wireless Remote Controller
- Choose Lineset Length
Warranty:
Daikin provides a 12-year limited warranty on parts for registered systems, ensuring long-term reliability and peace of mind.

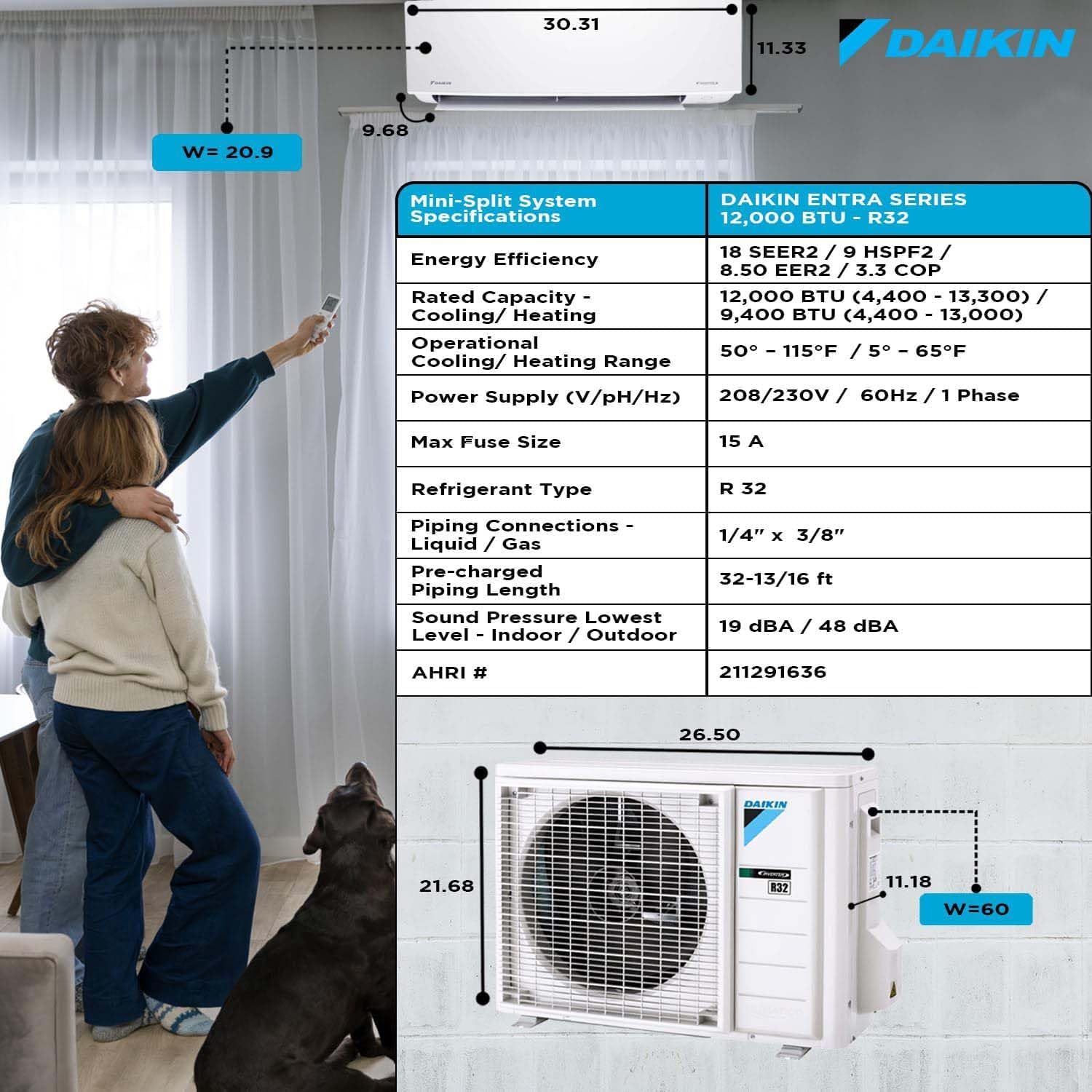

Condenser Specs:
| Feature | Spec |
|---|---|
| SKU | RXC12AXVJU |
| Weight | 60.000000 |
| Manufacturer | Daikin |
| Replaces | RXB12BXVJU |
| Cooling BTU | 12,000 |
| Heating BTU | 11,300 |
| Decibel Level (dBA) | 48 |
| Refrigerant | R32 |
| SEER2 | 18 |
| Compressor Type | Swing |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208-230 V | 60 Hz |1 Phase |
| Max Breaker Size | 15 A |
| Min. Breaker Size | 9.36 A |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Min/Max Outdoor Temp for Heating | 5°F to 64.4°F |
| Min/Max Outdoor Temp for Cooling | 50°F to 114.8°F |
| Zone Compatibility | Single Zone |
| Height | 21.68" |
| Width | 26.5" |
| Depth | 11.18" |
| Warranty | Limited 10-Year Parts Warranty |
| Safety Information | PROPOSITION 65 WARNING |
Air Handler Specs:
| Feature | Spec |
|---|---|
| SKU | FTXC12AXVJU |
| Weight | 20.900000 |
| Manufacturer | Daikin |
| Replaces | FTXB12BXVJU |
| HSPF2 | 9 |
| Decibel Level (dBA) | 45 |
| Refrigerant | R32 |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.33" |
| Width | 30.31" |
| Depth | 9.68" |
| Warranty | Limited 10-Year Parts Warranty |
| Safety Information | PROPOSITION 65 WARNING |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 12,000 |
|---|---|
| Indoor unit(s) | 12K |
| Coverage area | 600 Sq Ft. |
| Zones / rooms | 1 Zone |
| Power | 230 Volt |
| Line set | Custom |
| Mount type | Wall |
| Installation | Professional Installation |
| Brand | Daikin |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
