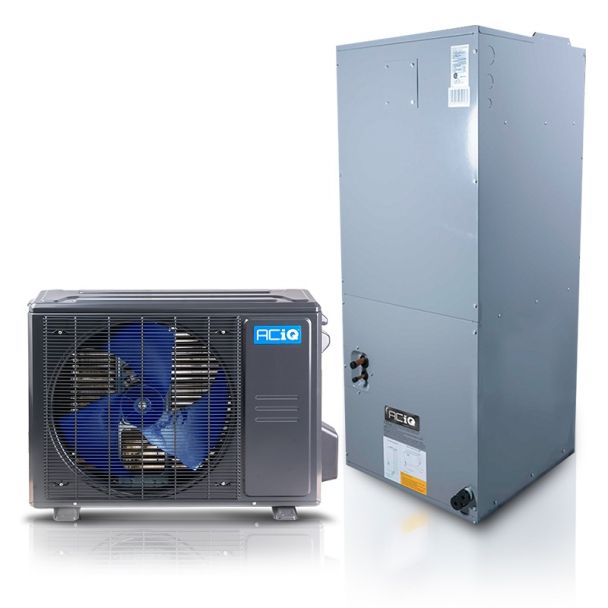

ACiQ 2.5 Ton (30,000 BTU) 17 SEER2 High Efficiency Central Heat Pump | Inverter – R454B & 2.5 Ton (30,000 BTU) Central Ducted Air Handler – R454B
Overview
The ACiQ 2.5 Ton Heat Pump System combines the advanced ACIQ-30-EHPD inverter condenser and the versatile ACIQ-30-AHD multi-positional air handler for seamless integration with your existing ductwork. This all-electric system continuously adjusts compressor speed to precisely meet heating and cooling demands, eliminating short-cycling and optimizing energy use.
During installation, the “learning condenser” enters a sensor-driven startup mode to gather temperature, duct pressure, and refrigerant data, refining its performance over time for maximum efficiency. Rated to operate from –13 °F in cooling mode and down to 5 °F in heating mode, it delivers consistent comfort in extreme climates.
Backed by a 12-year compressor warranty and 7-year parts coverage (with online registration), this whisper-quiet system (60 dBA outdoor; up to 44 dBA indoor) is an ideal choice for long-term reliability and lower energy bills. Compatible with any 24 V thermostat, it offers flexible installation in upflow, downflow, or horizontal orientations.
How is it different from a traditional heat pump?
- Variable BTU inverter: adjusts output from 12,000 – 30,000 BTU to match demand
- Smart soft-start technology: reduces inrush currents and energy waste
- Heating-sized design: size for heat without short-cycling in cooling mode
- Cold-climate rating: efficient heating performance down to 5 °F outdoor
Quick Facts
- Output: 12,000 – 30,000 BTU (cooling); 12,000 – 31,000 BTU (heating)
- Refrigerant: R454B
- SEER2: 17 HSPF2: 8.5
- Operating range: –13 °F to 122 °F (cooling); –13 °F to 75 °F (heating)
- Durable gold-fin coil coating
- Quiet operation even at high loads
Use our sizing calculator (HERE) to determine the right capacity for your home.
Included in Your Order:
Outdoor Unit: ACIQ-30-EHPD Inverter Condenser (30,000 BTU)
Indoor Unit: ACIQ-30-AHD Central Ducted Air Handler (30,000 BTU)
Installation Kit (sold separately; includes refrigerant lineset, communication cable, mounting hardware)
Compatible with any 24 V thermostat
Installation Manual
Owner’s & Service Manuals
Key Features:
- Variable-speed inverter twin-rotary compressor
- Learning condenser with advanced sensor suite
- Multi-positional DC blower air handler
- Soft-start technology for reduced peak demand
- Self-diagnostic control board with fault display
- Quiet operation: 60 dBA (outdoor), up to 44 dBA (indoor)
- Optional electric heat kit available
- Gold-fin coil for corrosion resistance
Technical Specifications
ACIQ-30-EHPD (Condenser)
| Specification | Details |
|---|---|
| Model Number | ACIQ-30-EHPD |
| Rated Cooling BTU | 30,000 BTU |
| Rated Heating BTU | 31,000 BTU |
| SEER2 / HSPF2 | 17 / 8.5 |
| Refrigerant | R454B |
| Electrical | 208/230 V, 1-Phase, 60 Hz |
| Max Breaker | 25 Amps |
| Min Breaker | 23 Amps |
| Operating Temp (Cooling) | –13 °F to 122 °F |
| Operating Temp (Heating) | –13 °F to 75 °F |
| Liquid/Suction Valve | 3/8″ / 3/4″ |
| Pre-charge Lineset | 25′ |
| Weight | 152.34 lbs |
ACIQ-30-AHD (Air Handler)
| Specification | Details |
|---|---|
| Model Number | ACIQ-30-AHD |
| Airflow | Up to 989 CFM |
| Decibel Level | Up to 46 dBA |
| Electrical | 208/230 V, 1-Phase, 60 Hz |
| Max Breaker | 15 Amps |
| Min Breaker | 8 / 6 Amps |
| Dimensions (HxWxD) | 52.6″ × 21″ × 21″ |
| Weight | 129.00 lbs |
| Configuration | Multi-positional |
| Refrigerant | R454B |
Warranty Information
- 12 Year Compressor Limited Warranty (online registration required)
- 7 Year Parts Limited Warranty (online registration required)
Manuals & Downloads
- EHPD Installation Manual
- EHPD Service Manual
- EHPD Heating/Cooling Performance Chart
- AHD Installation Manual
- AHD Owner’s Manual
- 2.5 Ton EHPD/AHD Submittal Data Sheet
- 2.5 Ton HPD/AHD Submittal Data Sheet
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
