Description
Experience Attainable Luxury with the ZLINE Autograph Edition Wall Mount Range Hood. Inspired by the elegance of our home in Lake Tahoe, the Autograph Edition provides an elevated luxury experience. Each product has been meticulously designed to reflect the unique beauty found in the Lake Tahoe landscapes. Combining the professional power and functionality of a ZLINE range hood with matte black accents, this sophisticated line of professional appliances brings a new meaning of elegance. Create an unforgettable kitchen unique to your style with a matte black handle. Choose from a variety of finishes from ZLINE's Autograph Edition, including: Champagne Bronze, Matte Black and Polished Gold. The beauty of the Autograph Edition is infinite, just like the beauty found in Lake Tahoe and the Sierra Nevada Landscapes. From our home to yours, enjoy a luxurious experience with every Autograph Edition Range Hood assembled to order in the US.
Key features
- Matte Black handle matches ZLINE Autograph Edition Range or Rangetop with Matte Black Accents

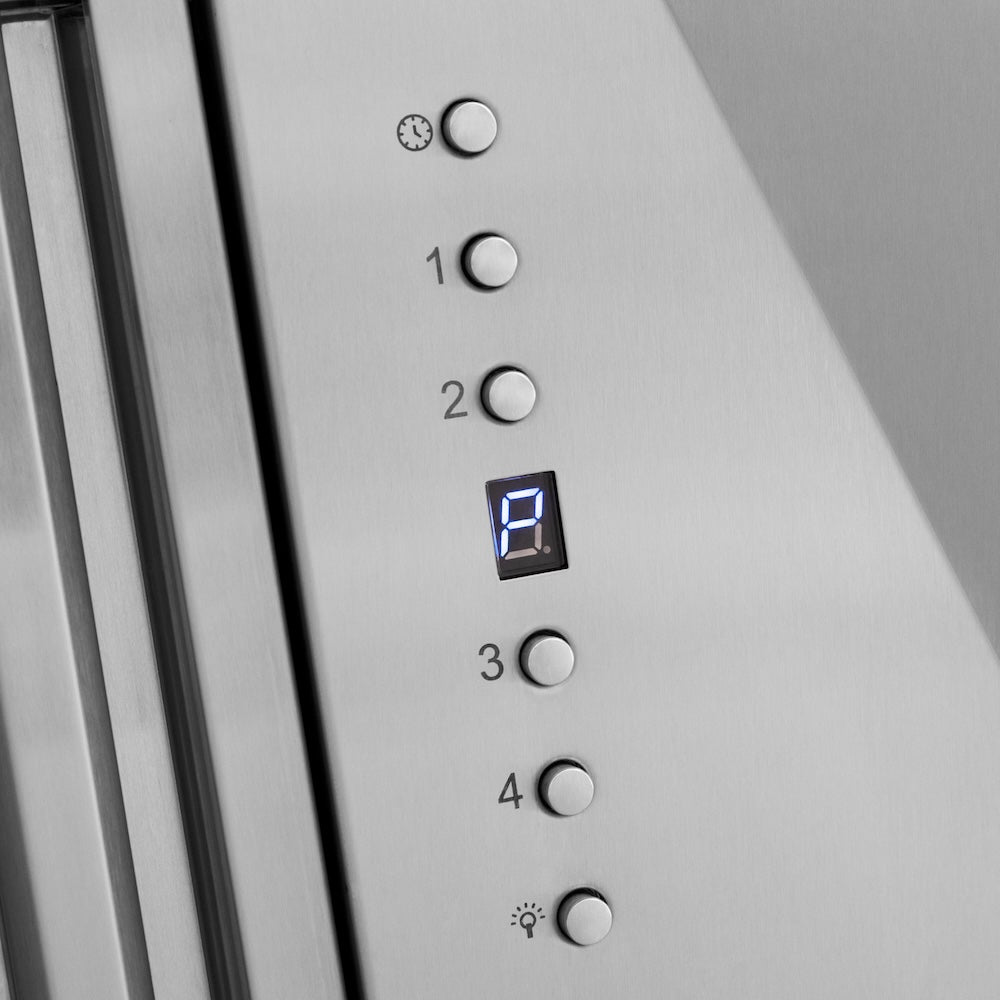

- Easy-to-use push button controls let you easily control fan speed and lighting
- 4-speed fan control (280/420/580/700 CFM) lets you choose the appropriate air flow for your cooking situation
- 700 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
- Fixed vent with ductwork that easily connects to the top of the range hood for external venting
- Dishwasher-safe stainless steel baffle filters

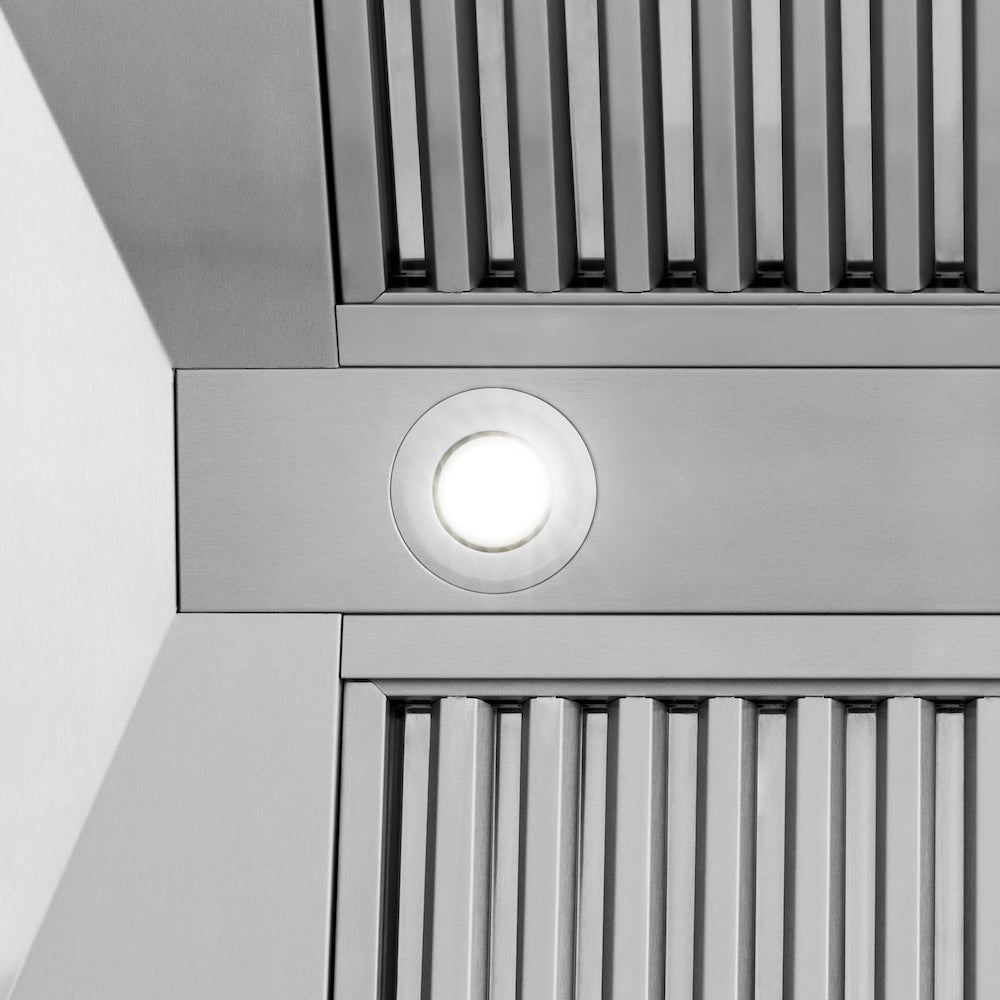

- LED lighting illuminates the cooktop beneath the hood
- Designed to fit standard (circular) ductwork for simple installation
- Handle is for cosmetic purposes only and should not be used for hanging items
- 3 year parts warranty, life-time motor warranty
Specifications
| Brand | ZLINE |
|---|---|
| Edition | Autograph Edition |
| Model / MPN | 8654STZ-WM48-MB |
| UPC | 195948031824 |
| Type | Wall Mount Range Hood |
| Width | 48 inches |
| Dimensions | 48 in. W x 23.75 in. D x 16 in. H |
| Chimney Dimensions | 13.25" W x 11.75" D x 35.5" H |
| Finish | Stainless Steel |
| Hardware Finish | Matte Black |
| Airflow by Speed | 280/420/560/700 CFM |
| Motor | High Performance 700 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Wall Mount |
| Number of Lights | 2 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Weight | 90 lb |
| Decibels | 30/41/49/52 dB |
| Duct Size | 8 in. |
| Voltage | 110 V |
| Amps | 5 A |
| Certifications | ETL Listed |
| Warranty | 3 year parts, life-time motor warranty |
Documents: User Manual · Product Spec Sheet
Authorized ZLINE dealer. Ships from ZLINE's U.S. warehouses to the contiguous 48 states. Inspect the range hood at delivery and note any damage on the delivery receipt before signing.
Professional installation is recommended. Ducting, venting and electrical work should follow the installation manual and local code.
