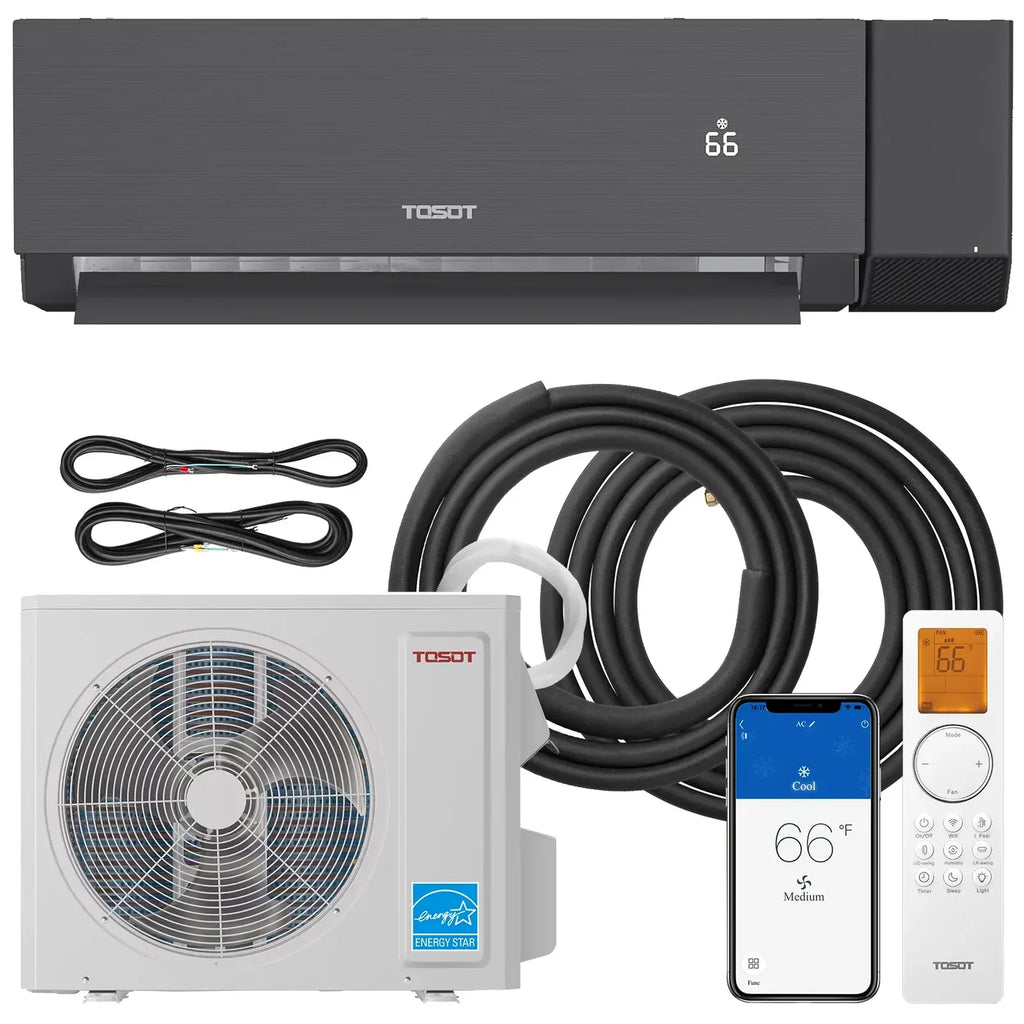

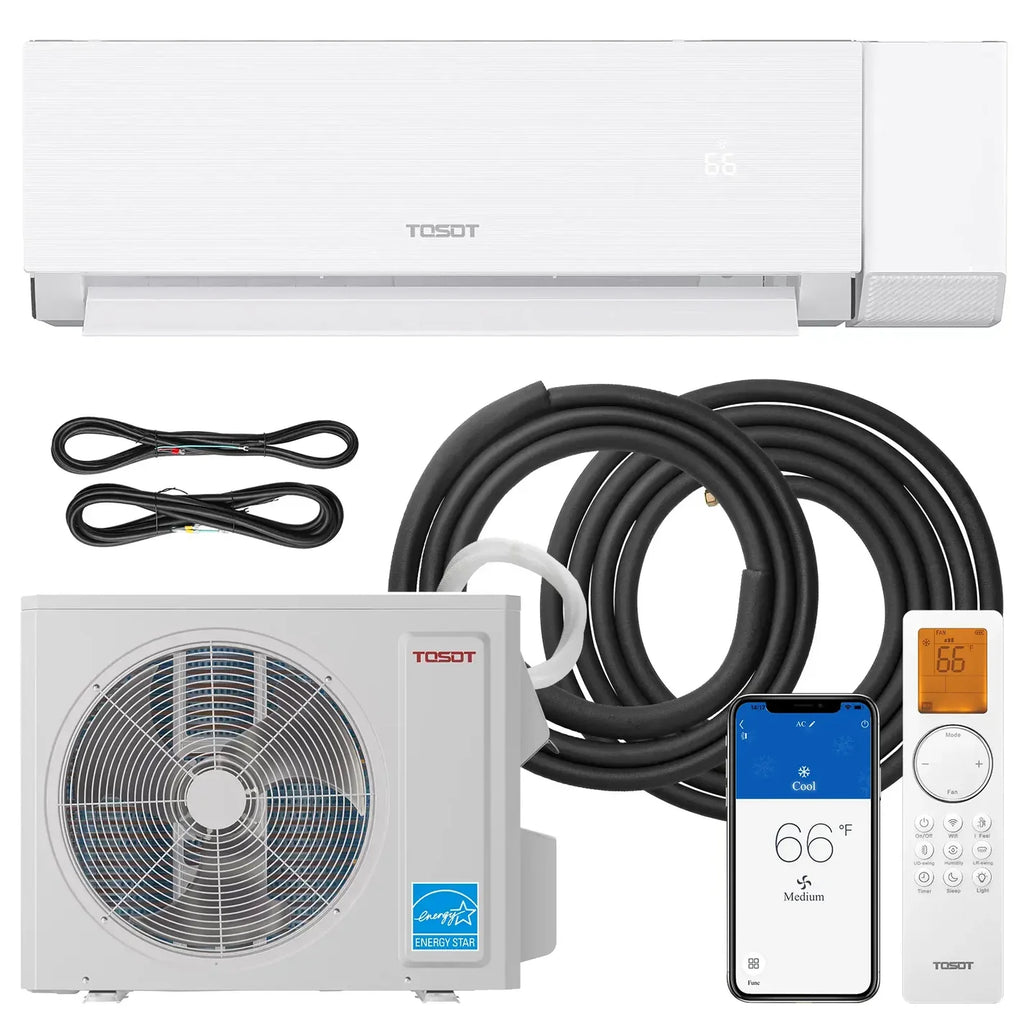

TOSOT Aoraki 24,000 BTU 23.5 SEER2 Heat Pump Mini Split AC w/ERV System - 230V

TOSOT Aoraki 24,000 BTU 23.5 SEER2 Heat Pump Mini Split AC w/ERV System - 230V

The TOSOT Aoraki Series mini split air conditioner offers energy-efficient cooling and heating with a SEER2 rating up to 23.5. Certified by Energy Star and AHRI, it qualifies for tax credits. Compared to a 16 SEER system, it can lower your energy bills by up to 36%.

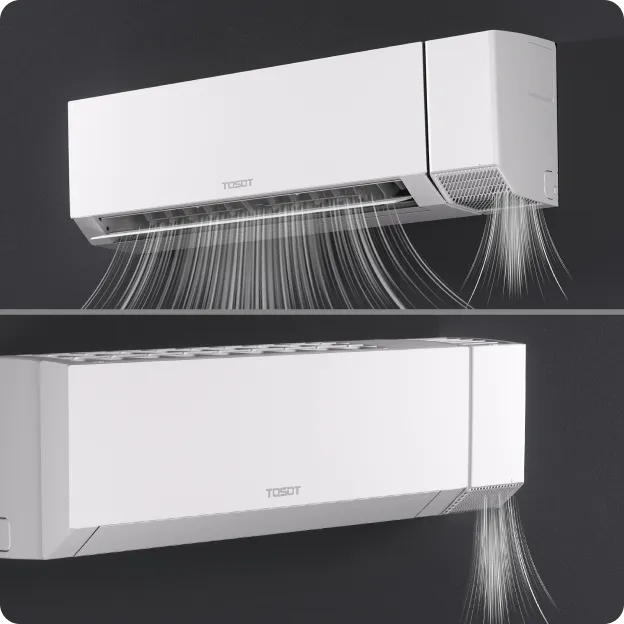

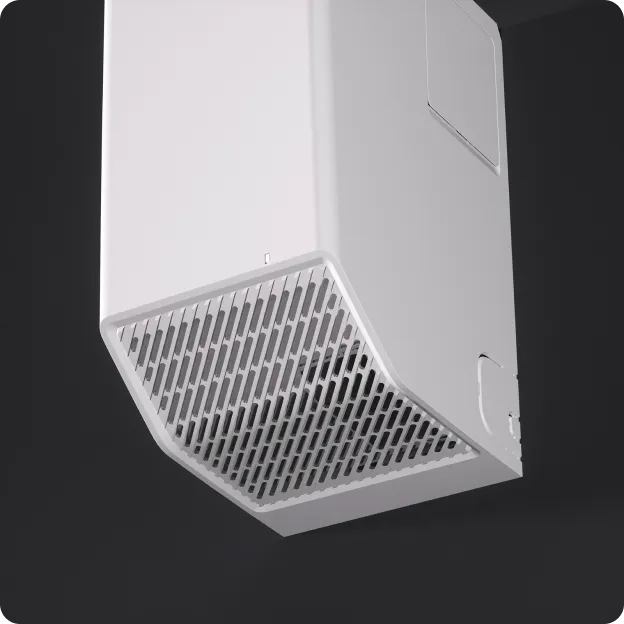

The ERV system exchanges stale indoor air with fresh outdoor air, pre-conditioning the incoming air by transferring heat and moisture from the outgoing air to improve indoor air quality and energy efficiency.

Features:

• Exceptional 23-23.5 SEER Rating.
• Energy Star Certified with tax rebate eligibility.
• Compatible with ERV Systems.
• Operates in Extreme Temperatures from -22°F to 122°F
• 5 Year Warranty
• Copper Line Set: 16 Ft

Installation and Guides:

• User Manual: Download
• ERV User Manual: Download

Specifications:

• Cooling Capacity (Btu/h):21,000
• Heating Capacity (Btu/h): 23,000
• EER(Btu/h)/W: 13
• COP(Btu/h)/W: 11
• SEER2: 23.5
• HSPF2: 9.0
• Airflow (H/M/L): 950/670/430 m3/h
• Dehumidification (Pts/hr): 5.07
• Est. Cooling Area (Sq. Ft.): 1500
• Voltage: 187/253~60Hz, 1Ph
• Rated Input(W):3850
• Rated Current(A): 17.2
• Min. Current (MCA) (A) :22
• Max. Rating of Overcurrent Protective(A): 30
• Temperature Range (°F): 61-86
• Noise Level (H/M/L): 48/39/30 decibels

DIMENSIONS & WEIGHTS:

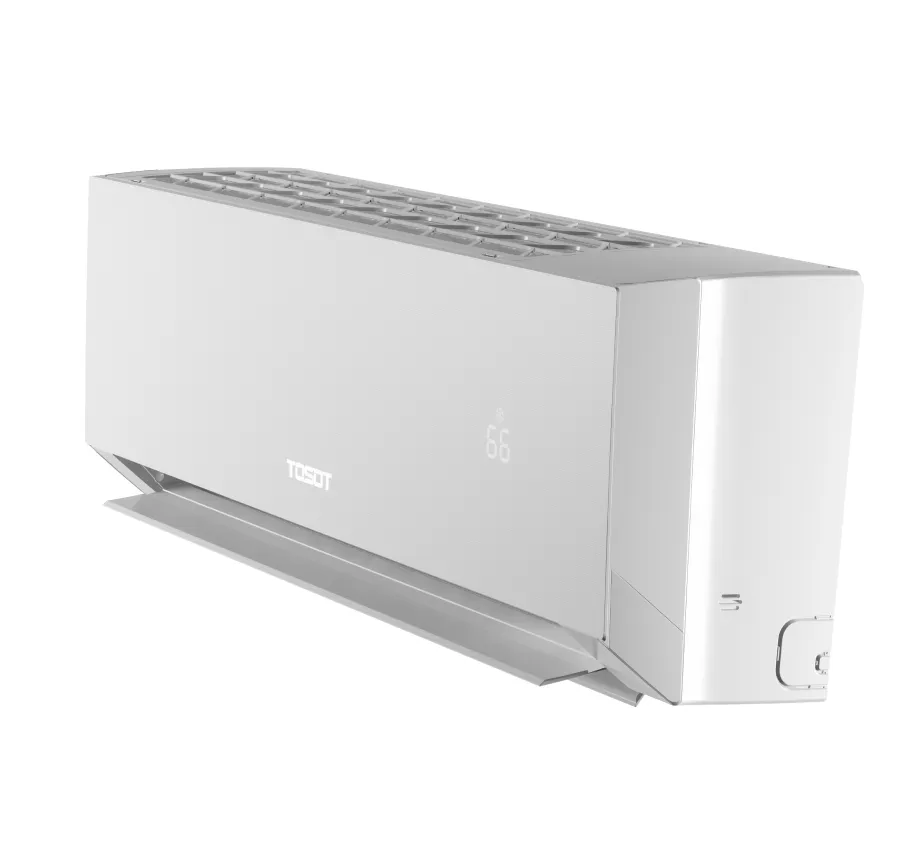

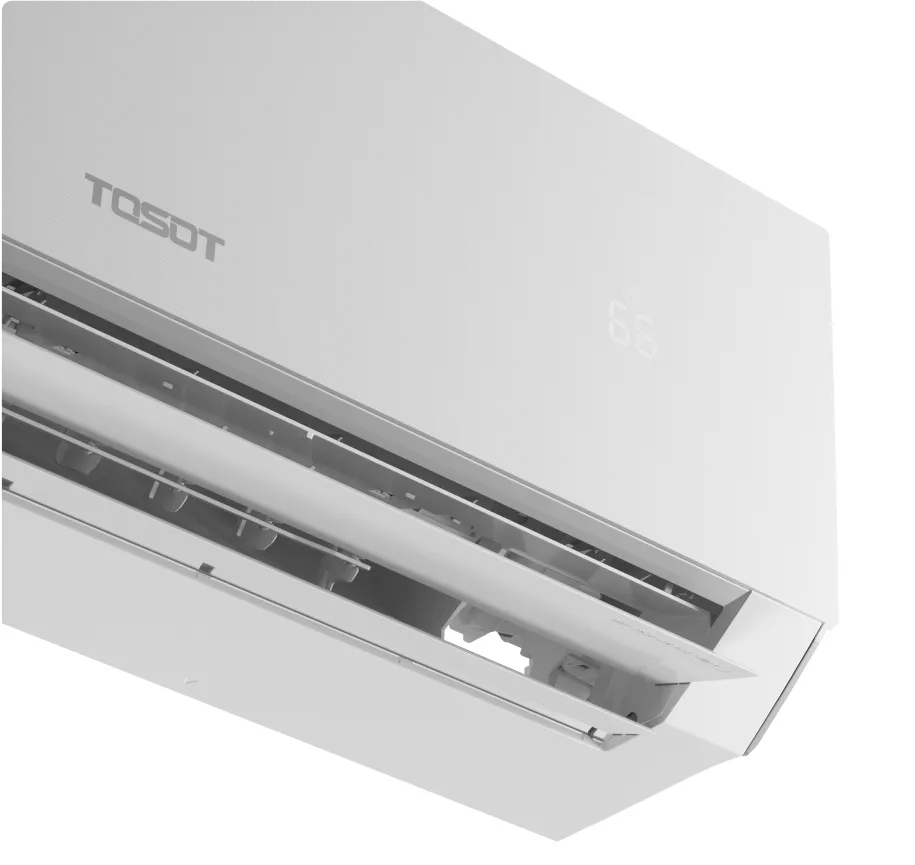

Indoor Unit

• Approximate Shipping Weight (lbs): 35.3
• Approximate Net Weight (lbs): 29.8
• Shipping Dimensions (W×H×D) (inches): 41.57 x 15.17 x 11.74
• Unit Dimensions (W×H×D) (inches): 39.12 x 12.25 x 8.75

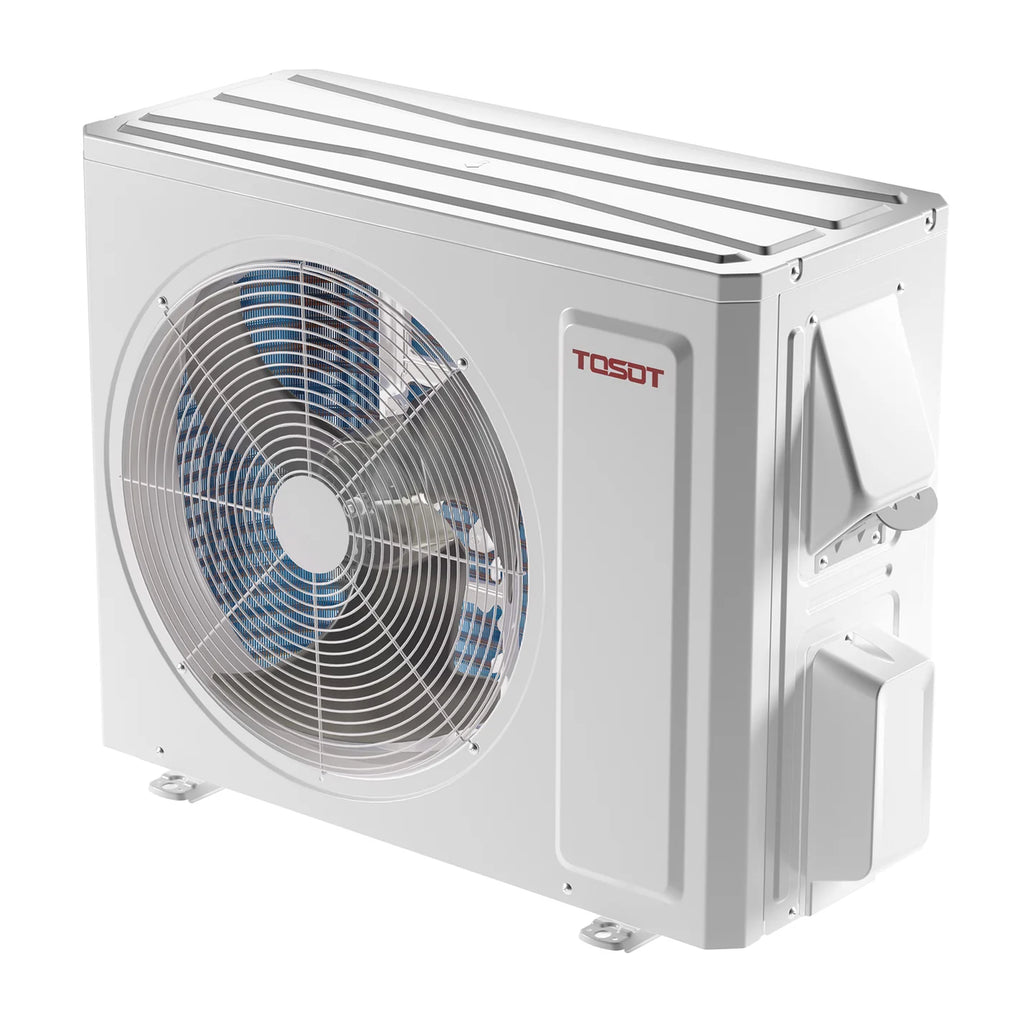

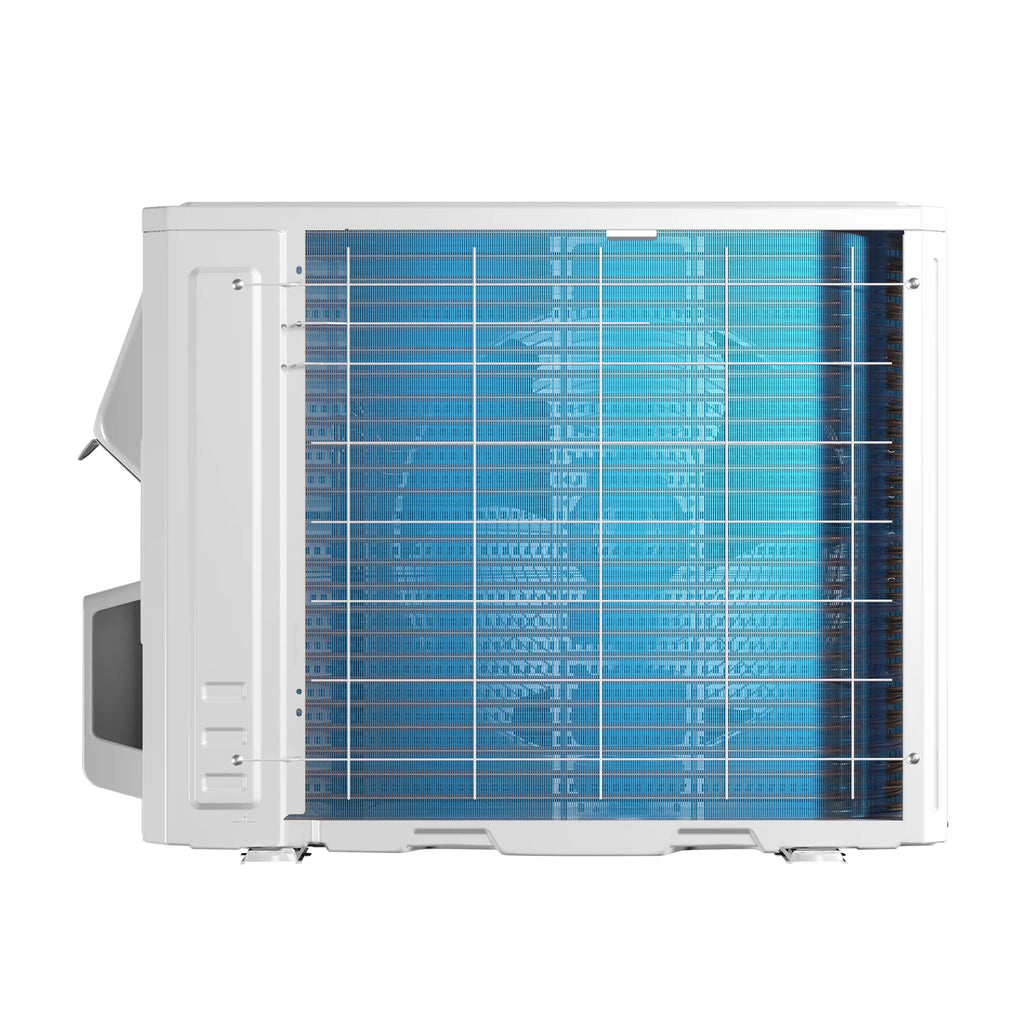

Outdoor Unit

• Approximate Shipping Weight (lbs): 114.7
• Approximate Net Weight (lbs): 103.9
• Shipping Dimensions (W×H×D) (inches): 42.55 x 31.91 x 19.03
• Unit Dimensions (W×H×D) (inches): 39.4 x 29.39 x 16.82

Line Set Length

• Copper Line Set(ft): 16
• Copper Line Size: 1/4" & 5/8"
• Signal Cable(ft): 19
• Power Cord(ft):19
