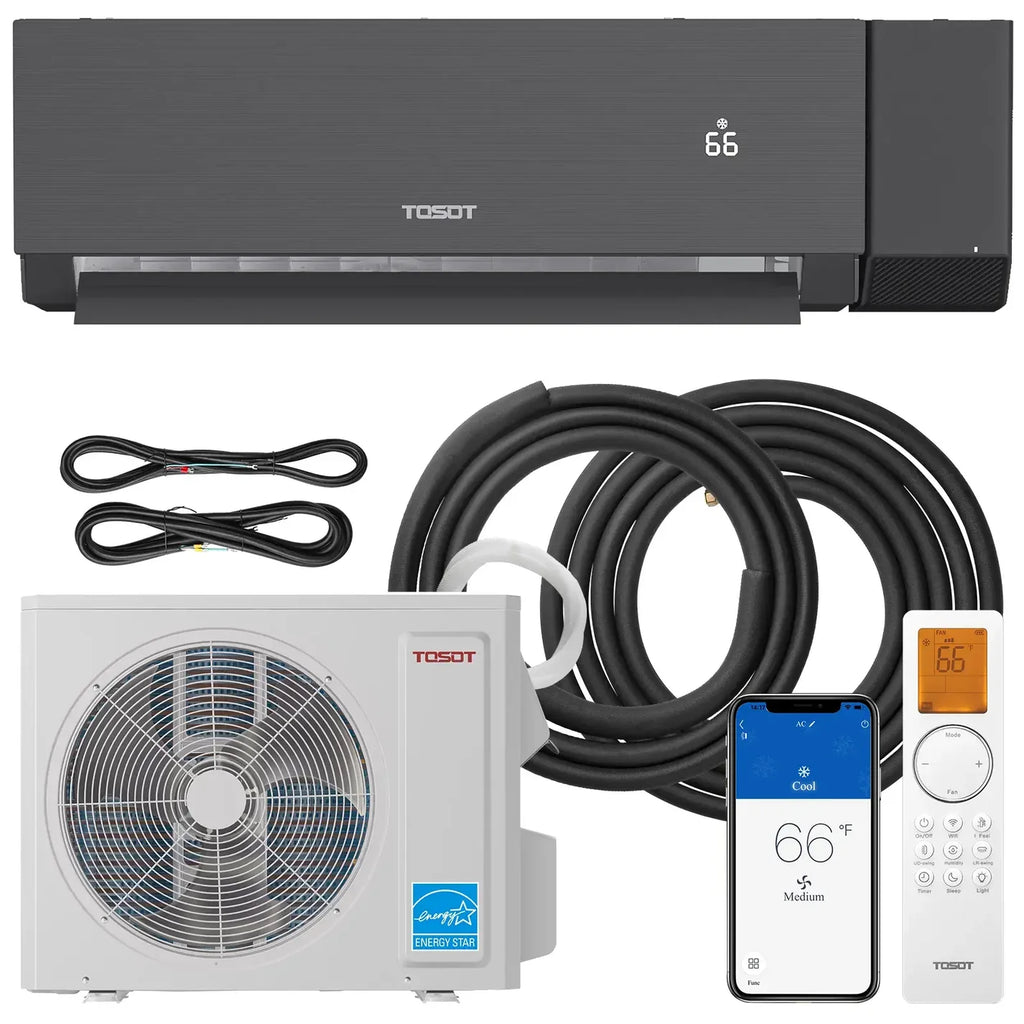

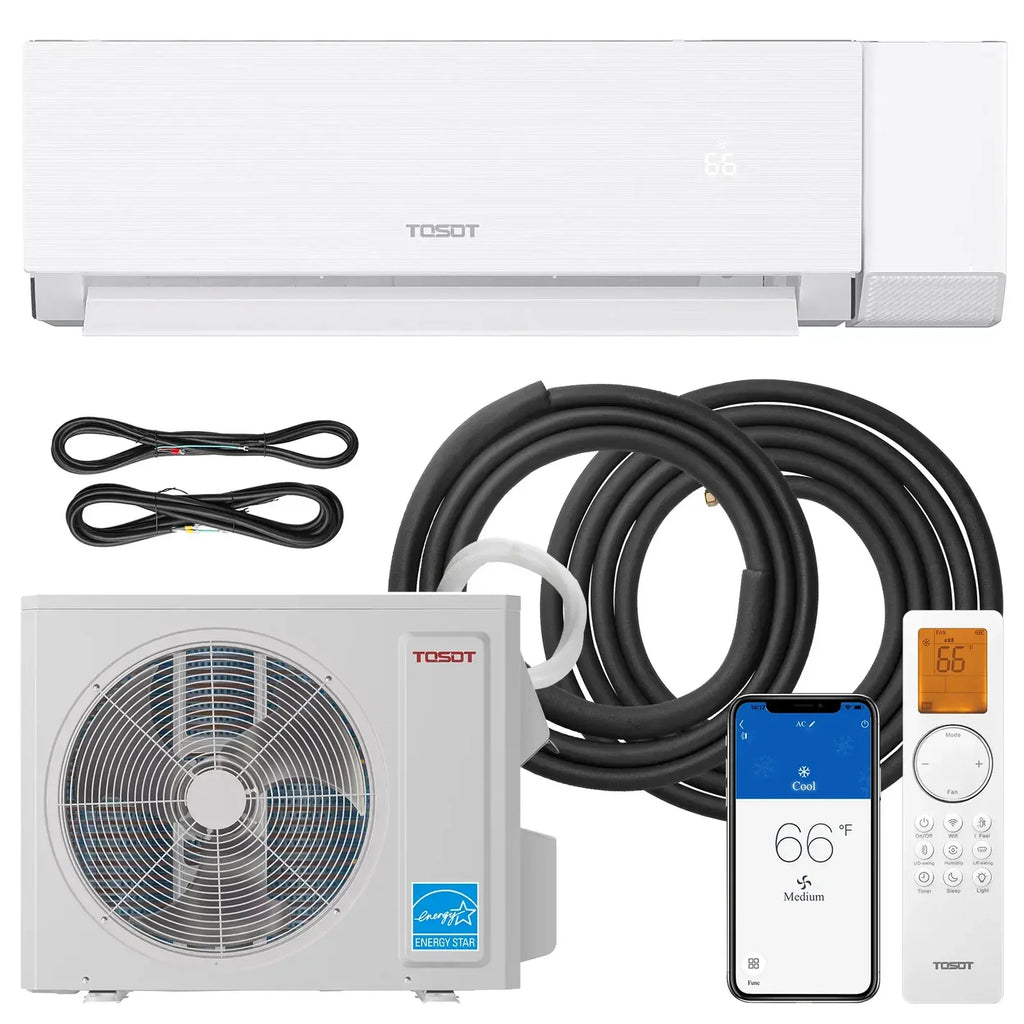

TOSOT Aoraki 18,000 BTU 24.5 SEER2 Heat Pump Mini Split AC w/ERV System - 230V

TOSOT Aoraki 18,000 BTU 24.5 SEER2 Heat Pump Mini Split AC w/ERV System - 230V

The TOSOT Aoraki Series mini split air conditioner offers energy-efficient cooling and heating with a SEER2 rating up to 24.5. Certified by Energy Star and AHRI, it qualifies for tax credits. Compared to a 16 SEER system, it can lower your energy bills by up to 36%.

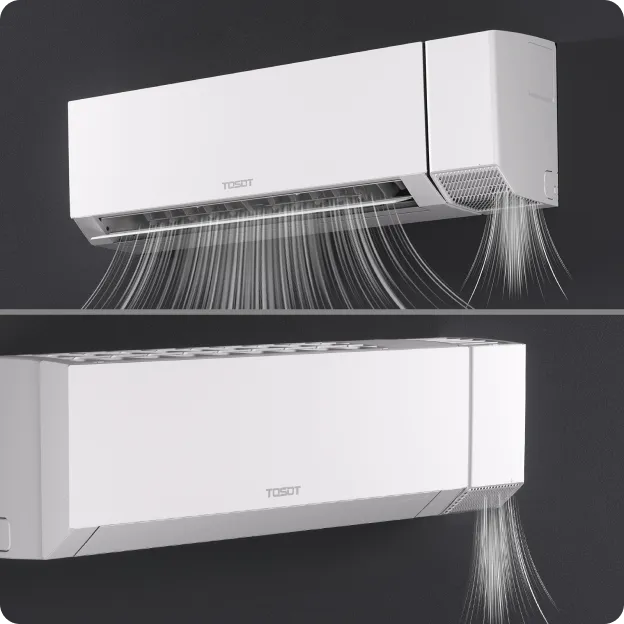

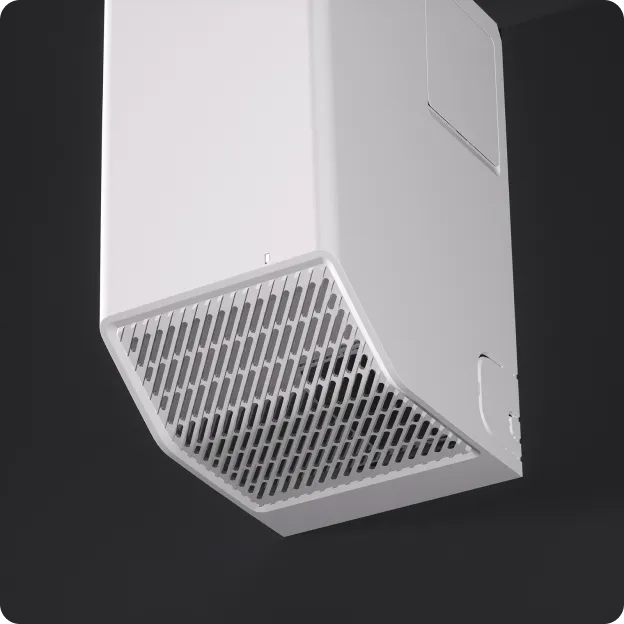

The ERV system exchanges stale indoor air with fresh outdoor air, pre-conditioning the incoming air by transferring heat and moisture from the outgoing air to improve indoor air quality and energy efficiency.

Features:

• Exceptional 24-24.5 SEER Rating.
• Energy Star Certified with tax rebate eligibility.
• Compatible with ERV Systems.
• Operates in Extreme Temperatures from -22°F to 122°F
• 5 Year Warranty
• Copper Line Set: 16 Ft

Installation and Guides:

• User Manual: Download
• ERV User Manual: Download

Specifications:

• Cooling Capacity (Btu/h):18,000
• Heating Capacity (Btu/h): 18,000
• EER(Btu/h)/w: 13.65
• COP(Btu/h)/w: 13
• SEER2: 24.5
• HSPF2: 9.0
• Airflow (H/M/L): 850/700/600 m3/h
• Dehumidification (Pts/hr): 2.96
• Est. Cooling Area (Sq. Ft.): 1200
• Voltage: 208/230~60Hz, 1Ph
• Rated Input(W):2350
• Rated Current(A): 11.6
• Min. Current (MCA) (A) :16
• Max. Rating of Overcurrent Protective (A): 20
• Temperature Range (°F): 61-86
• Noise Level (H/M/L): 48/39/29 decibels

DIMENSIONS & WEIGHTS:

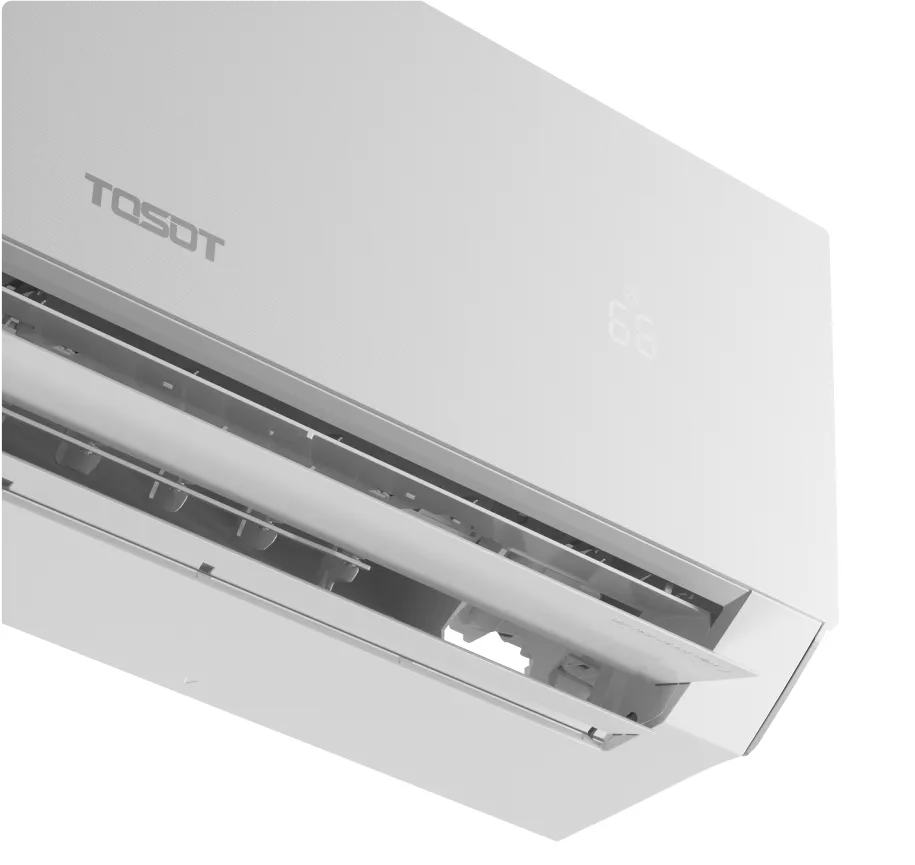

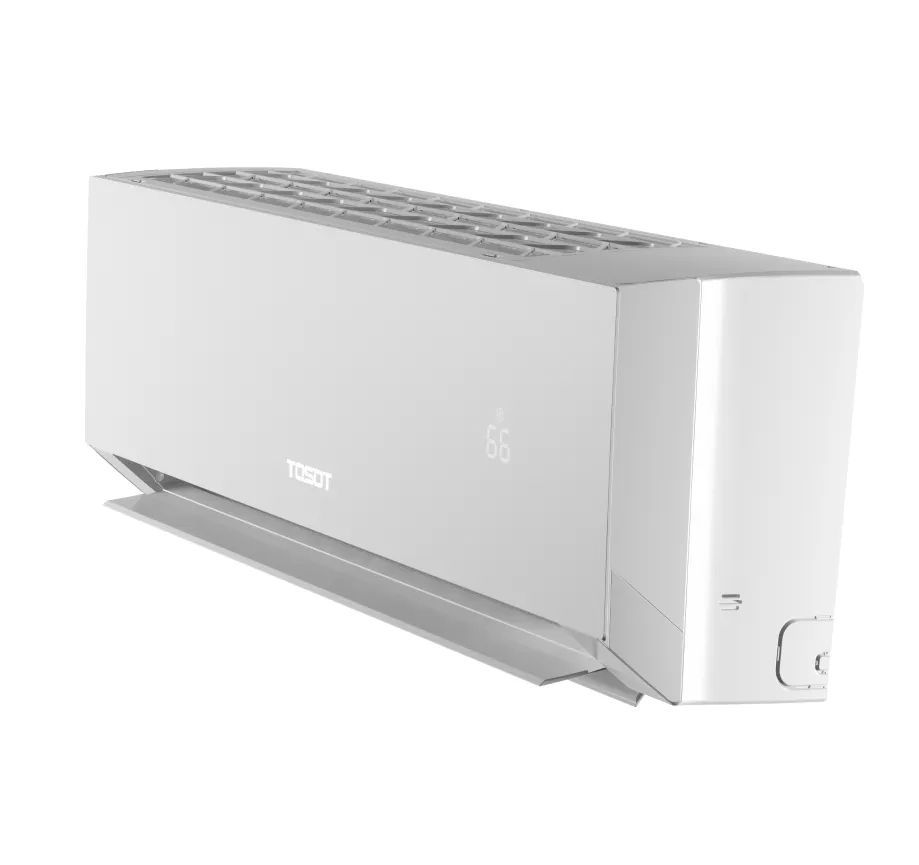

Indoor Unit

• Approximate Shipping Weight (lbs): 35.3
• Approximate Net Weight (lbs): 29.8
• Shipping Dimensions (W×H×D) (inches): 41.57 x 15.17 x 11.74
• Unit Dimensions (W×H×D) (inches): 39.12 x 12.25 x 8.75

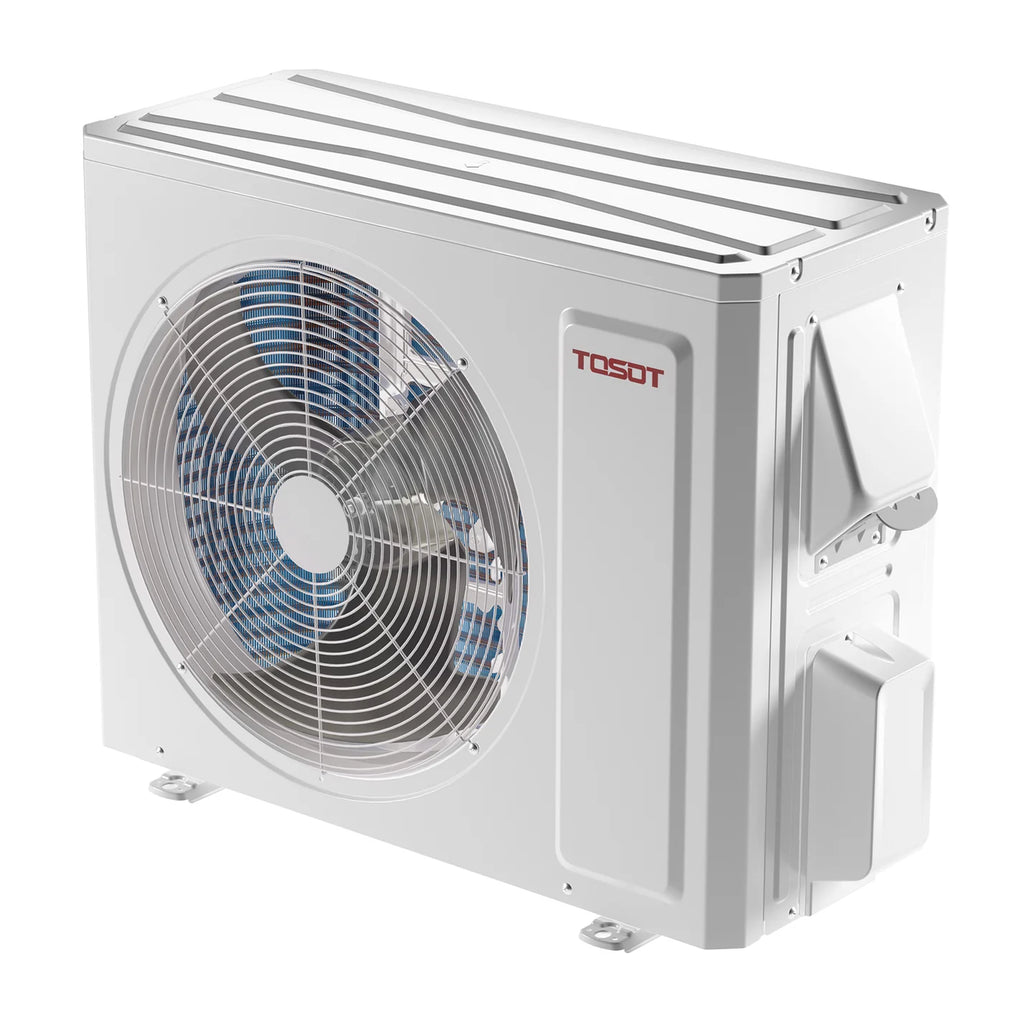

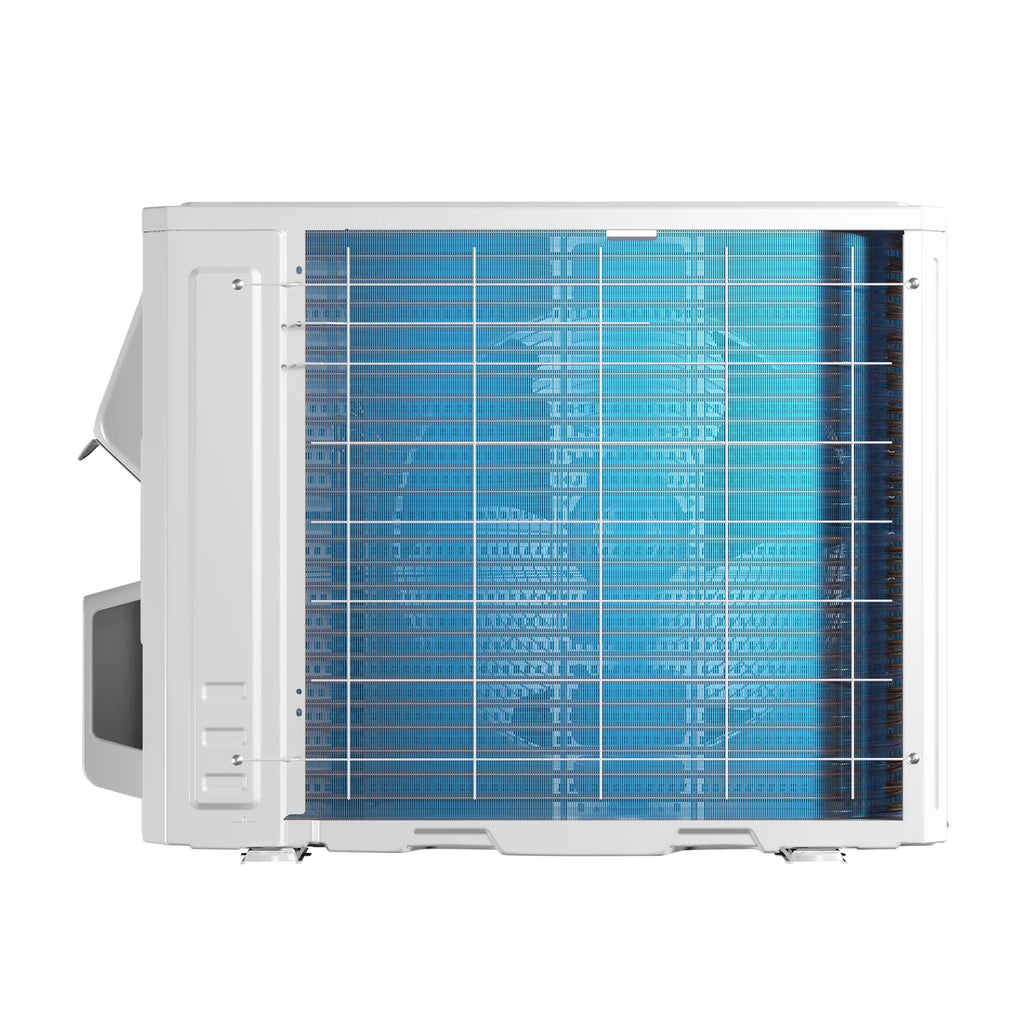

Outdoor Unit

• Approximate Shipping Weight (lbs): 104.7
• Approximate Net Weight (lbs): 94.8
• Shipping Dimensions (W×H×D) (inches): 40.66 x 29.03 x 17.97
• Unit Dimensions (W×H×D) (inches): 37.34 x 26.00 x 15.83

Line Set Length

• Copper Line Set(ft): 16
• Copper Line Size: 1/4" & 1/2"
• Signal Cable(ft): 19
• Power Cord(ft):19
