Product overview
Senville ELITE 18,000 BTU 25.6 SEER2 Mini Split Air Conditioner Heat Pump
Senville SENE-18EL is part of our Elite Series, a next-generation high-efficiency 18000 BTU mini split engineered for superior performance, quieter operation, and advanced cold-climate heating. ENERGY STAR certified and backed by a 10-year compressor warranty, it delivers premium comfort for year-round use.

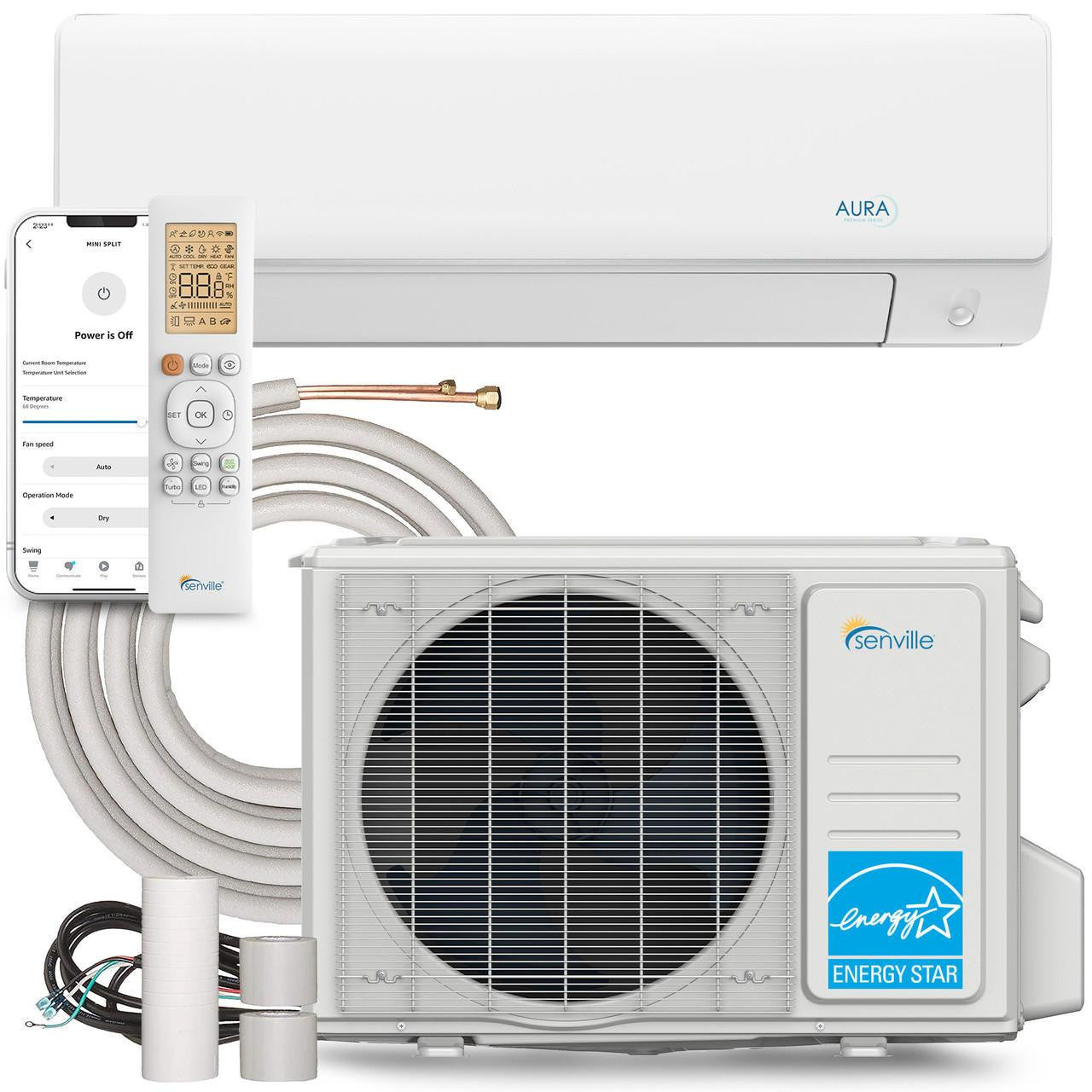

What's Included:

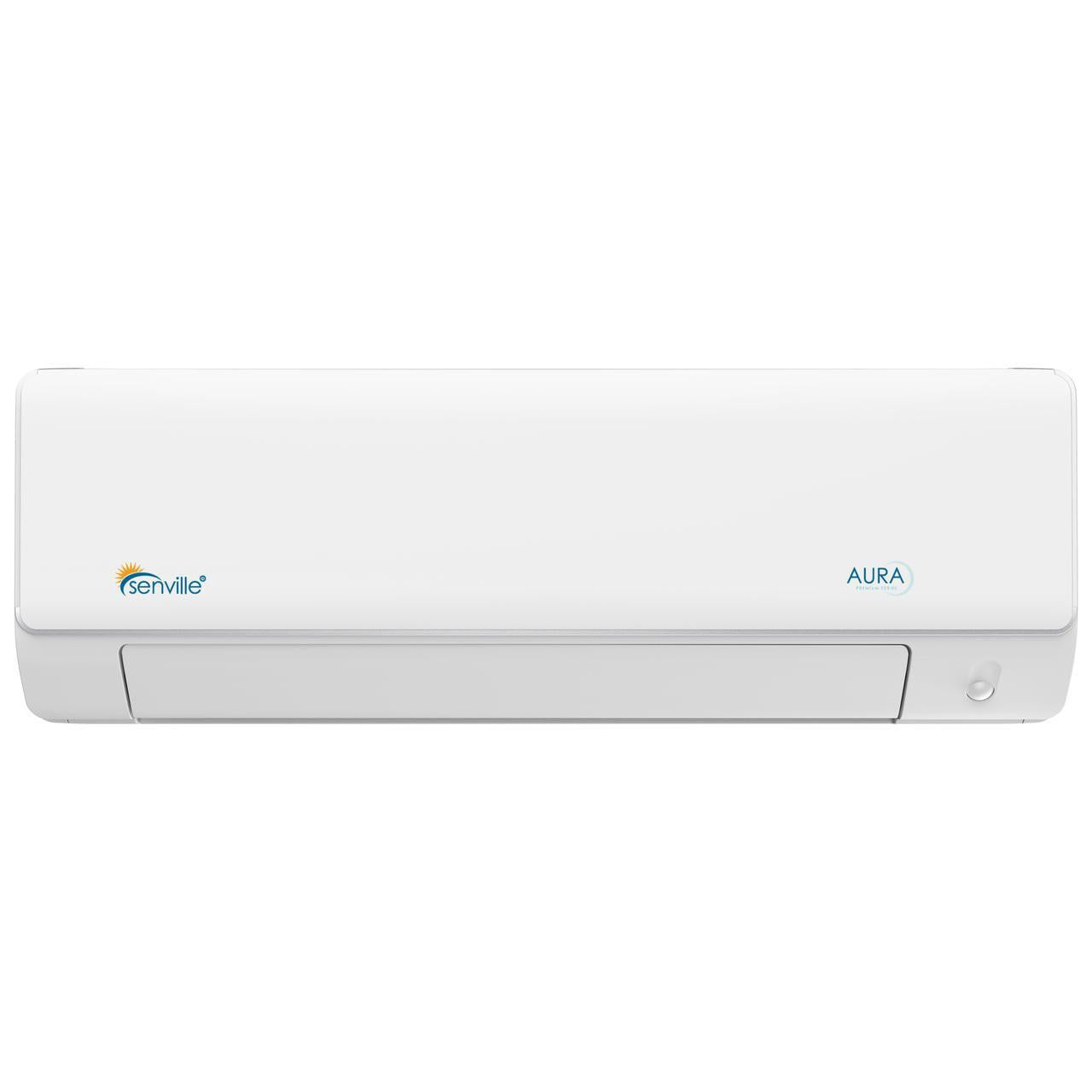

- Indoor Unit

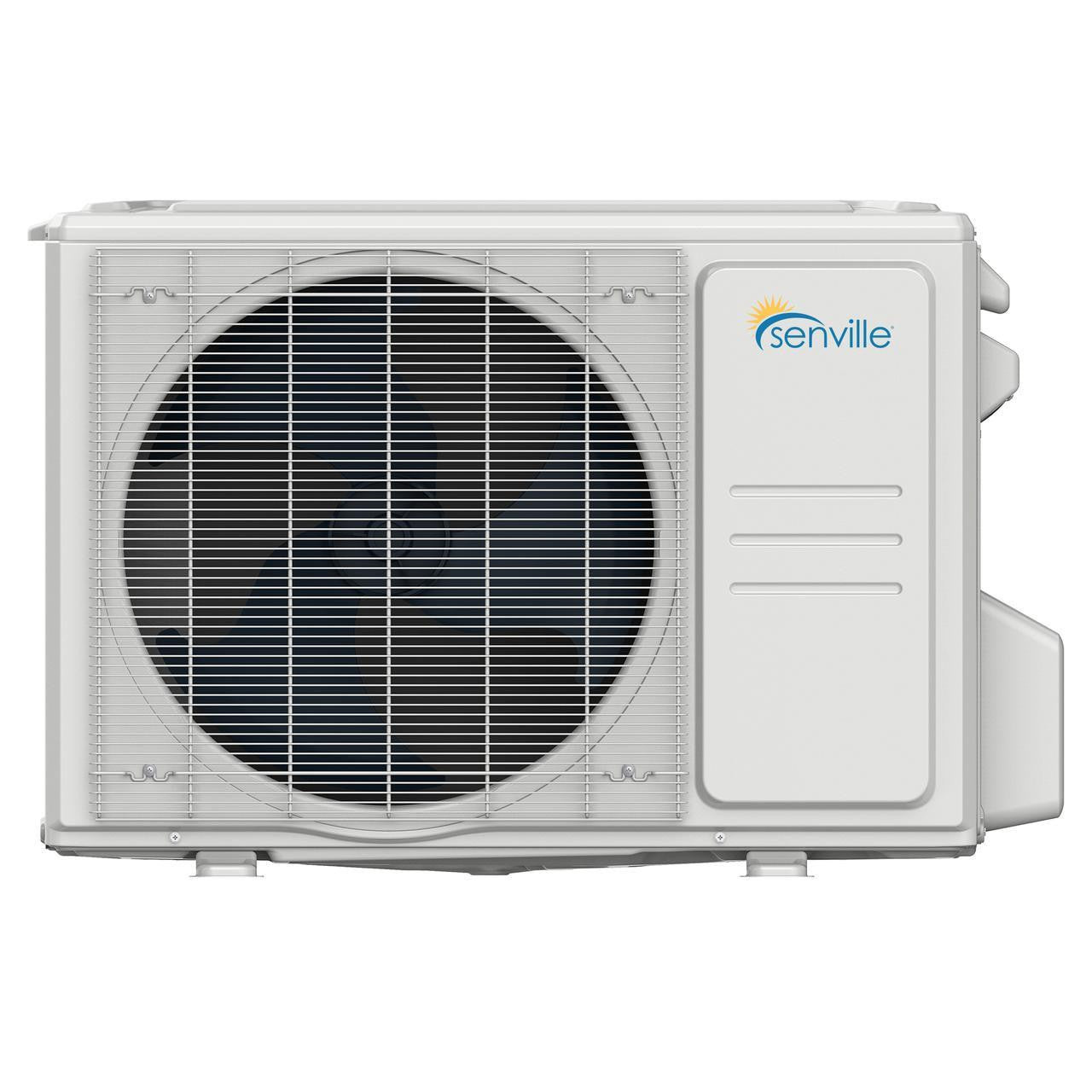

- Outdoor Unit

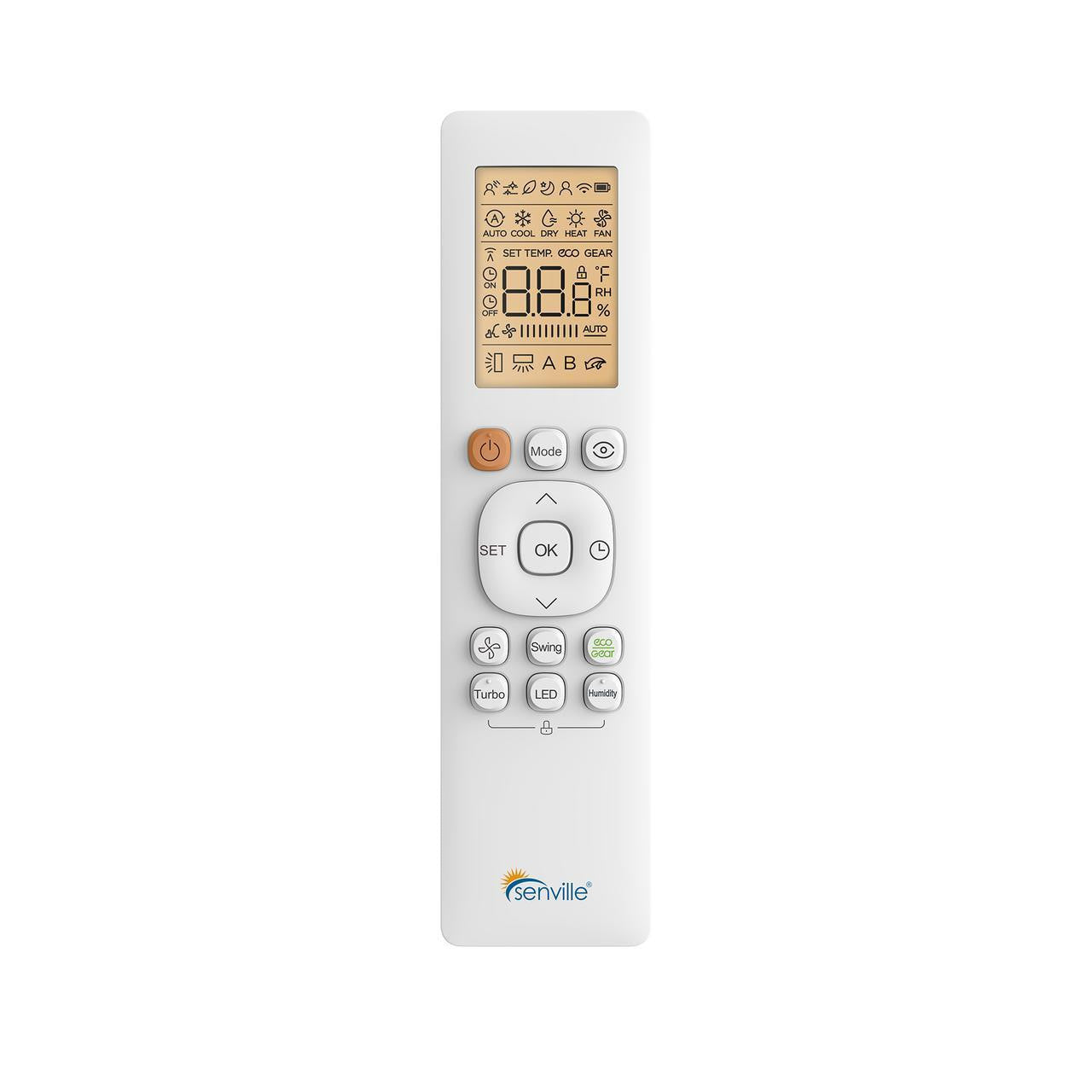

- Wireless Remote Control
- Alexa USB Kit
- 16 ft. Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Documentation and certifications:
- ENERGY STAR Certified
- UL Certified
- AHRI Certified (View Certificate)
- EnergyGuide (View EnergyGuide Label)
- Owner Manual (View Owner Manual)
- Installation Manual (View Installation Manual)
Technical Specifications:
| Model Number | SENE-18EL |
| Style | Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253 |
| SEER2 | 25.6 |
| EER2 | 15.0 |
| Cooling Capacity (BTU) | 18000 |
| Cooling Range (BTU) | 12600~27900 |
| Cooling Input Range (W) | 940~2280 |
| Cooling Current Range (A) | 3.2~8.5 |
| Heating Capacity (BTU) | 20000 |
| Heating Range (BTU) | 9700~29700 |
| Heating Input Range (W) | 325~2440 |
| Heating Current Range (A) | 2.8~10.2 |
| HSPF2-4 | 16.2 |
| HSPF2-5 | 10.0 |
| COP W/W | 4.40 |
| Minimum Circuit Ampacity (A) | 24.9 |
| Max. Fuse (A) | 25 |
| Indoor Air Flow (Turbo/H/M/L) CFM | 812 / 618 / 412 / 318 |
| Indoor Noise Level (Turbo/H/M/L) dB | 54.5 / 43.5 / 32.7 / 27 |
| Indoor Dimensions (WxDxH) | 46.85 x 11.02 x 13.46 in |
| Indoor Weight | 43.65 lbs |
| Moisture Removal (L/H) | 1.1 |
| Outdoor Air Flow (Max) CFM | 2235 |
| Outdoor Noise Level dB | 57 |
| Outdoor Dimensions (WxDxH) | 37.24 x 16.14 x 31.89 in |
| Outdoor Weight | 130.29 lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 63.45 oz |
| Refrigerant Pre-charge | 25 ft |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 10 Years Compressor / 10 Years Parts |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 18,000 BTU |
|---|---|
| Indoor unit(s) | 18,000 BTU |
| Zones / rooms | 1 Zone |
| Efficiency | 26 SEER2 |
| Power | 230 Volt |
| Mount type | Wall |
| Brand | Senville |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
