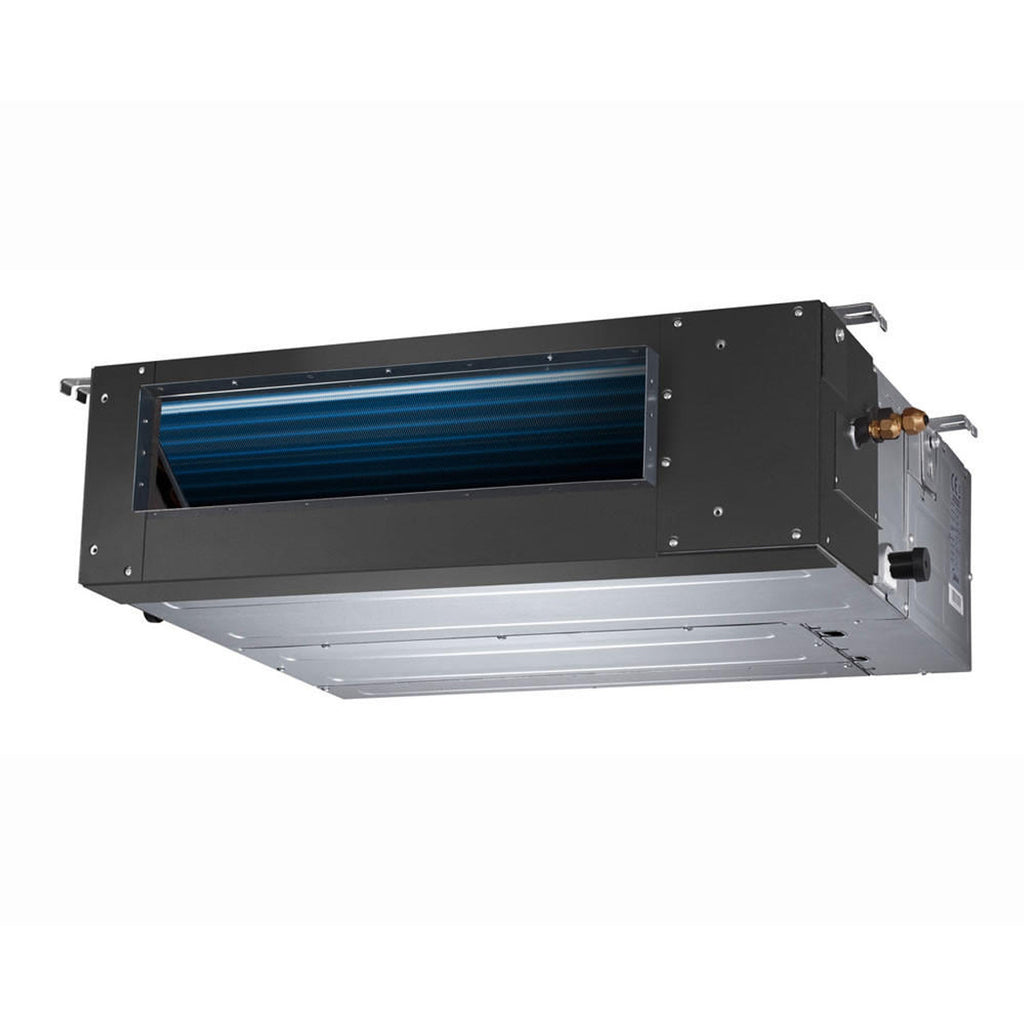

Senville 9,000 BTU 21.4 SEER2 Concealed Duct Air Conditioner - Heat Pump - 230V
Senville SENA-09HF/ID is a high-efficiency 9000 BTU concealed duct mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.
Features:
- 21.4 SEER2 ENERGY STAR
- Heating down to -30°C (-22°F)
- Alexa Enabled Smart Control
- Ultra-Quiet Operation

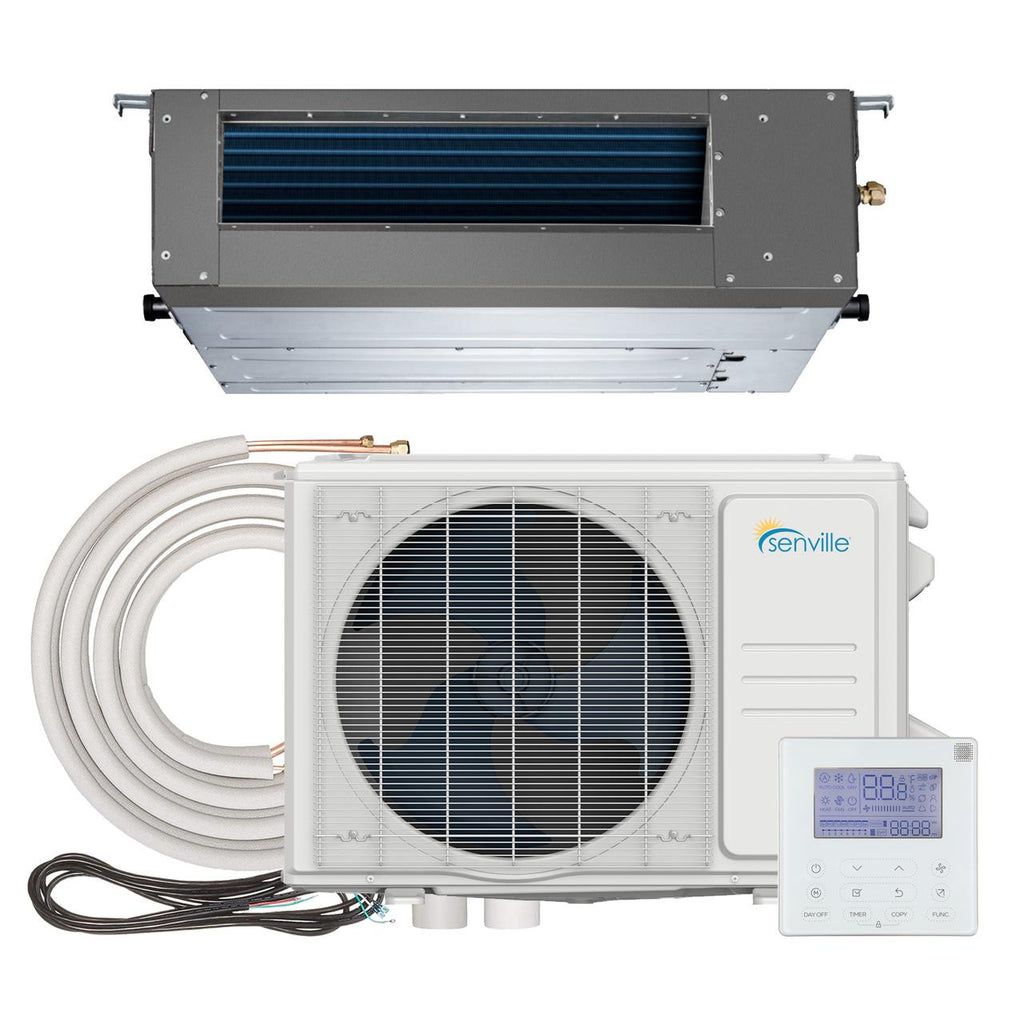

What's Included:
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Alexa USB Kit
- 16 ft. Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
Specifications:
| Model Number | SENA-09HF-ID |
| Style | Concealed Duct Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 21.4 |
| EER2 | 13.4 |
| Cooling Capacity (BTU) | 9000 |
| Cooling Range (BTU) | 3400~13500 |
| Cooling Input Range (W) | 145~1200 |
| Cooling Current Range (A) | 1.3~5.5 |
| Heating Capacity (BTU) | 10000 |
| Heating Range (BTU) | 3800~16200 |
| Heating Input Range (W) | 260~1450 |
| Heating Current Range (A) | 1.9~6.5 |
| HSPF2-4 | 12.5 |
| HSPF2-5 | 9.7 |
| COP W/W | 3.53 |
| Minimum Circuit Ampacity (A) | 15 |
| Max. Fuse (A) | 15 |
| Indoor Air Flow (Turbo/H/M/L) CFM | 400.2 / 323.7 / 264.9 / 176.6 |
| Indoor Noise Level (/H/M/L) dB | 32.5 / 31 / 29.5 |
| Indoor Dimensions (WxDxH) (in.) | 27.56 x 19.92 x 7.87 |
| Indoor Weight | 39.46 Lbs |
| Outdoor Air Flow (Max) CFM | 1470.6 |
| Outdoor Noise Level dB | 56 |
| Outdoor Dimensions (WxDxH) (in.) | 31.69 x 12.99 x 21.81 |
| Outdoor Weight | 72.75 Lbs |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge oz | R454B / 35.27 |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Wired Control |
| Alexa | Enabled |
| Warranty | 10 Years Compressor / 5 Years Parts |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
