Product overview

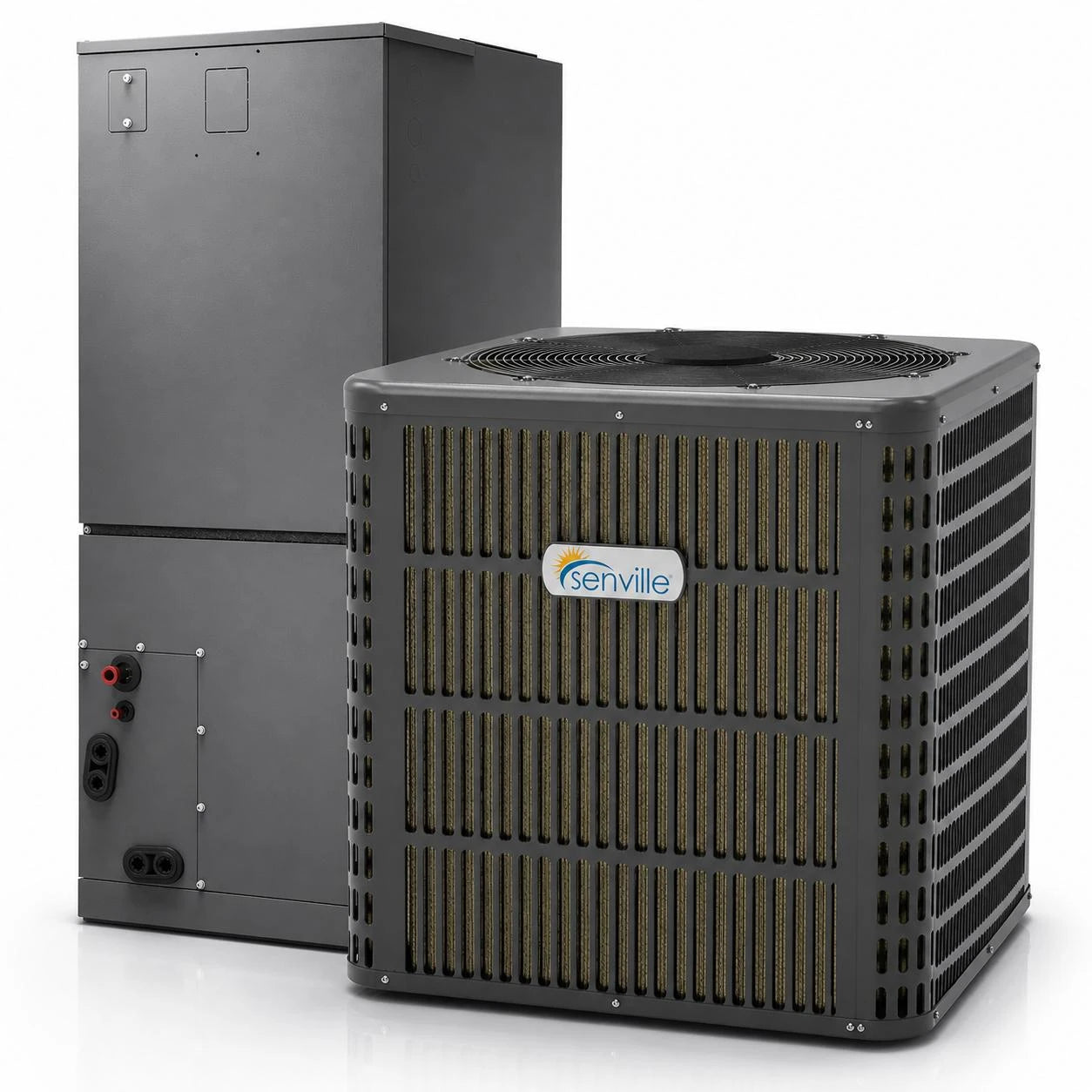

Senville 4 Ton 17.6 SEER2 Central AC Unit Heat Pump - Top Discharge - R-32 - 230V
Engineered for larger residential spaces, this 4 ton inverter central heat pump delivers strong airflow and efficient year-round temperature control. Its top-discharge outdoor unit is compact and well suited to higher-capacity ducted applications.
Key Features
- 4 ton / 48,000 BTU-class ducted central heat pump
- 17.6 SEER2 efficiency
- Heating and cooling from one inverter-driven system

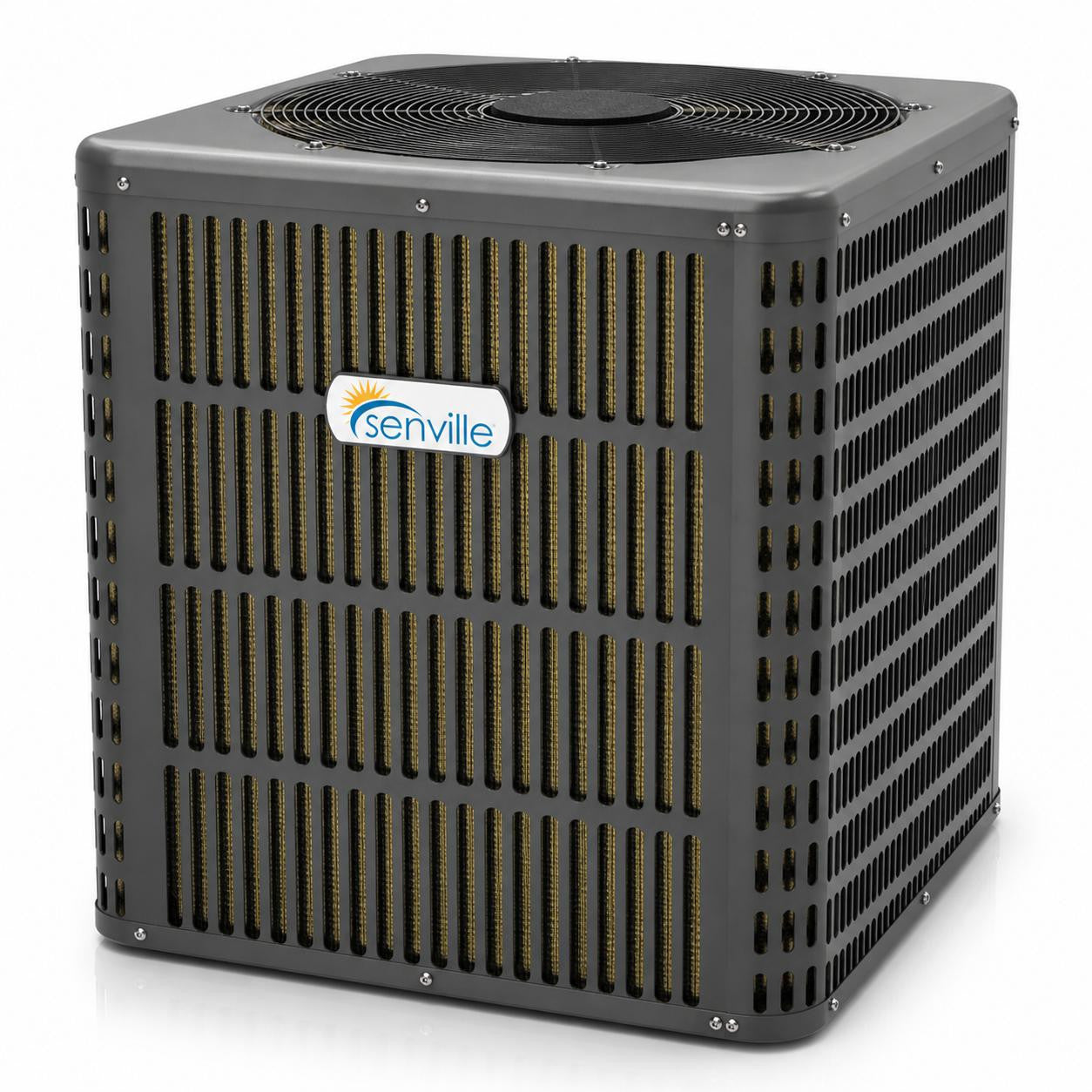

- Top-discharge outdoor unit
- Heating operation down to -4°F
- R-32 refrigerant
- 208/230V single-phase power
Specifications
| Model | SENTC-48TD |
| SEER2 / EER2 | 17.6 / 11.3 |
| HSPF2-4 / COP | 9.1 / 3.39 |
| Rated Cooling / Heating Capacity | 47,000 / 50,000 BTU/h |
| Cooling Capacity Range | 15,000-49,000 BTU/h |
| Heating Capacity Range | 11,000-52,000 BTU/h |
| Operating Range | Cooling: 5-131°F; Heating: -4-75°F |
| Power Supply | 208/230V, 60Hz, 1-phase |
| Indoor MCA / MOP | 7 A / 15 A |
| Outdoor MCA / MOP | 36 A / 40 A |
| Refrigerant | R-32 |
| Liquid / Gas Line | 3/8 in. / 3/4 in. |
| Maximum Pipe Length | 246 ft. |
| Indoor Dimensions (W x D x H) | 24-31/64 x 21-1/32 x 52-63/64 in. |
| Outdoor Dimensions (W x D x H) | 29-9/64 x 29-9/64 x 32-7/8 in. |
Professional installation is required. Equipment sizing, duct design, electrical requirements, and refrigerant adjustments must be confirmed by a licensed HVAC professional.
