Product overview
Senville 25 Ft. Insulated Line Set - 1/4'' and 1/2" For 18K BTU Air Handlers
The Senville 25 ft Insulated Line Set (1/4″ and 1/2″) is a complete line set extension kit for ductless mini split installations using 1/4″ liquid and 1/2″ suction connections. It includes insulated copper tubing and installation accessories to help ensure a professional, protected, and reliable setup.
Compatibility: Compatible with 18,000 BTU indoor mini split units.
Features:
|
Pre-Insulated Copper Tubing Helps protect the line set and supports efficient operation. |
Flared Fittings Ready for standard flare connections on compatible systems. |
|
25 ft Wiring Harness Included Includes 14-3 wiring harness to support installation. |
Accessory Kit Included Wall sleeve, line set wrap, drain hose, and neoprene parts. |

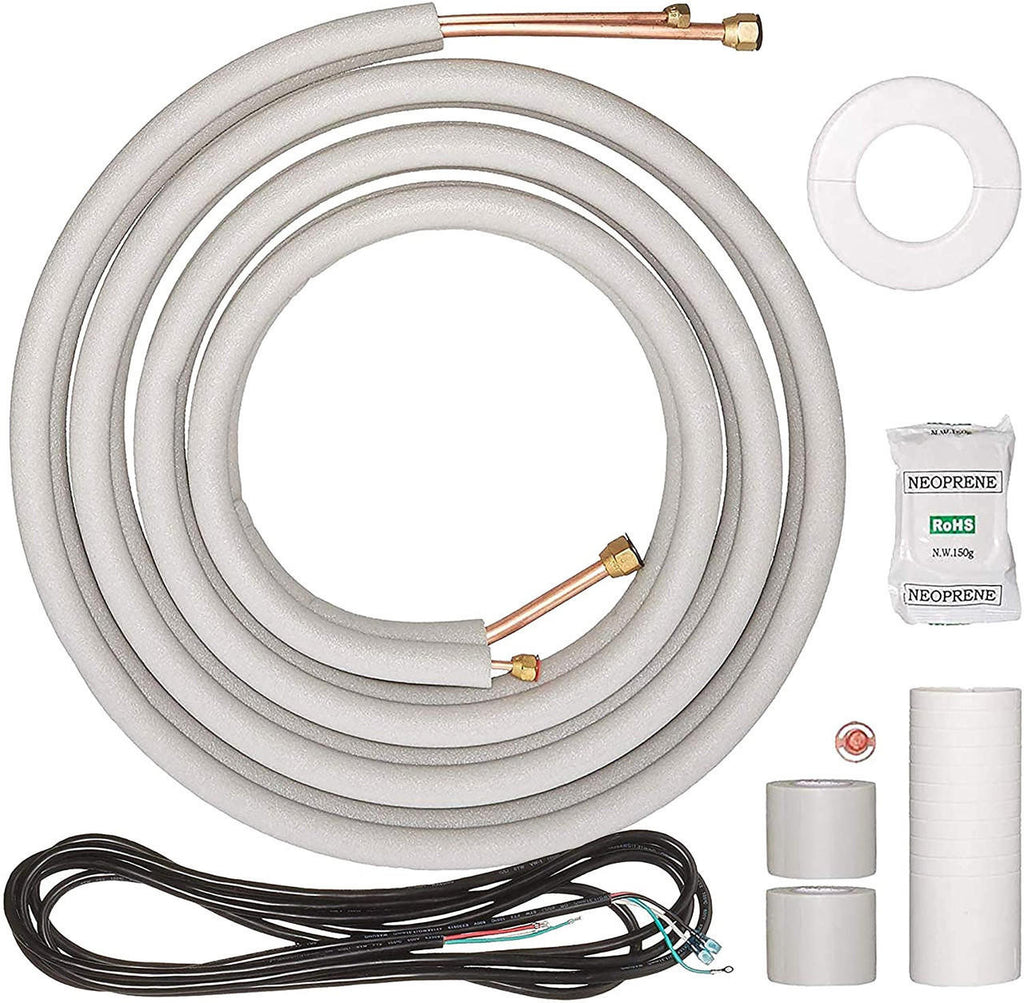

What's Included:
- 25 ft insulated copper line set (1/4″ + 1/2″)
- Flared fittings
- 25 ft wiring harness (14-3)
- Wall sleeve
- Line set wrap
- 16 ft drain hose
-
Neoprene parts
Technical Specifications:
| Product Name | 25 ft Insulated Line Set – 1/4″ and 1/2″ |
| SKU | PJX-2-75E |
| UPC | 893088007289 |
| Line Length | 25 ft |
| Liquid Line Size | 1/4″ |
| Suction Line Size | 1/2″ |
| Tubing | Insulated copper |
| Flare Fittings Size | 7/16" & 3/4" |
| Included Wiring Harness | 25 ft (14-3) |
| Included Drain Hose | 16 ft |
| Included Accessories | Wall sleeve, line set wrap, neoprene parts |
| Compatible Indoor Unit Size | Compatible with 18,000 BTU indoor mini split units |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
