Summary
- High Efficiency Quantum Ultra Floor/Low-Wall Mounted Console Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 24.6 SEER2 / 12.7 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 11.0 HSPF2 / 3.9 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Floor/Low-Wall Mounted Console Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

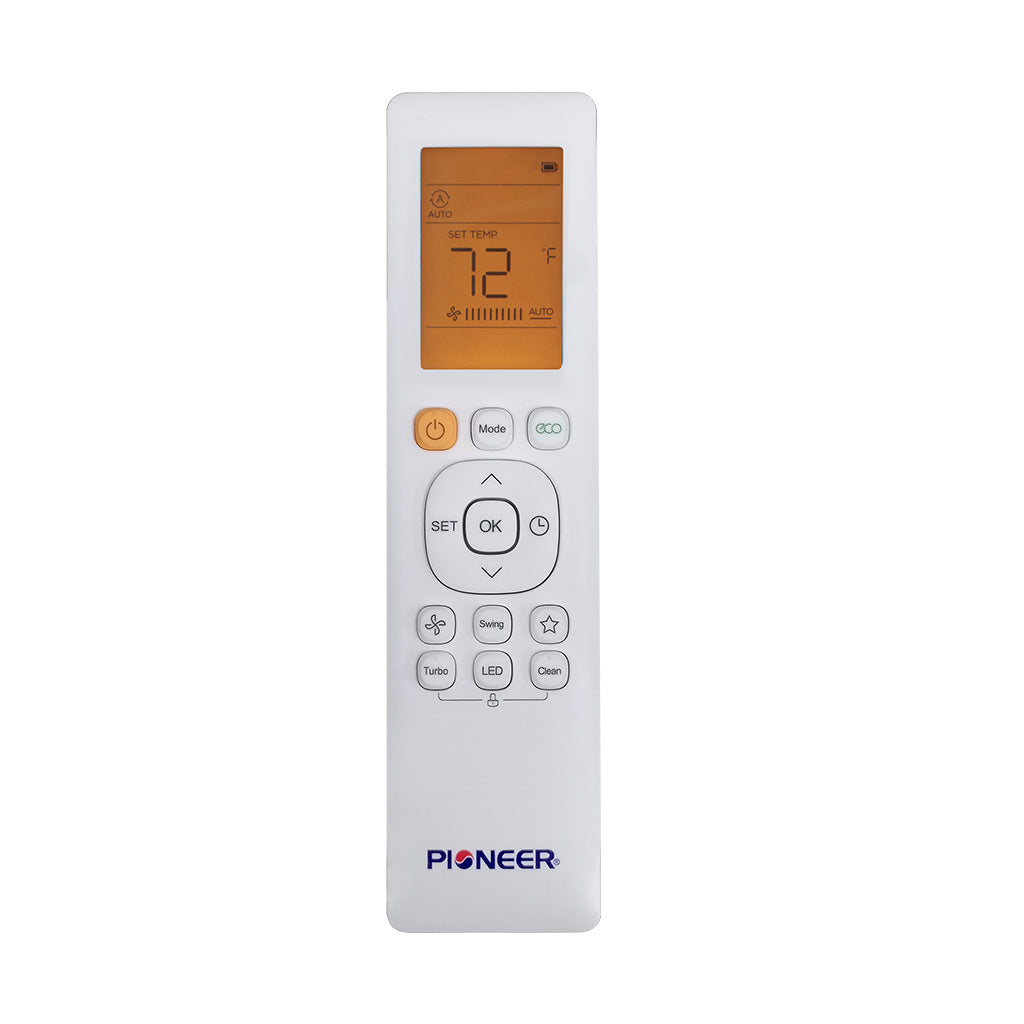

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- FOLLOW ME, to Detect and Adjust to Local Temperature
Technical Information & Performance
-

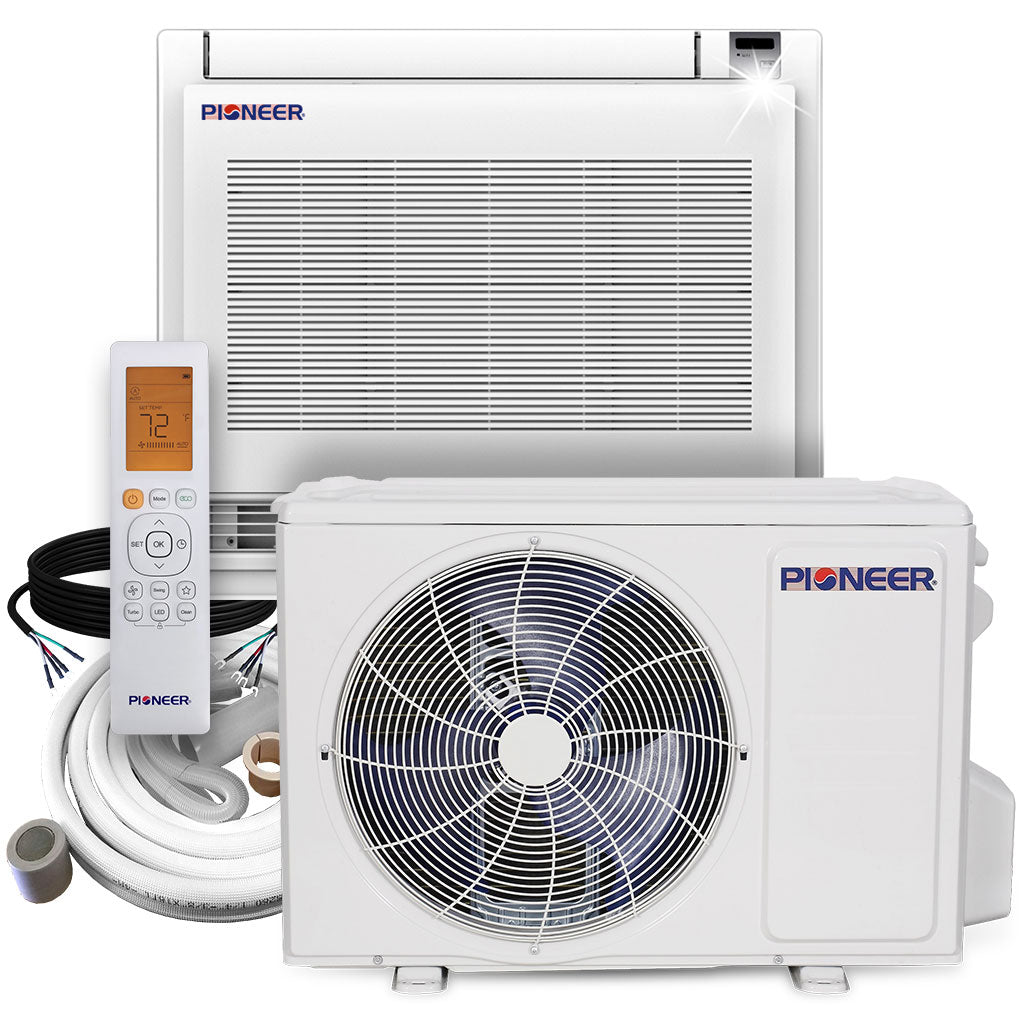

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 4,000~13,100 BTU/h
- Cooling SEER2: 24.6 BTU/W.h
- Cooling EER2: 12.7 BTU/W.h
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 5,100~12,900 BTU/h
- Heating HSPF2 (Region IV/V): 11.0 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.9 / 2.5 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 350~500 sq ft
- Minimum Room Size: 154 sq ft
- Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
- AHRI Reference: 218010989
-

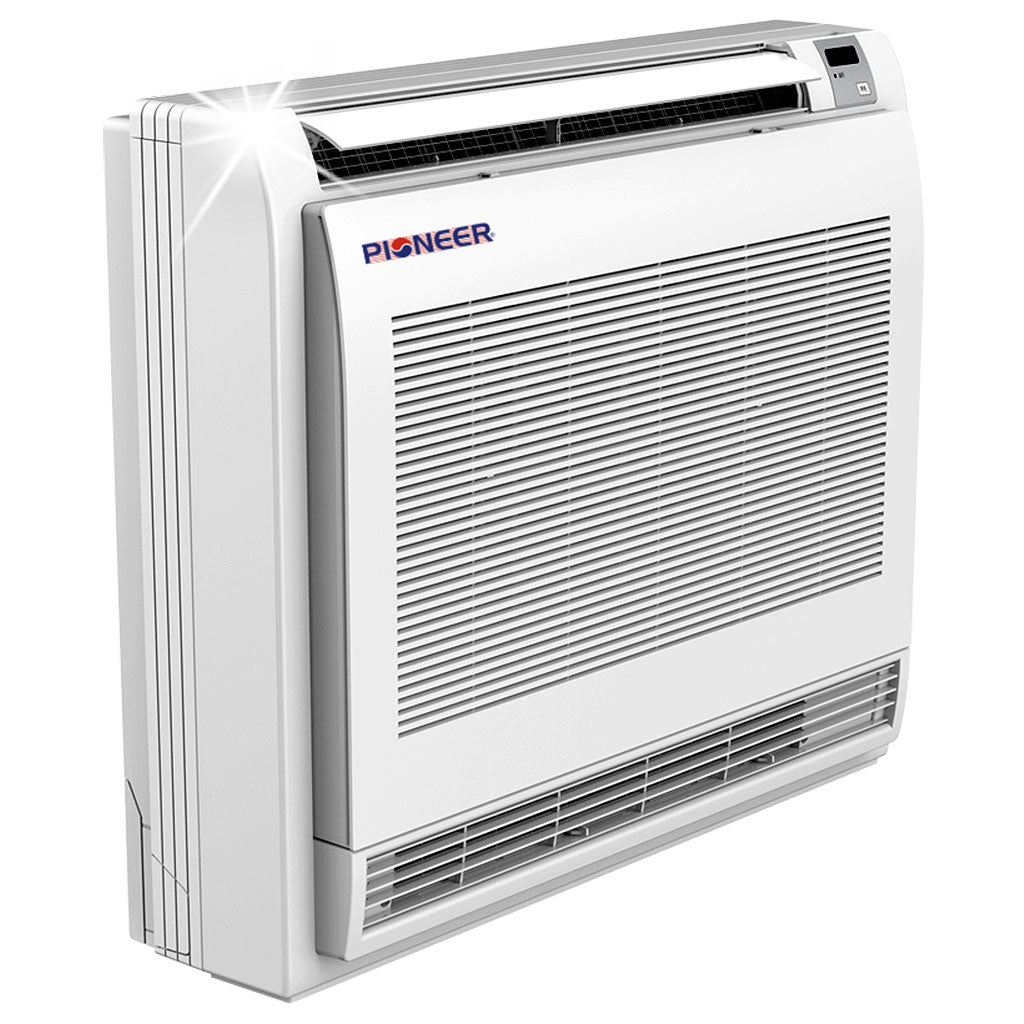

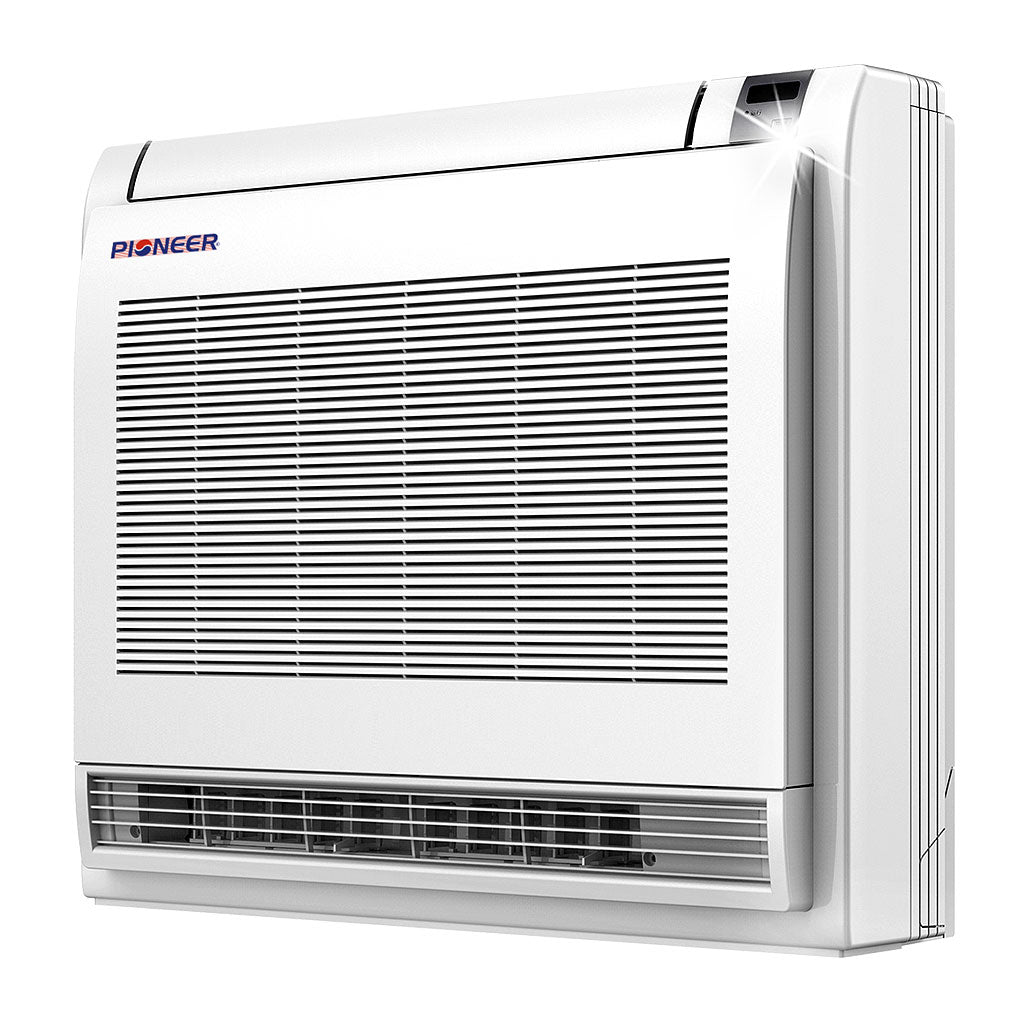

Indoor Unit
- Part Number: FB012GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 441 / 386 / 324 / 188 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 39 / 34.5 / 29.5 dB(A)
- Product Dimensions (WDH): 31"-1/4 x 7"-7/8 x 24"-1/2 Inches
- Carton Dimensions (WDH): 34"-1/8 x 11" x 28"-3/8 Inches
- Net / Gross Weight: 32.9 / 41.9 lbs
-

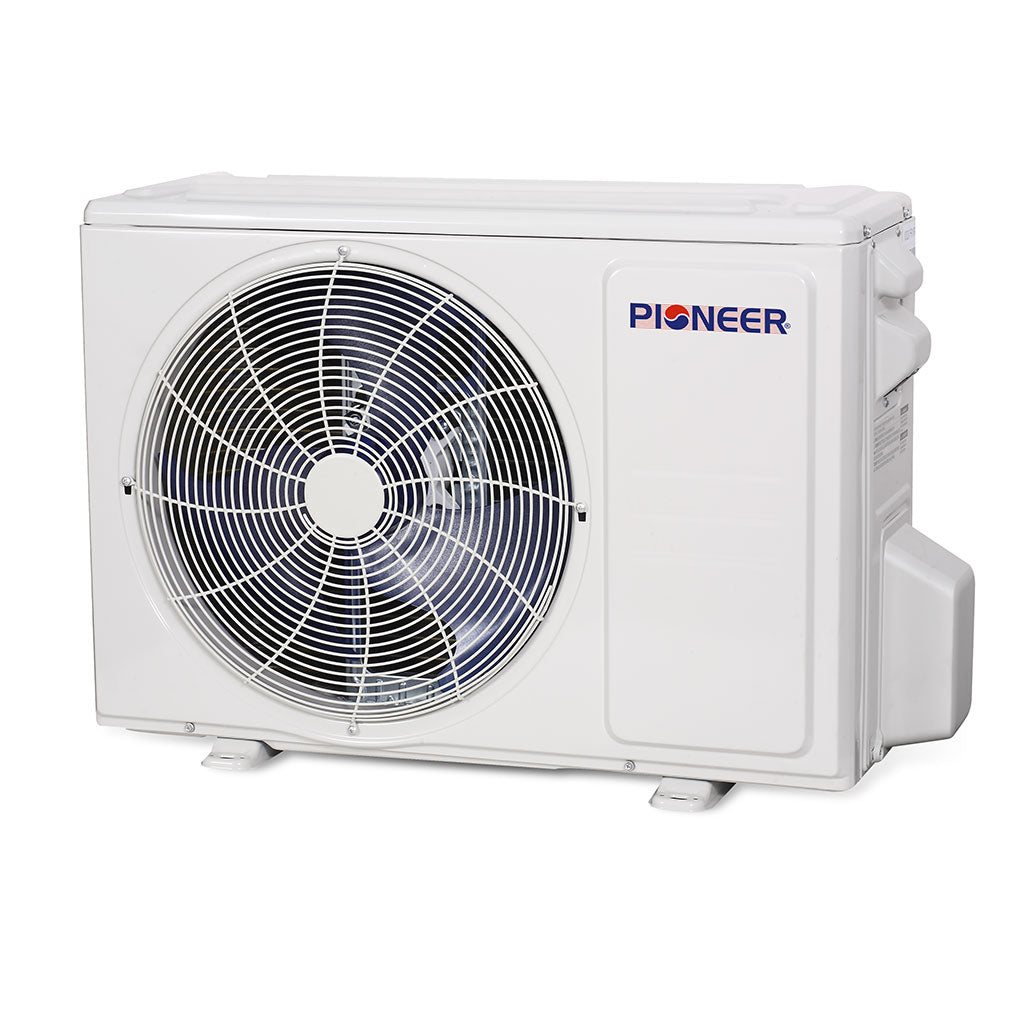

Outdoor Unit
- Part Number: YN012GMSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 55 dB(A)
- Net Dimensions (WDH): 30"-1/8 x 12" x 21"-7/8 Inches
- Carton Dimensions (WDH): 35" x 13"-1/4 x 24" Inches
- Net / Gross Weight: 62.1 / 67.7 lbs
Dimension Chart
