Product overview
Summary
- High Efficiency Quantum Ultra Single-Way Ceiling Recessed Cassette Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 22.1 SEER2 / 12.3 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 10.0 HSPF2 / 3.4 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Single-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

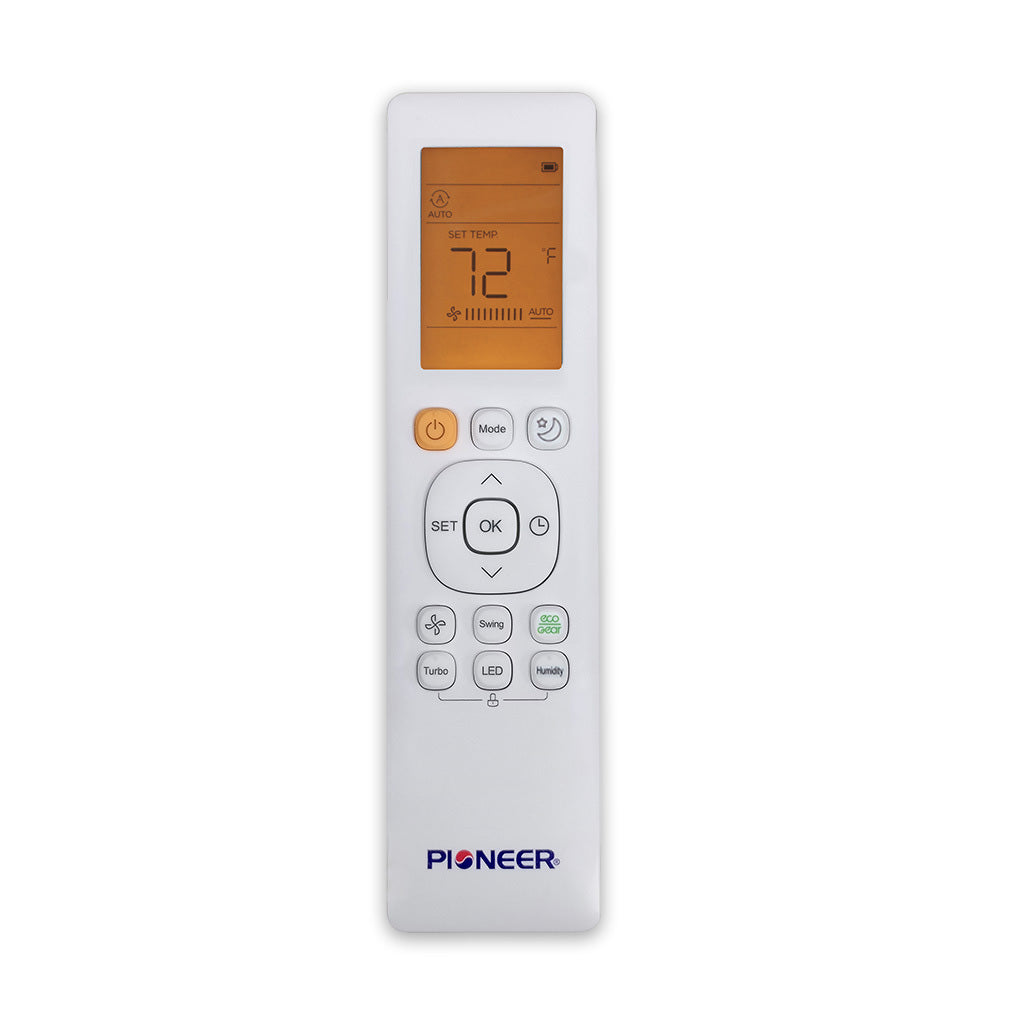

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-

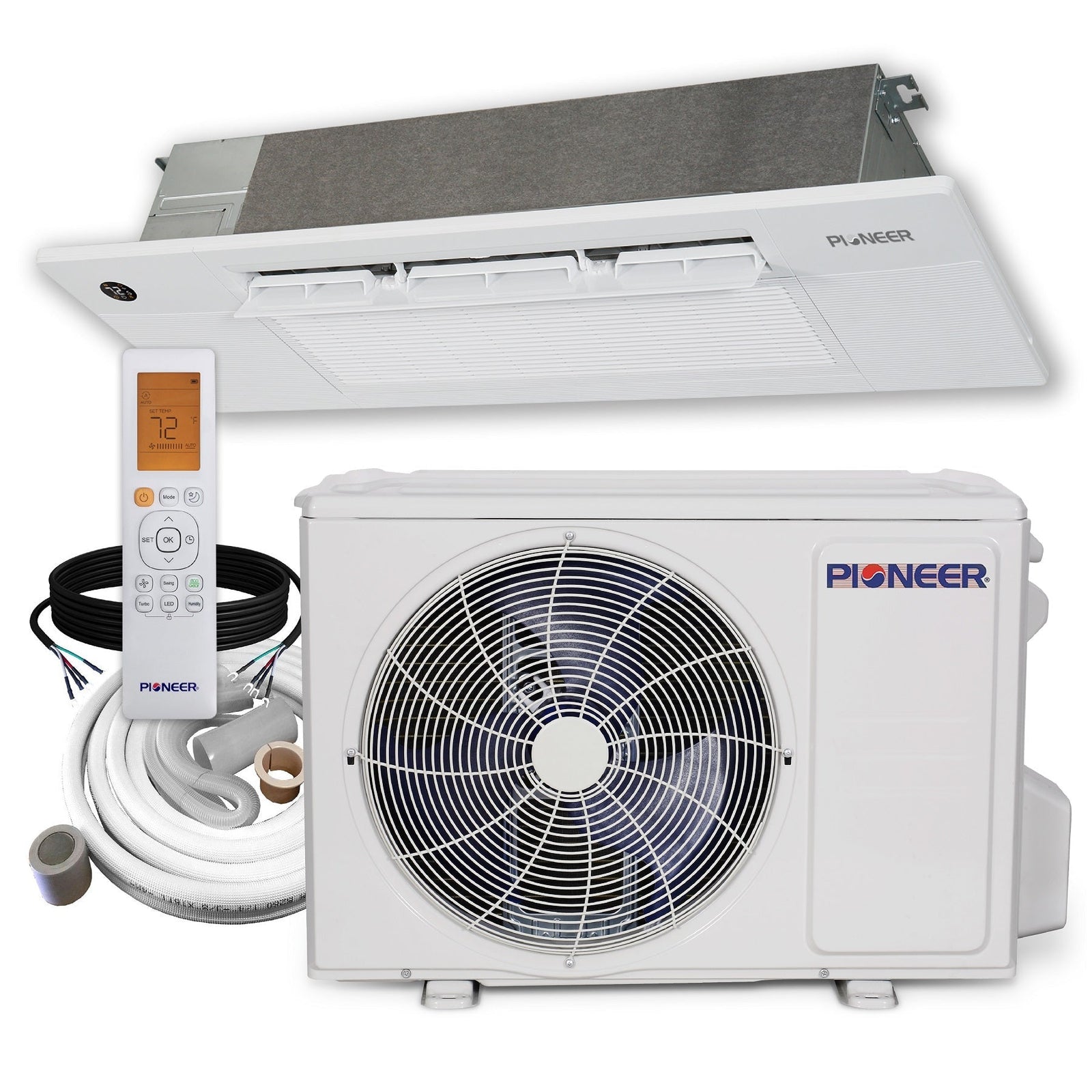

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,900~13,800 BTU/h
- Cooling SEER2: 22.1 BTU/W.h
- Cooling EER2: 12.3 BTU/W.h
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 4,700~15,300 BTU/h
- Heating HSPF2 (Region IV/V): 10.0 / 7.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.4 / 2.48 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 350~500 sq ft
- Minimum Room Size: 37 sq ft
- Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
- AHRI Reference: 218010987
-
Indoor Unit
- Part Number: CK012GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 353 / 312 / 282 / 247 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 47 / 43 / 38 / 26 / 22 dB(A)
- Product Dimensions (WDH): 50"-3/8 x 13"-1/4 x 10" Inches
- Carton Dimensions (WDH): 57"-5/8 x 22"-1/2 x 22"-5/8 Inches
- Net / Gross Weight: 45.0 / 82.0 lbs
-

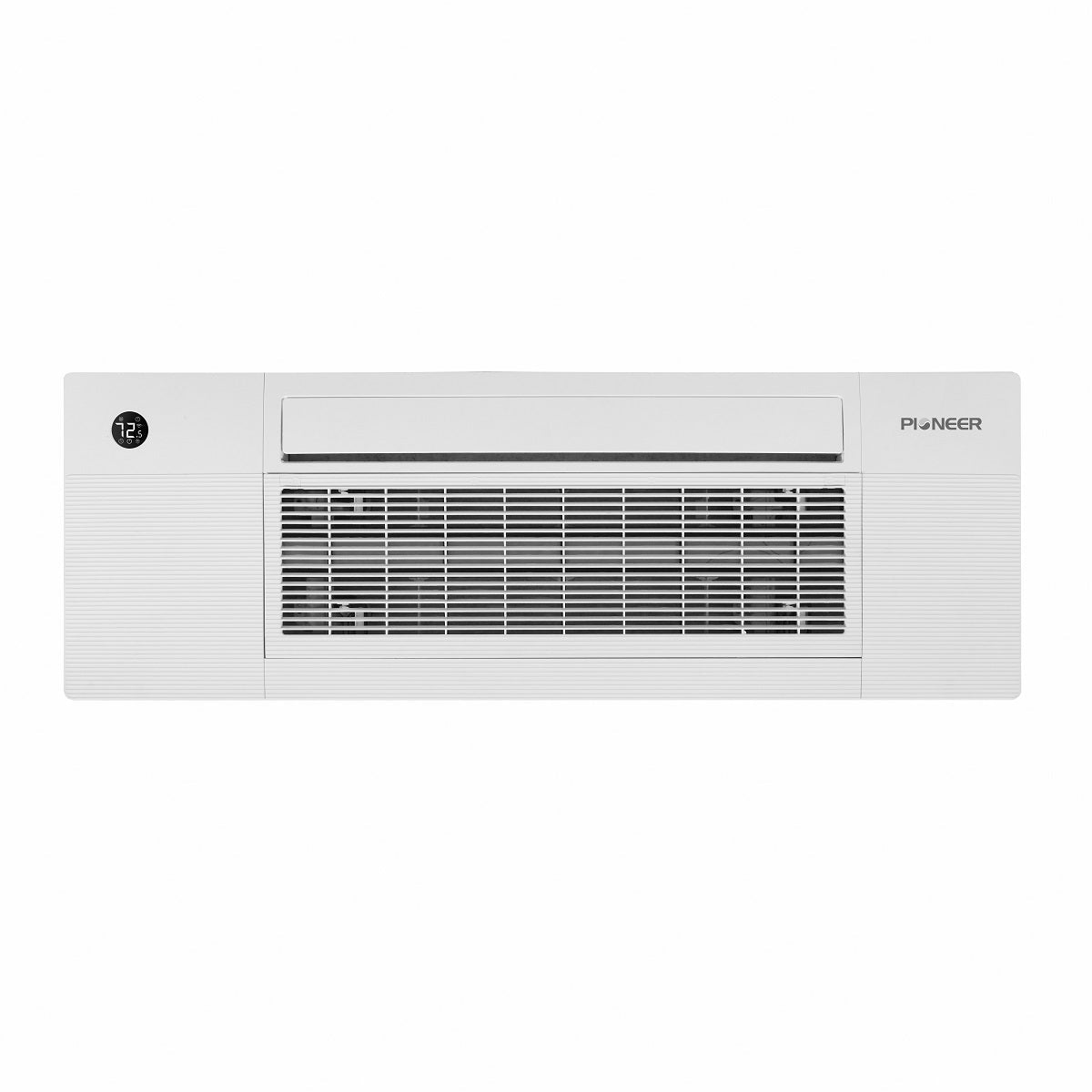

Decorative Panel
- Part Number: ---
- Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8 Inches
- Carton Dimensions (WDH): Packed with the indoor unit inside same carton
- Net / Gross Weight: 15.0 / N/A lbs
-

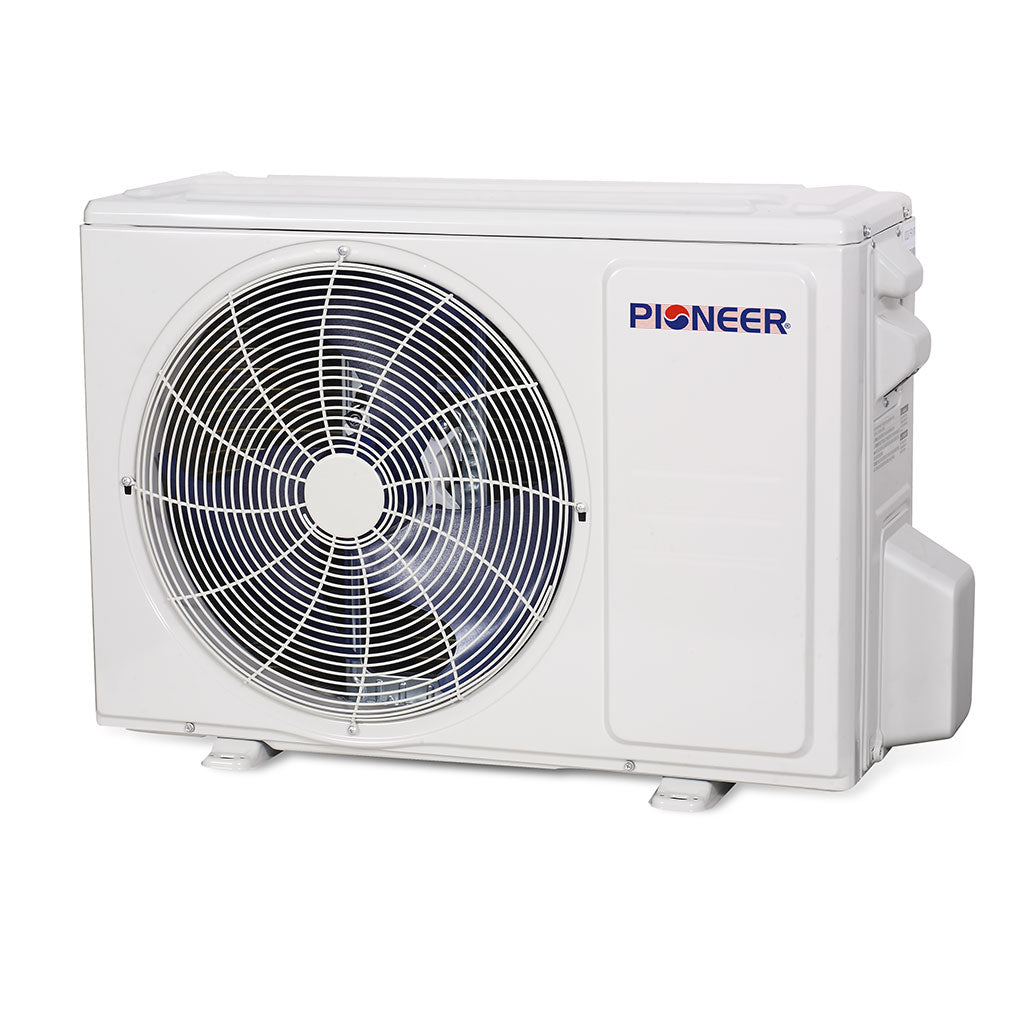

Outdoor Unit
- Part Number: YN012GMSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 54 dB(A)
- Net Dimensions (WDH): 30"-1/8 x 12" x 21"-7/8 Inches
- Carton Dimensions (WDH): 35" x 13"-1/4 x 24" Inches
- Net / Gross Weight: 62.1 / 67.7 lbs
Dimension Chart
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 12K BTU |
|---|---|
| Efficiency | 22 SEER2 |
| Power | 230 Volt |
| Mount type | Ceiling Cassette |
| Brand | Pioneer |
