Product overview

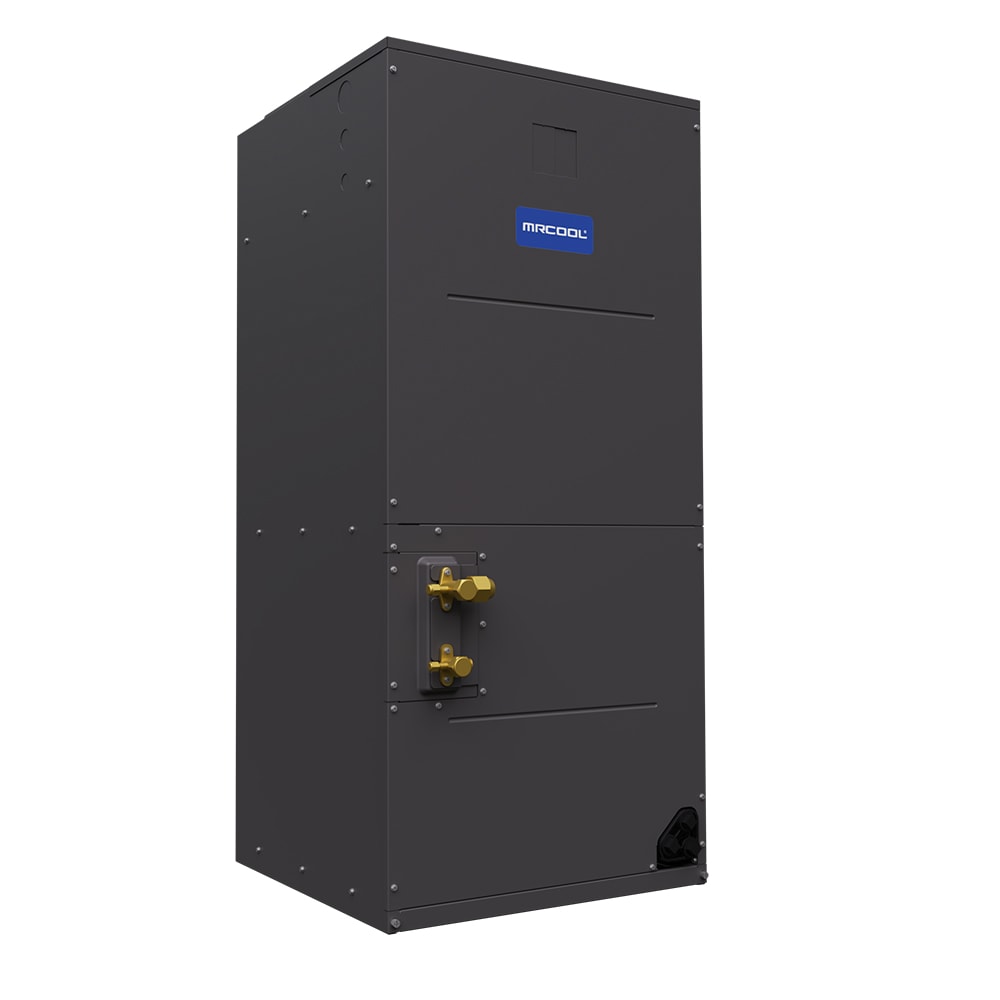

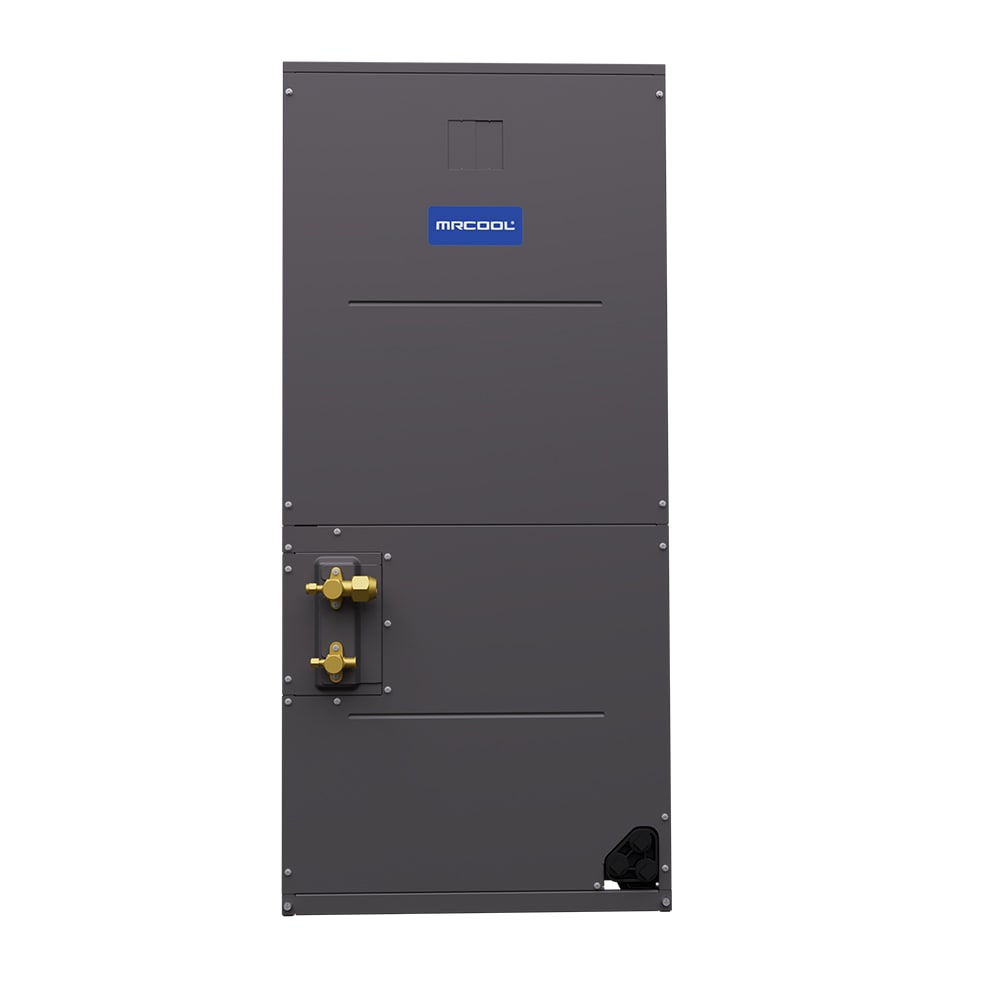

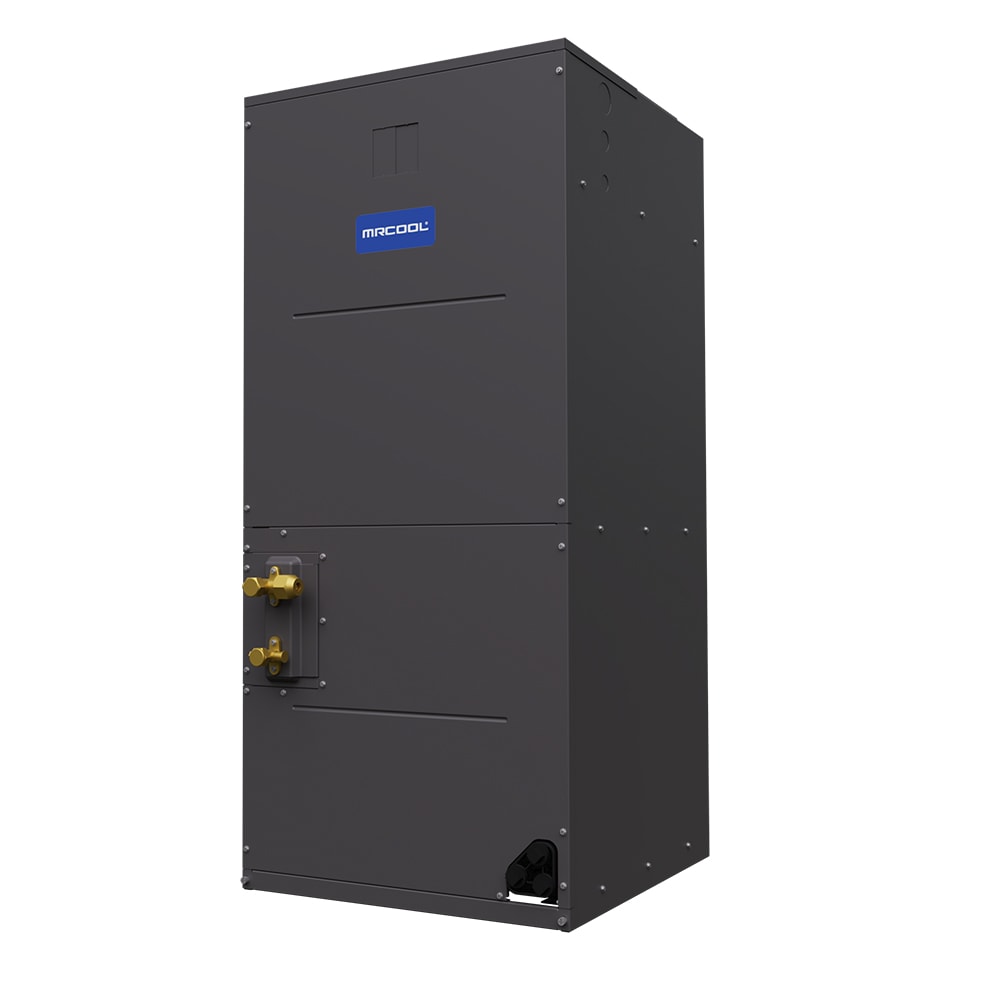

MRCOOL Signature Series TruInverter 5 Ton 60,000 BTU Multi-Position Air Handler - MCAEAMPVT60F21BA
The MRCOOL Signature Series TruInverter 60K multi-position air handler delivers smooth, efficient airflow for a matched TruInverter central heat pump system. Its variable-speed design helps maintain steadier temperatures, better humidity control, and quieter operation than conventional fixed-speed equipment.
The cabinet supports upflow, downflow, and horizontal installation, giving contractors flexibility for closets, attics, basements, crawl spaces, and mechanical rooms. It uses R-454B refrigerant and is compatible with MRCOOL No-Vac Quick Connect line sets.
This listing includes the indoor air handler only. Pair it with the compatible TruInverter condenser MCAESHV7T6021BA. A thermostat, line set, heat kit, and other installation materials are sold separately. Licensed professional installation is required.
Key Specifications
| CFM | 1700 |
| TONNAGE | 5 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 7 |
| MOUNT TYPE | Mulit-Position |
| COLOR | Gunmetal |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING (DBA) | 62 |
| MAX LINESET LENGTH (FT) | 100 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 7/8 |
| BLOWER MOTOR TYPE | DC |
| BLOWER MOTOR HP | 3/4 |
| BLOWER MOTOR SPEEDS | 5 |
| METERING DEVICE | TXV |
| AUXILIARY HEATER SIZES | 5kW, 10kW, 15kW, 20kW |
| NET DEPTH (IN) | 21 |
| NET HEIGHT (IN) | 56 |
| NET WIDTH (IN) | 24.5 |
| NET WEIGHT (LBS) | 161 |
