Product overview

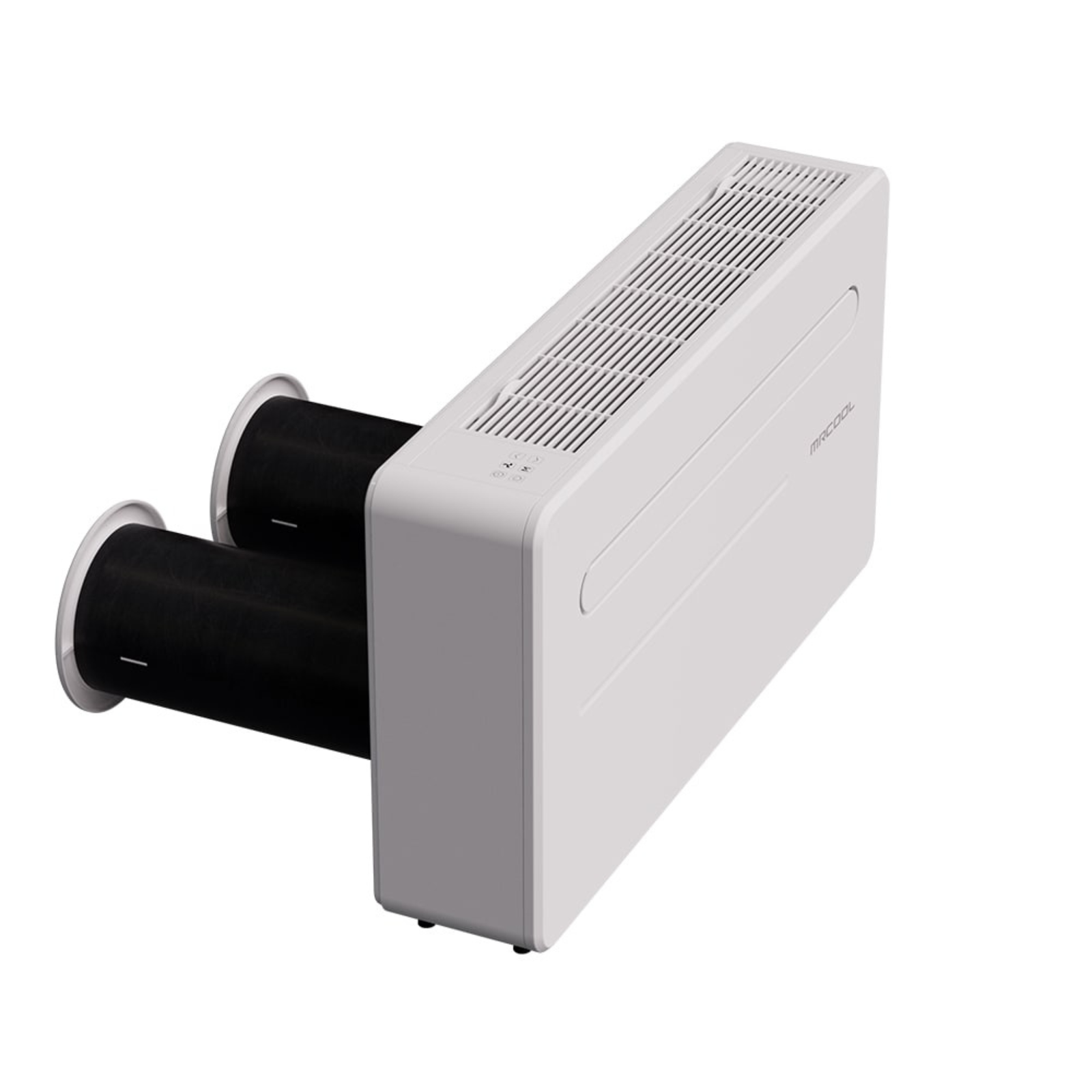

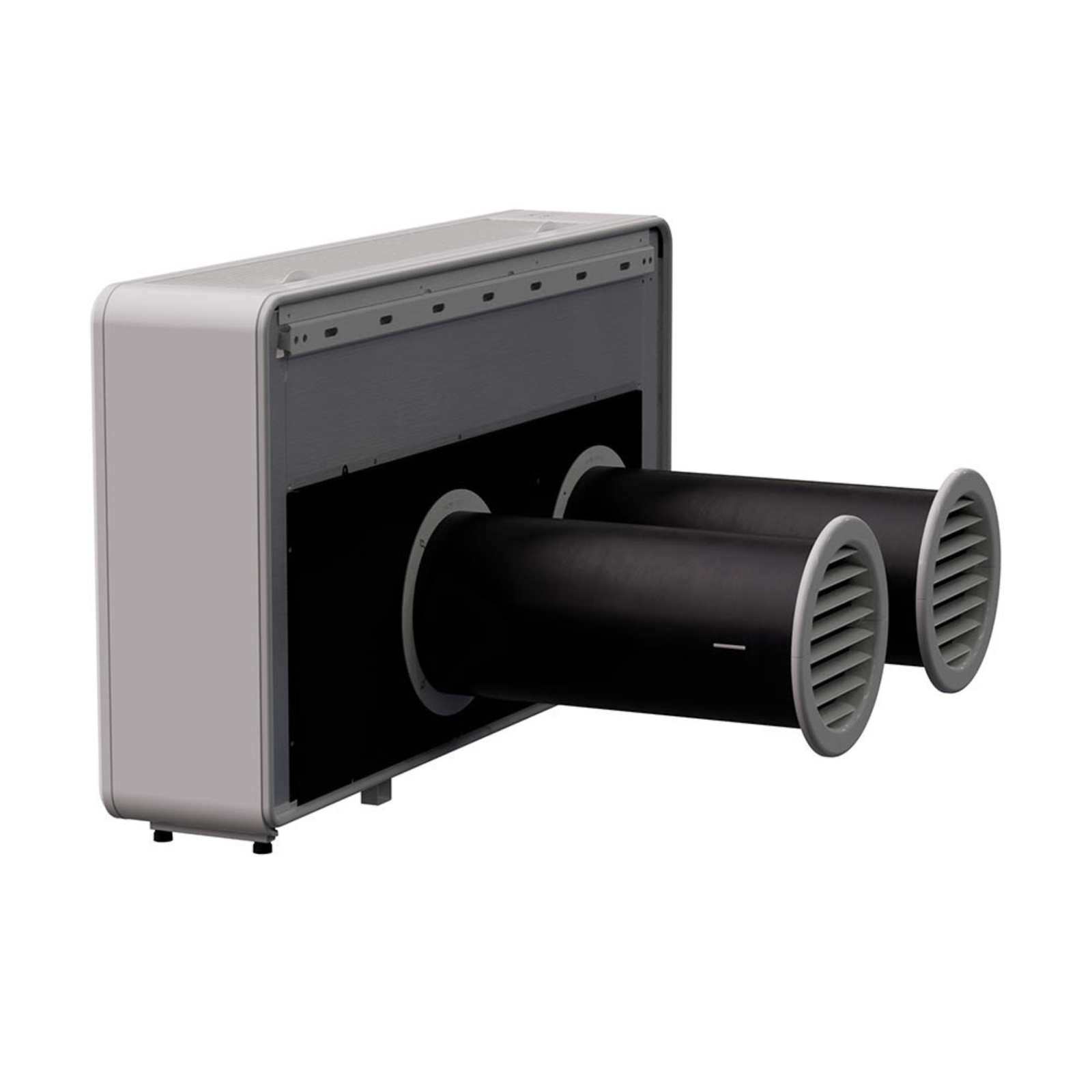

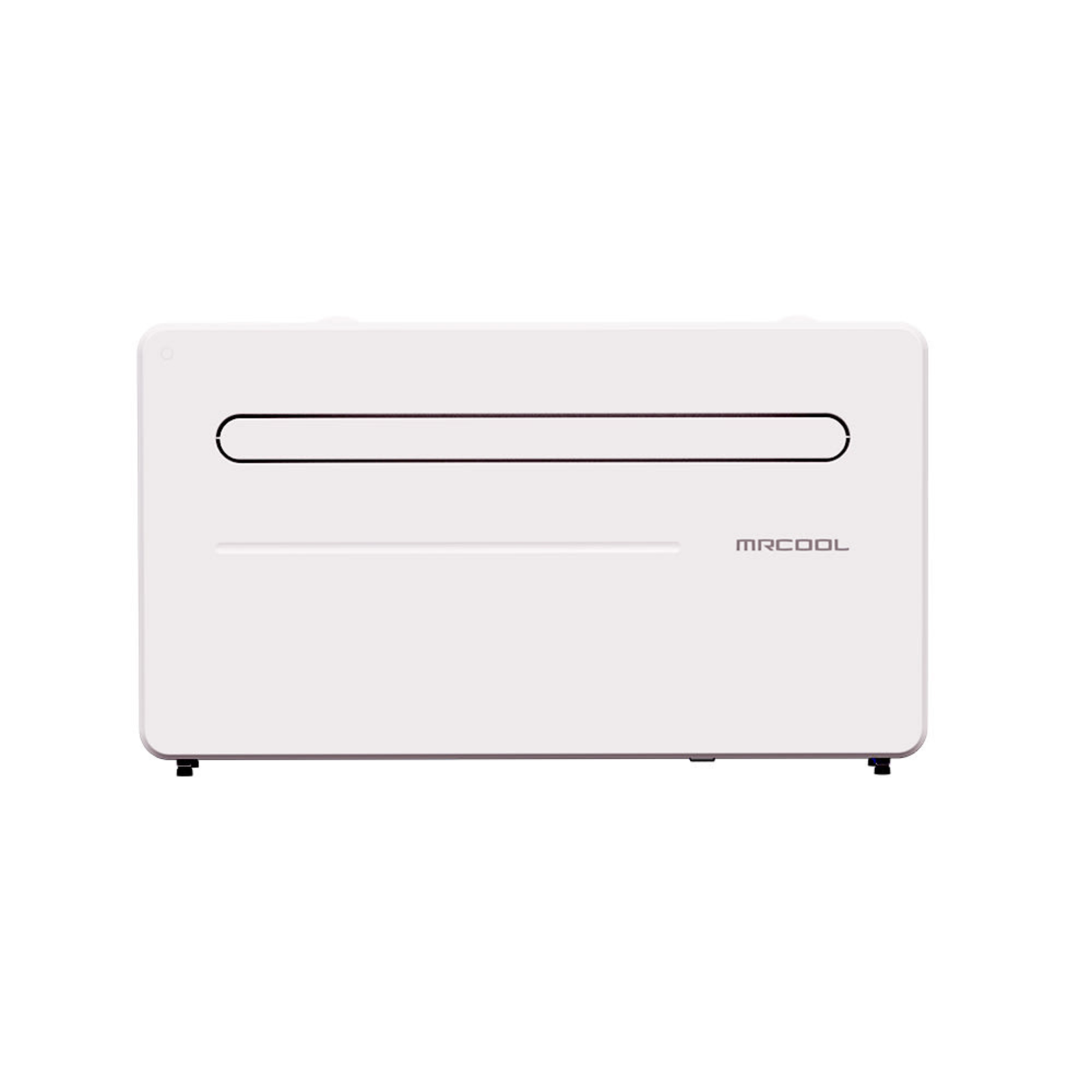

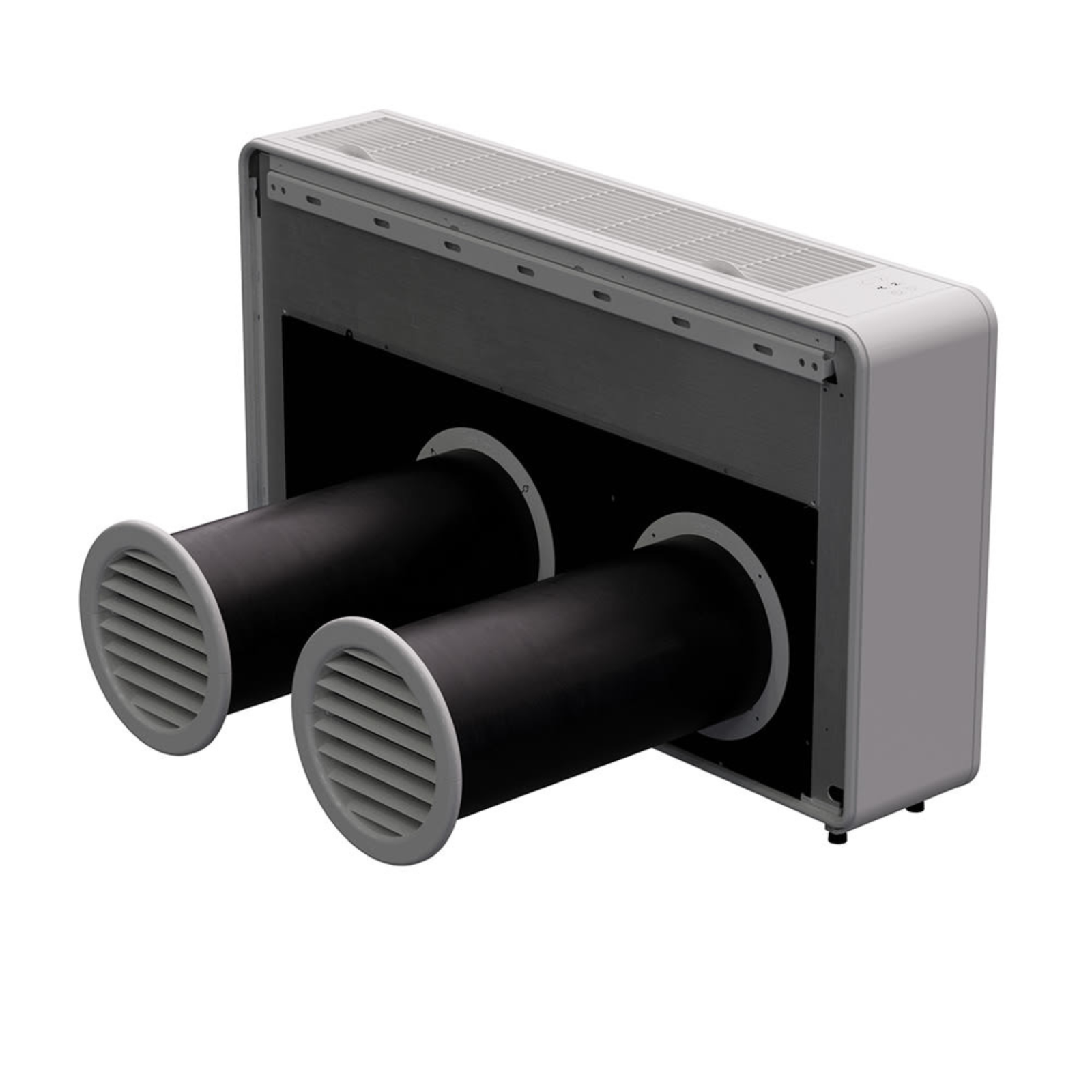

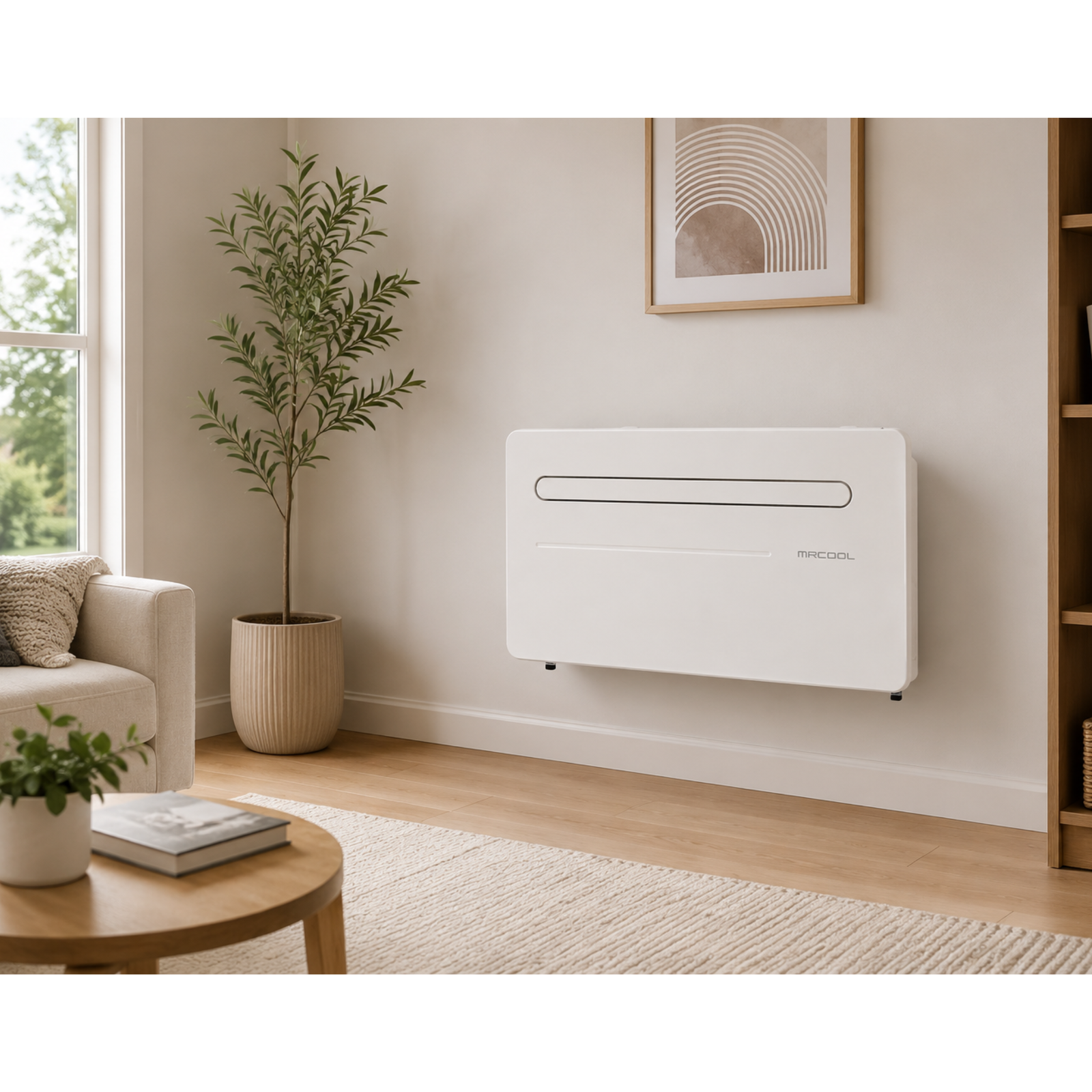

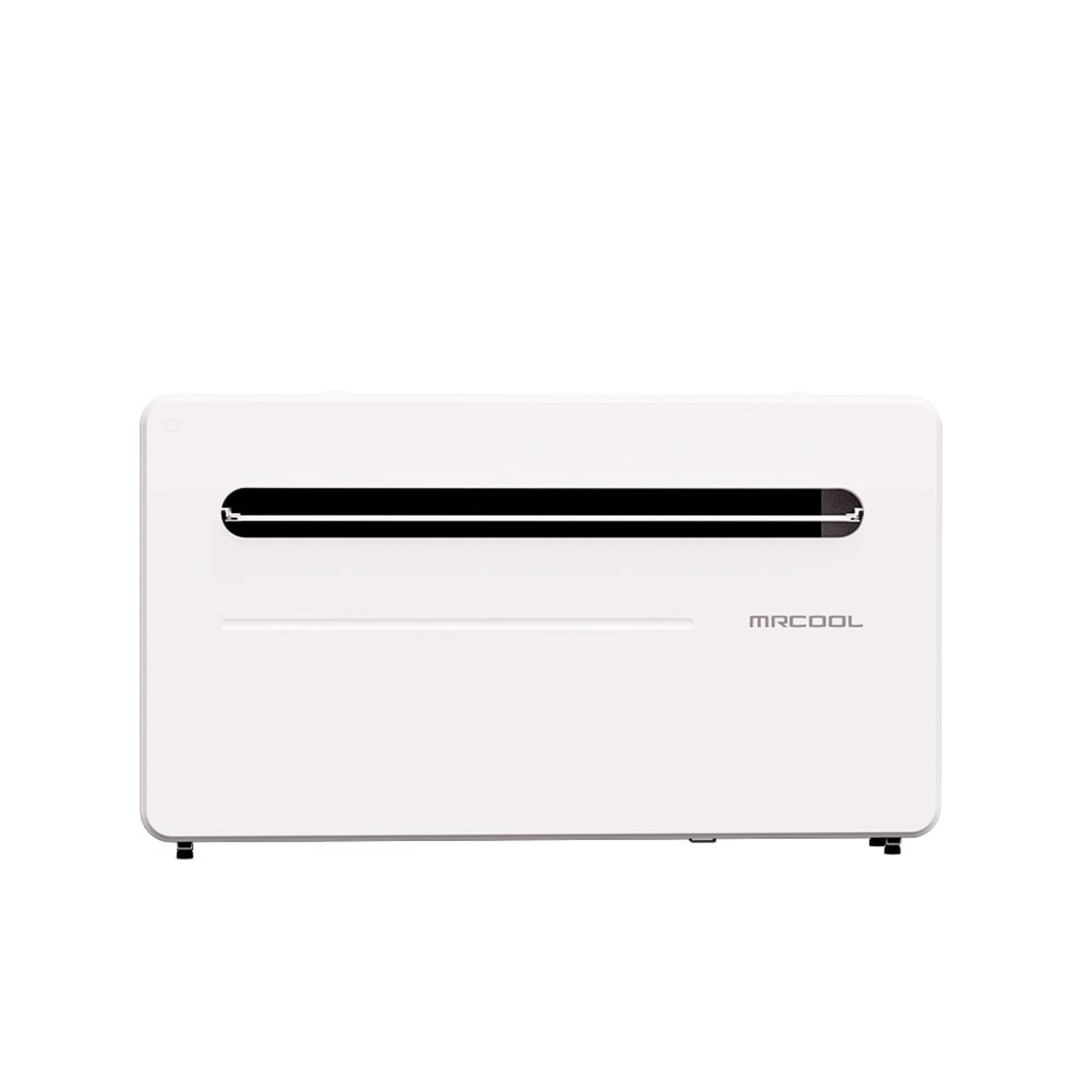

MRCOOL® Monoblock MTHP 10,000 BTU 115V Wall Mounted Heating & Cooling System – No Outdoor Unit Required – MDM10115D
The MRCOOL® Monoblock MTHP Series is a compact all-in-one heating and cooling solution designed for spaces where a traditional HVAC system or outdoor condenser is not practical. With the entire system housed inside a sleek wall-mounted indoor unit, it delivers year-round comfort without the complexity of conventional mini split installation.
Recommended Coverage Area: Up to 450 sq. ft., depending on insulation, ceiling height, sun exposure, climate, and room usage.
*Not available for sale in the state of California.*

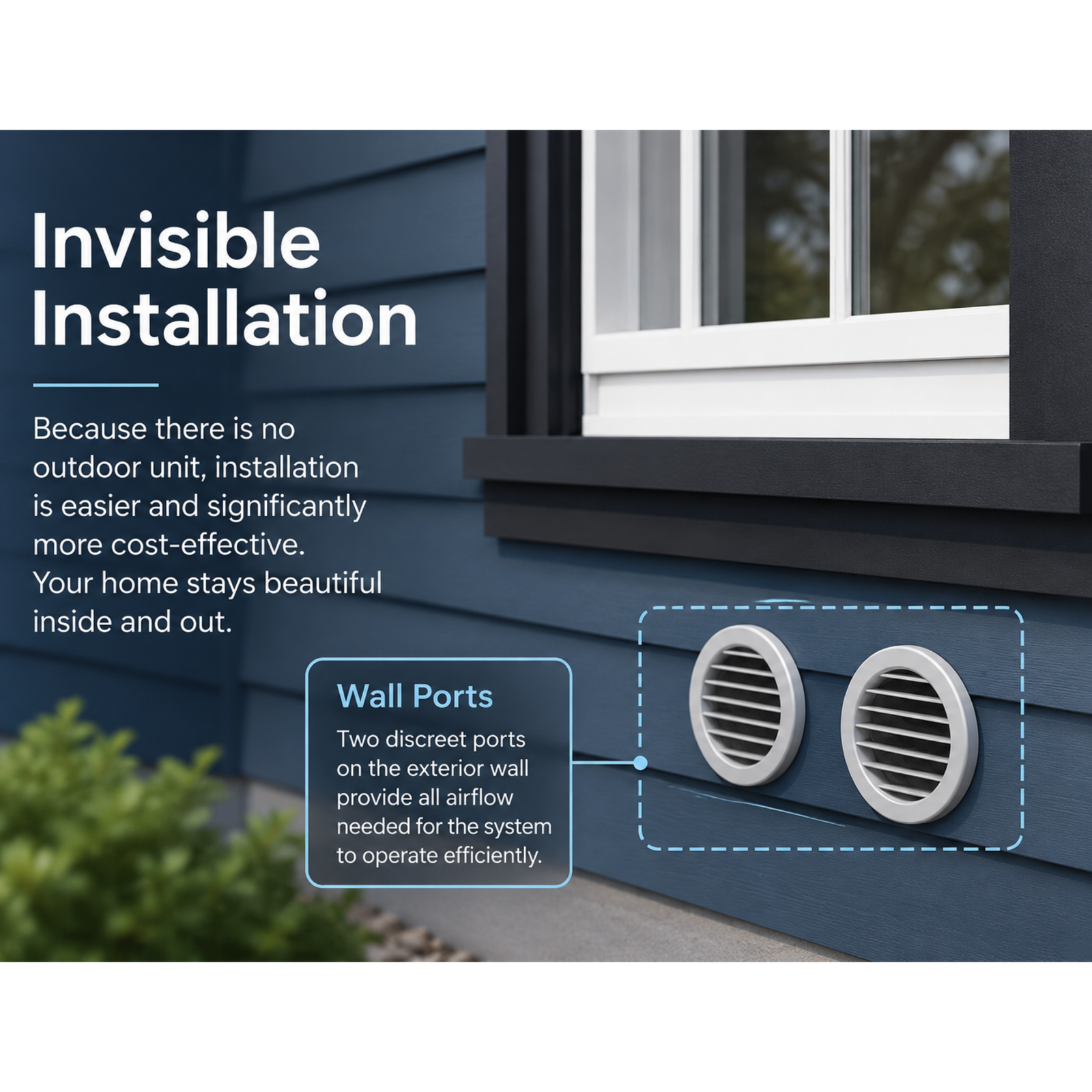

Ideal for apartments, garages, offices, sunrooms, workshops, additions, cabins, tiny homes, studios, server rooms, and other small spaces, the MRCOOL Monoblock combines efficient inverter performance with quiet operation and DIY-friendly installation. Because there is no outdoor condenser, there is no refrigerant line set to run and no dedicated electrical line needed outside. Once installed, the unit simply plugs into a standard wall outlet.
Unlike traditional mini split systems, the Monoblock design keeps the compressor, condenser, evaporator, and controls inside one self-contained cabinet. This helps reduce installation time, space requirements, and overall project cost while still providing dependable heating and cooling performance.
Built with DC inverter technology, the system adjusts compressor speed based on room demand instead of constantly cycling on and off. This allows for smoother temperature control, improved efficiency, quieter operation, and reduced wear over time.
With cooling, heating, fan-only, and dry modes, the MRCOOL Monoblock adapts to changing comfort needs throughout the year. Integrated WiFi lets you control the system from your smartphone using the MRCOOL® Connect App, while the included remote control and LED display make everyday operation simple.
Durable metal housing, reusable filtration, self-evaporative operation, quiet mode, timer control, and swing functionality make this system a practical choice for reliable comfort in small rooms and hard-to-condition spaces.
Key Features:
- True all-in-one heat pump design
- No outdoor condenser required
- No refrigerant line set installation
- Plugs into a standard 115V wall outlet
- 10,000 BTU cooling capacity
- 9,000 BTU heating capacity
- DC inverter technology for efficient performance
- Wall-mounted indoor design
- Cooling, heating, fan-only, and dry modes
- WiFi compatible with MRCOOL® Connect App
- Works with iOS and Android devices
- Quiet operation as low as 32 dBA
- Swing function for improved airflow
- Self-evaporative system
- LED display and timer function

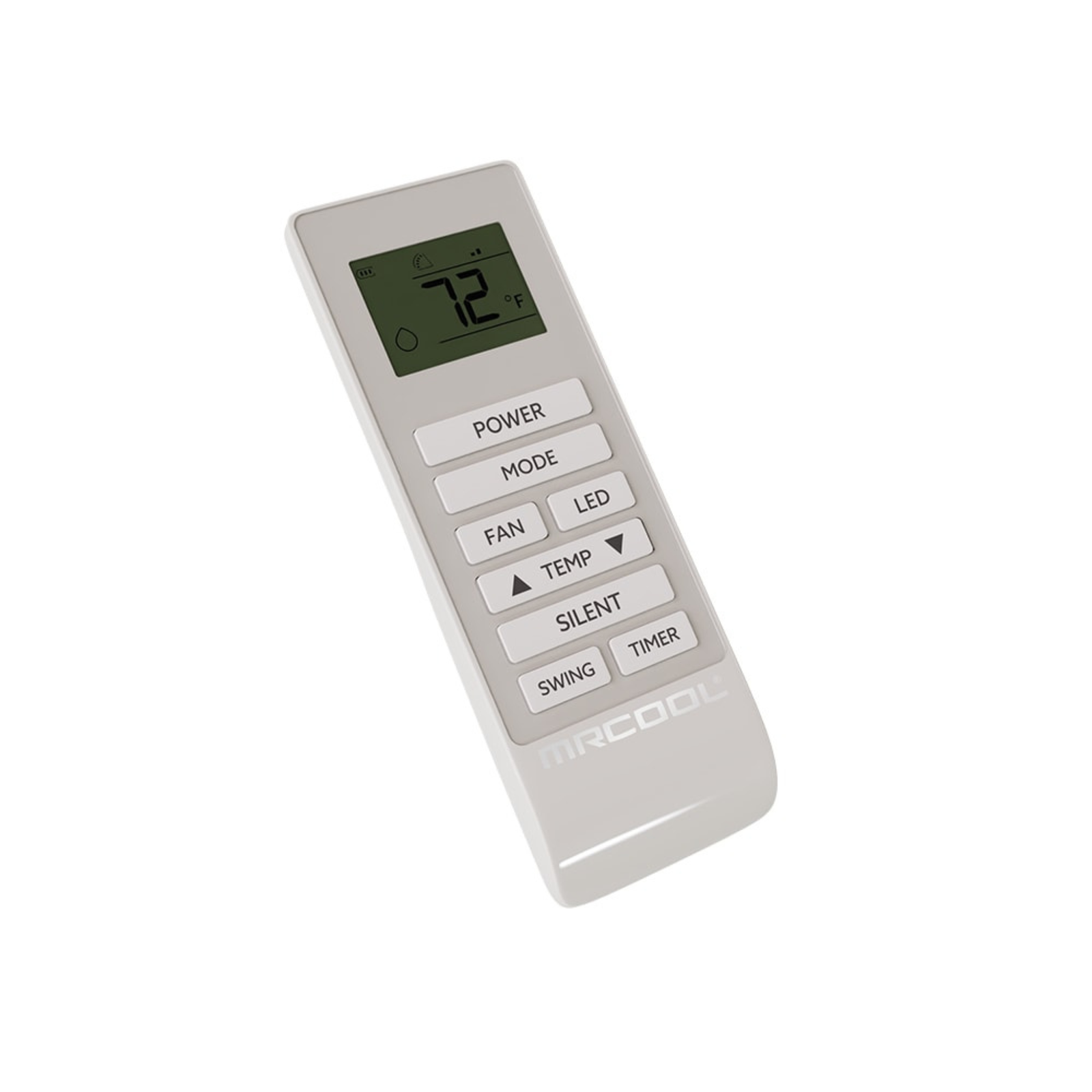

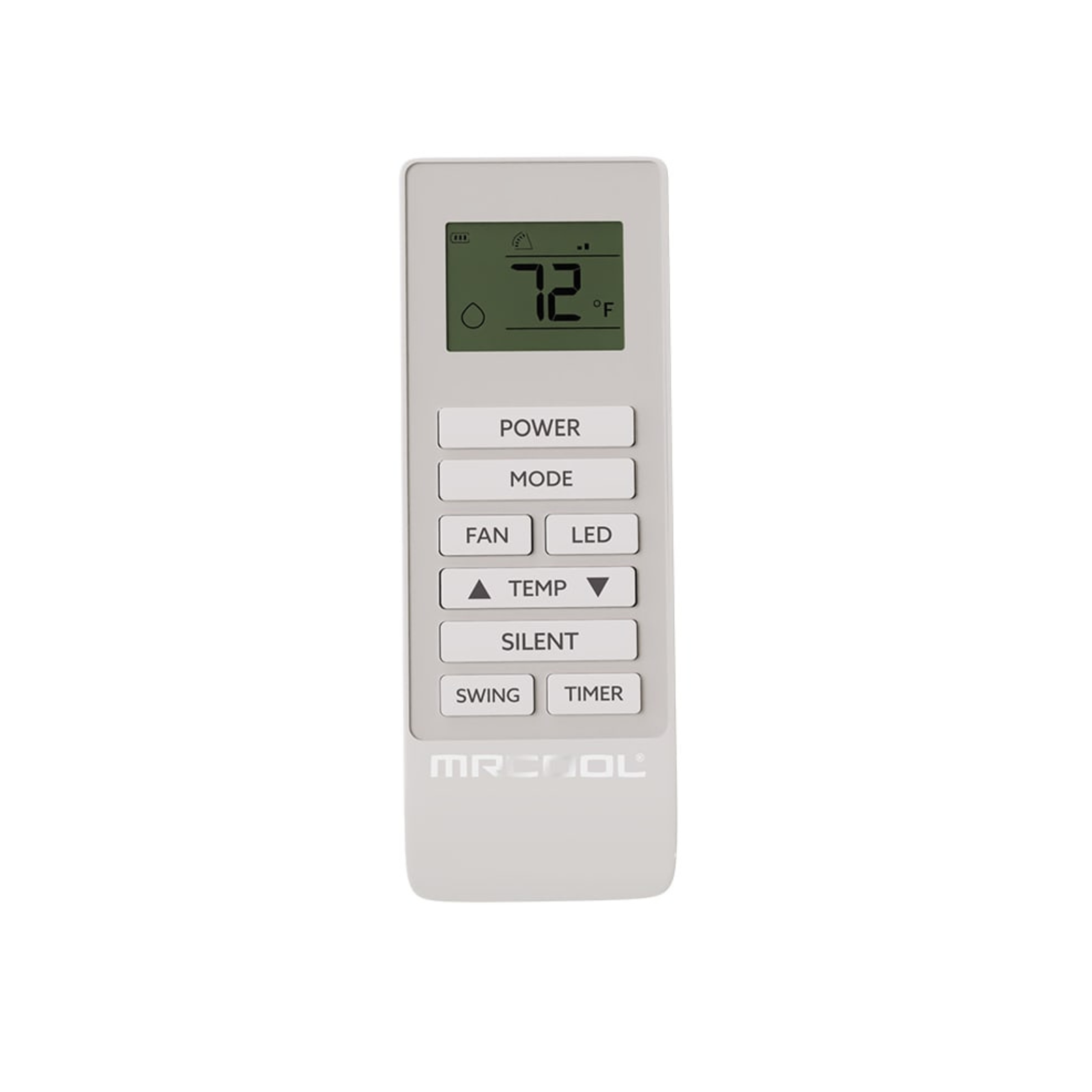

- Remote control included
- Reusable filter
- Durable white metal housing
Specifications:
| Specification | Value |
|---|---|
| Product Series | MRCOOL® Monoblock MTHP Series |
| System Type | All-in-one wall-mounted heat pump |
| Cooling Capacity | 10,000 BTU |
| Heating Capacity | 9,000 BTU |
| Recommended Coverage Area | Up to approx. 450 sq. ft. |
| SEER2 | 15 |
| EER2 | 9.9 |
| HSPF2 | 7.5 |
| Tonnage | 0.83 Ton |
| Voltage | 115V |
| Phase | 1 |
| Frequency | 60 Hz |
| Minimum Circuit Ampacity | 13A |
| Maximum Fuse/Breaker | 20A |
| Power Connection | Plugs into standard wall outlet |
| Refrigerant Type | R-32 |
| Refrigerant Volume | 19.4 oz |
| Low Sound Level | 32 dBA |
| High Sound Level | 46 dBA |
| Installation Type | Wall mounted |
| Outdoor Condenser Required | No |
| WiFi Compatible | Yes |
| App Compatible | Yes, MRCOOL® Connect App |
| Mobile Compatibility | iOS and Android |
| Operating Modes | Cooling, heating, fan-only, dry, quiet |
| Airflow Features | Swing function |
| Display | LED display |
| Timer Function | Yes |
| Remote Control Included | Yes |
| Filter Type | Reusable filter |
| Compressor Type | Rotary compressor |
| Condenser Fan Motor | DC motor |
| Blower Motor | DC motor |
| Self-Evaporative System | Yes |
| Housing Material | Metal |
| Color | White |
| Net Dimensions | 39.4 in W x 23.1 in H x 8.07 in D |
| Net Weight | 93.5 lbs |
| California Availability | Not available for sale in California |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 10,000 BTU |
|---|---|
| Indoor unit(s) | 10K |
| Coverage area | 450 Sq Ft. |
| Zones / rooms | 1 Zone |
| Power | 115 Volt |
| Mount type | Wall |
| Installation | DIY |
| Brand | MRCOOL |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
