Daikin Hyper Heat Aurora 2-Zone Ductless Mini Split AC & Heat Pump 18,000 BTU Wall Mount Units, 230V-R32 (7K + 9K)
The 18,000 BTU Daikin Hyper Heat Aurora 21 SEER2 Dual-Zone Mini Split Heat Pump System (7K + 9K) is a high-efficiency, dual-zone solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes two indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
Key Features:
-
18,000 BTU Total Capacity – One (1) 7,000 and 0ne (1) 9,000 BTU indoor unit
-
21 SEER2 Energy Efficiency – Reduces energy consumption while maintaining powerful performance.
-
Dual Zone Operation – Independently control two separate spaces for customized comfort.
-
Advanced Inverter Technology – Adjusts power output to maintain consistent temperatures efficiently.
-
Eco-Friendly R-32 Refrigerant – Minimizes environmental impact while enhancing system performance.
-
Quiet Operation – Low noise levels make it ideal for bedrooms, offices, and other quiet areas.
-
Wall-Mounted Indoor Units – Sleek, space-saving design that integrates seamlessly with any décor.
-
230V Power Supply – Ensures stable and efficient operation for long-term reliability.
Ideal Applications:
- Homes, offices, and commercial spaces needing multi-room heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.

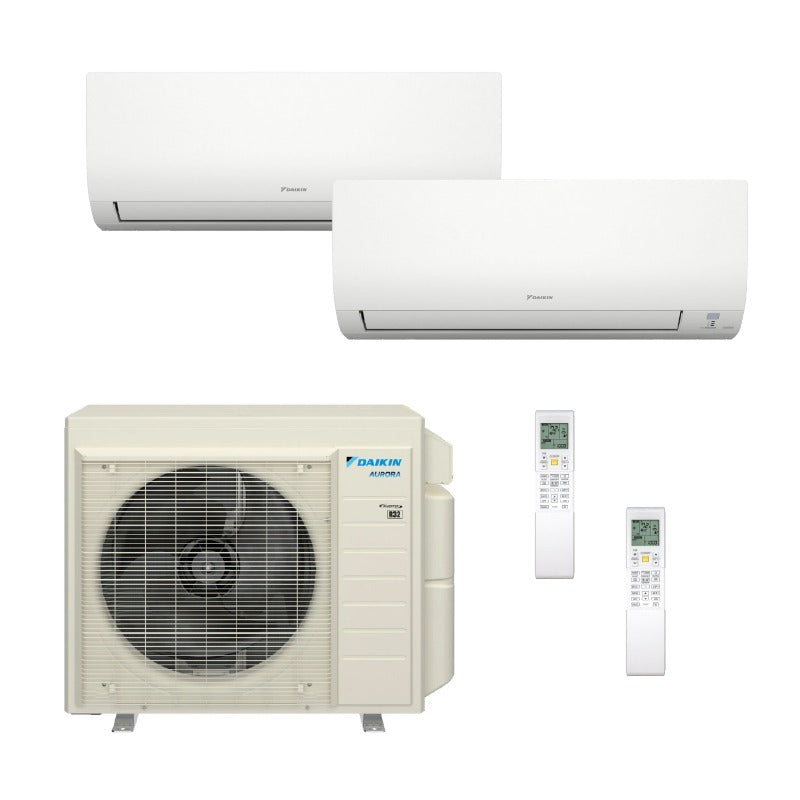

What's Included:

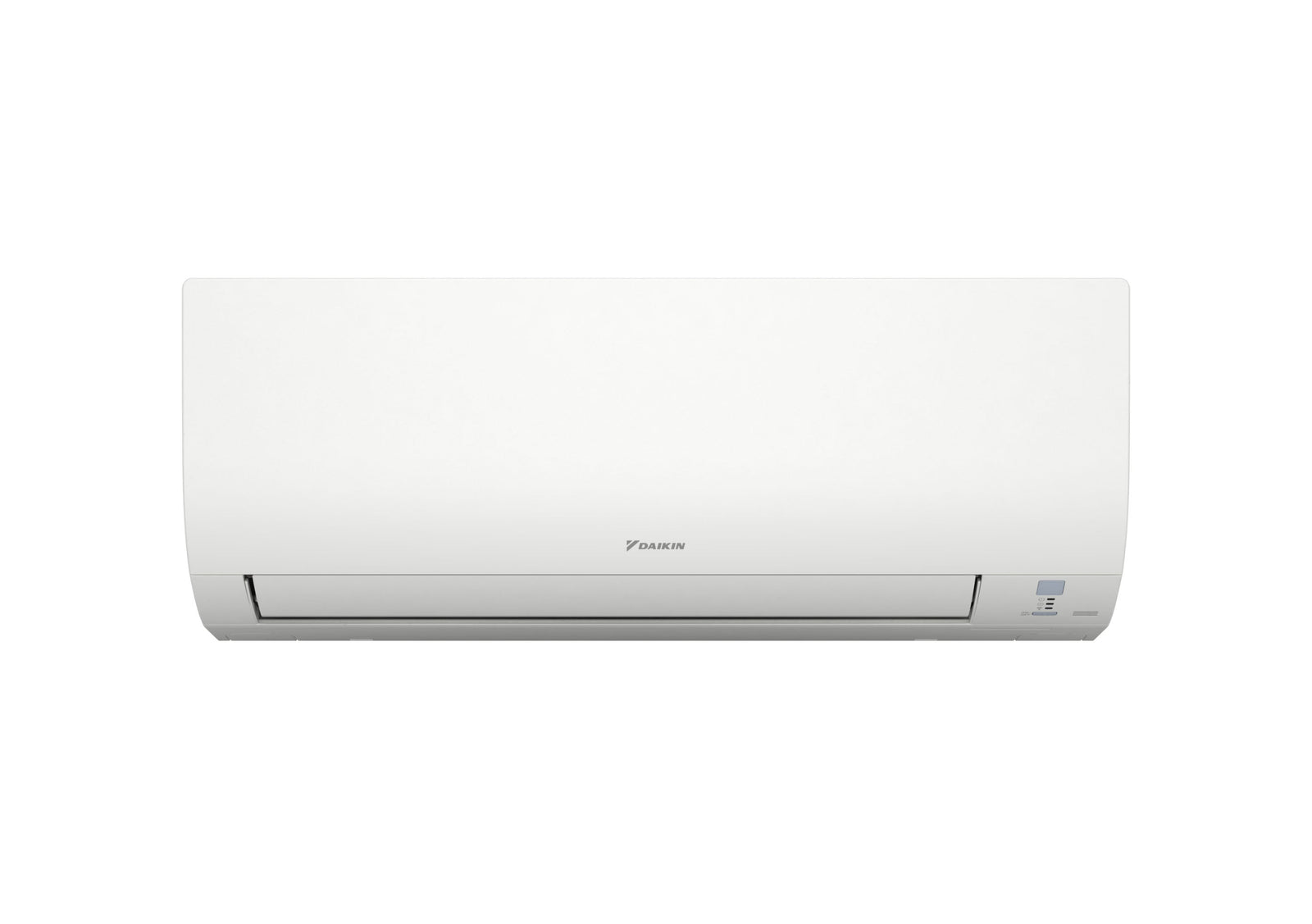

- One (1) 7K and one (1) 9K BTU Wall-Mounted Indoor Unit

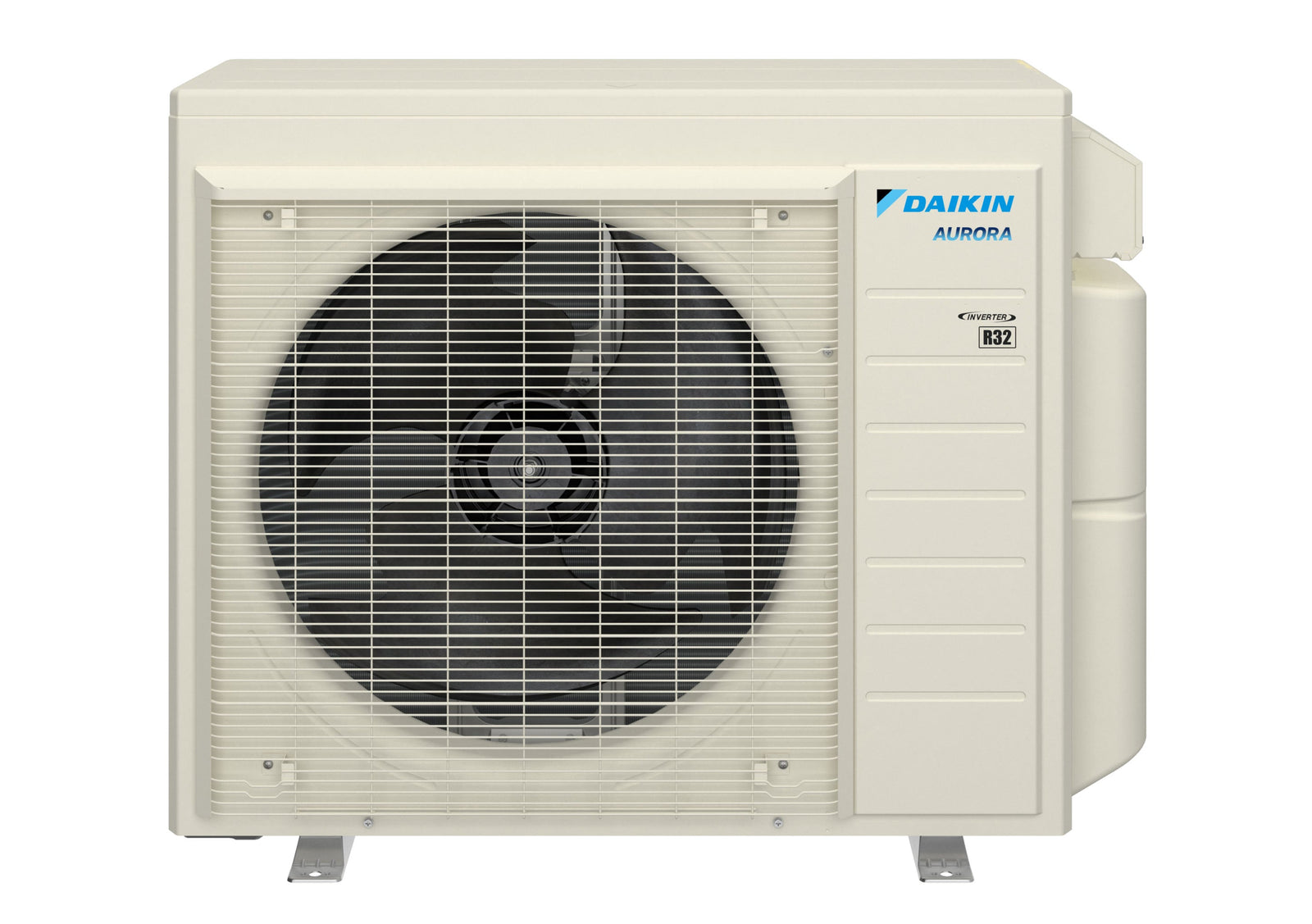

- Outdoor Condenser Unit

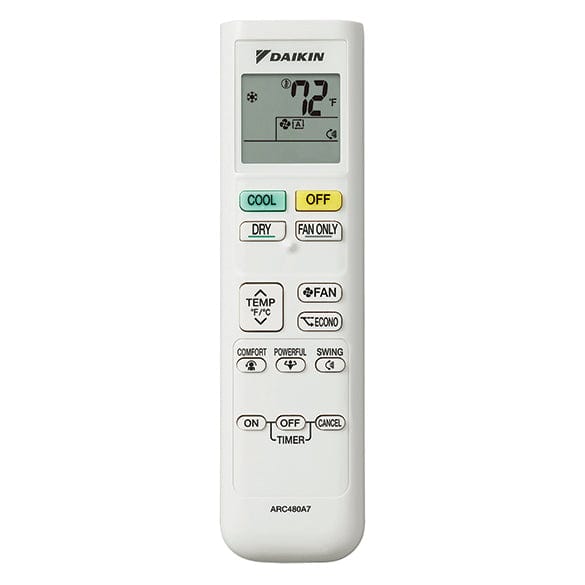

- Two (2) Wireless Remote Controllers
- Wall Mounting Brackets
Optional Accessories:

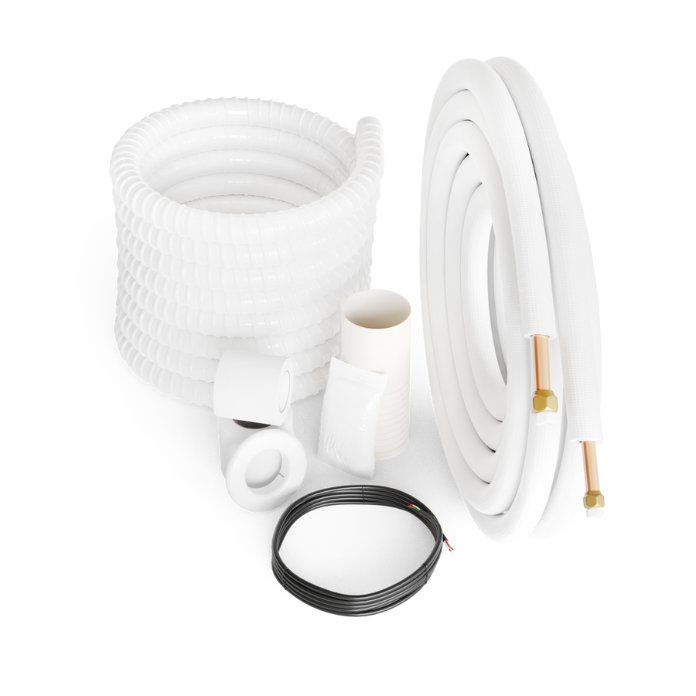

- Refrigerant Line Set (Select Line Set Options)
- Condenser Installation Kit
- Mounting Kit
- Thermostat
Warranty:
Daikin provides a 12-year limited warranty on parts for registered systems, ensuring peace of mind and long-term reliability.
Condenser Specs:
| Feature |
Spec |
| SKU |
2MXM18AVJU9 |
| Weight |
127.000000 |
| Manufacturer |
Daikin |
| Replaces |
2MXS18WMVJU9 |
| Cooling BTU |
18,000 |
| Decibel Level (dBA) |
54 |
| Refrigerant |
R32 |
| SEER2 |
21 |
| Compressor Type |
Swing |
| Liquid Line |
1/4" (2) |
| Suction Line |
3/8" (1), 1/2" (1) |
| Electrical |
208-230 V | 60 Hz |1 Phase |
| Max Breaker Size |
20 Amps |
| Min. Breaker Size |
15.6 Amps |
| BTU/Tonnage |
18,000 BTU/1 |
7K Air Handler Specs:
| SKU |
CTXV07AVJU9 |
| Weight |
24.000000 |
| Manufacturer |
Daikin |
| Replaces |
CTXS07WVJU9 |
| Decibel Level (dBA) |
40 |
| Refrigerant |
R32 |
| Liquid Line |
1/4" |
| Suction Line |
3/8" |
| Mini Split Type |
Wall Mounted |
| Zone Compatibility |
Multi Zone |
| Height |
11.16" |
| Width |
30.31" |
| Depth |
8.16" |
| Warranty |
Limited 12-Year Parts Warranty |
Condenser Specifications:
| FEATURE |
SPEC |
| SKU |
FTXV18AVJU9 |
| Weight (in lbs) |
27.000000 |
| Brand/Manufacturer |
Daikin |
| Replaces |
FTXV18AVJU9 |
| HSPF2 |
9.6 |
| Decibel Level (dBA) |
48 |
| Refrigerant |
R32 |
| Mini Split Type |
Wall Mounted |
| Zone Compatibility |
Single Zone |
| Height |
11.63" |
| Width |
39" |
| Depth |
10.37" |
| Warranty |
Limited 12-Year Parts Warranty |
9K Air Handler Specifications:
| FEATURE |
SPEC |
| SKU |
FTXV12AVJU9 |
| Weight |
19.000000 |
| Manufacturer |
Daikin |
| Replaces |
FTXV12AVJU9 |
| HSPF2 |
10.2 |
| Decibel Level (dBA) |
45 |
| Refrigerant |
R32 |
| Mini Split Type |
Wall Mounted |
| Zone Compatibility |
Multi Zone |
| Height |
11.25" |
| Width |
30.31" |
| Depth |
8.75" |
| Warranty |
Limited 12-Year Parts Warranty |
