Product overview
Daikin Aurora 4-Zones Ductless Mini Split AC & Heat Pump 36,000 BTU (7K + 9K + 9K + 9K), Wall Mount Units,230V- R32
The 36,000 BTU Daikin 20 SEER2 Four-Zone Mini Split Heat Pump System (7K + 9K + 9K + 9K) is a high-efficiency, dual-zone solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes two indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort. This system is also backed by a 12 year parts warranty.
Key Features:
- Exceptional Heating & Cooling Efficiency
- Advanced Technology
- durable & Quiet Design
- Flexible Installation & Operation
- User Friendly Features
Ideal Applications:
- Homes, offices, and commercial spaces needing multi-room heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.
What's Included:

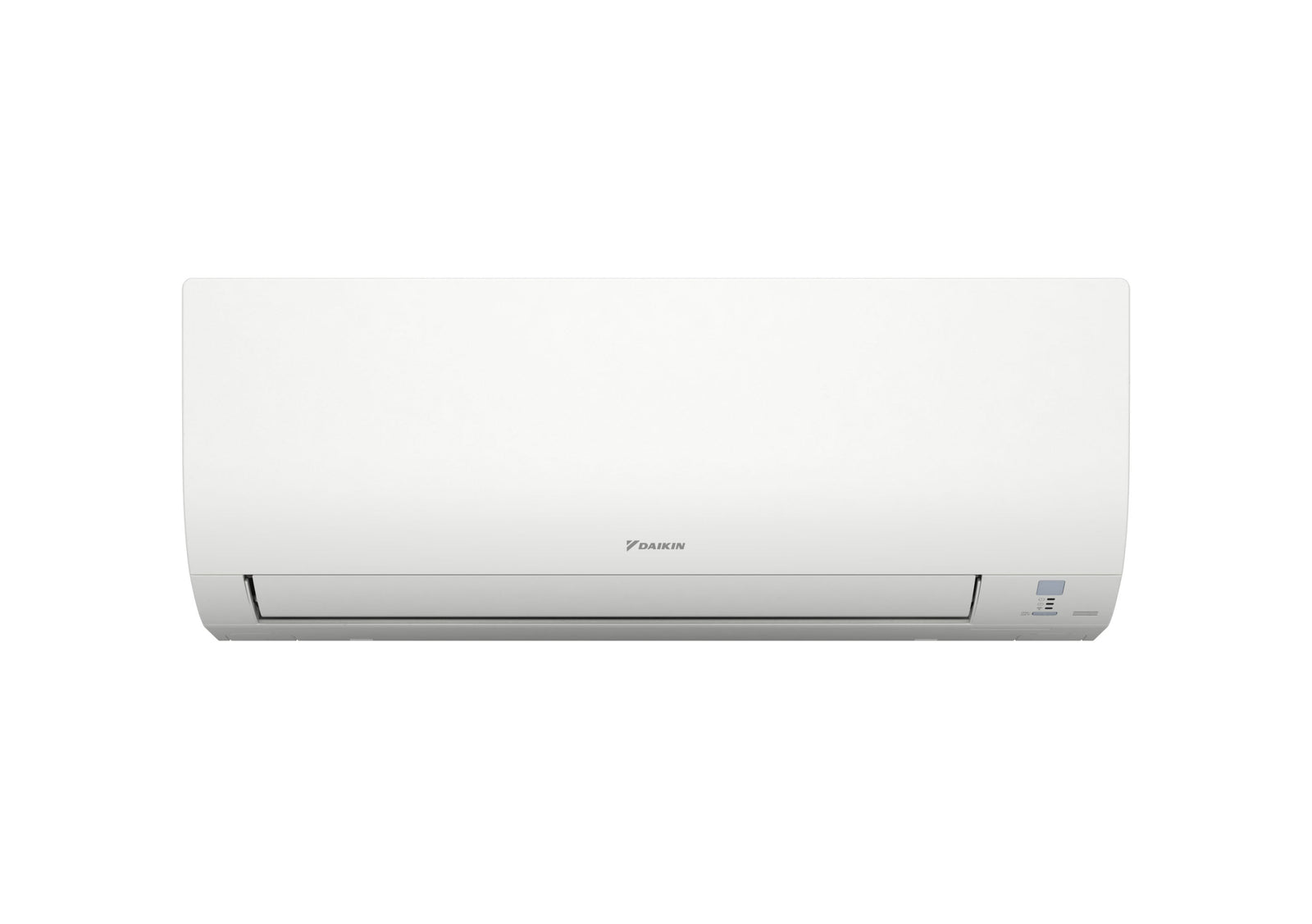

- One (1) 7,000 and three (3) 9,000 Wall-Mounted Indoor Unit

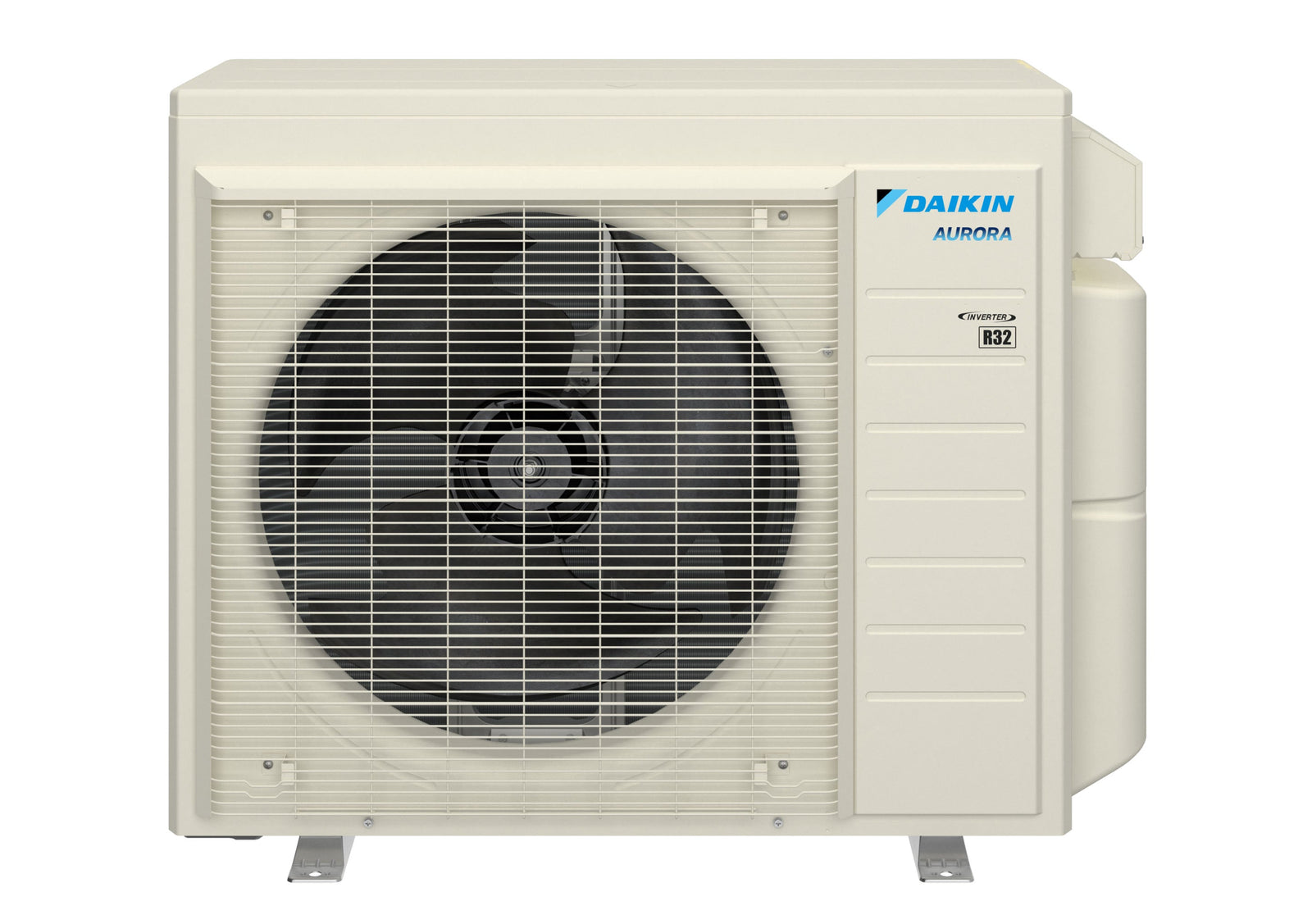

- Outdoor Condenser Unit

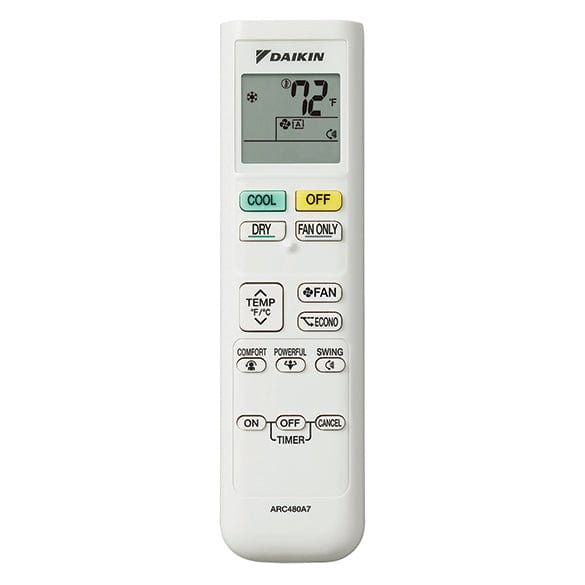

- Four (4) Wireless Remote Controllers
- Wall Mounting Brackets
Optional Accessories:

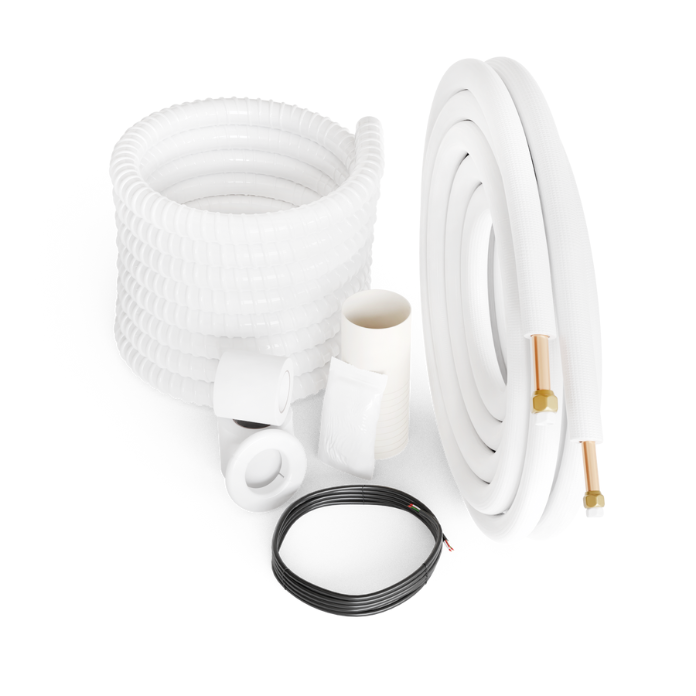

- Refrigerant Line Set (Select Line Set Options)
- Condenser Installation Kit
- Mounting Kit
- Thermostat
Condenser Specifications:
| Sku | 4MXM36AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Heat Pump |
| System Family | Multi-Split |
| Function Category | Heat Pump |
| Product Type | Equipment |
| Unit Type | Outdoor |
| Market Type | Residential-Single Family |
| Product Family | 4MXM_AVJU9 |
| Series Name | MXM |
| Short Description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| Family Description | 3.0 Ton R-32 4-Port Heat Pump |
| Product Description | 3.0-Ton R-32, 4-Port Heat Pump, Ductless ODU |
| Cooling Btu | 34,200 |
| Heating Btu | 34,600 |
| Seer2 | 20 |
| Decibel Level (Dba) | 56 dBA |
| Refrigerant | R-32 |
| Compressor Type | Swing |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Max Breaker Size | 25 A |
| Min. Breaker Size | 24.1 A |
| Tonnage | 3 |
| Btu/Tonnage | 34,200 BTU/3 Ton |
| Min/Max Outdoor Temp For Heating | 5 °F to 59.9 °F |
| Min/Max Outdoor Temp For Cooling | 14 °F to 114.8 °F |
| Zone Compatibility | Multi Zone |
| Height | 29-1/2 in |
| Width | 34-1/4 in |
| Depth | 12-5/8 in |
| Weight | 142 lb |
| Warranty | ALL PARTS - 12 YEARS PARTS |
7k Air Handler Specs:
| Sku | CTXV07AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Fan Coil |
| System Family | Multi-Split |
| Function Category | Cooling Only |
| Product Type | Equipment |
| Unit Type | Indoor |
| Market Type | Residential-Single Family |
| Product Family | CTXV_AVJU9 |
| Series Name | Multi-Split Fan Coil Indoor R-32 |
| Short Description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description | 0.5 Ton Wall Mounted Unit |
| Product Description | 1/2 Ton Wall Mounted Unit - R-32 |
| Decibel Level (Dba) | 40 dBA |
| Refrigerant | R-32 |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Tonnage | 0.5 |
| Zone Compatibility | Multi Zone |
| Height | 11-1/4 in |
| Width | 30-5/16 in |
| Depth | 8-3/4 in |
| Weight | 19 lb |
| Warranty | ALL PARTS - 12 YEARS PARTS |
9k Air Handler Specs:
| Sku | FTXV09AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Fan Coil |
| System Family | Multi-Split |
| Function Category | Cooling Only |
| Product Type | Equipment |
| Unit Type | Indoor |
| Market Type | Residential-Single Family |
| Product Family | FTXV_AVJU9 |
| Series Name | Multi-Split Fan Coil Indoor |
| Short Description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| Product Description | 3/4 Ton Wall Mount R-32 |
| Decibel Level (Dba) | 43 dBA |
| Refrigerant | R-32 |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Tonnage | 0.75 |
| Zone Compatibility | Multi Zone |
| Height | 11-1/4 in |
| Width | 30-5/16 in |
| Depth | 8-3/4 in |
| Weight | 19 lb |
| Warranty | ALL PARTS - 12 YEARS PARTS |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 36K BTU |
|---|---|
| Indoor unit(s) | 7K + 9K + 9K + 9K |
| Zones / rooms | 4 Zones |
| Power | 230 Volt |
| Mount type | Wall |
| Brand | Daikin |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
