Product overview

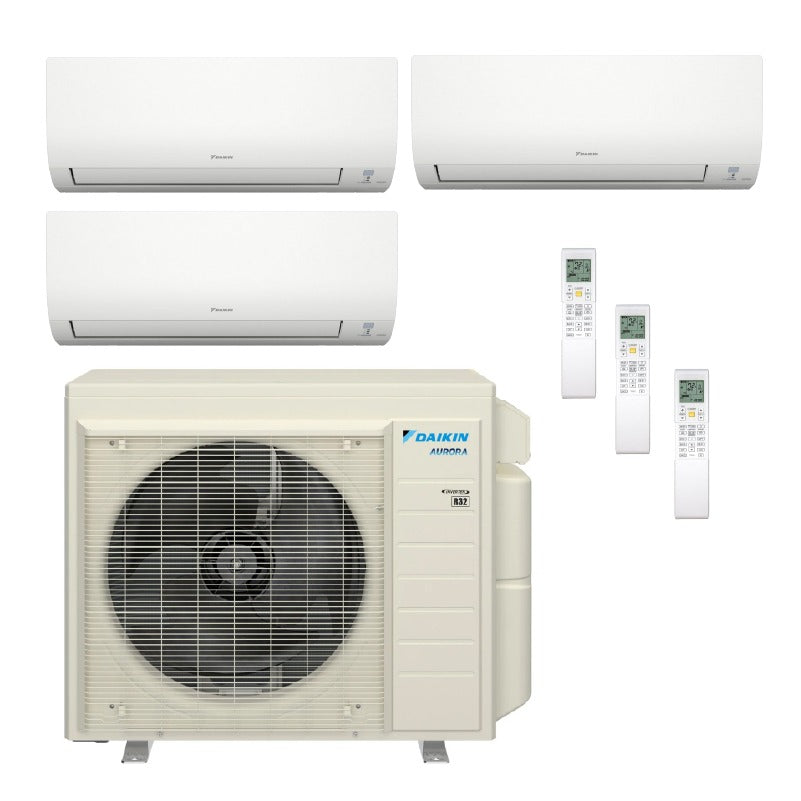

Daikin Aurora 3-Zone Ductless Mini Split AC & Heat Pump 36000 BTU (12K+18K+18K), Wall Mount Units, 230V - R32
The 36,000 BTU 21 SEER2 Three-Zone Mini Split Heat Pump System (12K + 18K + 18K) is a high-efficiency solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes three indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
Features:
- Multi-Zone comfort: One outdoor unit connects up to five separate fan coils individually controlled
- Variable Speed Inverter Compressor
- Cooling Range 14° - 115° F
- Continuous heating operation as low as -13F° (-25°C)
- Quick and easy installation
- Precision temperature control for individual rooms
- Space-saving design
- Quiet operation
- Intelligent Defrost mode

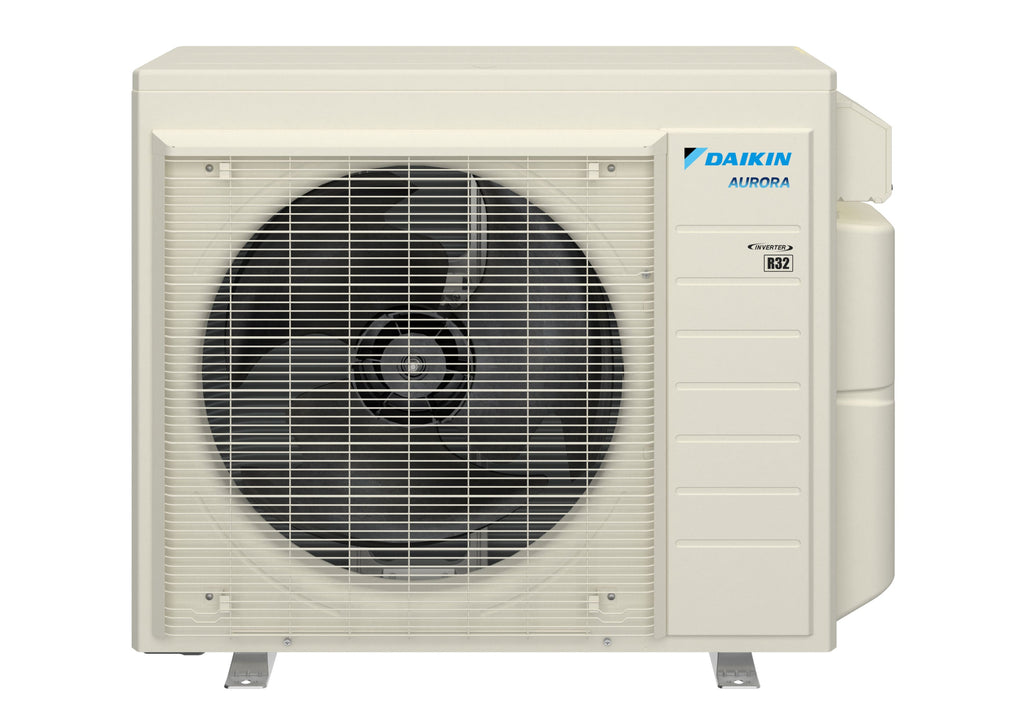

Condenser Specifications:
| Sku | 3MXM24AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Heat Pump |
| System Family | Multi-Split |
| Function Category | Heat Pump |
| Product Type | Equipment |
| Unit Type | Outdoor |
| Market Type | Residential-Single Family |
| Product Family | 3MXM_AVJU9 |
| Series Name | MXM |
| Short Description | Multi Split Heat Pump Outdoor Series Outdoor Multi-Split Heat Pump |
| Family Description | 2.0 Ton 3-Port Heat Pump |
| Product Description | 2.0-Ton R-32, 3-Port Heat Pump, Ductless ODU |
| Cooling Btu | 23,000 |
| Heating Btu | 24,000 |
| Seer2 | 21 |
| Decibel Level (Dba) | 52 dBA |
| Refrigerant | R-32 |
| Compressor Type | Swing |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Max Breaker Size | 25 A |
| Min. Breaker Size | 19.9 A |
| Tonnage | 2 |
| Btu/Tonnage | 23,000 BTU/2 Ton |
| Min/Max Outdoor Temp For Heating | 5 °F to 59.9 °F |
| Min/Max Outdoor Temp For Cooling | 14 °F to 114.8 °F |
| Zone Compatibility | Multi Zone |
| Height | 29-1/2 in |
| Width | 34-1/4 in |
| Depth | 12-5/8 in |
| Weight | 140 lb |
| Warranty | ALL PARTS - 12 YEARS PARTS |

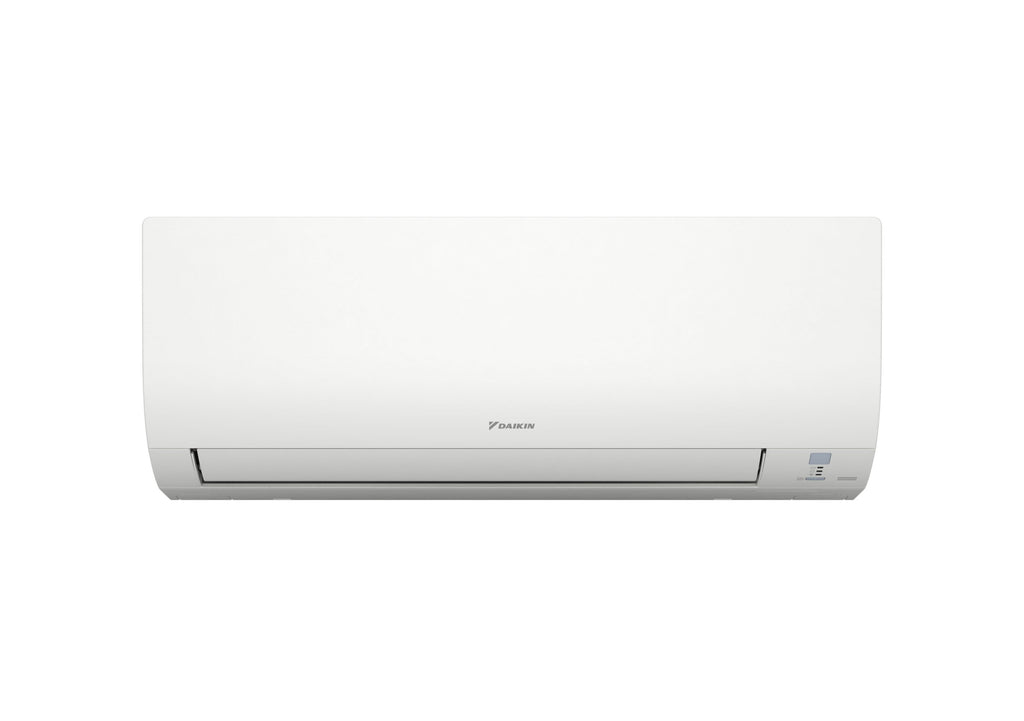

12k Air Handler Specifications:
| Sku | FTXV12AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Fan Coil |
| System Family | Multi-Split |
| Function Category | Cooling Only |
| Product Type | Equipment |
| Unit Type | Indoor |
| Market Type | Residential-Single Family |
| Product Family | FTXV_AVJU9 |
| Series Name | Multi-Split Fan Coil Indoor |
| Short Description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| Product Description | 1 Ton Wall Mount R-32 |
| Decibel Level (Dba) | 45 dBA |
| Refrigerant | R-32 |
| Liquid Line | 1/4 in |
| Suction Line | 3/8 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Tonnage | 1 |
| Zone Compatibility | Multi Zone |
| Height | 11-1/4 in |
| Width | 30-5/16 in |
| Depth | 8-3/4 in |
| Weight | 19 lb |
18k Air handler Specifications:
| Sku | FTXV18AVJU9 |
|---|---|
| Manufacturer | Daikin |
| Product Category | Ductless Mini-Splits |
| Product Class | Multi-Split Fan Coil |
| System Family | Multi-Split |
| Function Category | Cooling Only |
| Product Type | Equipment |
| Unit Type | Indoor |
| Market Type | Residential-Single Family |
| Product Family | FTXV_AVJU9 |
| Series Name | Multi-Split Fan Coil Indoor |
| Short Description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| Family Description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| Product Description | 1.5 Ton Wall Mount - R-32 |
| Decibel Level (Dba) | 48 dBA |
| Refrigerant | R-32 |
| Liquid Line | 1/4 in |
| Suction Line | 1/2 in |
| Electrical | 208-230 V | 60 Hz | 1 Ph |
| Zone Compatibility | Multi Zone |
| Height | 11-5/8 in |
| Width | 39 in |
| Depth | 10-3/8 in |
| Weight | 27 lb |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
