Daikin Aurora 24,000 BTU 21 SEER2 Low Ambient Mini Split Heat Pump System - R32 - 230V
The 24,000 BTU Daikin Aurora 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is a high-efficiency, all-season solution for both residential and light commercial applications. This system delivers powerful heating and cooling with advanced inverter technology, a sleek wall-mounted design, and environmentally friendly R-32 refrigerant. Built for extreme climates, the Aurora series provides reliable heating even in freezing temperatures, ensuring year-round comfort and energy savings.
Key Features
- 24,000 BTU Heating & Cooling Capacity Provides powerful temperature control for large rooms and open spaces.
- 21 SEER2 Energy Efficiency Maximizes energy savings while maintaining superior performance.
- Cold Climate Heating Engineered for efficient operation even in freezing outdoor temperatures.
- Advanced Inverter Technology Ensures precise temperature control and optimized energy consumption.
- Eco-Friendly R-32 Refrigerant Reduces environmental impact while improving system efficiency.
- Quiet Operation Low noise levels make it ideal for bedrooms, offices, and commercial spaces.
- Wall-Mounted Indoor Unit Space-saving and modern design that complements any interior.
- 230V Power Supply Provides stable and efficient operation for long-term reliability.
Ideal Applications
- Large residential rooms, offices, and commercial spaces requiring efficient heating and cooling.
- Cold climates where reliable heating is needed even in extreme winter conditions.
- Rooms without ductwork where a traditional HVAC system is impractical.
- Garages, basements, sunrooms, and home additions requiring year-round climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.

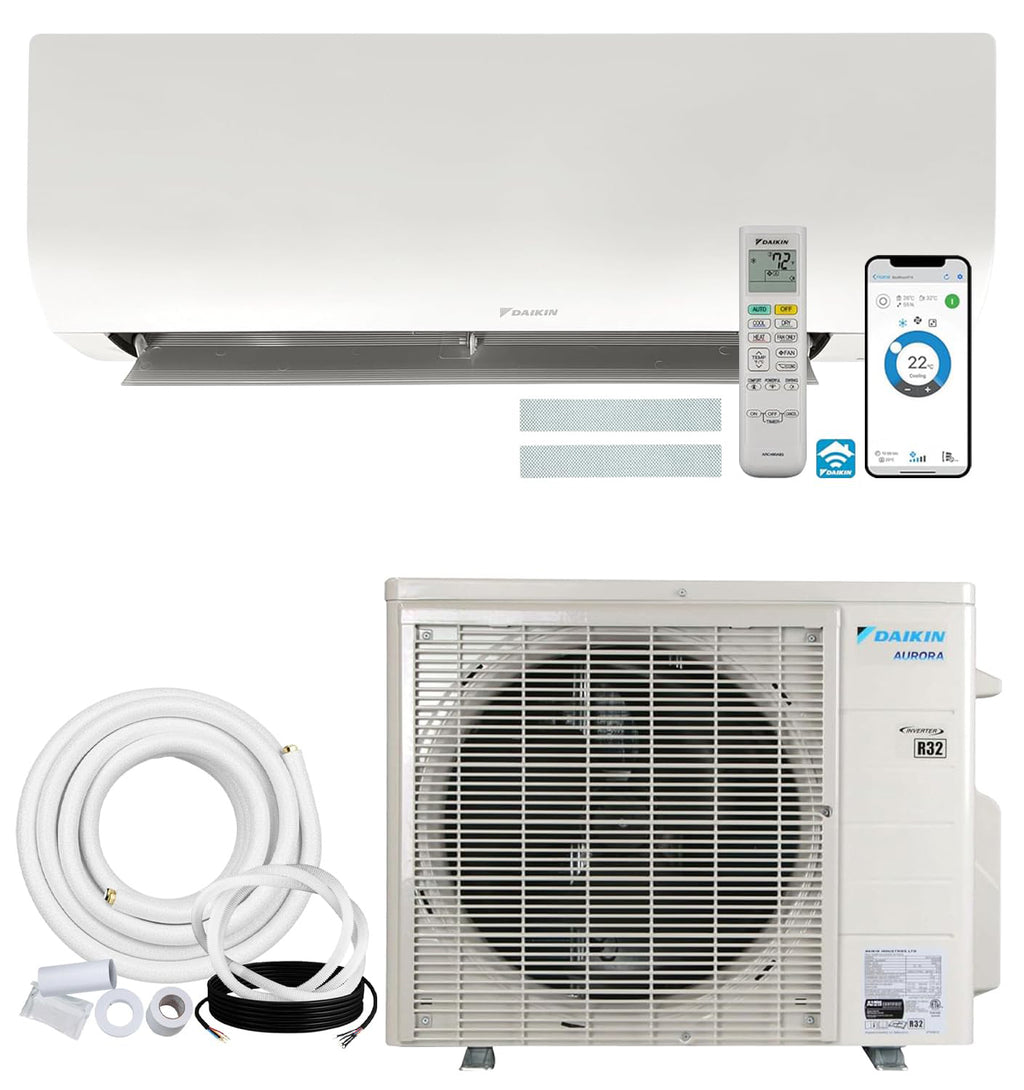

What's Included

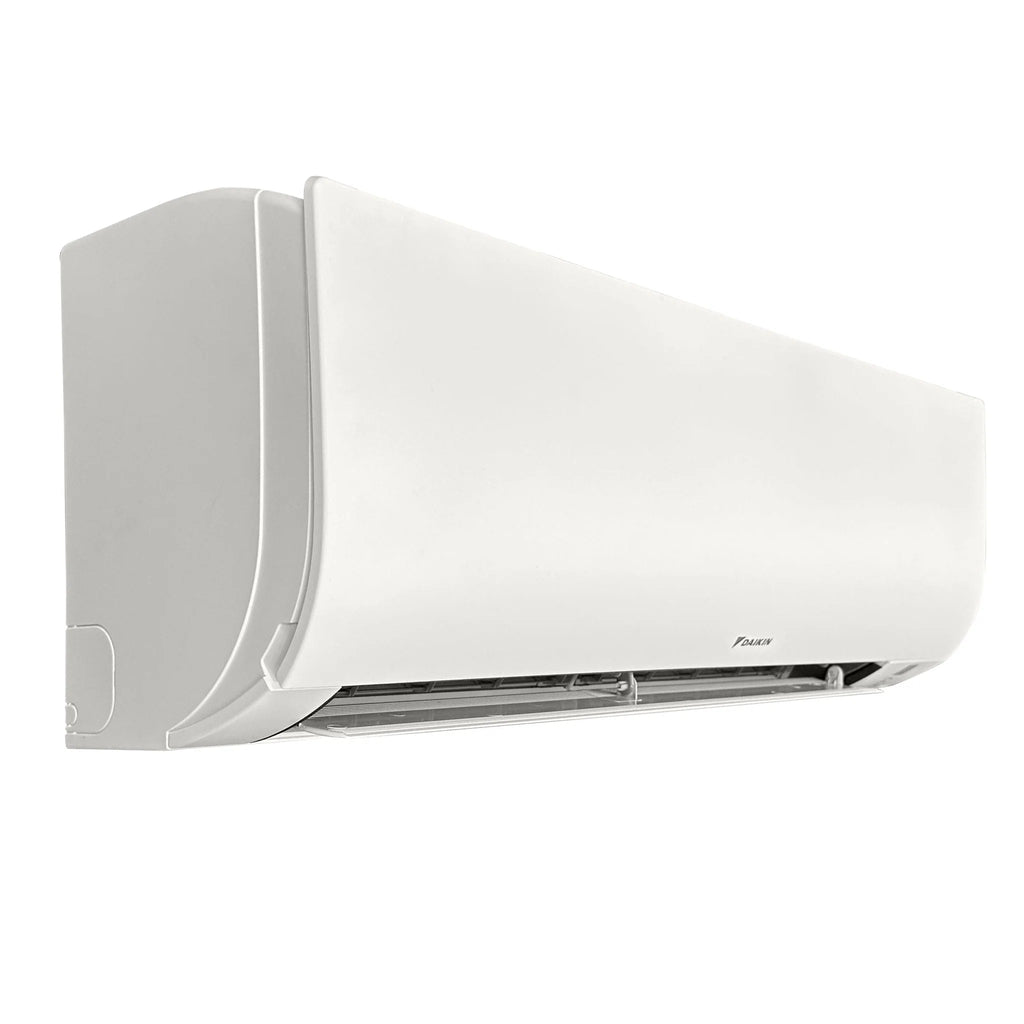

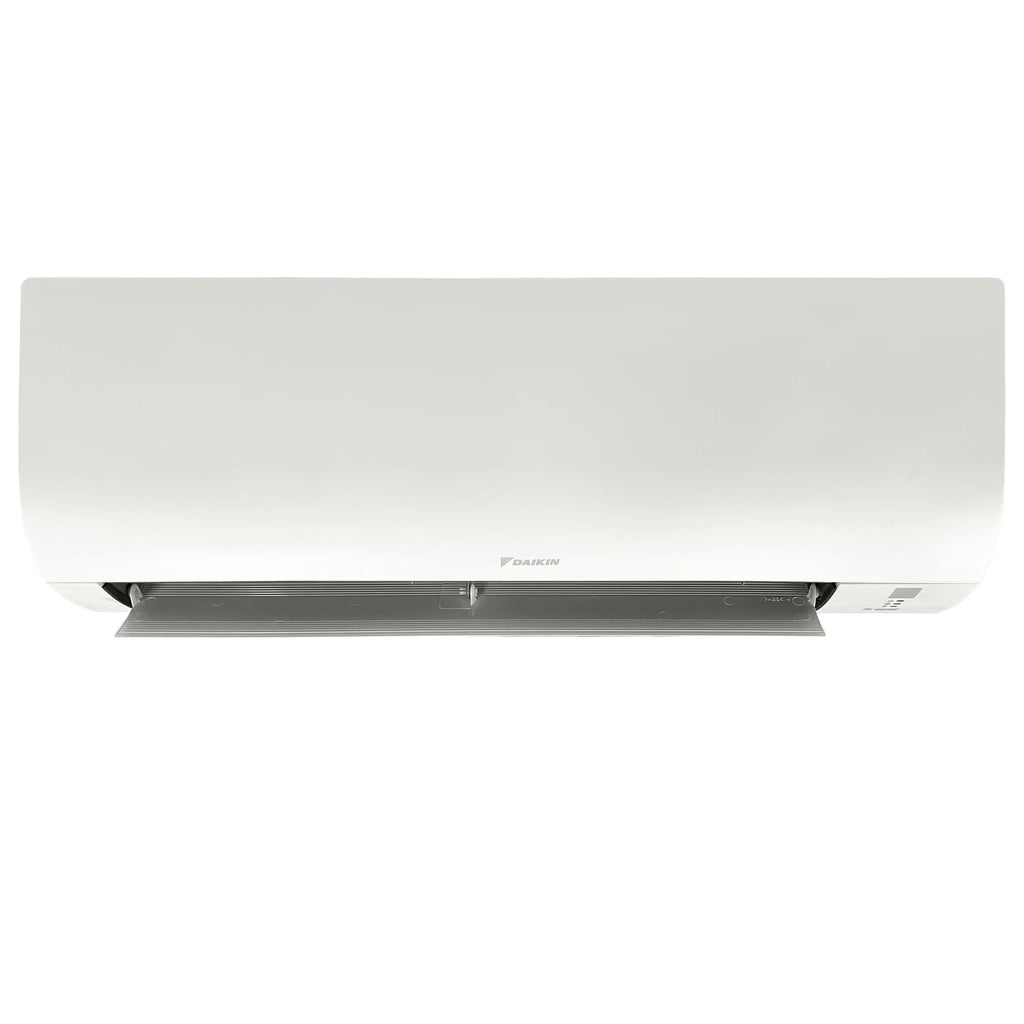

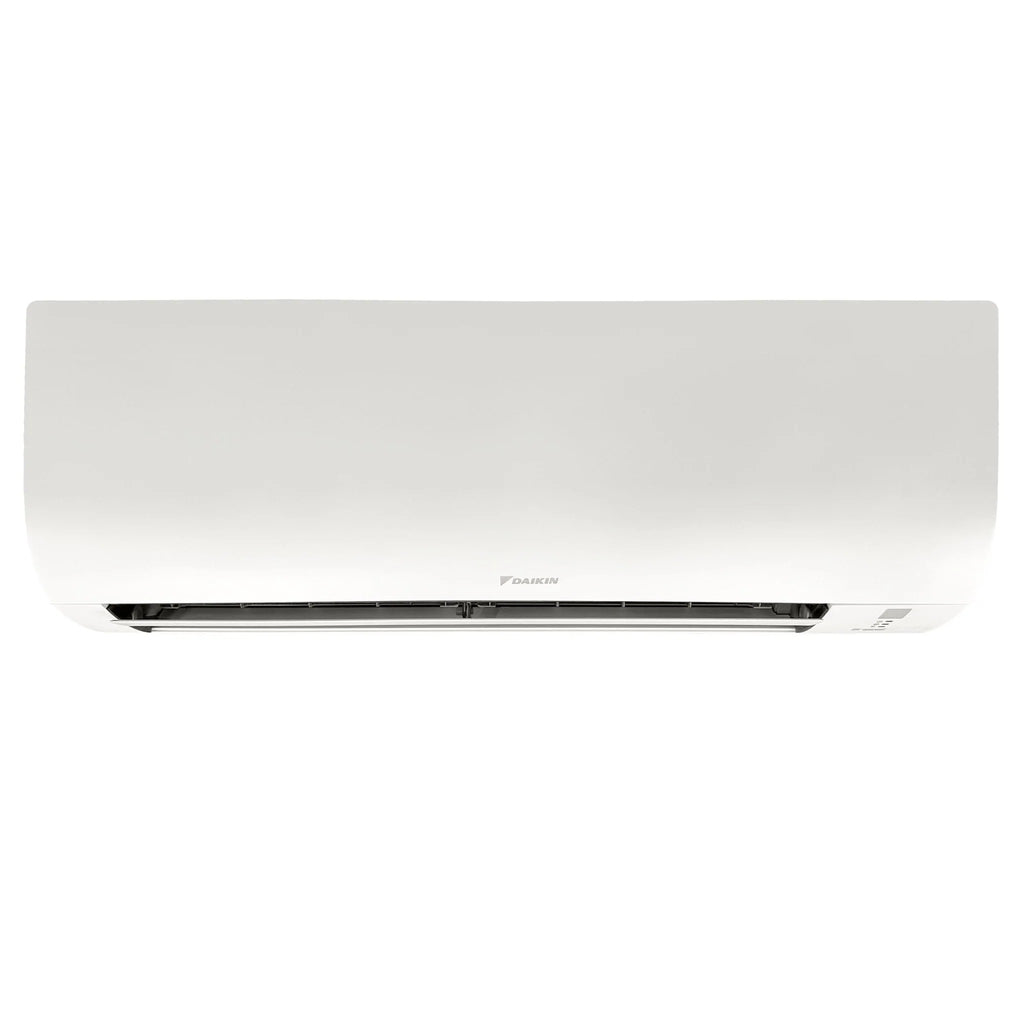

- Indoor Wall-Mounted Unit
- Outdoor Condenser Unit

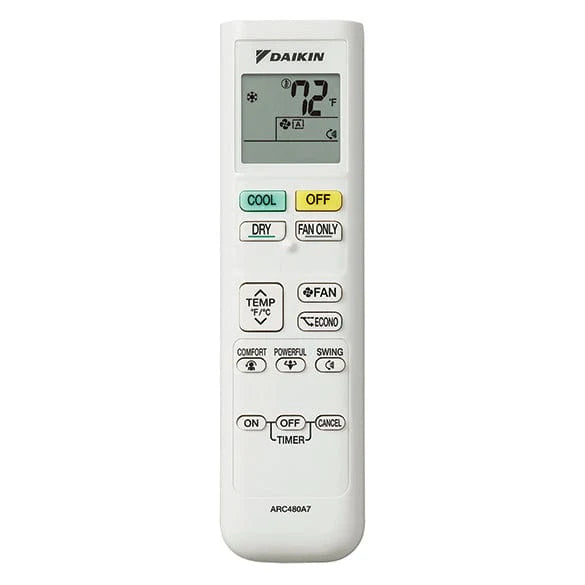

- Wireless Remote Controller
- Installation Kit (line set length varies based on selection)
Warranty
Daikin provides a 12-year limited warranty on parts for registered systems, ensuring peace of mind and long-term reliability.
System Specifications:
| Air Conditioner Type |
Ductless Mini Split Wall Mount
|
| Application Area (Sqft) | 1,500 |
| Cooling Capacity (Btu) | 26,400 / 7,000 |
| Heating Capacity (Btu) | 32,000 / 6,200 |
| SEER2 | 21 |
| HSPF2 | 9.5 |
| EER2 | 12 |
|
Coeficient Of Performance (COP)
|
|
| Power Supply |
208-230 V / 1 Phase / 60 Hz
|
| Refrigerant Type | R-32 |
| Number of Zones (Rooms) | 1 |
| Manufacturer Limited Warranty (Yr) | 12 |
| Wifi Capibility | Yes |
| Minimum Outdoor Temperature for Cooling (F°) | 50 |
| Minimum Outdoor Temperature for Heating (F°) | -13 |
| Certifications |
AHRI Certified / UL Listed
|
Air Handler Specifications:
| Mounting Style | Wall Mounted |
| Airflow Rate (Hi/Mi/Lo) |
629 / 501 / 378 / 335
|
| Sound Level (Hi/Mi/Lo) dB(A) | 52 / 45 / 39 / 34 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 5/8 |
| Drain Line Size (In) | 5/8 |
| Application Area (Sqft) | 1500 |
| Indoor Air Quality Type |

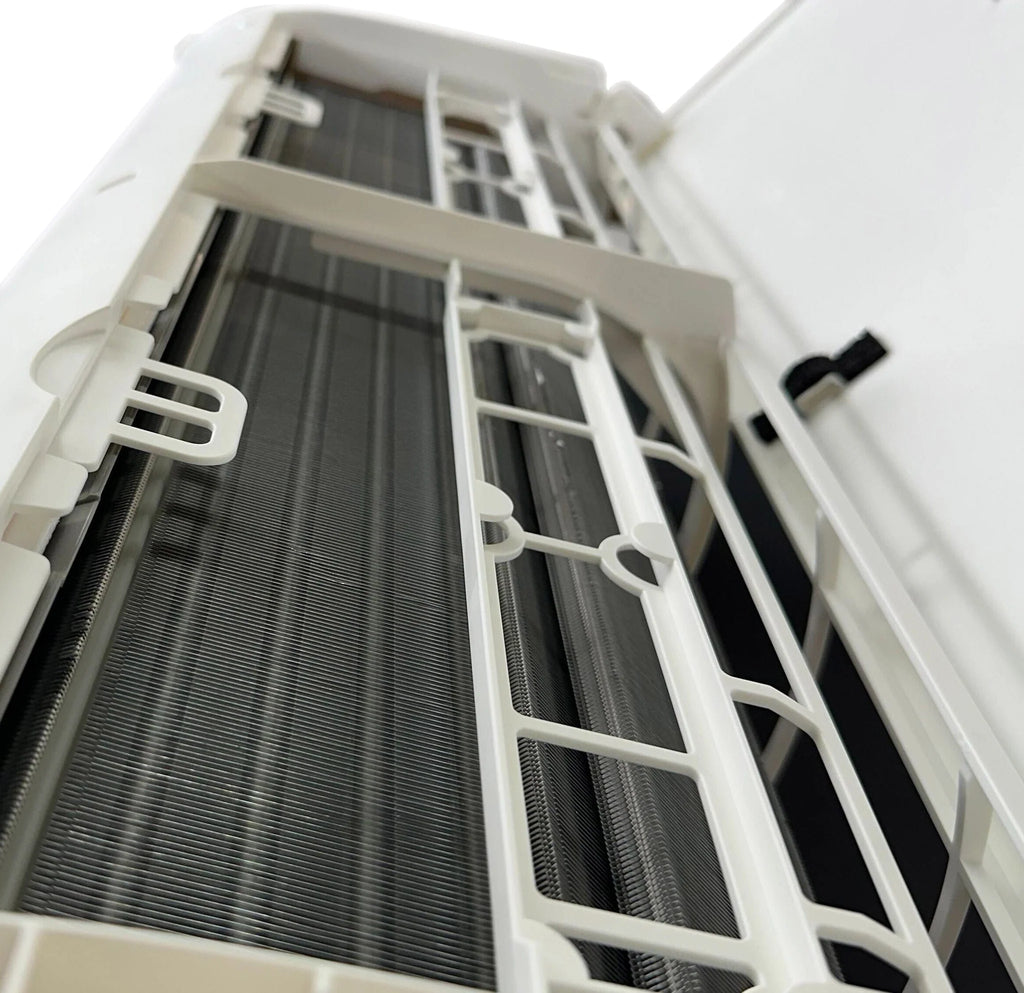

Washable Air Filter
|
| Net/Gross weight (Lb) | 27/37 |
| Width / Depth / Height (In) |
11-5/8 × 39 × 10-3/8
|
| Packaged Width / Depth / Height (In) |
15-3/16 × 43-3/8 × 15-5/16
|

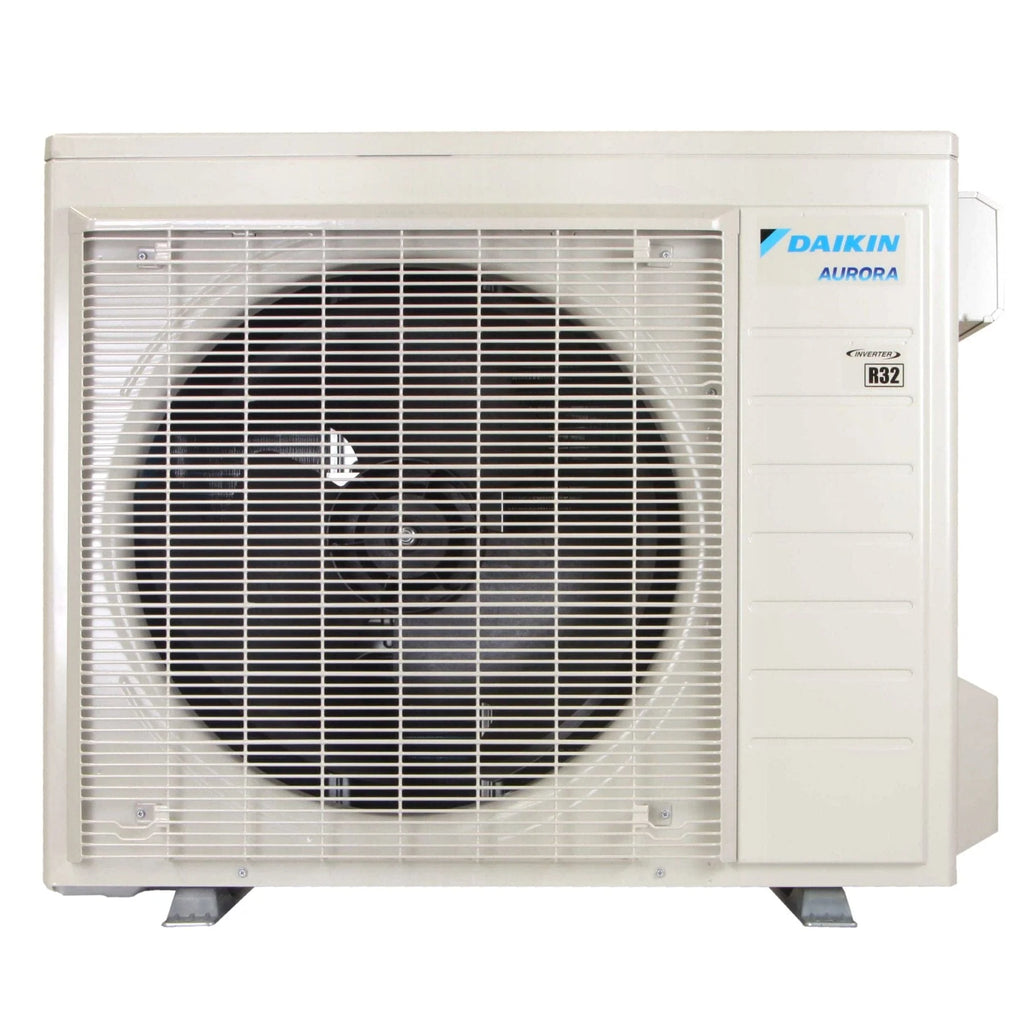

Condenser Specifications:
| Outdoor Model Number | RXT24AVJU9 |
| Nominal Cooling Capacity (BTU) | 24,000 |
| Nominal Heating Capacity (BTU) | 24,000 |
| Sound Pressure (H) (dBA) | 55 |
| Liquid Line Size | 1/4 |
| Suction Line Size | 5/8 |
| Operation Mode | Heat Pump |
| Compressor Type | Inverter |
| Dimensions (Height / Width / Depth) (in) |
29-1/2 x 34-1/4 x 12-5/8
|
| Maximum Indoor Units | 1 |
| Airflow Rate (H) (CFM) | 2,383 |
| Net Weight (lb) | 127 |
