Daikin MXM 36,000 BTU (12K + 24K) 20 SEERS Dual Zone Wall Mount Mini Split Heat Pump System- R32- 230V
The 36,000 BTU Daikin 20 SEER2 Dual-Zone Mini Split Heat Pump System ( 12K + 24K) is a high-efficiency, dual-zone solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes two indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
Key Features:
- 36,000 BTU Total Capacity – One (1) 12,000 BTU and One (1) 24K BTU indoor unit.
- 20 SEER2 Energy Efficiency – Reduces energy consumption while maintaining powerful performance.
- Dual Zone Operation – Independently control two separate spaces for customized comfort.
- Advanced Inverter Technology – Adjusts power output to maintain consistent temperatures efficiently.
- Eco-Friendly R-32 Refrigerant – Minimizes environmental impact while enhancing system performance.
- Quiet Operation – Low noise levels make it ideal for bedrooms, offices, and other quiet areas.
- Wall-Mounted Indoor Units – Sleek, space-saving design that integrates seamlessly with any décor.
- 230V Power Supply – Ensures stable and efficient operation for long-term reliability.
Ideal Applications:
- Homes, offices, and commercial spaces needing multi-room heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.

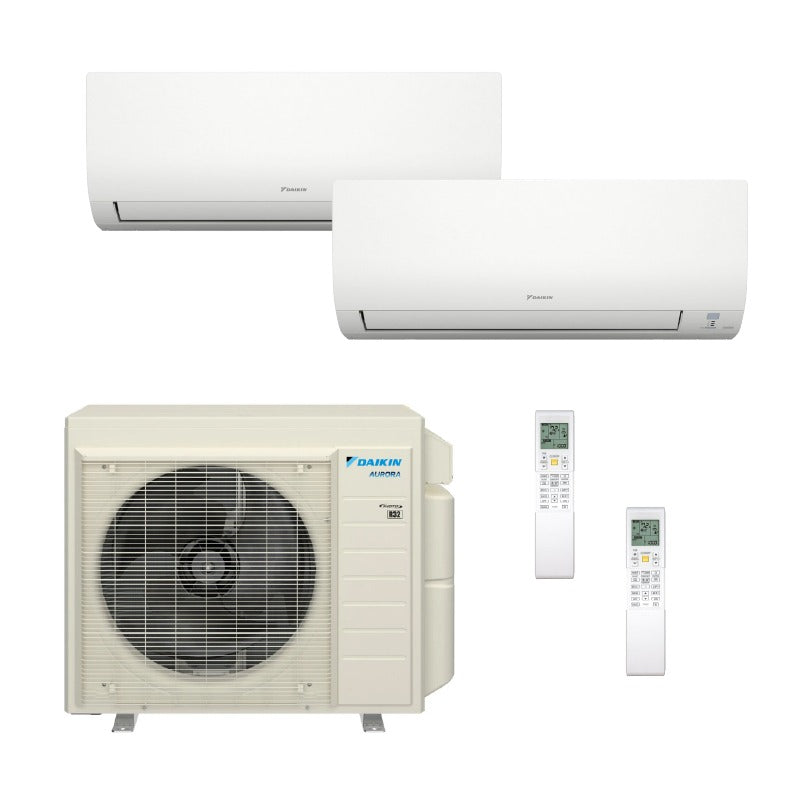

What's Included:

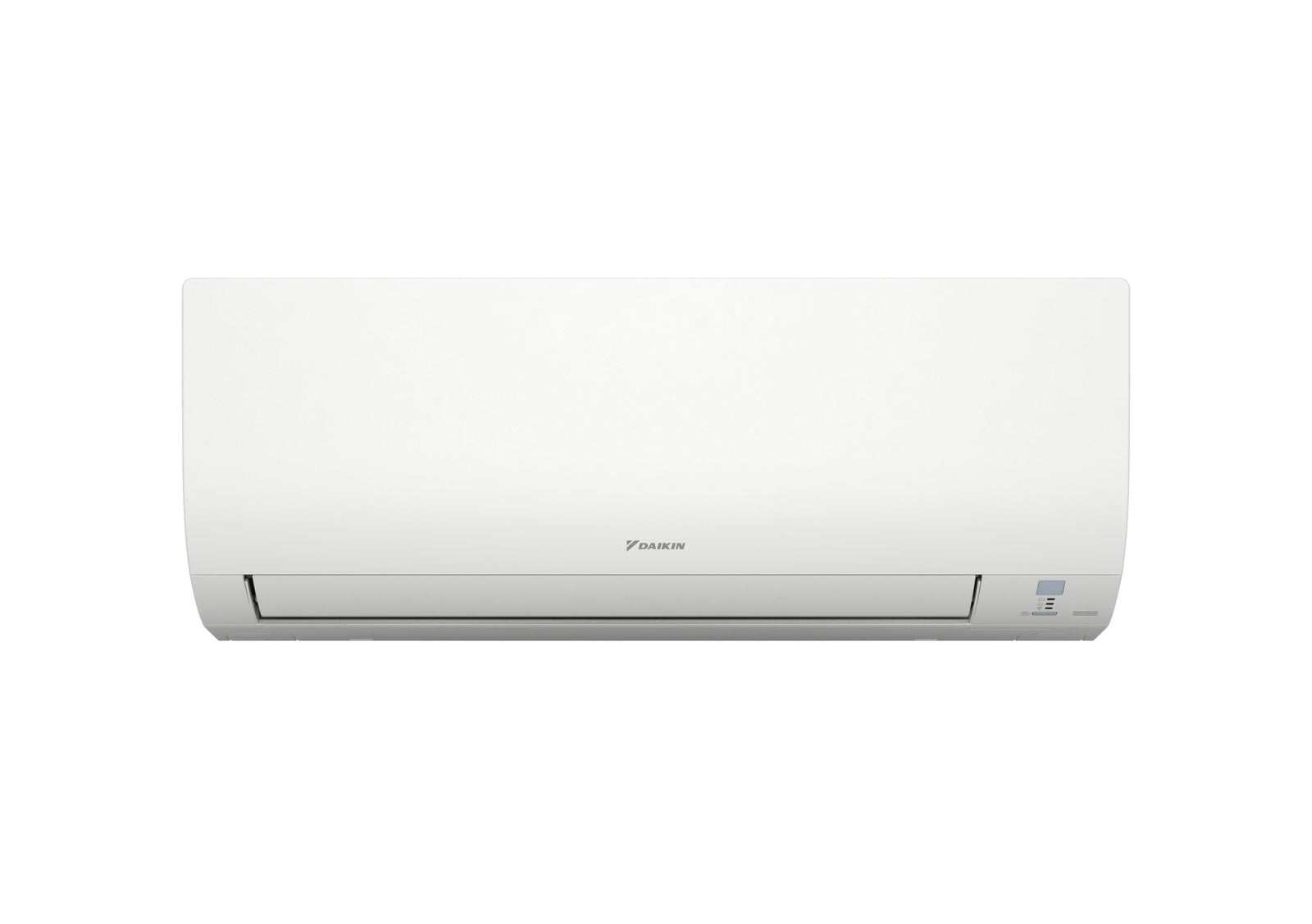

- One (1) 12,000 and One (1) 24,000 BTU Wall-Mounted Indoor Unit

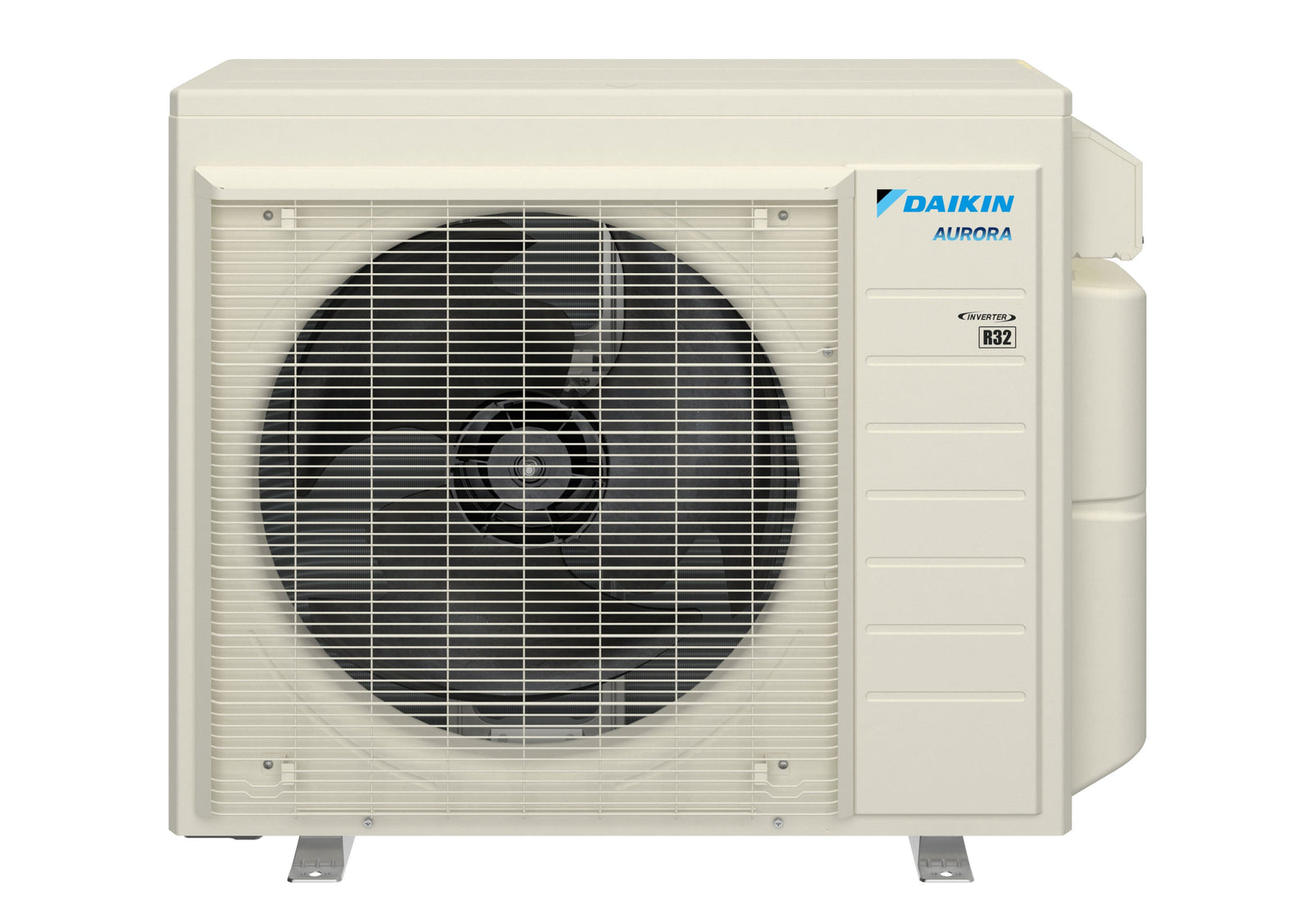

- Outdoor Condenser Unit

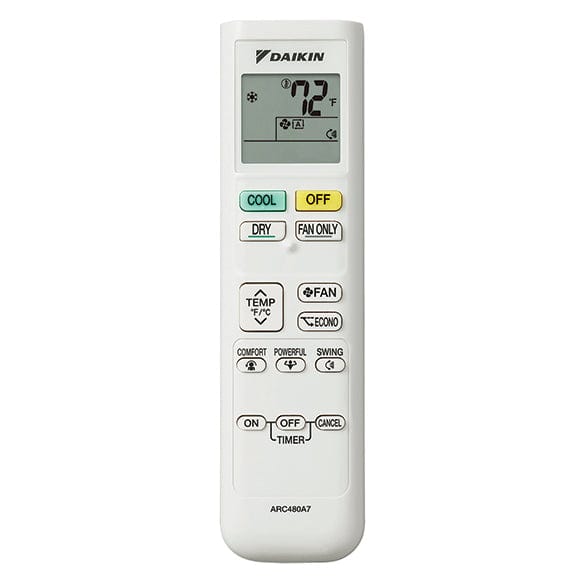

- Two (2) Wireless Remote Controllers
- Wall Mounting Brackets
Optional Accessories:

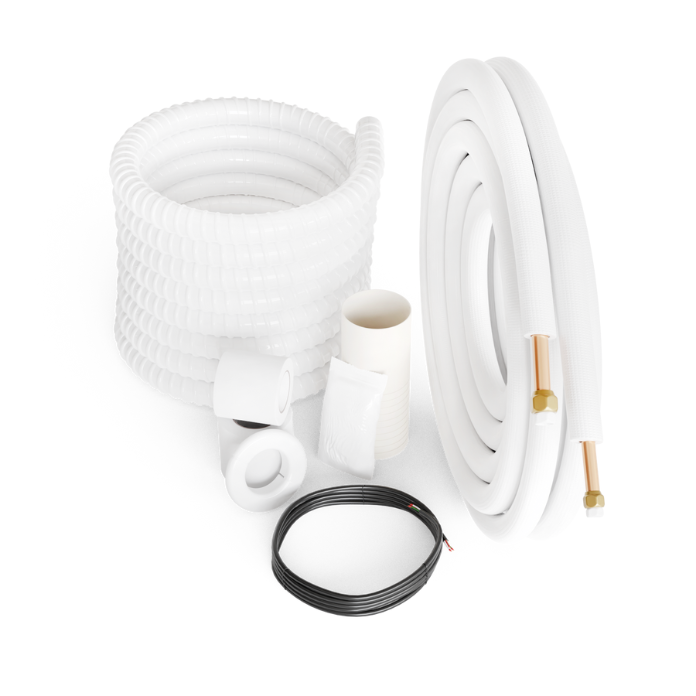

- Refrigerant Line Set (Select Line Set Options)
- Condenser Installation Kit
- Mounting Kit
Condenser specifications:
| FEATURE | SPEC |
|---|---|
| SKU | 4MXM36AVJU9 |
| Weight | 142.000000 |
| Manufacturer | Daikin |
| Replaces | 4MXS36WMVJU9 |
| Cooling BTU | 36,000 |
| Decibel Level (dBA) | 60 |
| Refrigerant | R32 |
| SEER2 | 20 |
| Compressor Type | Swing |
| Liquid Line | 1/4" (4) |
| Suction Line | 3/8" (1), 1/2" (2), 5/8" (1) |
| Electrical | 208-230 V | 60 Hz |1 Phase |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 24.1 Amps |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Min/Max Outdoor Temp for Heating | -13°F to 60°F |
| Min/Max Outdoor Temp for Cooling | 14°F to 115°F |
| Zone Compatibility | Multi Zone |
| Height | 29.5" |
| Width | 34.16" |
| Depth | 12.58" |
| Warranty | Limited 12-Year Parts Warranty |
12K Specifications:
| FEATURE | SPEC |
|---|---|
| SKU | FTXV12AVJU9 |
| Weight | 19.000000 |
| Manufacturer | Daikin |
| Replaces | FTXV12AVJU9 |
| HSPF2 | 10.2 |
| Decibel Level (dBA) | 45 |
| Refrigerant | R32 |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.25" |
| Width | 30.31" |
| Depth | 8.75" |
| Warranty | Limited 12-Year Parts Warranty |
24k Specifications:
| FEATURE | SPEC |
|---|---|
| SKU | FTXV24AVJU9 |
| Weight | 27.000000 |
| Manufacturer | Daikin |
| Replaces | FTXV24AVJU9 |
| HSPF2 | 10.2 |
| Decibel Level (dBA) | 43 |
| Refrigerant | R32 |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.25" |
| Width | 30.31" |
| Depth | 8.75" |
| Warranty | Limited 12-Year Parts Warranty |
