Daikin MXM 36,000 BTU (12K + 15K) 20 SEERS Dual Zone Wall Mount Mini Split Heat Pump System- R32- 230V
The 36,000 BTU Daikin 20 SEER2 Dual-Zone Mini Split Heat Pump System (12K + 15K) is a high-efficiency, dual-zone solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes two indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
Key Features:
-
36,000 BTU Total Capacity – One (1) 12,000 BTU & One (1) 15,000 BTU indoor unit.
-
20 SEER2 Energy Efficiency – Reduces energy consumption while maintaining powerful performance.
-
Dual Zone Operation – Independently control two separate spaces for customized comfort.
-
Advanced Inverter Technology – Adjusts power output to maintain consistent temperatures efficiently.
-
Eco-Friendly R-32 Refrigerant – Minimizes environmental impact while enhancing system performance.
-
Quiet Operation – Low noise levels make it ideal for bedrooms, offices, and other quiet areas.
-
Wall-Mounted Indoor Units – Sleek, space-saving design that integrates seamlessly with any décor.
-
230V Power Supply – Ensures stable and efficient operation for long-term reliability.
Ideal Applications:
- Homes, offices, and commercial spaces needing multi-room heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.

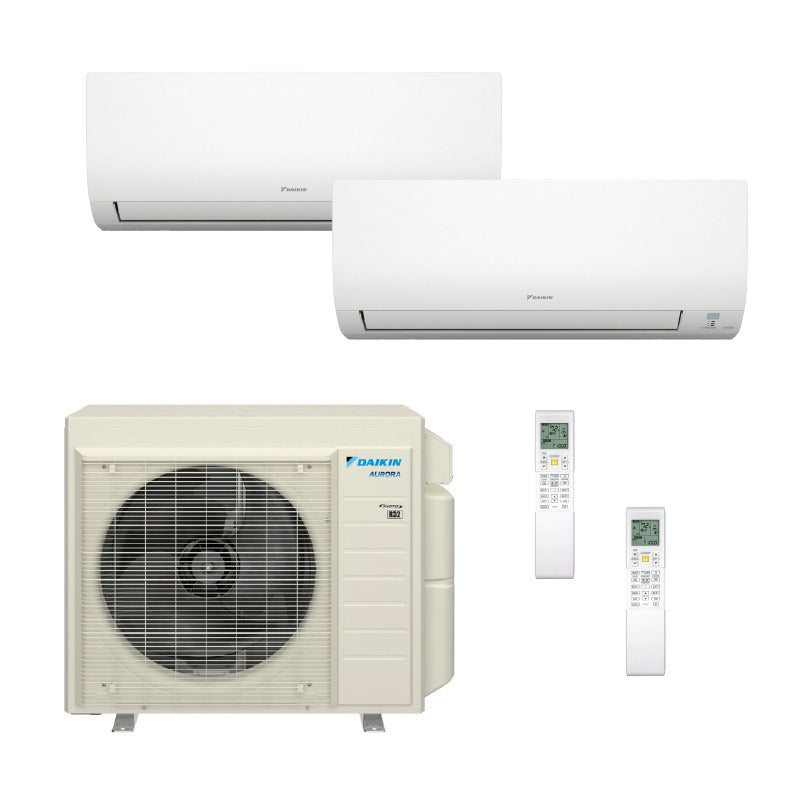

What's Included:

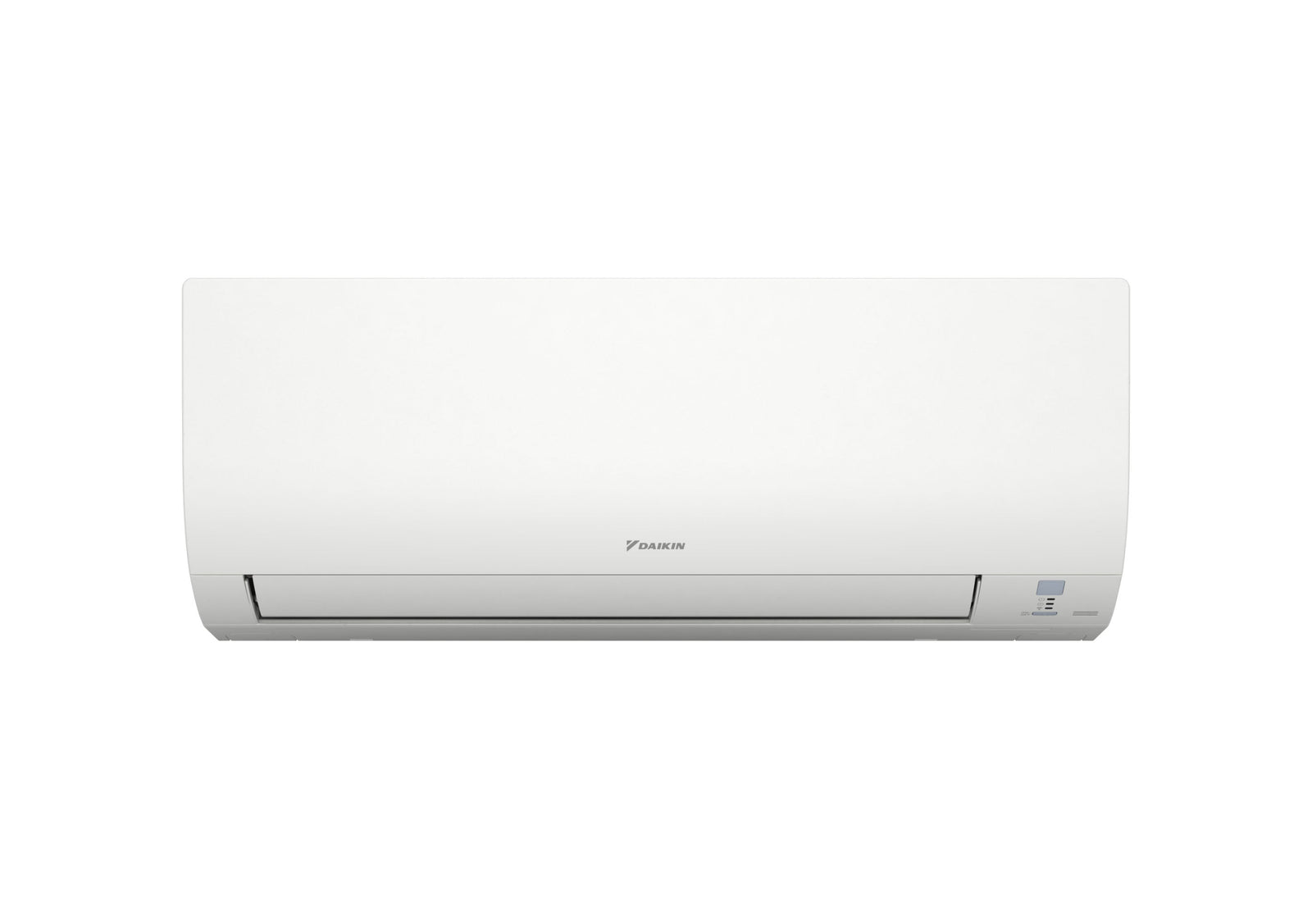

- One (1) 12,000 BTU & One (1) 15,000 BTU Wall-Mounted Indoor Unit
- Outdoor Condenser Unit

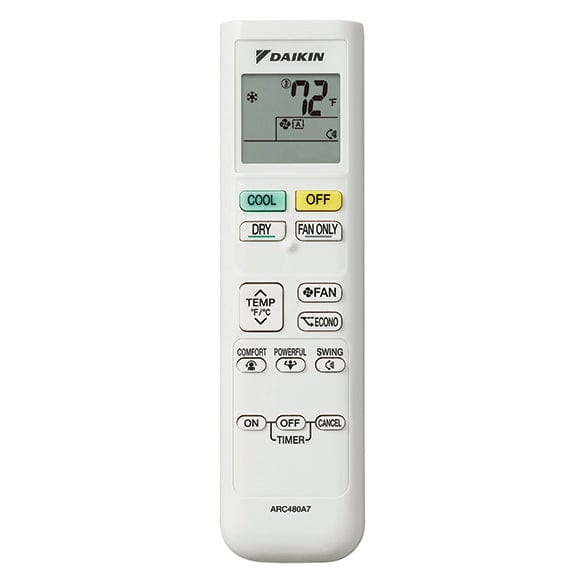

- Two (2) Wireless Remote Controllers
- Wall Mounting Brackets
Optional Accessories:

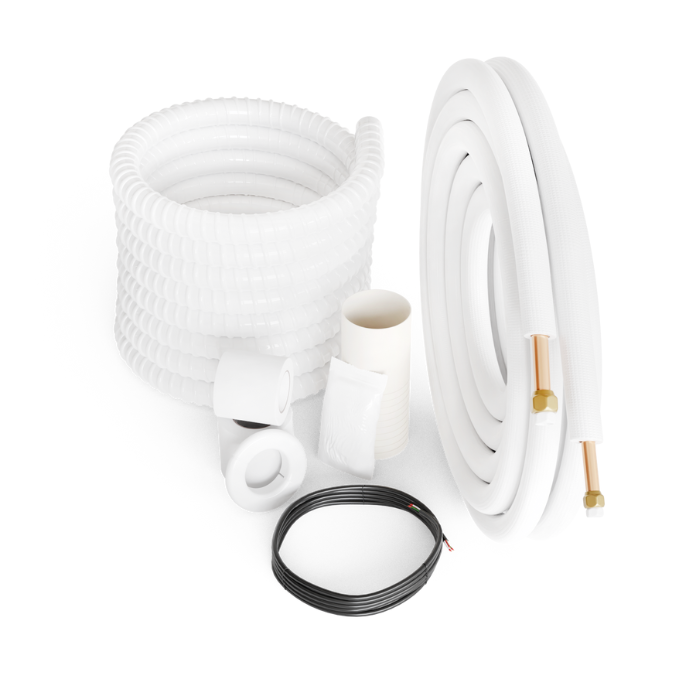

- Refrigerant Line Set (Select Line Set Options)
- Condenser Installation Kit
- Mounting Kit
- Thermostat

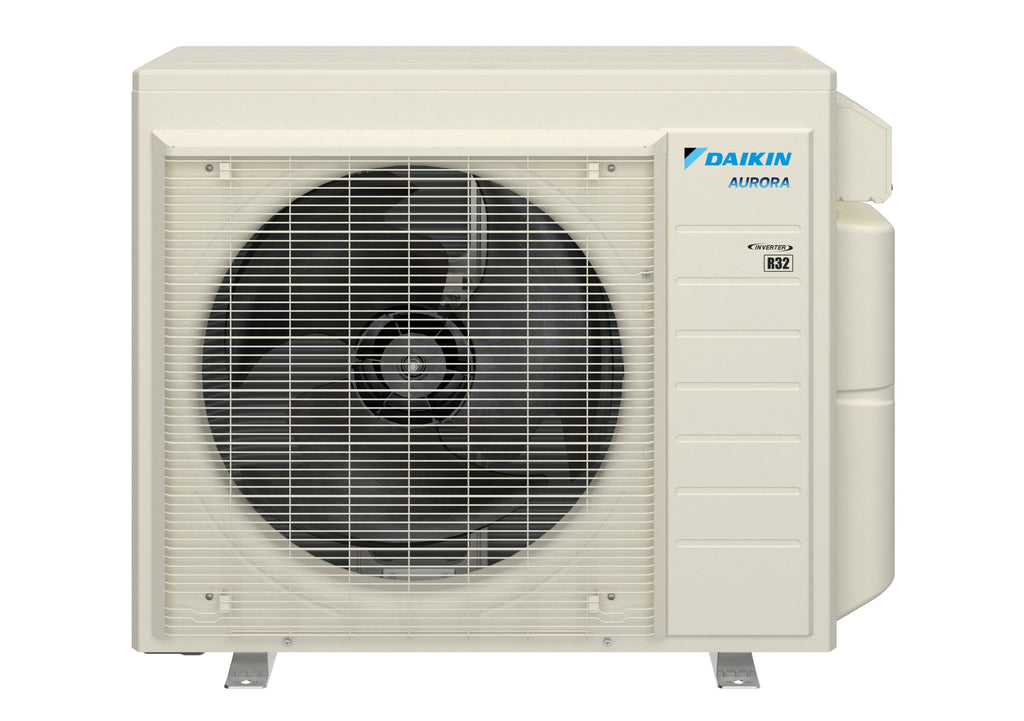

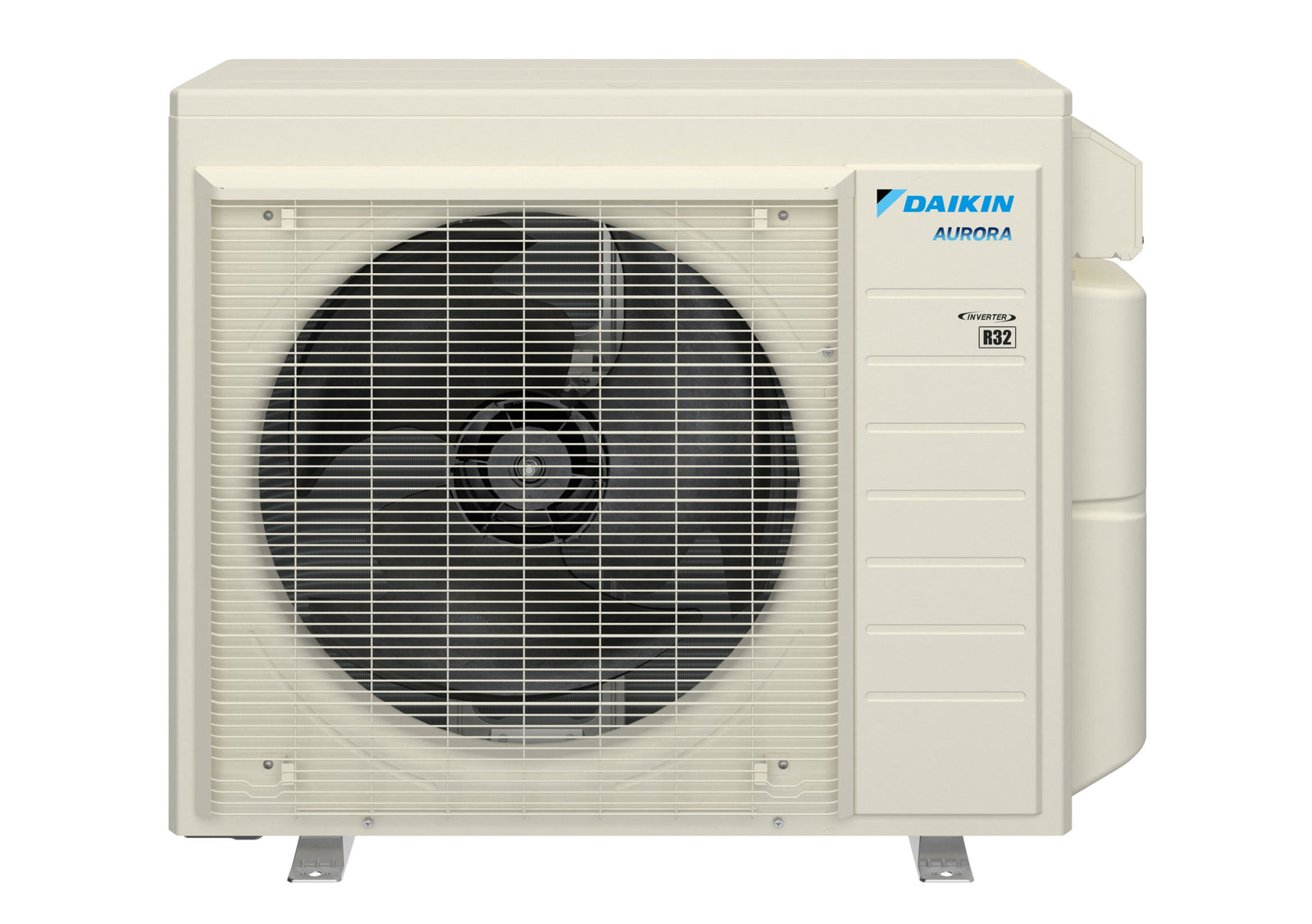

Condenser Specifications:
|
| FEATURE |
SPEC |
| SKU |
4MXM36AVJU9 |
| Weight |
142.000000 |
| Manufacturer |
Daikin |
| Replaces |
4MXS36WMVJU9 |
| Cooling BTU |
36,000 |
| Decibel Level (dBA) |
60 |
| Refrigerant |
R32 |
| SEER2 |
20 |
| Compressor Type |
Swing |
| Liquid Line |
1/4" (4) |
| Suction Line |
3/8" (1), 1/2" (2), 5/8" (1) |
| Electrical |
208-230 V | 60 Hz |1 Phase |
| Max Breaker Size |
25 Amps |
| Min. Breaker Size |
24.1 Amps |
| BTU/Tonnage |
36,000 BTU/3 Ton |
| Min/Max Outdoor Temp for Heating |
-13°F to 60°F |
| Min/Max Outdoor Temp for Cooling |
14°F to 115°F |
| Zone Compatibility |
Multi Zone |
| Height |
29.5" |
| Width |
34.16" |
| Depth |
12.58" |
| Warranty |
Limited 12-Year Parts Warranty |
12K Air Handler Specs:
| sku |
FTXV12AVJU9 |
| manufacturer |
Daikin |
| product category |
Ductless Mini-Splits |
| product class |
Multi-Split Fan Coil |
| system family |
Multi-Split |
| function category |
Cooling Only |
| product type |
Equipment |
| unit type |
Indoor |
| market type |
Residential-Single Family |
| product family |
FTXV_AVJU9 |
| series name |
Multi-Split Fan Coil Indoor |
| short description |
Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description |
R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description |
1 Ton Wall Mount R-32 |
| decibel level (dba) |
45 dBA |
| refrigerant |
R-32 |
| liquid line |
1/4 in |
| suction line |
3/8 in |
| electrical |
208-230 V | 60 Hz | 1 Ph |
| tonnage |
1 |
| zone compatibility |
Multi Zone |
| height |
11-1/4 in |
| width |
30-5/16 in |
| depth |
8-3/4 in |
| weight |
19 lb |
15K Air Handler Specs:
| sku |
FTXV15AVJU9 |
| manufacturer |
Daikin |
| product category |
Ductless Mini-Splits |
| product class |
Multi-Split Fan Coil |
| system family |
Multi-Split |
| function category |
Cooling Only |
| product type |
Equipment |
| unit type |
Indoor |
| market type |
Residential-Single Family |
| product family |
FTXV_AVJU9 |
| series name |
Multi-Split Fan Coil Indoor |
| short description |
Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description |
R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description |
1.25 Ton Wall Mount R-32 |
| decibel level (dba) |
45 dBA |
| refrigerant |
R-32 |
| liquid line |
1/4 in |
| suction line |
1/2 in |
| electrical |
208-230 V | 60 Hz | 1 Ph |
| tonnage |
1.25 |
| zone compatibility |
Multi Zone |
| height |
11-5/8 in |
| width |
39 in |
| depth |
10-3/8 in |
| weight |
27 lb |
