Daikin 9,000 BTU Oterra 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 115V
The 9,000 BTU Daikin Oterra Mini Split Heat Pump Condenser delivers efficient and reliable heating and cooling for single-zone wall-mount systems. Featuring advanced R32 refrigerant and a Daikin Swing Compressor with Inverter, this unit provides superior performance, quiet operation, and long-term durability for residential and light commercial applications. This single single system cools spaces up to 450 square feet, which is ideal for anyone who is trying to replace older window units. This system is also backed by a 12 year limited parts warranty which ensures long term use.
Key Features:
- Efficient heating and cooling.
- Advanced Technology
- Quiet and user friendly design
- Durable and Hygienic

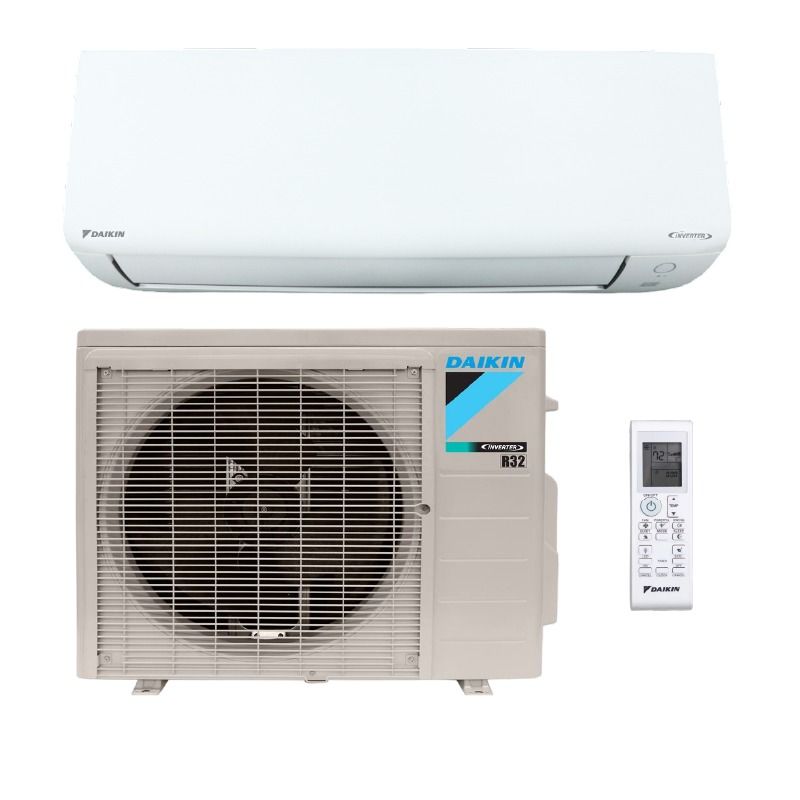

Includes:
- Outdoor condenser
- 9,000 BTU air handler
- Lineset Installation kit
- Remote for temperature control
Condenser Specifications:
| sku | RXQ09ASBU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXQ_ASBU9 |
| series name | Daikin Oterra 115V |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75-1 Ton Daikin Oterra 115V Heat Pump |
| product description | Daikin Oterra 115V Heat Pump Ductless ODU 0.75 Ton |
| cooling btu | 9,000 |
| heating btu | 10,900 |
| decibel level (dba) | 48 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 115 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 14.9 A |
| tonnage | 0.75 |
| btu/tonnage | 9,000 BTU/0.75 Ton |

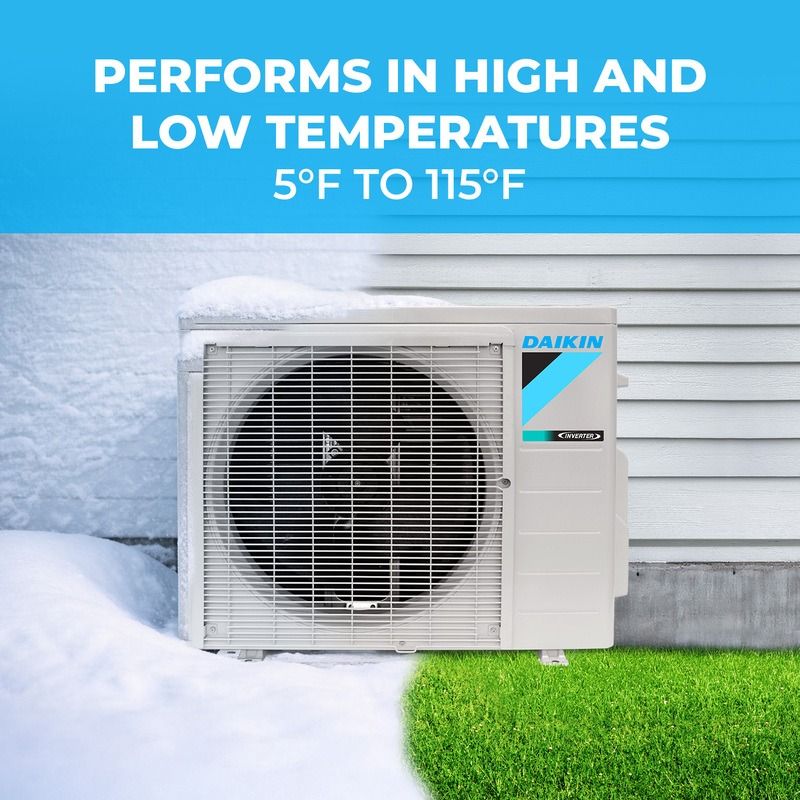

| min/max outdoor temp for heating | 5 °F to 65 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| zone compatibility | Single Zone |

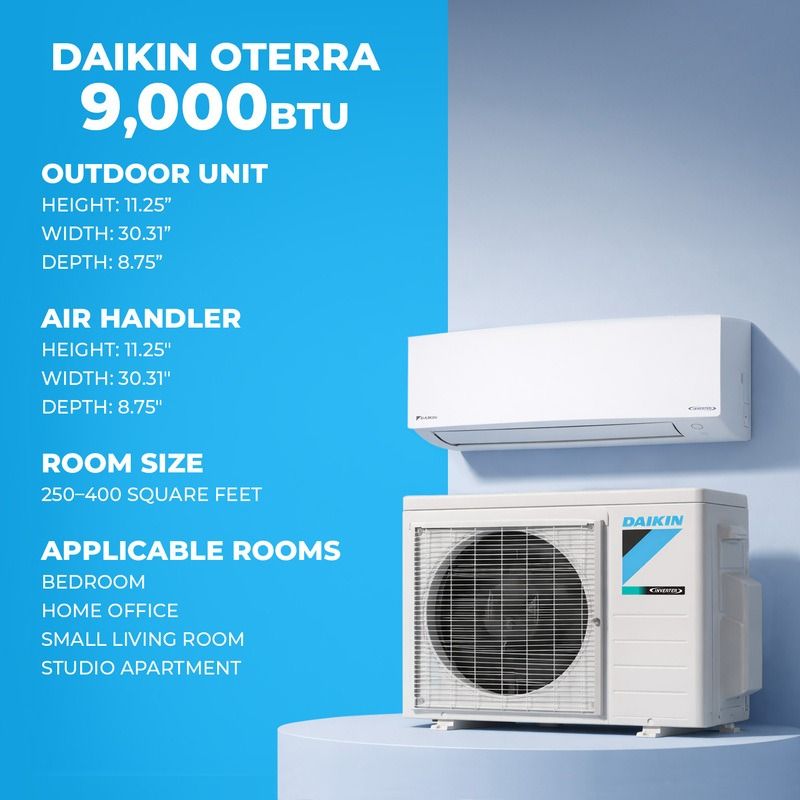

| height | 21-15/16 in |
| width | 26-9/16 in |
| depth | 11-3/16 in |
| weight | 59 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
9K Air Handler Specs:
| sku | FTXQ09ASBU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXQ_ASBU9 |
| series name | Daikin Oterra 115V |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | R-32- 0.75-1 Ton Wall mounted unit Heat Pump |
| product description | Daikin Oterra 115V R-32 -- 9K Indoor High Wall Unit |
| cooling btu | 9,000 |
| heating btu | 10,900 |
| decibel level (dba) | 43 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 115 V | 60 Hz | 1 Ph |
| tonnage | 0.75 |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| min/max outdoor temp for heating | 5 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 18 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
