Product overview
Daikin MXM 18,000 BTU 21 SEER2 (9K + 12K) Dual Zone Wall Mount Mini Split Heat Pump System - R32 - 230V
The 18,000 BTU Daikin 21 SEER2 Dual Zone Wall Mount Mini Split Heat Pump System (9K + 12K) is a high-efficiency, dual-zone solution designed to provide year-round comfort. Perfect for residential and light commercial applications, this system includes two indoor units, allowing independent climate control in two separate spaces. With advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant, this system ensures superior energy savings and personalized comfort.
Key Features:
- 18,000 BTU Total Capacity – Includes one 9,000 BTU indoor unit and one 12,000 BTU indoor unit
- 21 SEER2 Energy Efficiency – Reduces energy consumption while maintaining powerful performance.
- Dual Zone Operation – Independently control two separate spaces for customized comfort.
- Advanced Inverter Technology – Adjusts power output to maintain consistent temperatures efficiently.
- Eco-Friendly R-32 Refrigerant – Minimizes environmental impact while enhancing system performance.
- Quiet Operation – Low noise levels make it ideal for bedrooms, offices, and other quiet areas.
- Wall-Mounted Indoor Units – Sleek, space-saving design that integrates seamlessly with any décor.
- 230V Power Supply – Ensures stable and efficient operation for long-term reliability.
Ideal Applications:
- Homes, offices, and commercial spaces needing multi-room heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.
What's Included:
- One (1) 9,000 BTU Wall-Mounted Indoor Unit and One (1) 12,000 BTU Wall-Mounted Indoor Unit
- Outdoor Condenser Unit
- Two (2) Wireless Remote Controllers
- Wall Mounting Brackets
Optional Accessories:
- Refrigerant Line Set (Select Line Set Options)
- Condenser Installation Kit
- Mounting Kit
- Thermostat
Warranty:
Daikin provides a 12-year limited warranty on parts for registered systems, ensuring peace of mind and long-term reliability.

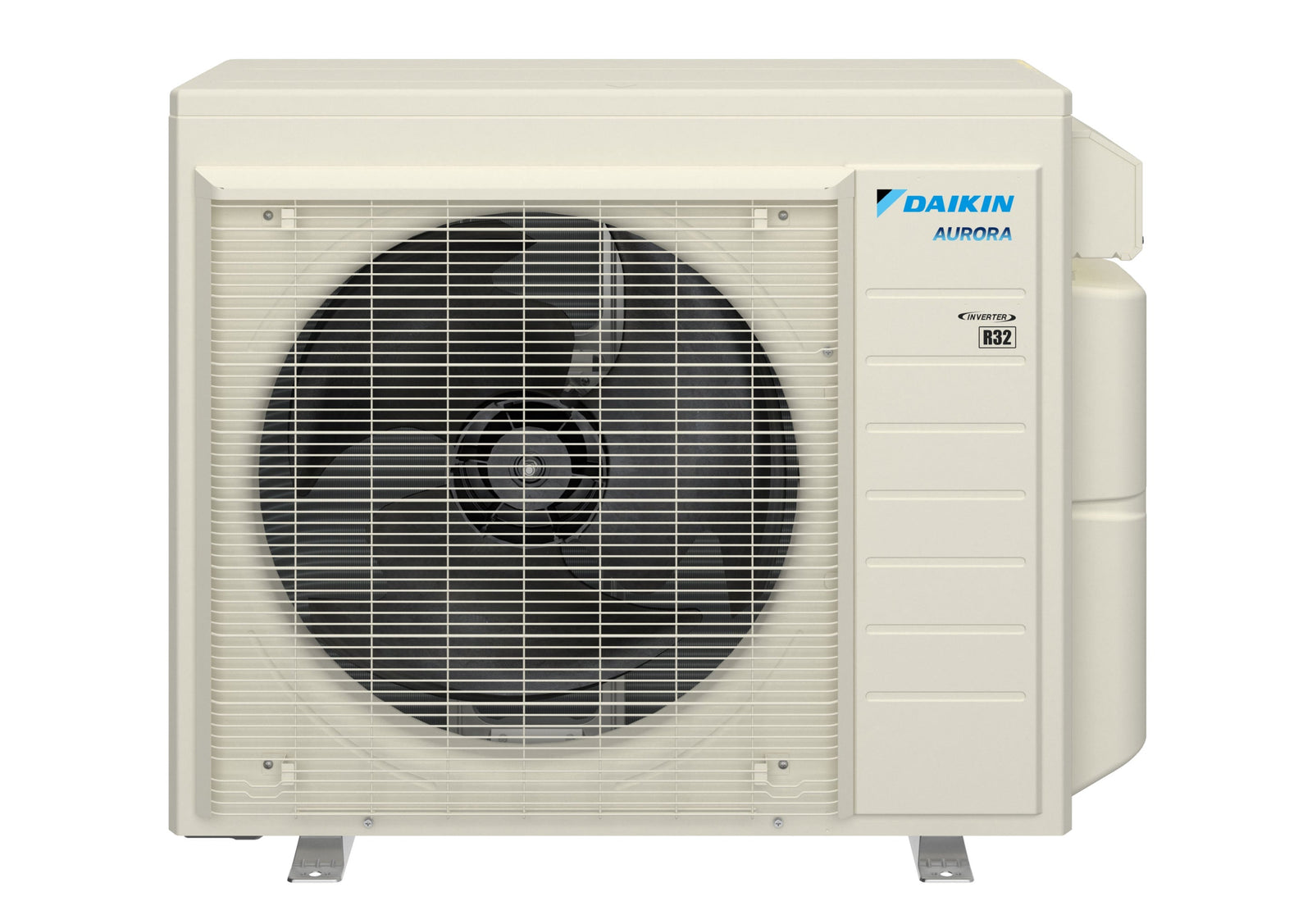

Condenser Specs:
| Feature | Spec |
|---|---|
| SKU | 2MXM18AVJU9 |
| Weight | 127.000000 |
| Manufacturer | Daikin |
| Replaces | 2MXS18WMVJU9 |
| Cooling BTU | 18,000 |
| Decibel Level (dBA) | 54 |
| Refrigerant | R32 |
| SEER2 | 21 |
| Compressor Type | Swing |
| Liquid Line | 1/4" (2) |
| Suction Line | 3/8" (1), 1/2" (1) |
| Electrical | 208-230 V | 60 Hz |1 Phase |
| Max Breaker Size | 20 Amps |
| Min. Breaker Size | 15.6 Amps |
| BTU/Tonnage | 18,000 BTU/1 |
9K Air Handler Specifications:
| FEATURE | SPEC |
|---|---|
| SKU | FTXV09AVJU9 |
| Weight | 19.000000 |
| Manufacturer | Daikin |
| Replaces | FTXV09AVJU9 |
| HSPF2 | 10.2 |
| Decibel Level (dBA) | 43 |
| Refrigerant | R32 |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.25" |
| Width | 30.31" |
| Depth | 8.75" |
| Warranty | Limited 12-Year Parts Warranty |
12K Air Handler Specifications:
| FEATURE | SPEC |
|---|---|
| SKU | FTXV12AVJU9 |
| Weight | 19.000000 |
| Manufacturer | Daikin |
| Replaces | FTXV12AVJU9 |
| HSPF2 | 10.2 |
| Decibel Level (dBA) | 45 |
| Refrigerant | R32 |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.25" |
| Width | 30.31" |
| Depth | 8.75" |
| Warranty | Limited 12-Year Parts Warranty |
In-stock systems ship fast and free with curbside freight delivery, typically arriving in 4–10 days. Please inspect each box at delivery and note any damage on the receipt before signing — it keeps any freight claim quick and simple.
Ask AI
Ask AI about this product
Ask our AI product assistant about sizing, compatibility, electrical needs, accessories, shipping, warranty, and install planning.
At a glance
Tech specs
| Condenser capacity | 18K BTU |
|---|---|
| Zones / rooms | 1 Zone |
| Efficiency | 21 SEER2 |
| Mount type | Wall |
| Brand | Daikin |
Sizing in doubt? Our HVAC experts confirm capacity for your rooms before you order — free. Ask us about utility rebates for high-efficiency heat pumps in your area.
