ACiQ R454B, 24,000 BTU 2 TON 18.6 SEER2 Central Heat Pump Inverter System with Multi-Position Extreme+ Air Handler with Wi-Fi Included – Choose your Installation Kit and Auxiliary Heat Strip Size – ACIQ-24-PAH + ACIQ-24-HPD
Summary
ACiQ’s Extreme+ Series delivers unmatched performance with intelligent inverter technology and a slim multi-position air handler. Maintain comfort in extreme climates with heating down to -22°F, quiet operation, and seamless duct integration. With 18.3 SEER2 efficiency and Wi-Fi control, it’s ideal for both replacements and new builds.
Included in Your Order:

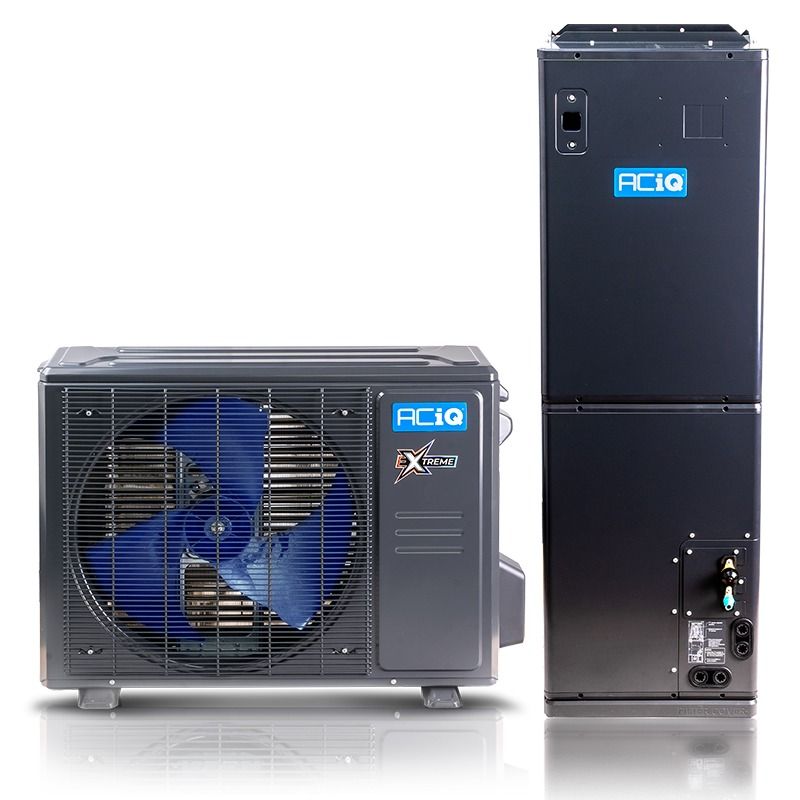

ACiQ Extreme+ Air Handler System (24,000 BTU)

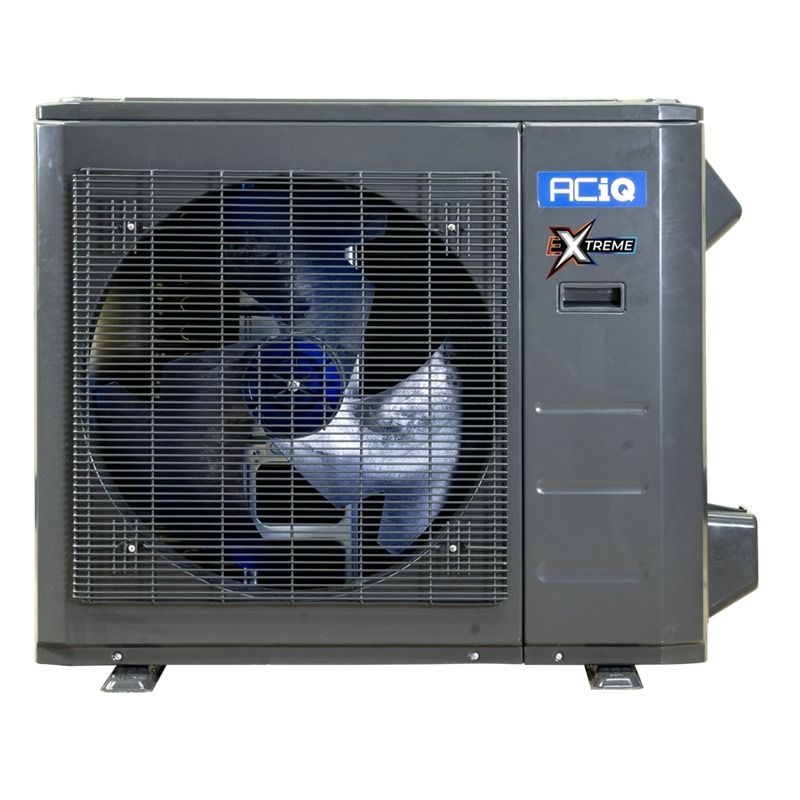

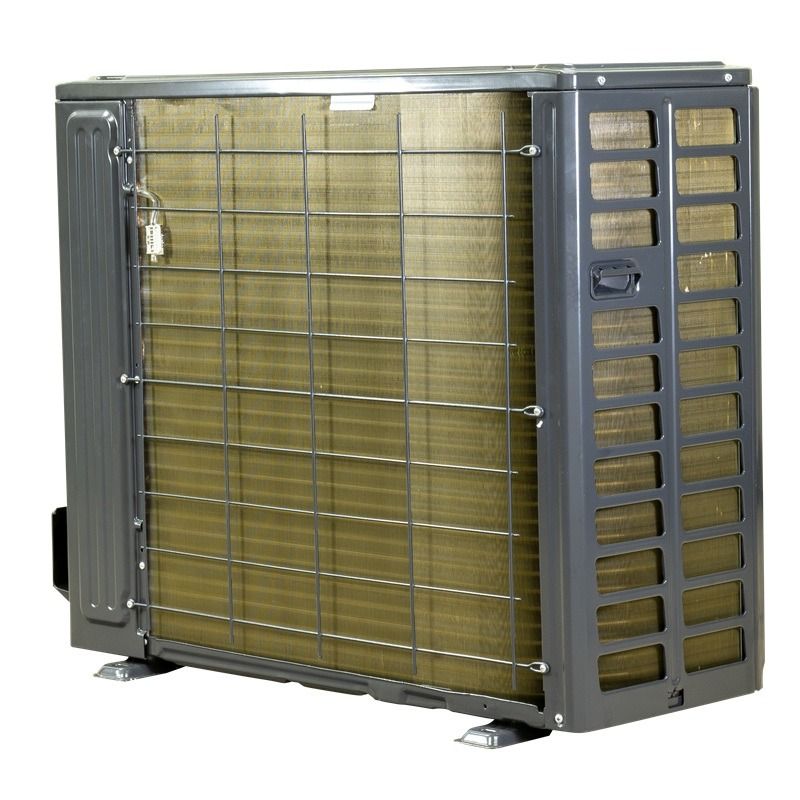

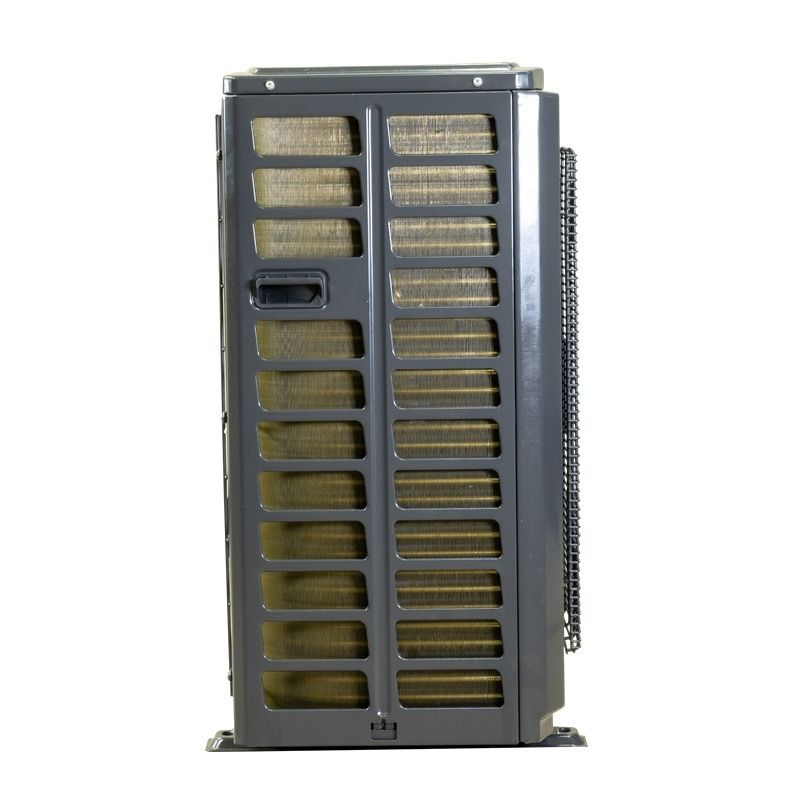

Outdoor Unit: 24,000 BTU (1pc) – Model: ACIQ-24-HPD

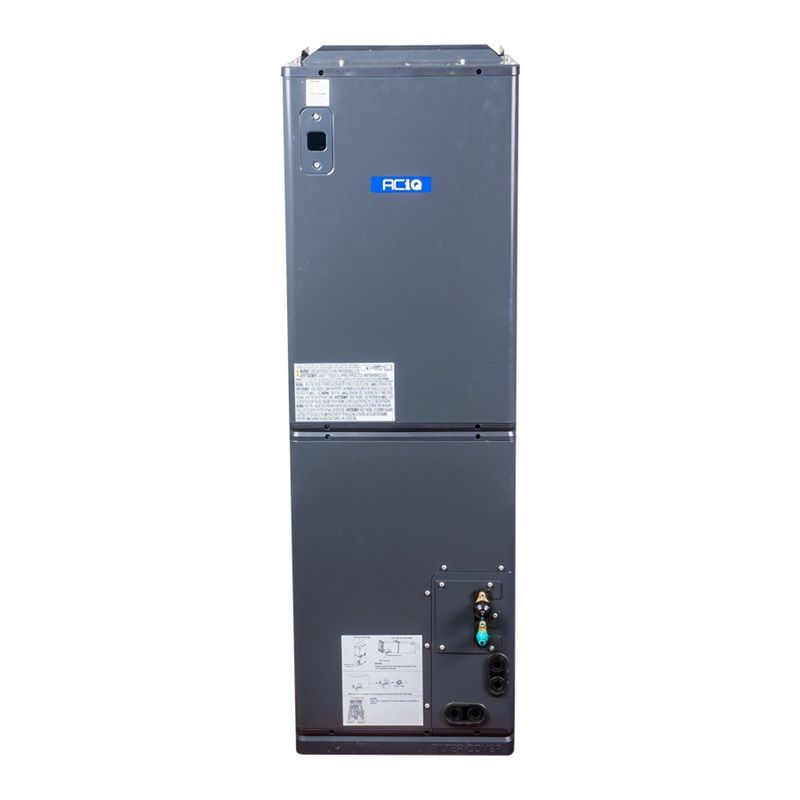

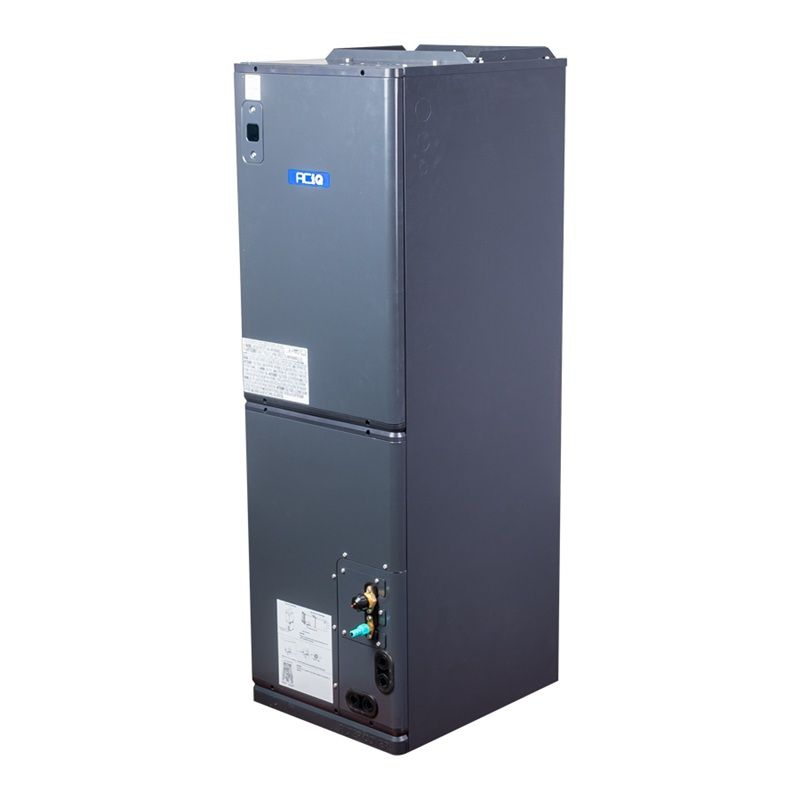

Indoor Unit: 24,000 BTU (1pc with remote) – Model: ACIQ-24-PAH
Optional Installation Kit (16ft, 25ft, or 50ft options available) Must be selected above.
Optional Auxiliary Heat Strip (5KW, 8KW, or 10KW) Must be selected above.
Wireless Remote Control
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
- Extreme Heat: Maintains 100% heating capacity at 0°F, 80% at -22°F
- Smart self-adjusting inverter with soft start-up

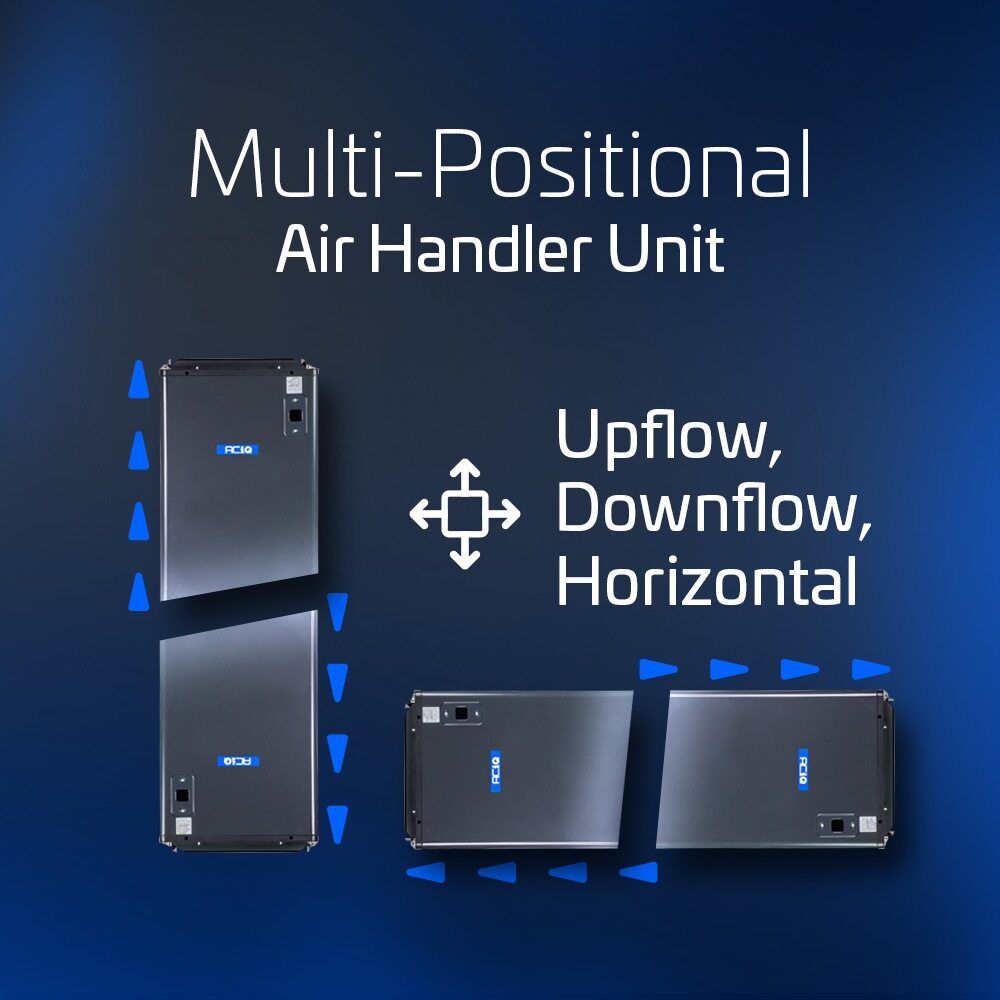

- Multi-positional air handler (upflow, downflow, horizontal)
- Variable-speed fan motor
- Wi-Fi enabled + "Follow Me" Mode
- Low ambient heating & quiet operation
- Eco, Turbo, and Freeze Protection Modes
- Compatible with standard 24v thermostats
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration required within 60 days of installation at aciq.com. The installation kit is necessary for the system to function. Be sure to select your desired configuration above. This bundle includes pre-flared copper lines, communication wire, drain line attachment, and all required manuals.
Multi-Position Air Handler Compatibility
Extreme+ Series Multi-Position Air Handler Options
| Capacity | Extreme+ Indoor + Outdoor Model |
|---|---|
| 18,000 BTU | ACIQ-18-PAH + ACIQ-18-HPD |
| 24,000 BTU | ACIQ-24-PAH + ACIQ-24-HPD |
| 30,000 BTU | ACIQ-30-PAH + ACIQ-30-HPD |
| 36,000 BTU | ACIQ-36-PAH + ACIQ-36-HPD |
| 48,000 BTU | ACIQ-48-PAH + ACIQ-48-HPD |
| 60,000 BTU | ACIQ-60-PAH + ACIQ-60-HPD |
Warranty
- 12-Year Compressor Warranty
- 7-Year Parts Warranty (licensed installation required)
- 1-Year Remote Control Warranty
Technical Information
Indoor Unit: ACIQ-24-PAH
- Air Flow: Up to 824 CFM
- Noise: Up to 47.5 dBA
- Electric Heat Strip Capable: 5kW, 8kW, 10kW
- Electrical: 208/230V, 1 Phase, 60 Hz
- Breaker: Max 15A / Min 5.5A
- Dimensions (HxWxD): 49.7" x 17.5" x 21.5"
Outdoor Unit: ACIQ-24-HPD
- Cooling Capacity: 23,000 BTU
- Heating Capacity: 24,000 BTU
- SEER2: 18.3 | HSPF2: 10.0
- Operating Range: -22°F to 122°F
- Sound: 60 dBA
- Refrigerant: R454B, 25' Precharge

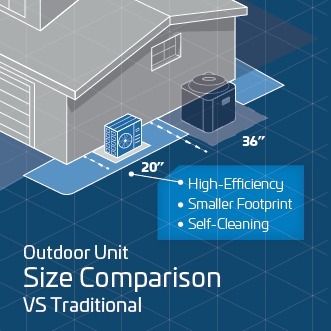

- Dimensions (HxWxD): 26.5" x 35" x 13.5"
- Electrical: 208/230V, 1 Phase, 60 Hz
Certifications
- AHRI Certified
- ETL Listed
- Energy Star for Cold Climate
