48,000 ACiQ Single Zone Condenser | Extreme Series| R454B
OVERVIEW
The ACiQ Extreme series features hyper heat technology that enables continuous heating all the way down to -22 degrees outside. With high SEER2 and high HSPF, you get maximum efficiency whether you are cooling or heating your space.
QUICK FACTS
- Maximum performance at an affordable cost
- Ideal for large rooms (depending on climate)
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Gold fin condenser full-protection coating
- Quiet operation at even the highest workloads
High capacity, high efficiency
The ACIQ-48ZPL-HP230B Condenser, when matched with the a wall mounted, ceiling cassette, concealed duct or floor mount air handler, has enough capacity for large rooms. The dual rotary compressor and variable inverter technology give this system exceptionally high efficiency ratings.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

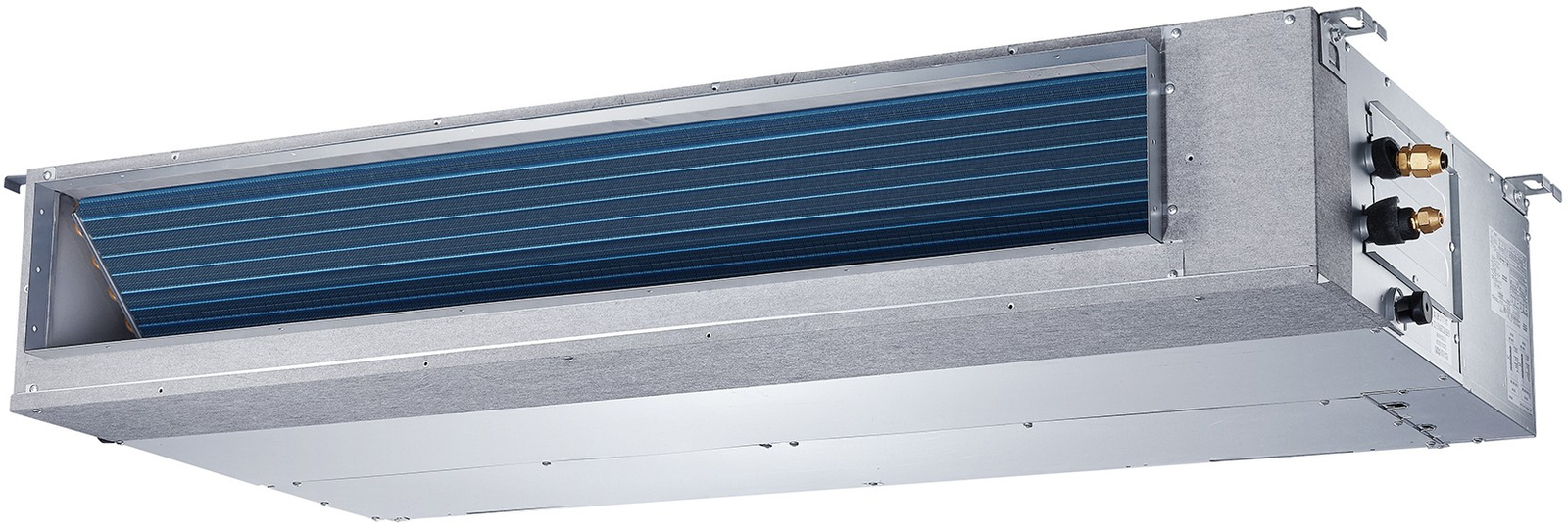

48,000 BTU Concealed Duct ACiQ Mini Split Air Handler| R454B
Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.
The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.
Installation Considerations
Concealed duct system installations require a certain amount of pre-planning, and are similar in scope to a standard home HVAC installation. They are best used in new construction projects or additions. Installation will require flex ducting, register vents, plenums and installation supplies in addition to the equipment components. The Concealed Duct units have a factory-installed pump to lift the condensation. From there you will use PVC to construct a drain system to a safe wastewater location.
FEATURES
- 24,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a medium room in most climates
- Wall mounted thermostat included
Concealed Duct
Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. Air distribution is achieved by using flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Using readily available supplies such as ductboard, duct takeoffs and flex ducting, you can create a flexible, economical solution for a wide variety of applications.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
