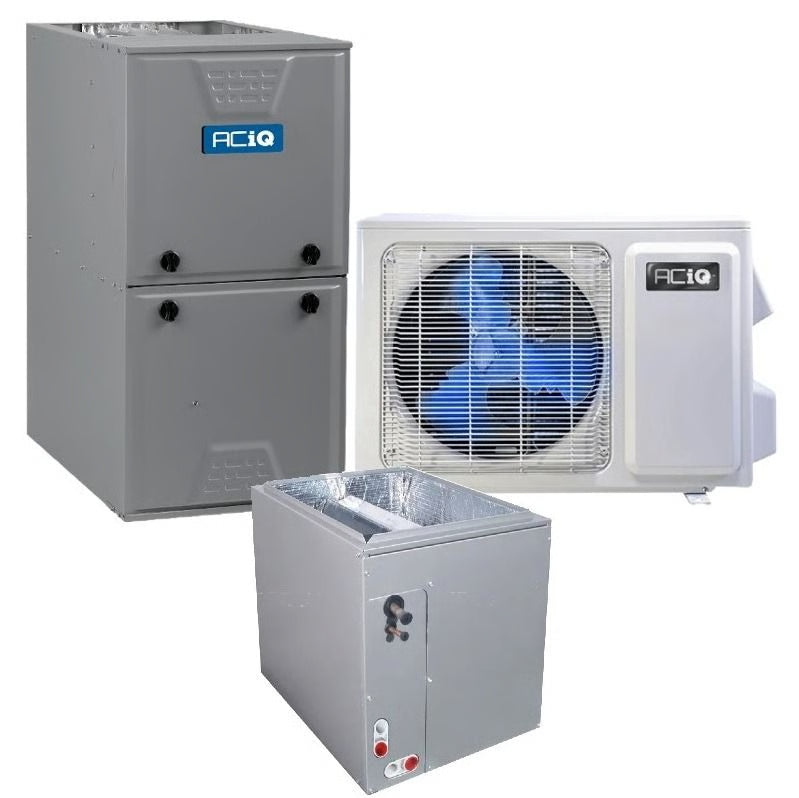

ACiQ 2.5 Ton 16.9 SEER2 High Efficiency Heat Pump Condenser with 3 Ton 21" Multi-Positional Evaporator Cased Coil and 96% AFUE 80,000 BTU Single Stage Gas Furnace
Summary
This ACiQ split system combines a high-efficiency 2.5 ton inverter heat pump condenser with a 3 ton multi-positional evaporator cased coil and an 80,000 BTU 96% AFUE single stage gas furnace. This system is designed to deliver dependable year-round comfort with efficient heating and cooling performance, variable speed operation, and flexible installation configurations. The included ACiQ multi-positional components make this an excellent option for upflow, downflow, and horizontal applications where performance, efficiency, and installation flexibility are important.
Included in Your Order:
ACiQ Heat Pump Coil + Furnace System
Outdoor Unit: 30,000 BTU Heat Pump Condenser (1pc) – Model: ACIQ-30-EHPB
Indoor Coil: 3 Ton Multi-Positional Evaporator Cased Coil (1pc) – Model: ACIQ-36-ACL
Furnace: 96% AFUE 80,000 BTU Single Stage Gas Furnace (1pc) – Model: N96MSN0802120A
Installation and User Documentation
Manufacturer Warranty Information
Key Features:
- 16.9 SEER2 high-efficiency inverter heat pump condenser
- Variable speed condenser operation
- Two-stage / inverter condenser performance
- 3 ton multi-positional A-coil design
- 96% AFUE single stage gas furnace
- ECM blower motor
- Flexible installation: upflow, downflow, or horizontal furnace configuration
- R410A refrigerant
- UL Listed evaporator coil
- Energy Star rated furnace
Important
All HVAC equipment must be installed by a trained and qualified technician. Proper installation is required for safe operation and to maintain manufacturer warranty coverage. Online registration may be required to receive full warranty benefits.
Gas Furnace Safety Notice: This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
Safety Information: PROPOSITION 65 WARNING
System Components
| Component | Model / SKU |
|---|---|
| 2.5 Ton 16.9 SEER2 High Efficiency Heat Pump Condenser | ACIQ-30-EHPB |
| 3 Ton 21" Width Multi-Positional Evaporator Cased Coil | ACIQ-36-ACL |
| 96% AFUE 80,000 BTU Single Stage Gas Furnace | N96MSN0802120A |
Warranty
- Coil: 10 Years Parts Warranty with Online Registration
- Condenser: 12 Year Compressor / 7 Year Parts with Online Registration
- Furnace: 20 Year Heat Exchanger / 10 Year Parts with Online Registration
Technical Information
Evaporator Coil: ACIQ-36-ACL
| Specification | Details |
|---|---|
| SKU | ACIQ-36-ACL |
| Manufacturer | ACiQ |
| Configuration | Multi-Positional |
| Style | A-Coil |
| Tonnage | 3 Ton |
| Refrigerant | R410A |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Certification | UL Listed |
| Height | 24" |
| Width | 21" |
| Depth | 21" |
| Weight | 73 lbs |
| Warranty | 10 Years Parts Warranty with Online Registration |
Outdoor Unit: ACIQ-30-EHPB
| Specification | Details |
|---|---|
| SKU | ACIQ-30-EHPB |
| Manufacturer | ACiQ |
| Cooling Capacity | 30,000 BTU |
| Heating Capacity | 31,000 BTU |
| SEER2 | 16.9 |
| HSPF | 9.3 |
| HSPF2 | 7.1 |
| Maximum CFM | 3000 |
| Decibel Level | 63 dBA |
| Product Features | High Efficiency / Inverter, Two Stage Condenser, Variable Speed Condenser |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 35 Amps |
| Min. Breaker Size | 20 Amps |
| Tonnage | 2.5 Ton |
| Min/Max Outdoor Temp for Heating | 5～75 |
| Min/Max Outdoor Temp for Cooling | 5～122 |
| Zone Compatibility | Single Zone |
| Refrigerant Charge | 25' |
| Height | 26.5" |
| Width | 35.04" |
| Depth | 13.46" |
| Weight | 151.46 lbs |
| Warranty | 12 year compressor, 7 year parts with online registration |
Furnace: N96MSN0802120A
| Specification | Details |
|---|---|
| SKU | N96MSN0802120A |
| AHRI Certificate Number | 213148761 |
| Manufacturer | ACiQ |
| Replaces | N95ESN0802120A |
| Equivalent | Carrier Equivalent: 59SC5B080E21--20 Tempstar Equivalent: TN95ESN0802120A Bryant Equivalent: 915SB60080E21 |
| Product Features | New Refrigerant Compliant |
| Furnace Efficiency / AFUE | 96% |
| Heating Capacity | 80,000 BTU |
| Blower Motor | ECM |
| Maximum CFM | 1855 |
| Configuration | Upflow/Downflow/Horizontal |
| Energy Star | Yes |
| Burner Stages | Single |
| Fuel Type | Propane, Natural Gas |
| Height | 35" |
| Width | 21" |
| Depth | 29 1/2" |
| Weight | 154 lbs |
| Warranty | 20 Year Heat Exchanger / 10 Year Parts with Online Registration |
Certifications
- UL Listed Coil
- Energy Star Furnace
- AHRI Matched System Documentation Available
