The ACiQ Extreme series makes ultra-high efficiency heating and cooling affordable for everyone. With SEER as high as 25 and HSPF as high as 13 you can experience the high performance and maximum efficiency that usually costs much more.

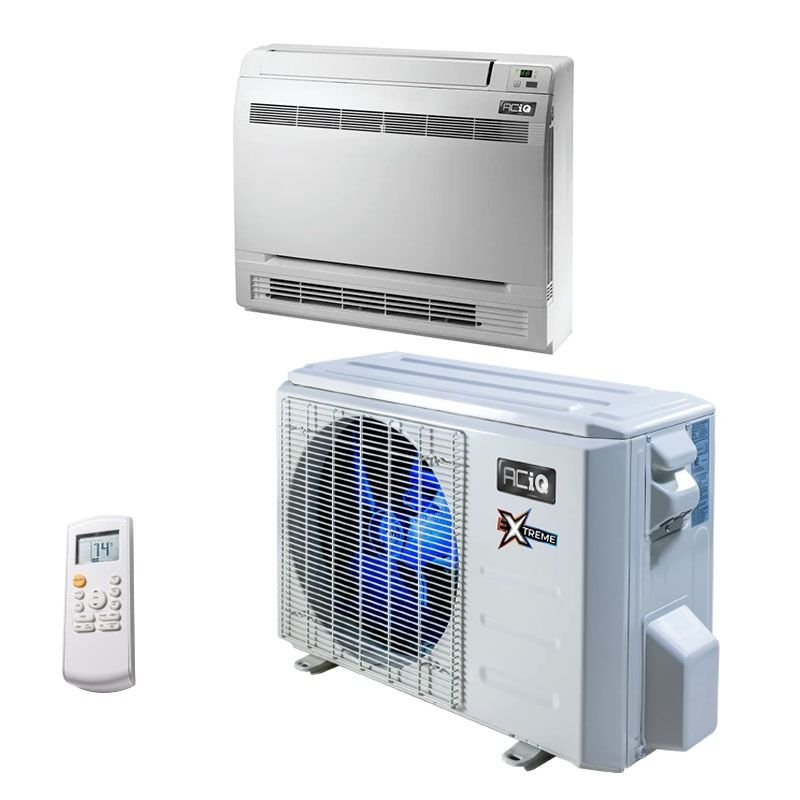

12,000 BTU ACiQ Extreme Series Single Zone Condenser | R454B OVERVIEW
The ACiQ Extreme series features Extreme Heat technology that enables continuous heating all the way down to -22 degrees outside. With high SEER2 and high HSPF, you get maximum efficiency whether you are cooling or heating your space.
QUICK FACTS
- Maximum performance at an affordable cost
- Ideal for smaller rooms (depending on climate)
- 12,000 BTU, 25.4 SEER2 mini split
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Gold fin condenser full-protection coating
- Quiet operation at even the highest workloads
12,000 BTU, 25.4 SEER2

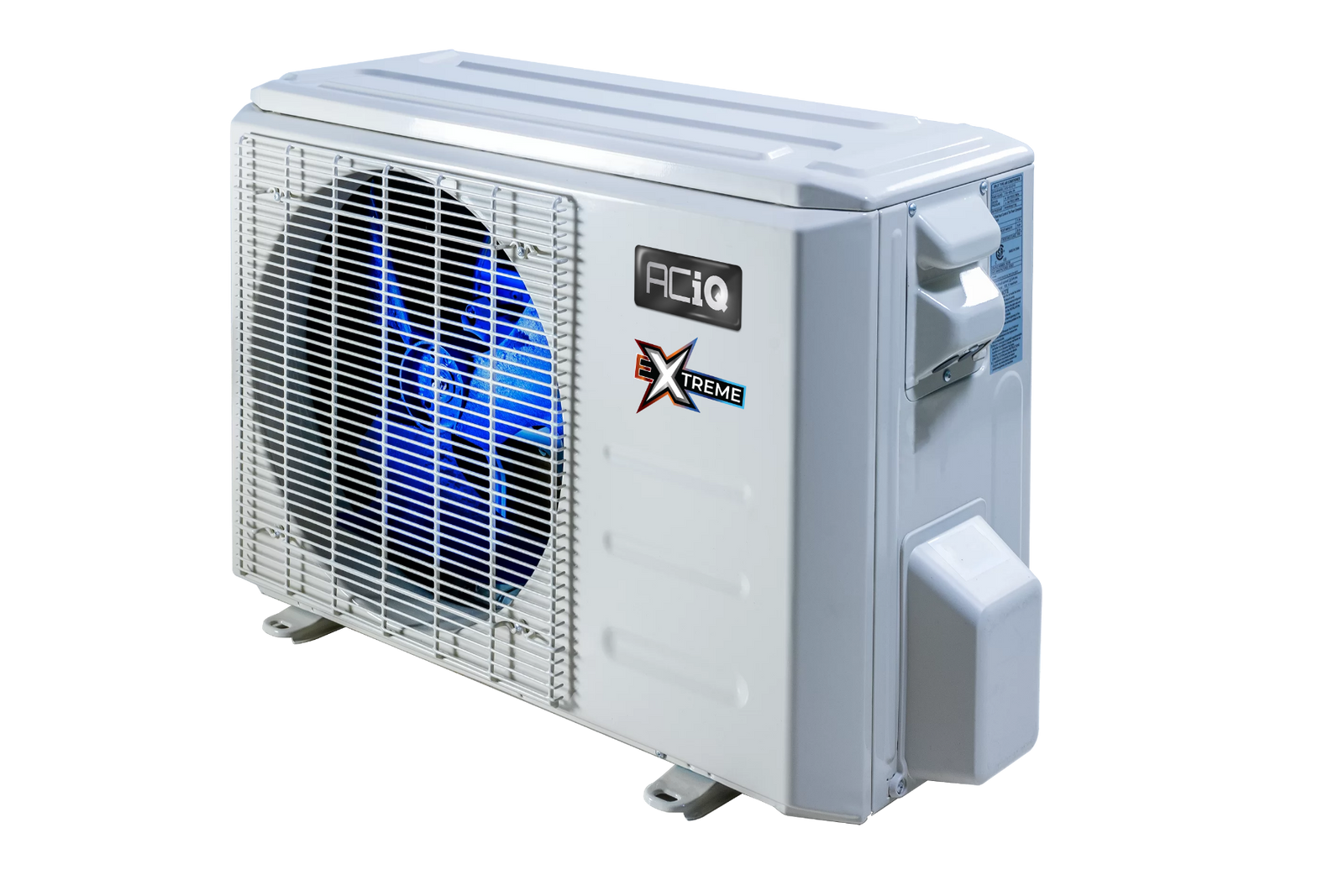

The ACIQ-12ZPL-HP230C Condenser, when matched with a compatible 12,000 BTU air handler, has enough capacity for small to medium rooms. The dual rotary compressor and variable inverter technology give this system exceptionally high efficiency ratings.
Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

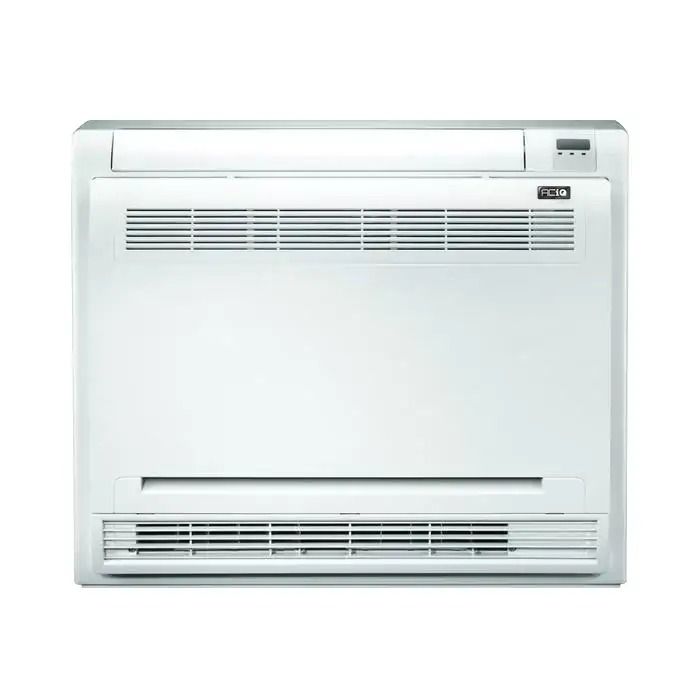

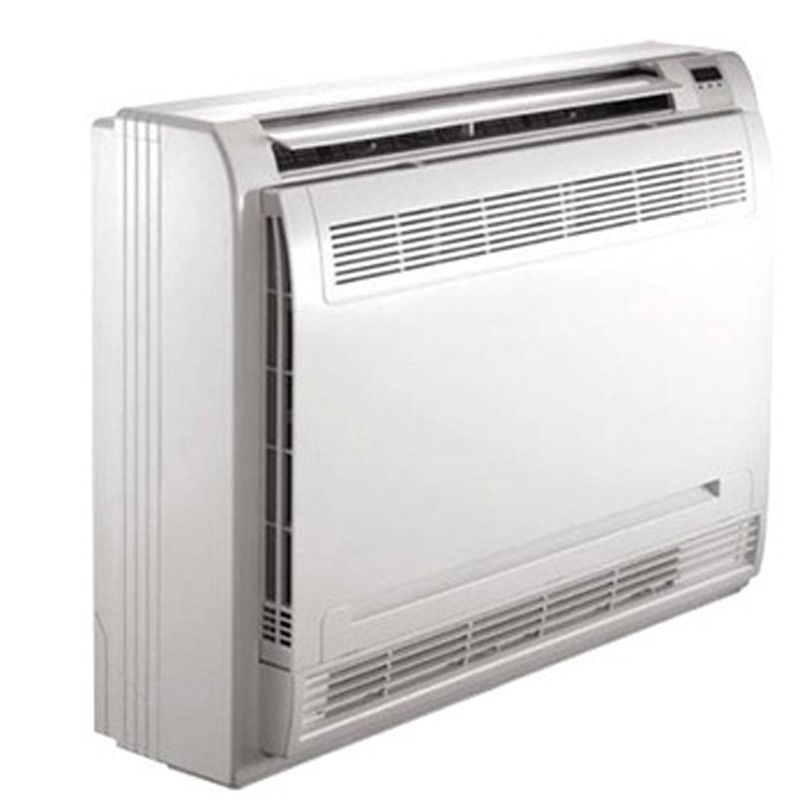

12,000 BTU Floor or Ceiling Mounted ACiQ Mini Split Air Handler| R454B ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
Optimized for Heat
Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.
FEATURES
- 12,000 BTU of Heating or Cooling
- Dry and Fan modes also available
- Good for a small room in most climates
- Remote control thermostat included
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feetRefrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
E Lite Equipment Pad 18" x 38" x 3" E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Mini Split Systems This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Condenser Risers - 4" x 18" - 2 Pack Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3" E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers - Accessory Set Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 1/2" x 6' Electrical Whip – SKU: 84136
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
