Description
Bring a new meaning of Attainable Luxury to the center of your kitchen with ZLINE's Ducted Wall Mount Range Hood in Stainless Steel. This hood's high-performance, 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking. Enhance your kitchen experience with premium features, such as built-in LED lighting, dishwasher safe baffle filters, a powerful, yet quiet motor that eliminates all odors, grease, and smoke as well as a stainless steel accent handle. ZLINE stands by the quality and durability of its Stainless Steel Range Hoods, backed with a worry-free lifetime motor warranty and 3 year parts warranty.
Key features
- Easy-to-use push button controls let you easily control fan speed and lighting
- 4-speed fan control (280/420/560/700 CFM) lets you choose the appropriate air flow for your cooking situation
- 700 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
- Fixed vent with ductwork that easily connects to the top of the range hood for external venting
- Dishwasher-safe stainless steel baffle filters

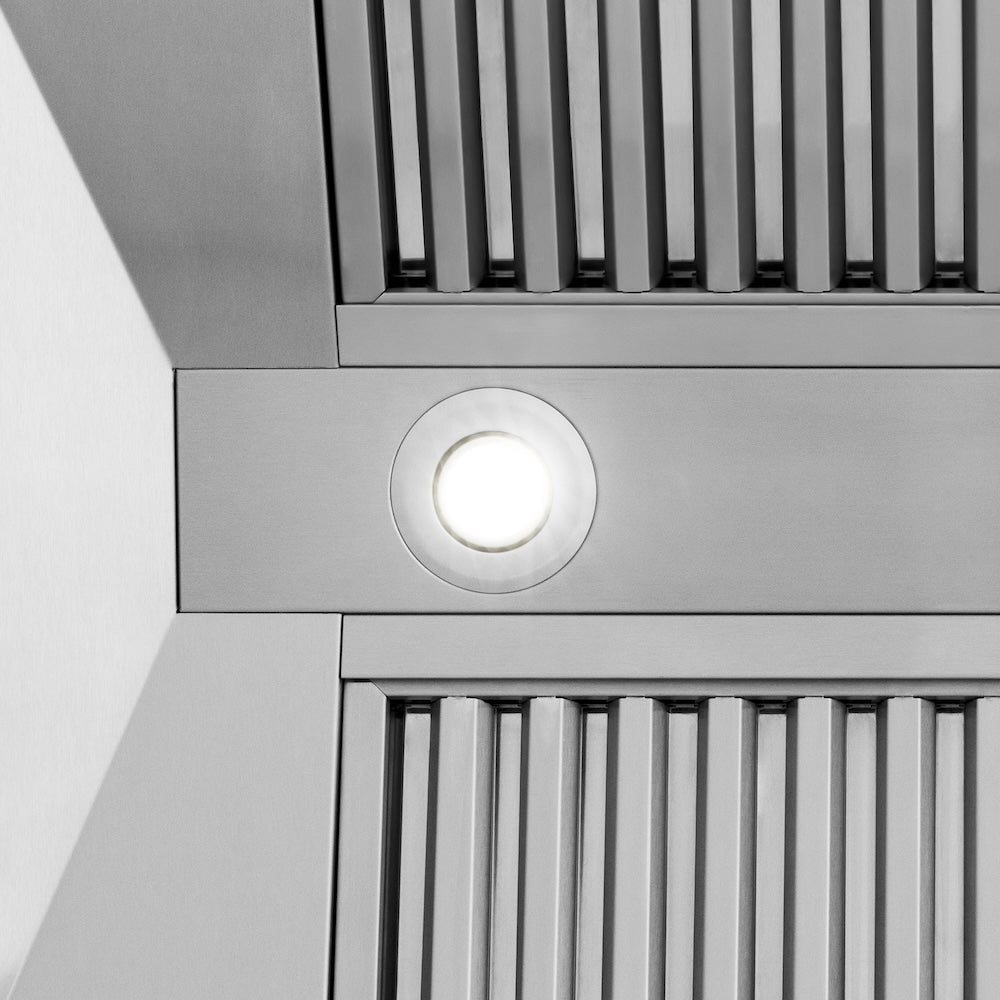

- LED lighting illuminates the cooktop beneath the hood
- Designed to fit standard (circular) ductwork for simple installation
- Handle is for cosmetic purposes only and should not be used for hanging items
- 3 year parts warranty, life-time motor warranty
- This product ships in multiple boxes and will require minimal assembly upon arrival
Specifications
| Brand | ZLINE |
|---|---|
| Model / MPN | 8654STX-48 |
| UPC | 810058126306 |
| Type | Wall Mount Range Hood |
| Width | 48 inches |
| Dimensions | 48 in. W x 23.75 in. D x 16 in. H |
| Chimney Dimensions | 13.25" W x 11.75" D x 35.5" H |
| Finish | Stainless Steel |
| Hardware Finish | Stainless Steel |
| Airflow by Speed | 280/420/560/700 CFM |
| Motor | High Performance 700 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Wall Mount |
| Number of Lights | 2 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Weight | 90 lb |
| Decibels | 51/55/58/61 dB |
| Duct Size | 8 in. |
| Voltage | 110 V |
| Amps | 5 A |
| Certifications | ETL Listed |
| Warranty | 3 year parts, life-time motor warranty |
Documents: User Manual · Product Spec Sheet
Authorized ZLINE dealer. Ships from ZLINE's U.S. warehouses to the contiguous 48 states. Inspect the range hood at delivery and note any damage on the delivery receipt before signing.
Professional installation is recommended. Ducting, venting and electrical work should follow the installation manual and local code.
