Description

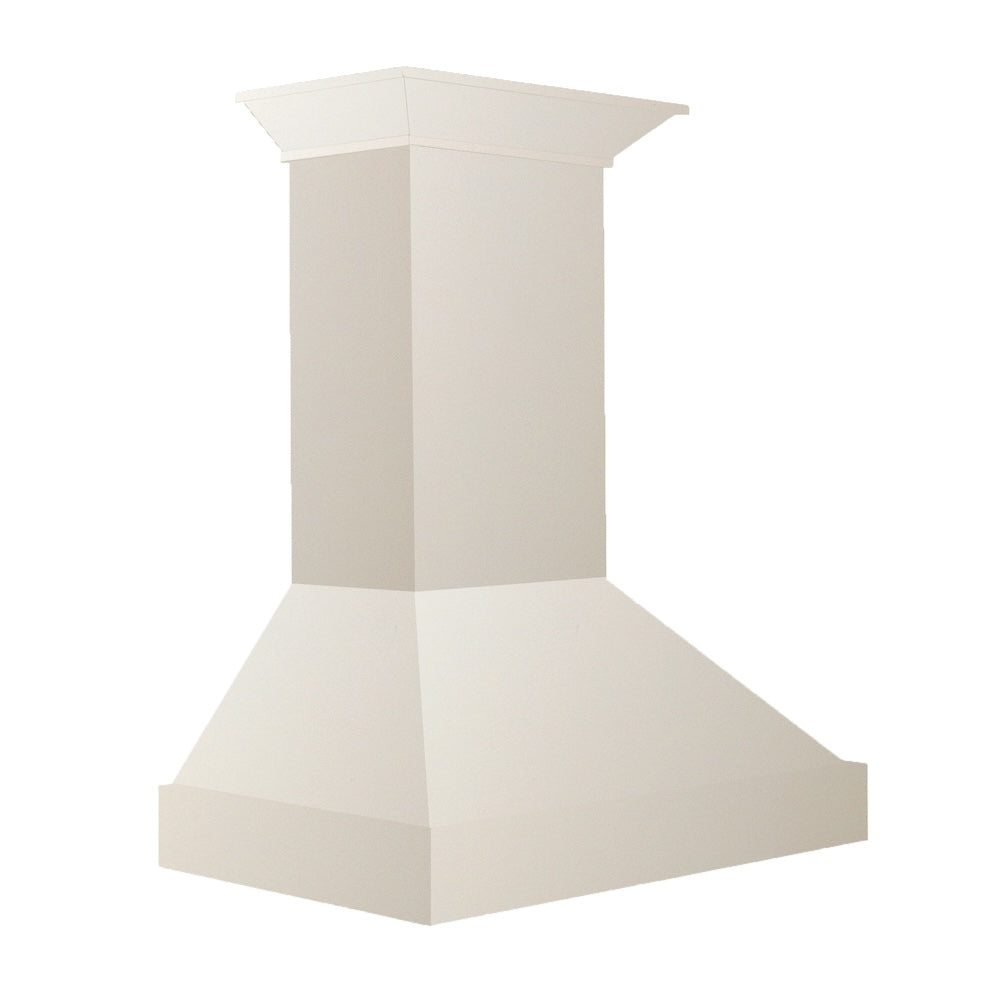

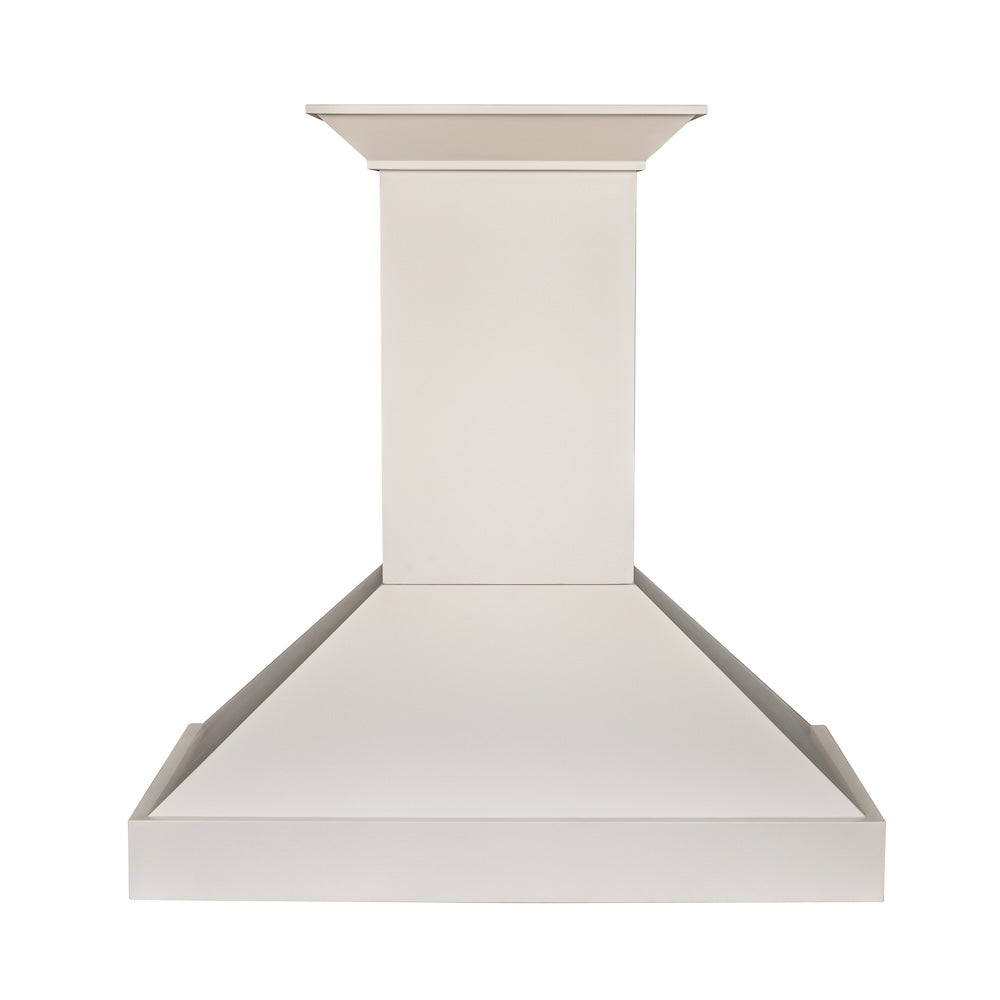

The ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury excellence with unrivaled performance designed to enhance your kitchen’s capability.
Key features

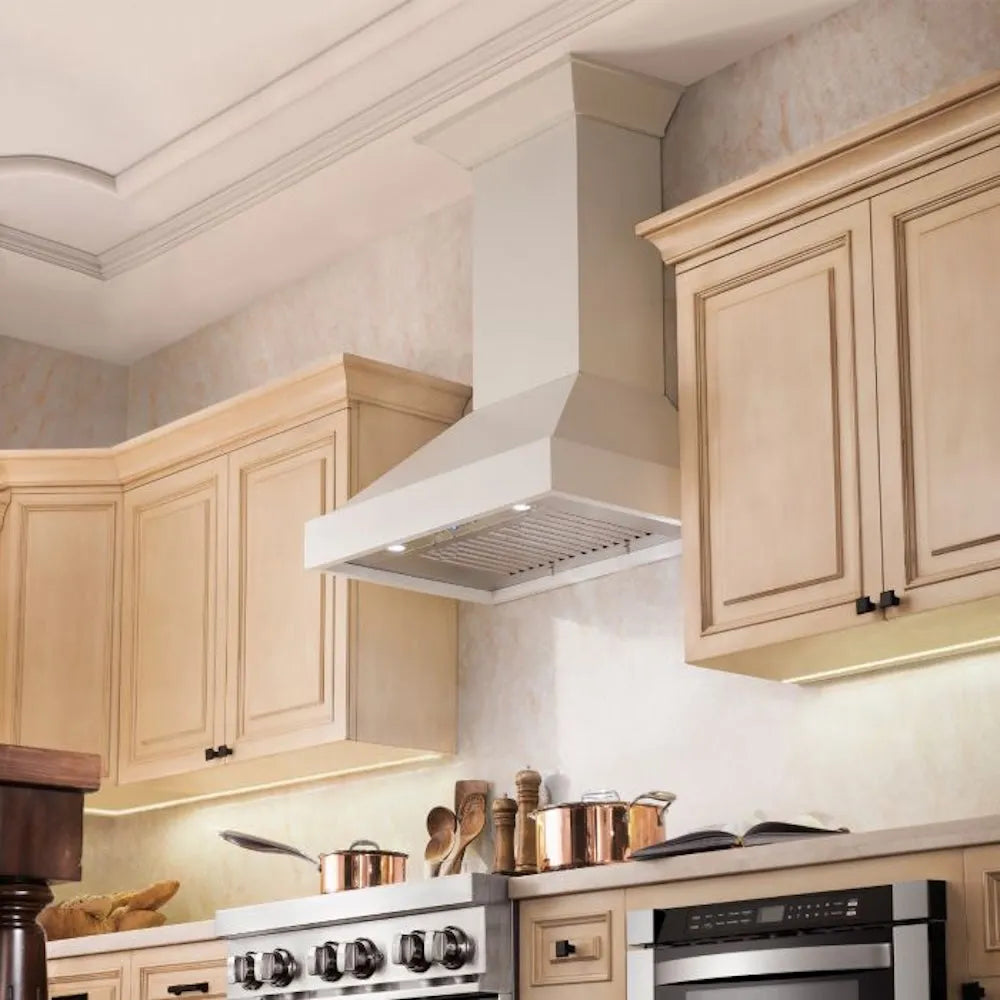

- Wall Mount Design: This chimney-style range hood is designed to install seamlessly into custom-built cabinetry set-ups by mounting directly to the wall above your cooktop
- Cottage White Wood Finish: Featuring an elegant cottage white hand-crafted pine wood finish paired with a stainless steel inner frame to add a rustic flair to any custom kitchen design
- Convenient Control Panel: Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control: Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
- Powerful Ventilation: The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area

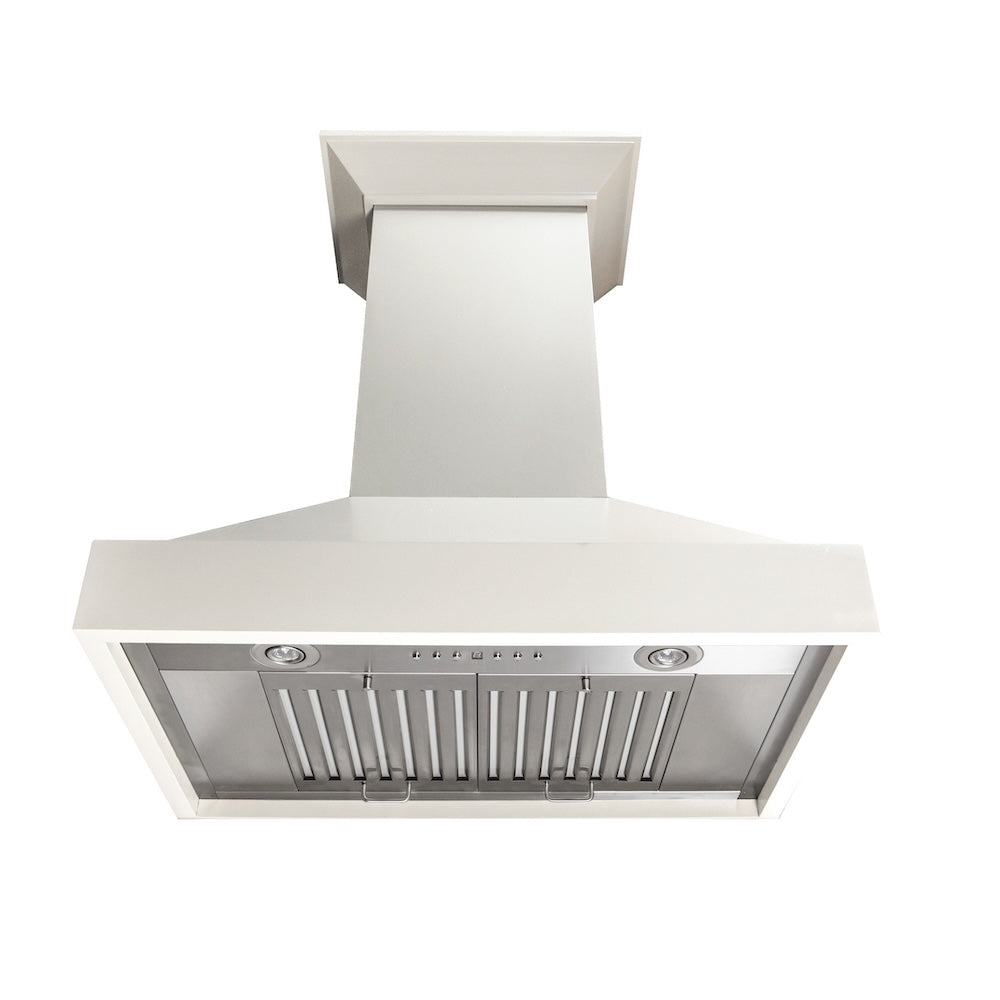

- Minimal Cleaning: This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
- LED Lighting: ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements: Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Standard Ductwork: ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
- Warranty: ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
Specifications
| Brand | ZLINE |
|---|---|
| Series | Wooden |
| Model / MPN | KBTT-30 |
| UPC | 817299025061 |
| Type | Wall Mount Range Hood |
| Width | 30 inches |
| Dimensions | 30 in. W x 18 in. D x 13.25 in. H |
| Chimney Dimensions | 12.5" W x 9.25" D x 23.5" H |
| Finish | Solid Wood Exterior with Stainless Steel Insert, Cottage White Painted Finish |
| Airflow by Speed | 120/240/320/400 CFM |
| Motor | High Performance 400 CFM/4-Speed Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Wall Mount |
| Number of Lights | 2 |
| Number of Speeds | 4 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff) |
| Weight | 55 lb |
| Decibels | 51/55/58/61 dB |
| Duct Size | 6 in. |
| Voltage | 110 V |
| Amps | 3.5 A |
| Certifications | ETL Listed, CEC Listed |
| Warranty | 3 year parts, life-time motor warranty |
Documents: User Manual · Product Spec Sheet
Authorized ZLINE dealer. Ships from ZLINE's U.S. warehouses to the contiguous 48 states. Inspect the range hood at delivery and note any damage on the delivery receipt before signing.
Professional installation is recommended. Ducting, venting and electrical work should follow the installation manual and local code.
