Description

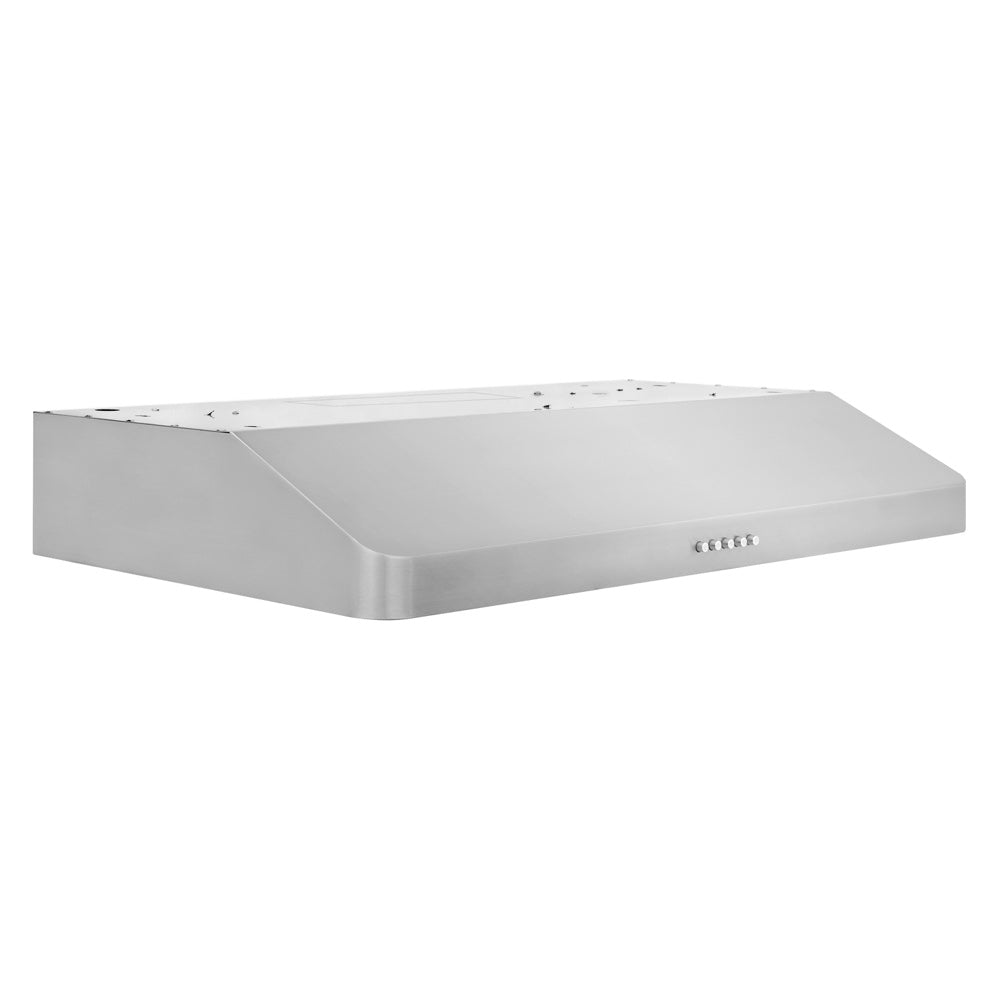

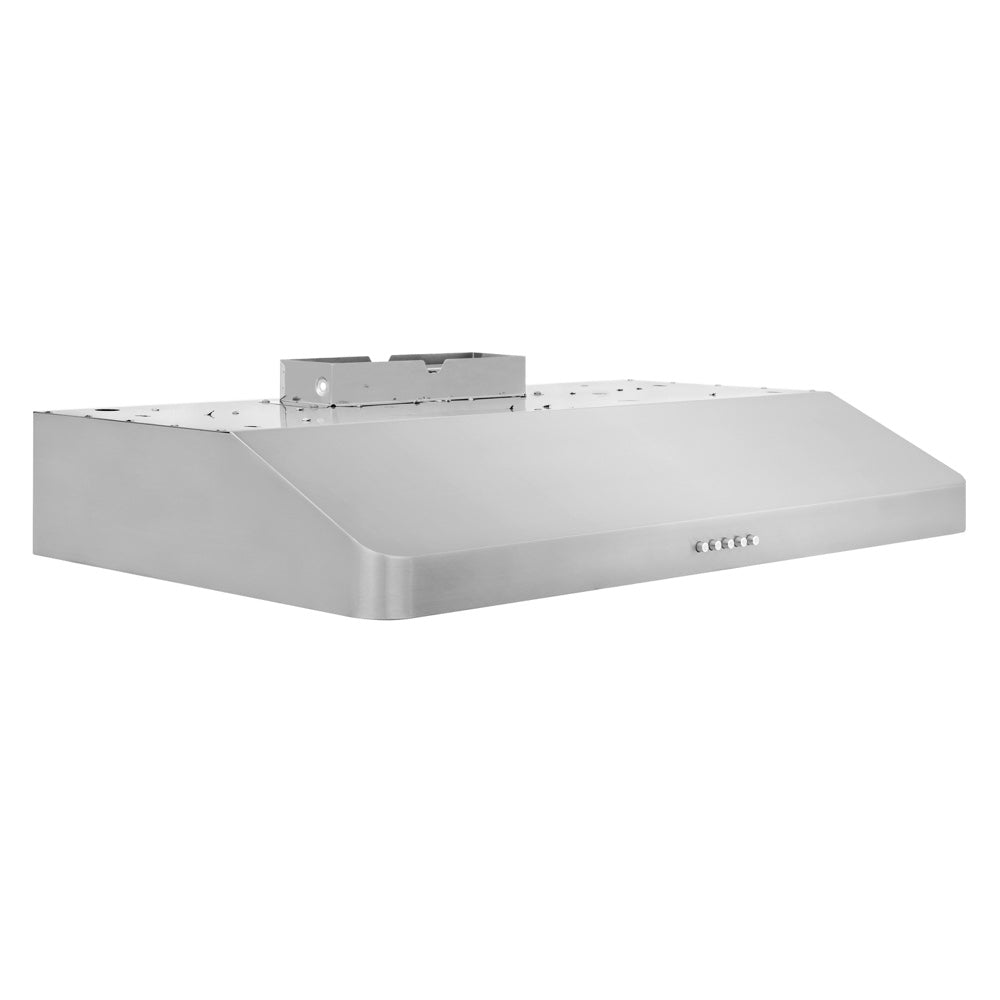

The ZLINE 30 in. 300 CFM Ducted Under-Cabinet Range Hood in Stainless Steel, Hardwired Power (617-30) features professional-grade airflow, quiet operation, bright LED lighting, dishwasher-safe baffle filters, and the industry’s first-ever lifetime motor warranty guarantee, bringing a new level of proven performance to custom kitchen ventilation.
Key features
- Under-Cabinet Design: This under-cabinet range hood is designed to install seamlessly into custom-built cabinetry setups by mounting directly above your cooktop
- Stainless Steel Finish: Brushed 430 grade stainless steel contains rust- and corrosion-resistant properties to ensure a durable range hood that will last for years to come
- Intuitive Control Panel: Easy-to-use push-button controls let you easily adjust 3 different fan speeds, lighting options, and an automatic shut-off timer
- Powerful Ventilation: The highest speed setting of 300 CFM airflow efficiently moves large amounts of grease, smoke, and odor-filled air away from your cooking area
- Minimal Cleaning: This ZLINE Range Hood includes 2 dishwasher-safe stainless steel baffle filters that are easy to remove and simple to clean
- Adjustable LED Lighting: This ZLINE Range Hood comes equipped with 2 energy-efficient, directionally adjustable LED lights that feature 2 brightness settings to illuminate your cooking surface
- Standard Ducting: This ZLINE Range Hood is designed to fit standard (rectangular) ductwork for simple installation; a transition piece for 3.25 in. x 10 in. ducting is included
- Electrical Requirements: Requires a dedicated 120V, 60Hz, 15-amp circuit; this model is hardwired-only and does not include a standard plug
- Warranty: Designed to perform and built to last, ZLINE Range Hoods are backed by a 3-year parts-only warranty, in addition to a lifetime fan motor warranty
Specifications
| Brand | ZLINE |
|---|---|
| Model / MPN | 617-30 |
| UPC | 814118020658 |
| Type | Under Cabinet Range Hood |
| Width | 30 inches |
| Dimensions | 29.5 in. W x 19 in. D x 5 in. H |
| Finish | Stainless Steel |
| Motor | 300 CFM Dual Motor |
| Filters | Stainless Steel Baffle Filters (Dishwasher-safe) |
| Mount Type | Under Cabinet |
| Number of Lights | 2 |
| Number of Speeds | 3 |
| Control Type | Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff) |
| Button Panel | Push Button Control Panel (3-Speed Fan Control/Lights) |
| Weight | 26 lb |
| Duct Size | 9.875x3.25 |
| Voltage | 120V |
| Amps | 3A |
| Certifications | ETL Listed, CEC Listed |
| Warranty | 3 year parts, life-time motor warranty |
Documents: User Manual · Installation Manual · Product Spec Sheet
Authorized ZLINE dealer. Ships from ZLINE's U.S. warehouses to the contiguous 48 states. Inspect the range hood at delivery and note any damage on the delivery receipt before signing.
Professional installation is recommended. Ducting, venting and electrical work should follow the installation manual and local code.
